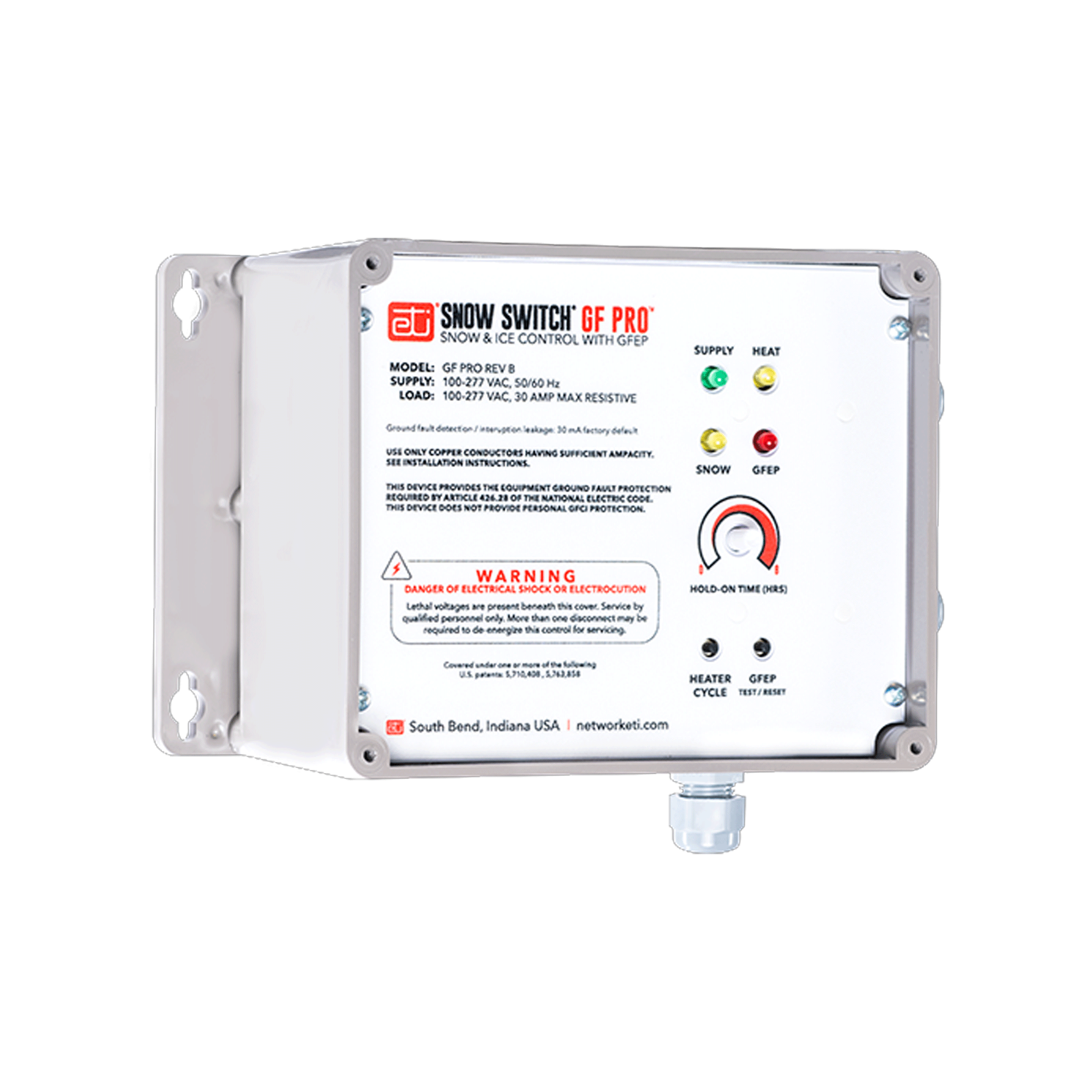

ETI® Snow Switch® Model GF Pro (23917)
The Snow Switch Model GF Pro is an automatic control system designed for efficient snow and ice melting. Engineered for both commercial and residential applications, this controller is ideal for managing heating systems for pavement, sidewalks, loading docks, roofs, and gutters.
The GF Pro features built-in 30mA, self-testing Ground Fault Equipment Protection (GFEP) and supports dual sensors for optimized site performance. With both automatic and manual-override controls, it ensures complete surface clearing while minimizing operating costs.
The PD Pro interfaces with up to two Environmental Technology sensors (GIT–1 or SIT–6E, sold separately) to provide tailored site performance.
- Efficient Control: Automatic operation minimizes energy consumption; includes an adjustable "Hold-On" timer to ensure surfaces are completely dry.
- Robust Design: Weather-resistant NEMA 4X enclosure; rated for up to 30 amp resistive loads with a supply voltage of 100–277 VAC.
- Advanced Safety: Integrated 30mA GFEP with digital filtering to prevent false tripping; UL Listed for temperature regulating equipment.
- Versatile Integration: Compatible with up to two Environmental Technology sensors (sold separately) for tailored site requirements.
-
Flexible Operation: Features manual-override controls and is compatible with the optional RCU-4 remote control unit for convenient management.
- Safety Certified: C-UL-US Listed for Temperature Regulating Equipment.
NOTE: For International availability please contact BriskHeat.
Since 1949
Area of Use:Nonhazardous locations
Dimensions:5 1/2" (L) x 8 1/8" (W) x 4 3/8" (H) / 140mm (L) x 207mm (W) x 112mm (H)
Protection:IP 66, NEMA 4X
Entries:
- 2 x 3/4" entry (bottom right) for NEC Class 2 connections
- 3 x 1-1/16" entries (bottom left) for supply and load power
Mounting:Wall mount
Supply Voltage:100 –277 VAC; 50/60 Hz
Load:30 amp maximum resistive
Power Cable:Size for heater load (30 amps maximum)
Heater Cable:Size for maximum heater load
Operating Temperature:-31°F to 113°F (−35°C to 45°C)
Storage Temperature:-67°F to 167°F (−55°C to 75°C)
109R
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
Freeze Protection
Snow & Ice Melting
| Part No. | Description |
|---|---|
| 23917 | GF Pro |
Snow/Ice Sensors (Not Included)
| Part No. | Description |
|---|---|
| 11351 | Git-1 Gutter Ice Sensor |
| 24219 | SIT–6E Pavement Mounted Snow and Ice Sensor |
