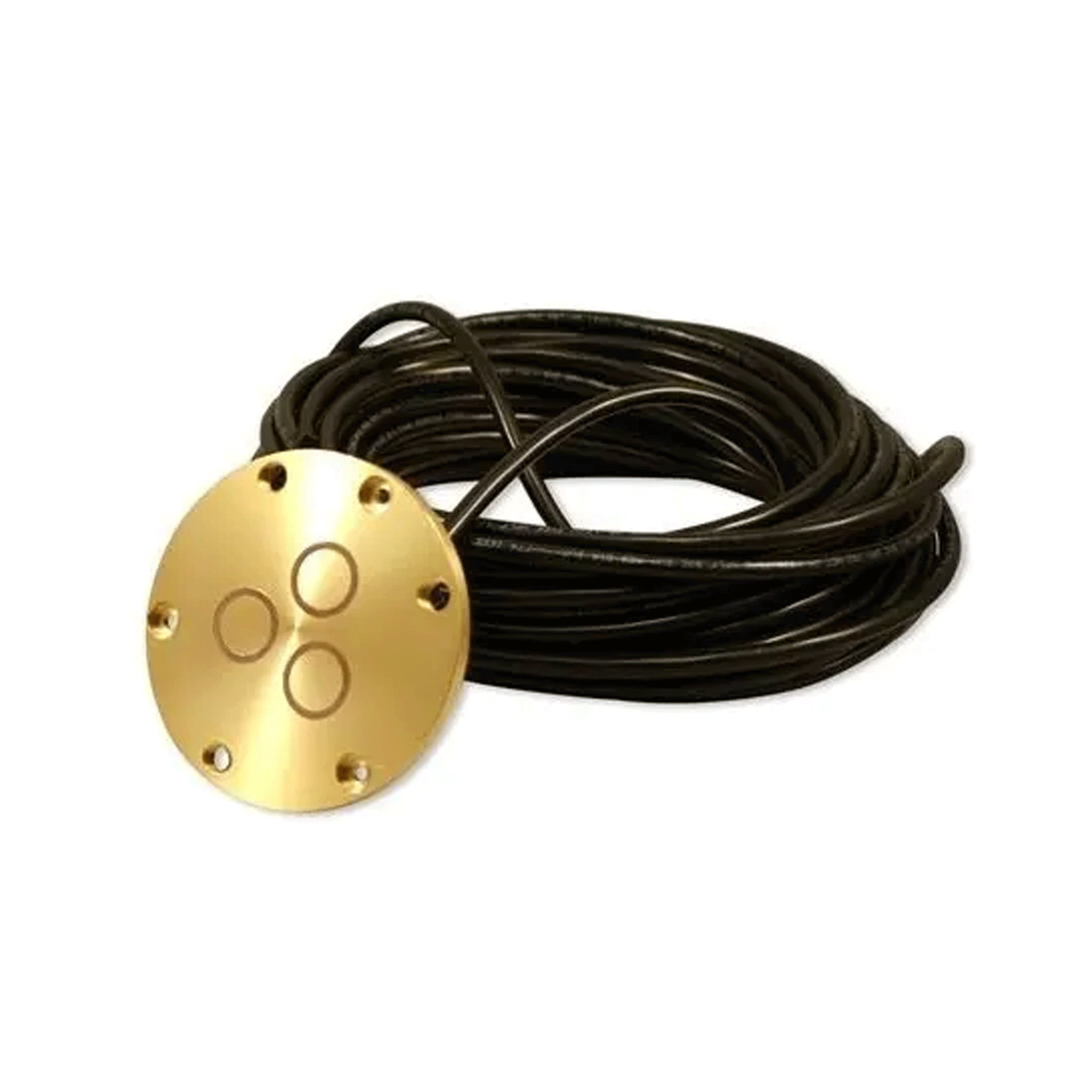

ETI® Snow Switch® SIT–6E Pavement Mounted Snow and Ice Sensor (24219)
$983.00
SKU:24219
The Snow Switch Model SIT–6E Pavement-Mounted Snow and Ice Sensor provides reliable detection of snow and ice conditions on pavement surfaces. Designed for use with any ETI APS, Pro Series, or EUR model control panel, this sensor ensures deicing heaters operate only when necessary, effectively minimizing energy costs while ensuring optimal snow melting performance.
The sensor activates at pavement temperatures below 38°F (3.3°C) when moisture—including water, snow, sleet, or ice—is present. For optimal results, it is recommended to pair the SIT–6E with a CIT–1 aerial snow sensor to detect falling precipitation immediately.
The required pavement sensor housing (23832) is sold separately.
- Precise Control: Enables deicing based on actual pavement conditions to reduce energy waste.
- Rugged Reliability: Durable construction designed for long-term, trouble-free operation in demanding outdoor environments.
- Simplified Integration: Low-voltage operation and straightforward installation; meets NEC Class 2 requirements for wet locations.
-
System Flexibility: Compatible with a wide range of ETI control panels and ideal for use with aerial sensors for proactive snow detection.
NOTE: For International availability please contact BriskHeat.
Quality Guaranteed
Since 1949
Since 1949
Activation Temperature:38˚ F (3.3˚ C)
Dimensions:
- Top Diameter: 3.875 in (9.84 cm)
- Top Thickness: 0.25 in (6.35 mm)
- Mounting Depth: 2 in (5 cm)
Supply Voltage:24V FWR +/-15% (supplied by panel)
Supply Current:5 mA idle, 0.25 A max., 6 W max.
Snow & Ice Response Time:10 to 20 seconds
Operating Temperature:−40°F to 160°F (−40°C to 71°C)
Storage Temperature:−50°F to 180°F (−45°C to 82°C)
Lead Length:
- 60 ft (18.3 m) included; may be extended:
- Up to 500' (152m) using 18 AWG 3-wire jacketed cable
- Up to 2,000' (609m) using 12 AWG 3-wire jacketed cable
Freeze Protection
Snow & Ice Melting
| Part No. | Description |
|---|---|
| 24219 | SIT–6E Pavement-Mounted Sensor (requires 23832 Pavement Sensor Housing) |
| 23832 | Pavement Sensor Housing (not included) |
