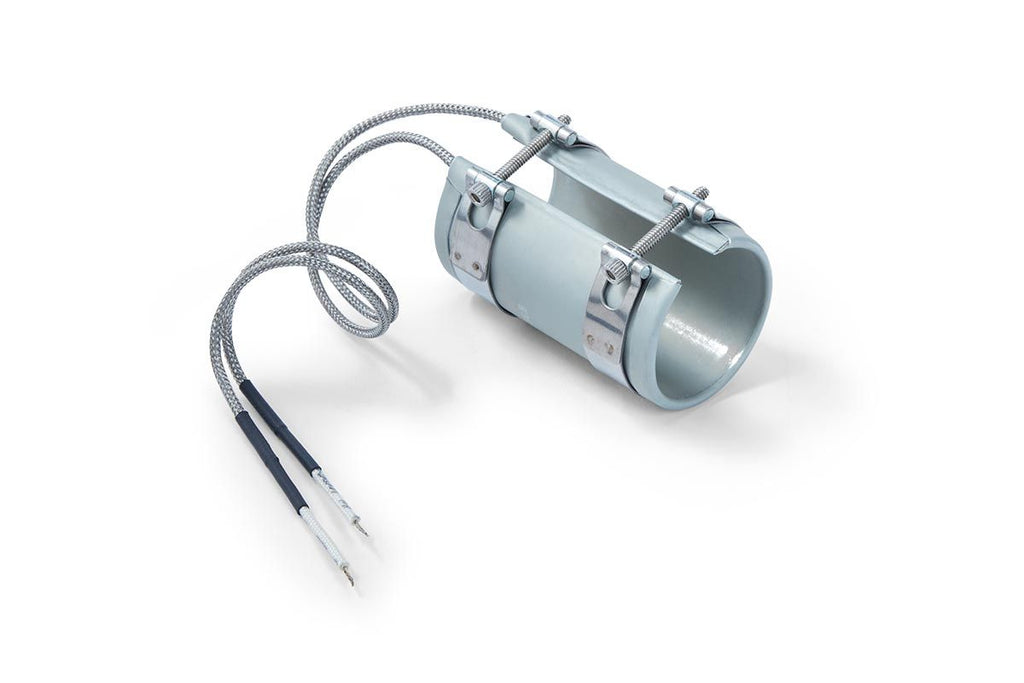

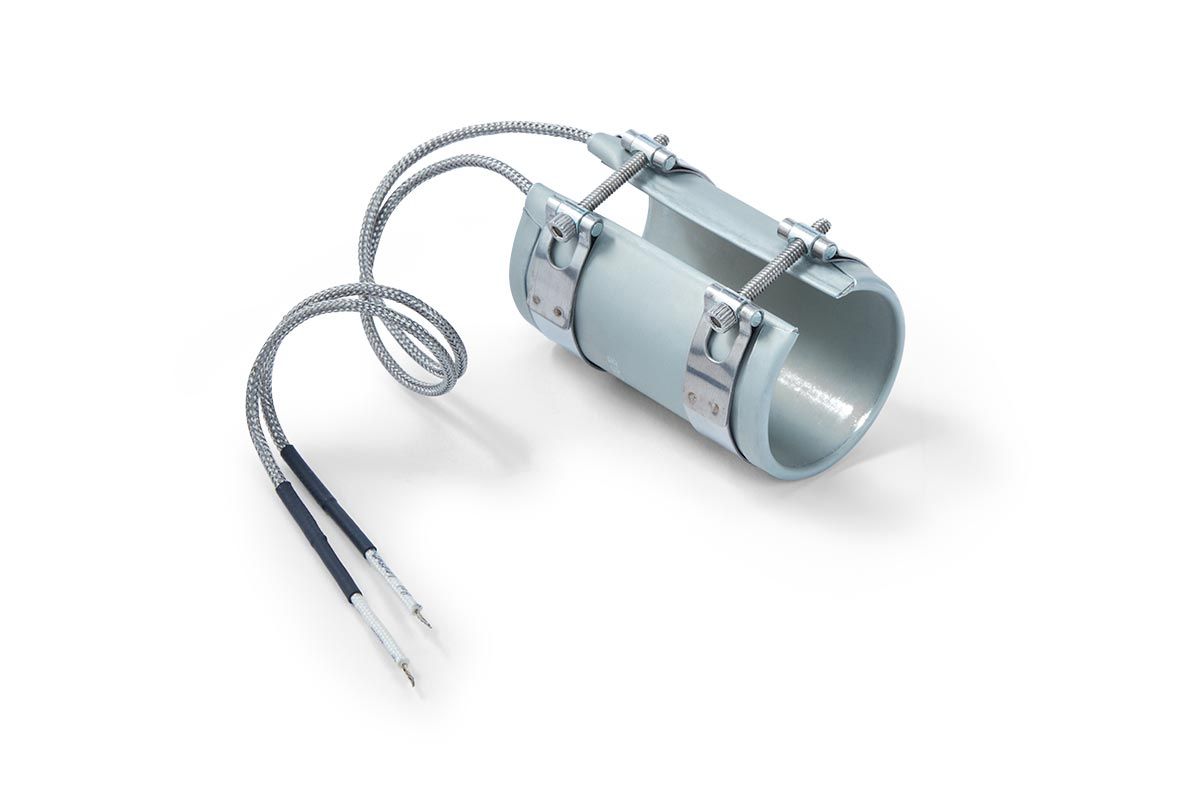

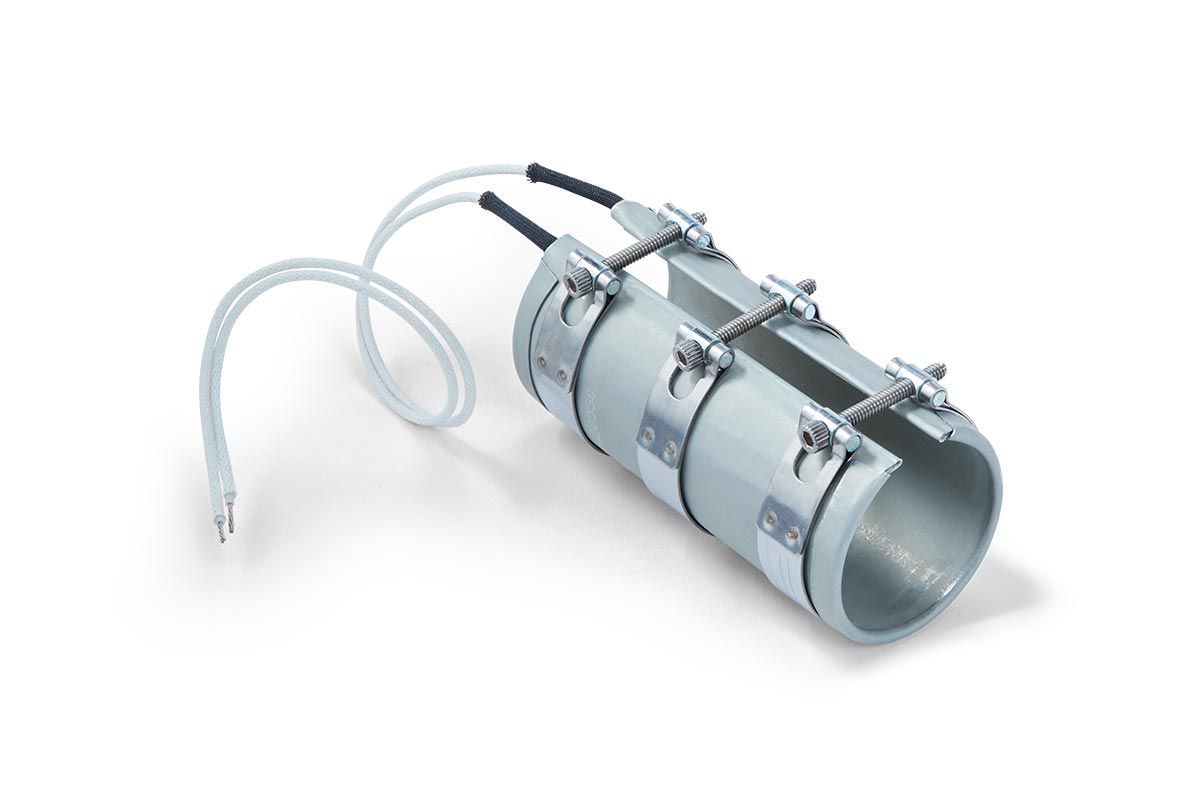

Mica Nozzle Heaters
Mica Nozzles are available in a variety of diameters, widths, voltages, and wattage clamp styles and power connections. High-temperature galvanized sheath provides oxidation resistance and extreme durability. The stainless steel band barrel clamps maintain clamping pressure at elevated temperatures.
- 120 VAC. 200 W.
- Dimensions 1.00 in x 2.00 in (25.4 mm x 50.8 mm).
- Maximum Sheath Temperature 850 F (454 C).
- 10 in (254mm) 20 AWG 200C Fiberglass Braided Silicone Leads with Bare Wire (No Plug). Leads On Both Sides.
- Stainless Steel Strap Clamps with Barrel Nut.
Please complete all selections above to add this item to cart.
Since 1949
Additional Features:
- Premium grade mica insulation offers excellent electrical isolation and corrosion resistance
- Nickel/chromium resistance wire is evenly wound for uniform heat distribution and reliable accuracy
- Low-profile designs are approximately 1/8 in (3 mm) thick
- High-watt density up to 40 W/in2 (6 W/cm2) for high performance heating
- Operating temperature 900°F (482°C) standard, or 1200°F (649°C) with stainless steel sheath
Diameters: 1-3 in (25-76 mm)
Width: 1-6 in (25-102 mm)
Voltage: Up to 480 VAC
Maximum Wattage: Determined by heater size and application temperature
Standard Construction: 10 in (254 mm) hi-temp leads and clamping straps (stainless steel braid and wedhe clamps available)
Watt Density Formulas
Watt Density Formula for Band Heaters with Posts = Wattage / (Heater I.D. x 3.14) - 1.75 x Width
Watt Density Formula for Band Heaters with Leads = Wattage / (Heater I.D. x 3.14) - .75 x Width
Maximum Allowable Watt Density
| Size / Temperature | 200°F | 300°F | 400°F | 500°F | 600°F | 700°F | 800°F |
|---|---|---|---|---|---|---|---|
| 1.5 - 3 Inside Diameter | 52 | 51 | 50 | 46 | 41 | 37 | 29 |
| 3-10 Inside Diameter | 47 | 46 | 45 | 42 | 38 | 33 | 25 |
| 10 and Larger Inside Diameter | 41 | 40 | 39 | 36 | 31 | 27 | 20 |
Nozzle Heater Ordering Information
| Barrel Diameter in (mm) | Width in (mm) | Volts | Watts | Part No. |
| 1 (25) | 1 (25) | 120 | 100 | NZ1010-10100 |
| 1 (25) | 1 (25) | 120 | 125 | NZ1010-10125 |
| 1 (25) | 1 (25) | 120 | 125 | NZ1010-10125B |
| 1 (25) | 1 (25) | 240 | 100 | NZ1010-20100 |
| 1 (25) | 1 (25) | 240 | 125 | NZ1010-20125 |
| 1 (25) | 1 (25) | 240 | 125 | NZ1010-20125B |
| 1 (25) | 1.5 (38) | 120 | 150 | NZ1015-10150 |
| 1 (25) | 1.5 (38) | 240 | 150 | NZ1015-20150 |
| 1 (25) | 2 (51) | 120 | 200 | NZ1020-10200 |
| 1 (25) | 2 (51) | 240 | 200 | NZ1020-20200 |
| 1 (25) | 3 (76) | 120 | 300 | NZ1030-10300 |
| 1 (25) | 3 (76) | 240 | 300 | NZ1030-20300 |
| 1 (25) | 4 (102) | 120 | 400 | NZ1040-10400 |
| 1 (25) | 4 (102) | 240 | 400 | NZ1040-20400 |
| 1.5 (38) | 1 (25) | 120 | 150 | NZ1510-10150 |
| 1.5 (38) | 1 (25) | 240 | 150 | NZ1510-20150 |
| 1.5 (38) | 1.5 (38) | 120 | 250 | NZ1515-10250 |
| 1.5 (38) | 1.5 (38) | 120 | 275 | NZ1515-10275 |
| 1.5 (38) | 1.5 (38) | 120 | 275 | NZ1515-10275B |
| 1.5 (38) | 1.5 (38) | 120 | 300 | NZ1515-10300 |
| 1.5 (38) | 1.5 (38) | 120 | 300 | NZ1515-10300B |
| 1.5 (38) | 1.5 (38) | 240 | 250 | NZ1515-20250 |
| 1.5 (38) | 1.5 (38) | 240 | 275 | NZ1515-20275 |
| 1.5 (38) | 1.5 (38) | 240 | 275 | NZ1515-20275B |
| 1.5 (38) | 1.5 (38) | 240 | 300 | NZ1515-20300 |
| 1.5 (38) | 1.5 (38) | 240 | 300 | NZ1515-20300B |
| 1.5 (38) | 2 (51) | 120 | 300 | NZ1520-10300 |
| 1.5 (38) | 2 (51) | 240 | 300 | NZ1520-20300 |
| 1.5 (38) | 2.5 (64) | 120 | 400 | NZ1525-10400 |
| 1.5 (38) | 2.5 (64) | 240 | 400 | NZ1525-20400 |
| 1.5 (38) | 3 (76) | 120 | 450 | NZ1530-10450 |
| 1.5 (38) | 3 (76) | 120 | 450 | NZ1530-10450B |
| 1.5 (38) | 3 (76) | 240 | 450 | NZ1530-20450 |
| 1.5 (38) | 3 (76) | 240 | 450 | NZ1530-20450B |
| 1.5 (38) | 4 (102) | 120 | 550 | NZ1540-10550 |
| 1.5 (38) | 4 (102) | 240 | 550 | NZ1540-20550 |
| 1.5 (38) | 5 (127) | 120 | 700 | NZ1550-10700 |
| 1.5 (38) | 5 (127) | 240 | 700 | NZ1550-20700 |
| 1.5 (38) | 6 (152) | 120 | 900 | NZ1560-10900 |
| 1.5 (38) | 6 (152) | 240 | 900 | NZ1560-20900 |
| 1.75 (44) | 1.5 (38) | 120 | 300 | NZ1715-10300 |
| 1.75 (44) | 1.5 (38) | 240 | 300 | NZ1715-20300 |
| 1.75 (44) | 2 (51) | 120 | 350 | NZ1720-10350 |
| 1.75 (44) | 2 (51) | 240 | 350 | NZ1720-20350 |
| 1.75 (44) | 3 (76) | 120 | 500 | NZ1730-10500 |
| 1.75 (44) | 3 (76) | 240 | 500 | NZ1730-20500 |
| 2 (51) | 1 (25) | 120 | 200 | NZ2010-10200 |
| 2 (51) | 1 (25) | 240 | 200 | NZ2010-20200 |
| 2 (51) | 1.5 (38) | 120 | 300 | NZ2015-10300 |
| 2 (51) | 1.5 (38) | 240 | 300 | NZ2015-20300 |
| 2 (51) | 2 (51) | 120 | 400 | NZ2020-10400 |
| 2 (51) | 2 (51) | 240 | 400 | NZ2020-20400 |
| 2 (51) | 2.5 (64) | 120 | 500 | NZ2025-10500 |
| 2 (51) | 2.5 (64) | 240 | 500 | NZ2025-20500 |
| 2 (51) | 3 (76) | 120 | 600 | NZ2030-10600 |
| 2 (51) | 3 (76) | 240 | 600 | NZ2030-20600 |
| 2.5 (64) | 1 (25) | 120 | 300 | NZ2510-10300 |
| 2.5 (64) | 1 (25) | 240 | 300 | NZ2510-20300 |
| 2.5 (64) | 1.5 (38) | 120 | 350 | NZ2515-10350 |
| 2.5 (64) | 1.5 (38) | 240 | 350 | NZ2515-20350 |
| 2.5 (64) | 2 (51) | 120 | 500 | NZ2520-10500 |
| 2.5 (64) | 2 (51) | 240 | 500 | NZ2520-20500 |
| 2.5 (64) | 3 (76) | 120 | 700 | NZ2530-10700 |
| 2.5 (64) | 3 (76) | 240 | 700 | NZ2530-20700 |
| 3 (76) | 1 (25) | 120 | 300 | NZ3010-10300 |
| 3 (76) | 1 (25) | 240 | 300 | NZ3010-20300 |
| 3 (76) | 1.5 (38) | 120 | 400 | NZ3015-10400 |
| 3 (76) | 1.5 (38) | 240 | 400 | NZ3015-20400 |
| 3 (76) | 2 (51) | 120 | 600 | NZ3020-10600 |
| 3 (76) | 2 (51) | 240 | 600 | NZ3020-20600 |
| 3 (76) | 3 (76) | 120 | 1000 | NZ3030-11000 |
| 3 (76) | 3 (76) | 240 | 1000 | NZ3030-21000 |
What is the difference between a Band Heater and a Nozzle Heater?
A nozzle heater is a smaller version of a band heater. Typically, a heater with a diameter of 3 in (76 mm) or less is considered a nozzle heater.
What is Mica and why is it important?
Mica is an electric insulation that surrounds the heating elements in band and nozzle heaters. It provides the dialectric strength needed for demanding applications.
What is the maximum watt density and operating temperature of a BriskHeat band or nozzle heater?
Maximum watt density is 40 W/in² (6 W/cm2) and maximum operating temperature is 850°F (454°C).
What 3rd-party approvals do BriskHeat band and nozzle heaters have?
By request, BriskHeat band and nozzle heaters can be manufactured to UL Standard UL499 and CE compliance.
What if the cylinder I need to heat has obstructions?
BriskHeat band and nozzle heaters can be made with cut-outs, holes, and slots.
Are all band and nozzle heaters cylindrical-shaped?
No. BriskHeat can also supply these heaters in “box” or rectangular shapes.
Are BriskHeat band and nozzle heaters approved for hazardous locations?
No.
