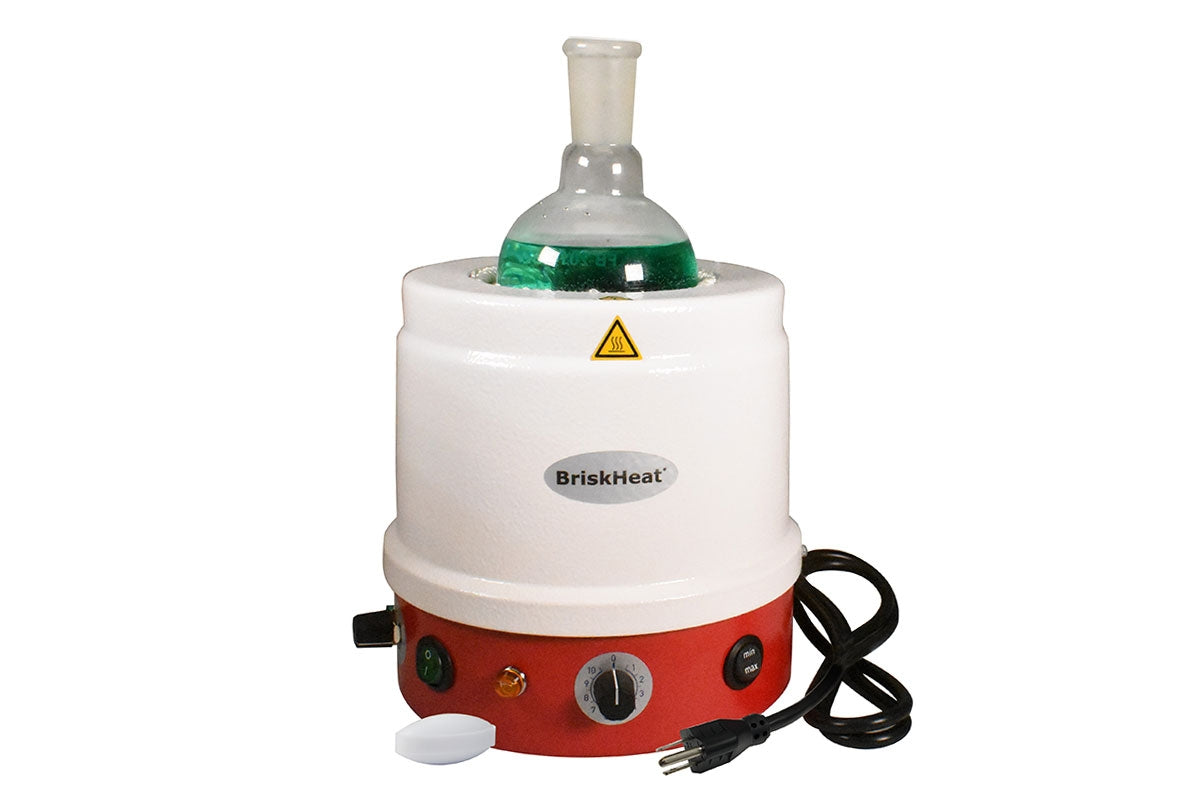

HM Metal-Housed Heating Mantles with Built-in Controller and Magnetic Stirrer
BriskHeat's all-in-one HM Metal Housed Heating Mantle with Control and Magnetic Stirrer are fiberglass insulated round bottom flask heaters for laboratory and pilot laboratory applications. These heating mantles provide uniform heat distribution to a variety of round bottom shaped vessels, to either increase temperature or keep volume contents at a constant process temperature. A safe alternative to other heating methods like a Bunsen Burner with its grounded, safe to touch tabletop, plug-and-play design.
*No Returns* This product will no longer be available.
- 500ml
- 220watt
- 120V
Since 1949

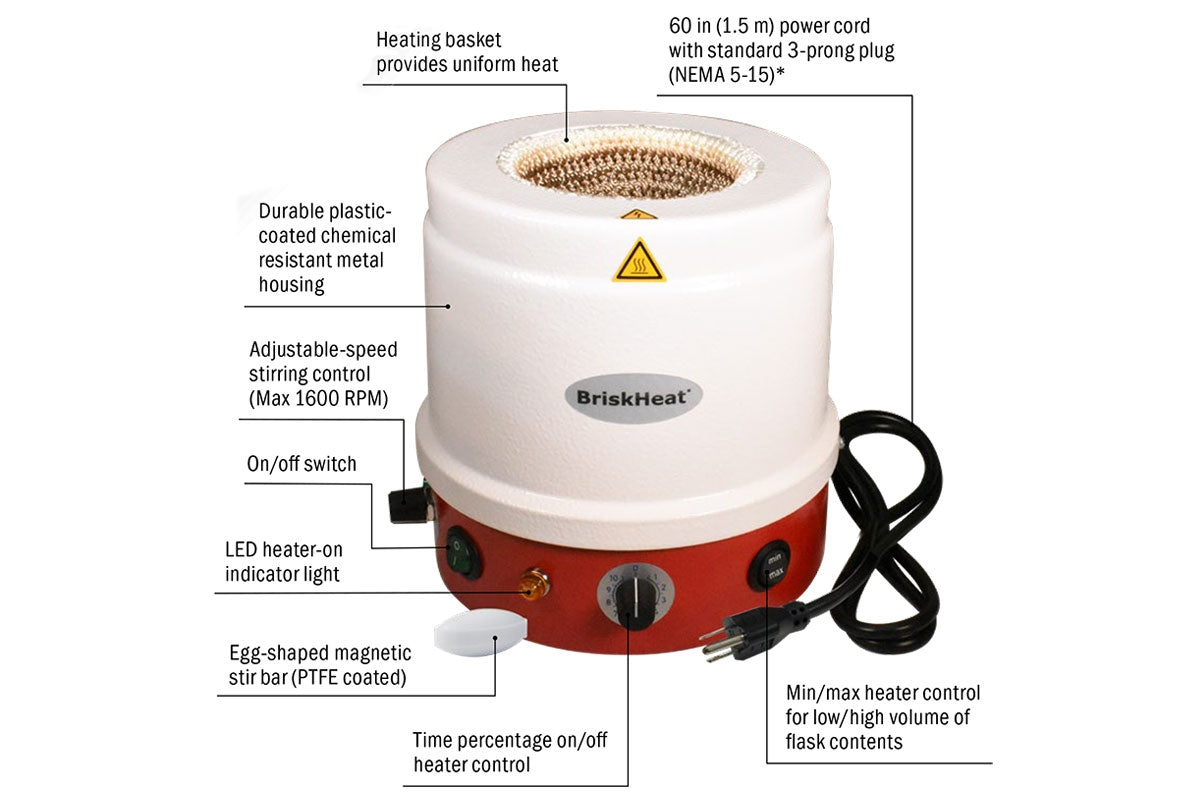

Additional Features:
- Safe to touch tabletop design
- Grounded for electrical safety
- Easy-to-use somple plug-and-play design
- Suitable for high temperatures
- Durable, long life
Ideal for:
- Heating and/or boiling liquid
- Distillation
- Chemical reactions
- Reflux set-ups
- Lab scale synthesis
- Storing culture media
Maximum Exposure Temperature: 842°F (450°C)
Outer Construction: Plastic coated chemical resistant housing
Voltage: 120 or 240 VAC
Power Cord: 5 ft (1.5 m) long with
- 120V includes standard 3-prong plug (NEMA 5-15)
- 240V crimped ferrule terminated leads
IP Rating: IP20
Heating Zones: Built-in 1 or 2 zone heating options
Holds: Round bottom flasks up to 1 liter (1,000 ml)
*Includes predrilled threaded hole on rear for clamp accessory
*CE approved for models with crimped ferrule leads
| With Magnetic Stirrer and Built-In Controller | With Built-In Controller | No Controller | ||||
| Part No. 120 V | Part No. 120 V | Part No. 240 V | Part No. 120 V | Part No. 240 V | Size (ml) | Total Watts |
| - | HM0050MC1 | HM0050MC2 | HM0050MH1 | HM0050MH2 | 50 | 60 |
| HM0100MS1 | HM0100MC1 | HM0100MC2 | HM0100MH1 | HM0100MH2 | 100 | 110 |
| HM0250MS1 | HM0250MC1 | HM0250MC2 | HM0250MH1 | HM0250MH2 | 250 | 165 |
| HM0500MS1 | HM0500MC1 | HM0500MC2 | HM0500MH1 | HM0500MH2 | 500 | 220 |
| HM1000MS1 | HM1000MC1 | HM1000MC2 | HM1000MH1 | HM1000MH2 | 1000 | 325 |
| - | HM2000MC1 | HM2000MC2 | HM2000MH1 | HM2000MH2 | 2000 | 545 |
| - | HM3000MC1 | HM3000MC2 | HM3000MH1 | HM3000MH2 | 3000 | 650 |
| - | HM4000MC1 | HM4000MC2 | HM4000MH1 | HM4000MH2 | 4000 | 815 |
| - | HM5000MC1 | HM5000MC2 | HM5000MH1 | HM5000MH2 | 5000 | 935 |
| - | HM6000MC1 | HM6000MC2 | HM6000MH1 | HM6000MH2 | 6000 | 1090 |
