Composite Curing Heating Blankets with Vacuum Seal (SRV)

$565.25

SKU:SRV512010X10SF

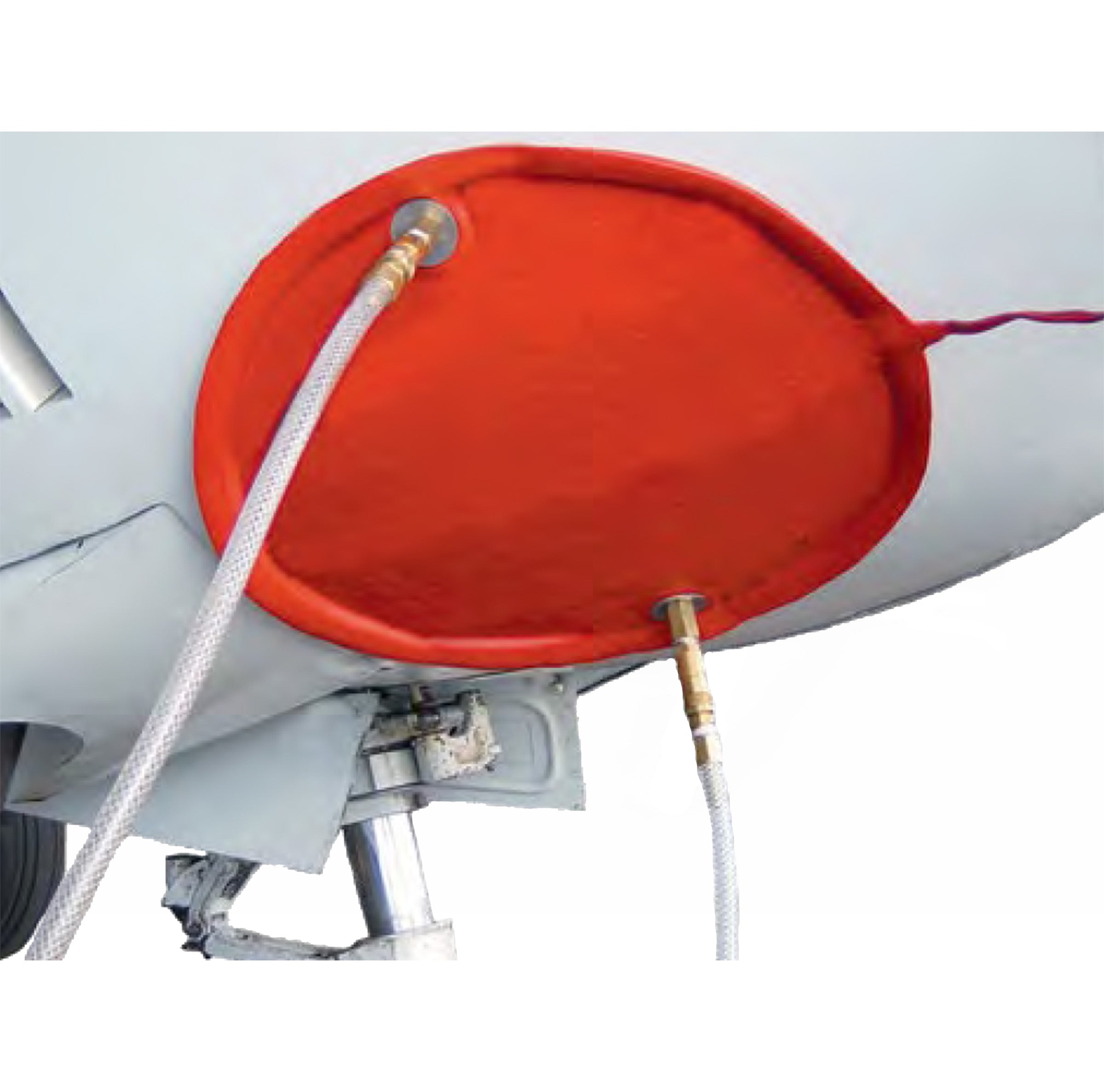

BriskHeat Composite Curing Blankets with Vacuum (SRV) are ideal for composite repair and fabrication. This highly flexible blanket can be used on horizontal surfaces, vertical surfaces, and on complex contoured surfaced without removing the damaged section. Acting as both a heater and a vacuum bag, these blankets are available in rectangular, round, and square dimensions, with a two-year warranty.

"F" Plug
10 x 10 in (254 x 254mm)heated area
13 x 16 in (330 x 406mm)blanket size
120 v
500 w

Ordering Options:

Voltage

Blanket Size in (mm)

Power Plug Type *

Shape *

Seal *

Please complete all selections above to add this item to cart.

Quality Guaranteed
Since 1949

Both a heater and a reusable vacuum bag
Two-year warranty
Highly flexible
Quick, efficient, non-stress producing heat up to 450oF (232oC)
Used on horizontal and vertical surfaces and on complex contoured surfaces without removing the damaged section
Includes power plug that is compatible with BriskHeat ACR 3 and MiniPRO™ Hot Bonders (NEMA L15-30). Other plug choices are available upon request

Additional Features:

Compatible with ACR® hot bonders and your current equipment
Wide variety of power plug choices
Saves time and money - vacuum ports build into blanker eliminates the need for vacuum bagging materials and vacuum bagging setup
Optional blanket seal around edge of heater eliminates need for tacky/sealant tape

Vacuum ports built into blanket eliminates the need for vacuum bagging materials
Blanket seal added around edge eliminates the need for tacky / sealant tape
Flexibility
Smooth surface against repair
Heating element laminated between two layers of non-reinforced silicone rubber, 66 mil thick with a density of 66 oz/yd² (2237 grams/m²)
Maximum Exposure Temperature: 450^oF (232^oC)
Silicone Rubber Density: 66 oz/yd² (2237 grams/m²)
Power density: 5 watts/in² (0.78 watts/cm²).
Dielectric strength: over 2000 volts
Moisture, chemical, and radiation resistant
Strain relief built through entire edge of blanket for increased durability
Power cord: 6 ft (1.8m) long with power plug that is compatible with BriskHeat hot bonders. Other plug types are available upon request
IP Rating: IP54

Standard Size and Wattage

Rectangle

Heated Area		Blanket Size		Total Watts
Width in (mm)	Length in (mm)	Width in (mm)	Length in (mm)	Total Watts
6 (152)	6 (152)	9 (229)	12 (305)	180
6 (152)	12 (305)	9 (229)	18 (457)	360
6 (152)	24 (610)	9 (229)	30 (762)	720
8 (203)	8 (203)	11 (279)	14 (356)	320
10 (254)	10 (254)	13 (330)	16 (406)	500
12 (305)	12 (305)	15 (381)	18 (457)	720
12 (305)	24 (610)	15 (381)	30 (762)	1440
16 (406)	16 (406)	19 (483)	22 (559)	1280
18 (457)	18 (457)	21 (533)	24 (610)	1620
24 (610)	24 (610)	27 (686)	30 (762)	2880

Round

Heated Area	Blanket Size	Total Watts
Diameter in (mm)	Diameter in (mm)	Total Watts
6 (152)	14 (356)	140
8 (203)	16 (406)	250
10 (254)	16 (406)	395
12 (305)	18 (457)	565
16 (406)	22 (559)	1005
20 (508)	26 (660)	1570
24 (610)	30 (762)	2270

PART NUMBER	TYPE	SIZE	VOLTAGE	WATTAGE	POWER PLUG TYPE
SRV512006X06SC	With Seal	6" x 6" (152 mm x 152 mm) Square	120	180	Standard ACR Hot Bonder plug - “C”
SRV524012X24SC	With Seal	12" x 24" (305 mm x 610 mm) Rectangle	120	1440	Standard ACR Hot Bonder plug - “C”
SRV524020DSC	With Seal	20" (508 mm) Round	120	1570	Standard ACR Hot Bonder plug - “C”
SRV524010X10C	Without Seal	10" x 10" (254 mm x 254 mm) Square	240	500	Standard ACR Hot Bonder plug - “C”
SRV524008X08SC	With Seal	8" x 8" (203 mm x 203 mm) Square	240	320	Standard ACR Hot Bonder plug - “C”
SRV524010DSC	With Seal	10" (254 mm) Round	120	395	Standard ACR Hot Bonder plug - “C”
SRV524006X12C	Without Seal	6" x 12" (152 mm x 305 mm) Rectangle	240	360	Standard ACR Hot Bonder plug - “C”
SRV524006X06SC	With Seal	6" x 6" (152 mm x 152 mm) Square	120	180	Standard ACR Hot Bonder plug - “C”
SRV512024DSC	With Seal	24" (610 mm) Round	120	2270	Standard ACR Hot Bonder plug - “C”
SRV512018X18C	Without Seal	18" x 18" (457 mm x 457 mm) Square	120	1620	Standard ACR Hot Bonder plug - “C”
SRV512016X16SC	With Seal	16" x 16" (406 mm x 406 mm) Square	120	1280	Standard ACR Hot Bonder plug - “C”
SRV512012DSC	With Seal	12" (305 mm) Round	120	565	Standard ACR Hot Bonder plug - “C”
SRV512012X12C	Without Seal	12" x 12" (305 mm x 305 mm) Square	120	720	Standard ACR Hot Bonder plug - “C”
SRV512010X10SC	With Seal	10" (254 mm) Round	120	500	Standard ACR Hot Bonder plug - “C”
SRV512006DSC	With Seal	6" (152 mm) Round	120	140	Standard ACR Hot Bonder plug - “C”
SRV512006X24C	Without Seal	6" x 24" (152 mm x 610 mm) Rectangle	120	720	Standard ACR Hot Bonder plug - “C”
SRV524018X18C	Without Seal	18" x 18" (457 mm x 457 mm) Square	240	1620	Standard ACR Hot Bonder plug - “C”
SRV512006X12SC	With Seal	6" x 12" (152 mm x 305 mm) Rectangle	120	360	Standard ACR Hot Bonder plug - “C”
SRV524016X16SC	With Seal	16" x 16" (406 mm x 406 mm) Square	240	1280	Standard ACR Hot Bonder plug - “C”
SRV524024DSC	With Seal	24" (610 mm) Round	120	2270	Standard ACR Hot Bonder plug - “C”
SRV524012X12C	Without Seal	12" x 12" (305 mm x 305 mm) Square	240	720	Standard ACR Hot Bonder plug - “C”
SRV524010X10SC	With Seal	10" x 10" (254 mm x 254 mm) Square	240	500	Standard ACR Hot Bonder plug - “C”
SRV524012DSC	With Seal	12" (305 mm) Round	120	565	Standard ACR Hot Bonder plug - “C”
SRV524006X24C	Without Seal	6" x 24" (152 mm x 610 mm) Rectangle	240	720	Standard ACR Hot Bonder plug - “C”
SRV524006X12SC	With Seal	6" x 12" (152 mm x 305 mm) Rectangle	120	360	Standard ACR Hot Bonder plug - “C”
SRV524006DSC	With Seal	6" (152 mm) Round	120	140	Standard ACR Hot Bonder plug - “C”
SRV512024X24C	Without Seal	24" x 24" (610 mm x 610 mm) Square	120	2880	Standard ACR Hot Bonder plug - “C”
SRV512018X18SC	With Seal	18" x 18" (457 mm x 457 mm) Square	120	1620	Standard ACR Hot Bonder plug - “C”
SRV512016DSC	With Seal	6" (152 mm) Round	120	1005	Standard ACR Hot Bonder plug - “C”
SRV512012X24C	Without Seal	12" x 24" (305 mm x 610 mm) Rectangle	120	1440	Standard ACR Hot Bonder plug - “C”
SRV512012X12SC	With Seal	12" x 12" (305 mm x 305 mm) Square	120	720	Standard ACR Hot Bonder plug - “C”
SRV512008DSC	With Seal	8" (203 mm) Round	120	250	Standard ACR Hot Bonder plug - “C”
SRV512008X08C	Without Seal	8" x 8" (203 mm x 203 mm) Square	120	320	Standard ACR Hot Bonder plug - “C”
SRV524024X24C	Without Seal	24" x 24" (610 mm x 610 mm) Square	240	2880	Standard ACR Hot Bonder plug - “C”
SRV512006X24SC	With Seal	6" x 24" (152 mm x 610 mm) Rectangle	120	720	Standard ACR Hot Bonder plug - “C”
SRV524018X18SC	With Seal	18" x 18" (457 mm x 457 mm) Square	240	1620	Standard ACR Hot Bonder plug - “C”
SRV512006X06C	Without Seal	6" x 6" (152 mm x 152 mm) Square	240	180	Standard ACR Hot Bonder plug - “C”
SRV524012X24C	Without Seal	12" x 24" (305 mm x 610 mm) Rectangle	240	1440	Standard ACR Hot Bonder plug - “C”
SRV524012X12SC	With Seal	12" x 12" (305 mm x 305 mm) Square	240	720	Standard ACR Hot Bonder plug - “C”
SRV524016DSC	With Seal	16" (406 mm) Round	120	1005	Standard ACR Hot Bonder plug - “C”
SRV524008X08C	Without Seal	8" x 8" (203 mm x 203 mm) Square	240	320	Standard ACR Hot Bonder plug - “C”
SRV524006X24SC	With Seal	6" x 24" (152 mm x 610 mm) Rectangle	240	720	Standard ACR Hot Bonder plug - “C”
SRV524008DSC	With Seal	8" (203 mm) Round	240	250	Standard ACR Hot Bonder plug - “C”
SRV524006X06C	Without Seal	6" x 6" (152 mm x 152 mm) Square	240	180	Standard ACR Hot Bonder plug - “C”
SRV512024X24SC	With Seal	24" x 24" (610 mm x 610 mm) Square	120	2880	Standard ACR Hot Bonder plug - “C”
SRV512020DSC	With Seal	20" (508 mm) Round	120	1570	Standard ACR Hot Bonder plug - “C”
SRV512016X16C	Without Seal	16" x 16" (406 mm x 406 mm) Square	120	1280	Standard ACR Hot Bonder plug - “C”
SRV512012X24SC	With Seal	12" x 24" (305 mm x 610 mm) Rectangle	120	1440	Standard ACR Hot Bonder plug - “C”
SRV512010DSC	With Seal	10" (254 mm) Round	120	395	Standard ACR Hot Bonder plug - “C”
SRV512010X10C	Without Seal	10" x 10" (254 mm x 254 mm) Square	120	500	Standard ACR Hot Bonder plug - “C”
SRV512008X08SC	With Seal	8" x 8" (203 mm x 203 mm) Square	120	320	Standard ACR Hot Bonder plug - “C”
SRV524024X24SC	With Seal	24" x 24" (610 mm x 610 mm) Square	240	2880	Standard ACR Hot Bonder plug - “C”
SRV512006X12C	Without Seal	6" x 12" (152 mm x 305 mm) Rectangle	240	360	Standard ACR Hot Bonder plug - “C”
SRV524016X16C	Without Seal	16" x 16" (406 mm x 406 mm) Square	240	1280	Standard ACR Hot Bonder plug - “C”
