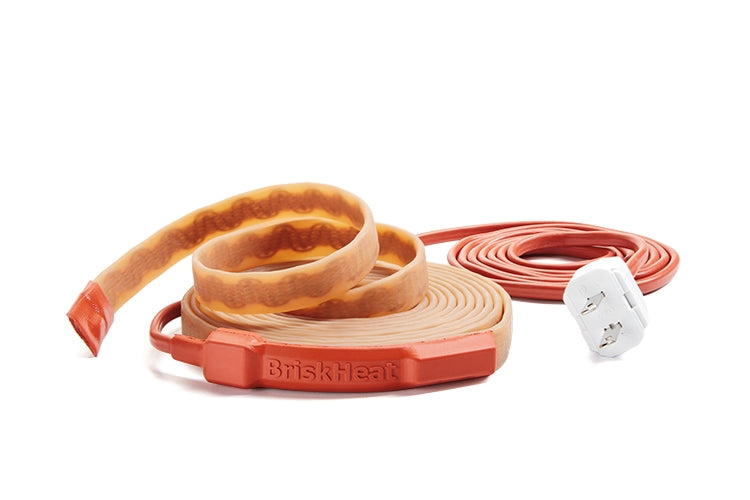

Silicone Heating Tape with Preset Thermostat (RKP)

$298.00

SKU:RKP1A0960

XtremeFLEX RKP Silicone Rubber Heating Tapes are a new solution to traditional heat trace cable. A portable, plug-and-play option ideal for freeze protection and process control heating applications. The RKP heating tape has a low watt-density of 6W/ft to provide safe operation and avoid overheating.

120 V
Width: 0.5 in
Length: 80ft
480 watts
Thermostat: 70F (21C)

Ordering Options:

Voltage

LENGTH - ft (m)

Thermostat - F(C)

Quality Guaranteed
Since 1949

The Most Flexible Plug-and-Play Heat Trace Product Ever

BriskHeat’s XtremeFLEX RKP Silicone Heating Tapes are a new solution to traditional heat trace cable; the perfect solution for challenging applications. The RKP tapes have an ultra-thin profile with a superflexible 1/4” (6mm) bend radius. No additional temperature controller is required because a built-in pre-set thermostat continuously monitors and controls the temperature output of the heater. The complete unit is fully encapsulated in silicone rubber to provide an extremely flexible, durable, and moisture resistant heater. The unique flexibility provides exceptional surface contact for maximum heat transfer and effectiveness around systems that have complex curves, bends, and contours. The heater is also pre-terminated with a power cord and electrical plug to provide quick and easy power connection. RKP silicone heating tapes are a true plug-and-play heater that is both easy to install and easy to maintain. This design makes the RKP an extremely versatile heater for a wide variety of indoor/outdoor installations

Plug-and-play heater with built-in pre-set temperature control
Standard lengths up to 200ft (61m)
Exceptional flexibility and durability

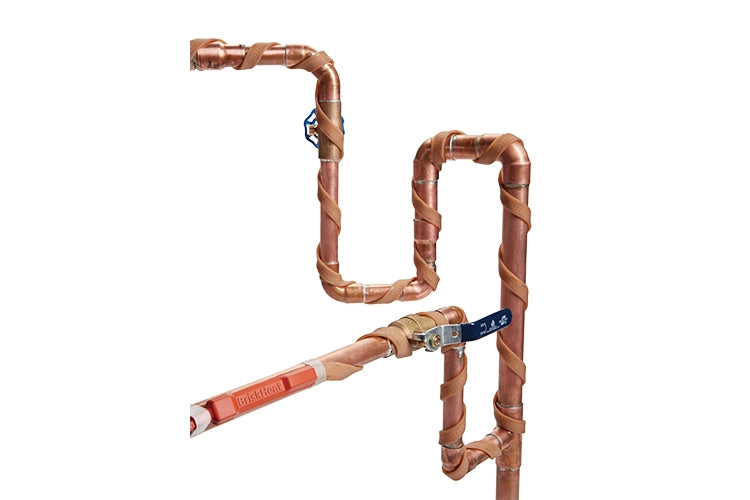

Ideal for freeze protection and process control heating applications
Rapid thermal response
Suitable for electrically conductive surfaces
Low profile design

Built-In Controlling Thermostat: 70°F or 122°F (21°C or 50°C)
Maximum Exposure Temperature: 450°F (232°C)
Outer Sheath: Silicone rubber extruded
Inner Construction: Fiberglass knitted and braided construction
Minimum Bend Radius: 0.25in (6mm)
Nominal Thickness: 0.125in (3mm)
Power Density: 1.0W/in² (0.2W/cm²)
Power Cord: 60in (1.5m)

120 VAC includes standard 2-prong plug (NEMA 1-15)
240 VAC has crimped ferrule leads

Ingress Protection Rating: IP66

PART NUMBER	VOLTAGE	THERMOSTAT	WIDTH	LENGTH	WATTAGE
RKP1A0120	120	70°F (21°C) Thermostat	0.50 in (13 mm)	10 ft (3.0 m)	60
RKP1B0120	120	120°F (49°C) Thermostat	0.50 in (13 mm)	10 ft (3.0 m)	60
RKP2A0120	240	70°F (21°C) Thermostat	0.50 in (13 mm)	10 ft (3.0 m)	60
RKP2B0120	240	120°F (49°C) Thermostat	0.50 in (13 mm)	10 ft (3.0 m)	60
RKP1A0240	120	70°F (21°C) Thermostat	0.50 in (13 mm)	20 ft (6.1 m)	120
RKP1B0240	120	120°F (49°C) Thermostat	0.50 in (13 mm)	20 ft (6.1 m)	120
RKP2A0240	240	70°F (21°C) Thermostat	0.50 in (13 mm)	20 ft (6.1 m)	120
RKP2B0240	240	120°F (49°C) Thermostat	0.50 in (13 mm)	20 ft (6.1 m)	120
RKP1A0480	120	70°F (21°C) Thermostat	0.50 in (13 mm)	40 ft (12.2 m)	240
RKP1B0480	120	120°F (49°C) Thermostat	0.50 in (13 mm)	40 ft (12.2 m)	240
RKP2A0480	240	70°F (21°C) Thermostat	0.50 in (13 mm)	40 ft (12.2 m)	240
RKP2B0480	240	120°F (49°C) Thermostat	0.50 in (13 mm)	40 ft (12.2 m)	240
RKP1B0600	120	120°F (49°C) Thermostat	0.50 in (13 mm)	50 ft (15.2 m)	300
RKP1A0600	120	70°F (21°C) Thermostat	0.50 in (13 mm)	50 ft (15.2 m)	300
RKP2A0600	240	70°F (21°C) Thermostat	0.50 in (13 mm)	50 ft (15.2 m)	300
RKP2B0600	240	120°F (49°C) Thermostat	0.50 in (13 mm)	50 ft (15.2 m)	300
RKP1A0720	120	70°F (21°C) Thermostat	0.50 in (13 mm)	60 ft (18.3 m)	360
RKP1B0720	120	120°F (49°C) Thermostat	0.50 in (13 mm)	60 ft (18.3 m)	360
RKP2A0720	240	70°F (21°C) Thermostat	0.50 in (13 mm)	60 ft (18.3 m)	360
RKP2B0720	240	120°F (49°C) Thermostat	0.50 in (13 mm)	60 ft (18.3 m)	360
RKP1A0900	120	70°F (21°C) Thermostat	0.50 in (13 mm)	75 ft (22.9 m)	450
RKP1B0900	120	120°F (49°C) Thermostat	0.50 in (13 mm)	75 ft (22.9 m)	450
RKP2A0900	240	70°F (21°C) Thermostat	0.50 in (13 mm)	75 ft (22.9 m)	450
RKP2B0900	240	120°F (49°C) Thermostat	0.50 in (13 mm)	75 ft (22.9 m)	450
RKP1A0960	120	70°F (21°C) Thermostat	0.50 in (13 mm)	80 ft (24.4 m)	480
RKP1B0960	120	120°F (49°C) Thermostat	0.50 in (13 mm)	80 ft (24.4 m)	480
RKP2A0960	240	70°F (21°C) Thermostat	0.50 in (13 mm)	80 ft (24.4 m)	480
RKP2B0960	240	120°F (49°C) Thermostat	0.50 in (13 mm)	80 ft (24.4 m)	480
RKP1A1200	120	70°F (21°C) Thermostat	0.50 in (13 mm)	100 ft (30.5 m)	600
RKP1B1200	120	120°F (49°C) Thermostat	0.50 in (13 mm)	100 ft (30.5 m)	600
RKP2A1200	240	70°F (21°C) Thermostat	0.50 in (13 mm)	100 ft (30.5 m)	600
RKP2B1200	240	120°F (49°C) Thermostat	0.50 in (13 mm)	100 ft (30.5 m)	600
RKP1A1500	120	70°F (21°C) Thermostat	0.50 in (13 mm)	125 ft (38.1 m)	750
RKP1B1500	120	120°F (49°C) Thermostat	0.50 in (13 mm)	125 ft (38.1 m)	750
RKP2A1500	240	70°F (21°C) Thermostat	0.50 in (13 mm)	125 ft (38.1 m)	750
RKP2B1500	240	120°F (49°C) Thermostat	0.50 in (13 mm)	125 ft (38.1 m)	750
RKP2A1800	240	70°F (21°C) Thermostat	0.50 in (13 mm)	150 ft (45.7 m)	900
RKP2B1800	240	120°F (49°C) Thermostat	0.50 in (13 mm)	150 ft (45.7 m)	900
RKP2A2400	240	70°F (21°C) Thermostat	0.50 in (13 mm)	200 ft (70 m)	1200
RKP2B2400	240	120°F (49°C) Thermostat	0.50 in (13 mm)	200 ft (70 m)	1200

Silicone Heating Tape with Preset Thermostat (RKP)

The Most Flexible Plug-and-Play Heat Trace Product Ever
