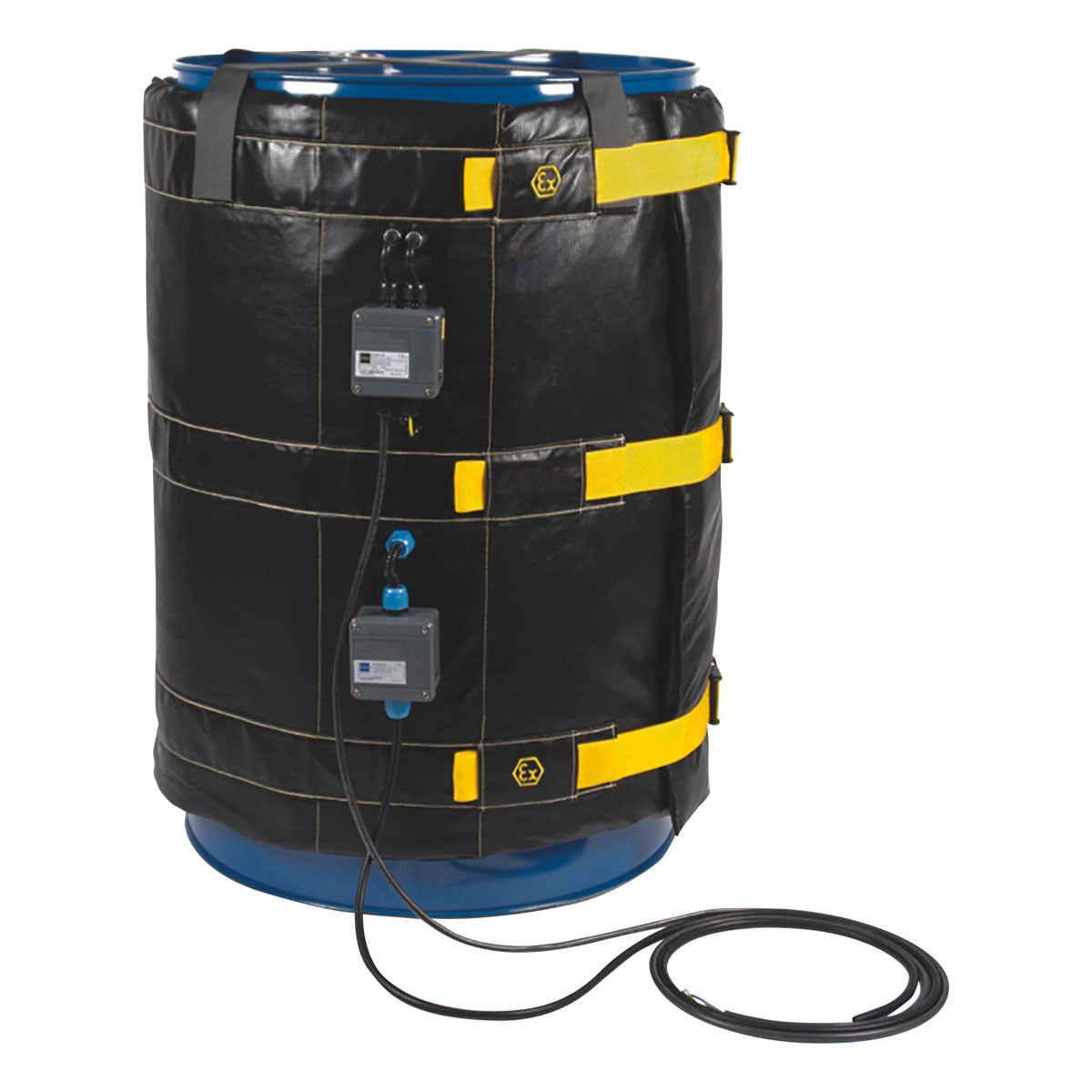

ATEX Full-Coverage Drum Heater
BriskHeat ATEX approved Full-Coverage Drum Heaters are designed to provide even heat distribution and maximum energy efficiency in explosive environments. With its robust construction and fully insulated design, these heaters are ideal for indoor or outdoor use and grounded for increased safety. Suitable for use on steel or plastic IBC, these heaters require an ATEX certified temperature controller.
- Temperatures up to 392°F (200°C)
- 2 built-in PT100 RTD sensors for monitoring process temperature and high-limit temperature
- IP Rating: IP65
Since 1949
Nominal Voltage: 230 VAC
Operating Temperatures:Steel drums: -40°F to 392°F (-40°C to 200°C), Plastic drums: -40°F to 158°F (-40°C to 70°C)
Ambient Temperature Range: -40°F to 140°F (-40°C to 60°C)
Temperature Class: T6, T5, T4, T3 (depending on temperature control limiter setpoint)
Zones: 1/2 (gas); 21/22 (dust)
Sensor: 2 standard 3-wire PT100 RTD sensors
Power Cord: 10 ft (3 m) long with crimped ferrule terminated leads
Ingress Protection Rating: IP65/I
Explosion protection marking:
Gas
2G Ex e mb IIC T3 Gb
Dust -40°C ≤ Ta ≤ +60°C (ambient temperature)
System approved with an EC-type examination certificate
according to RL 2014/34/EU appendix III
EC-type examination certificate:TPS 11 ATEX 29587 011 X
| Part No. 230 VAC | Capacity Gal (l) | Wattage | Length in (mm) | Circumference in (mm) | Width in (mm) |
| WEXHD200-230ZE800-0210BHT3 | 55 (200-220) | 1200 | 82.7 (2100) | 70.9 - 82.7 (1800-2100) | 31.5 (800) |
