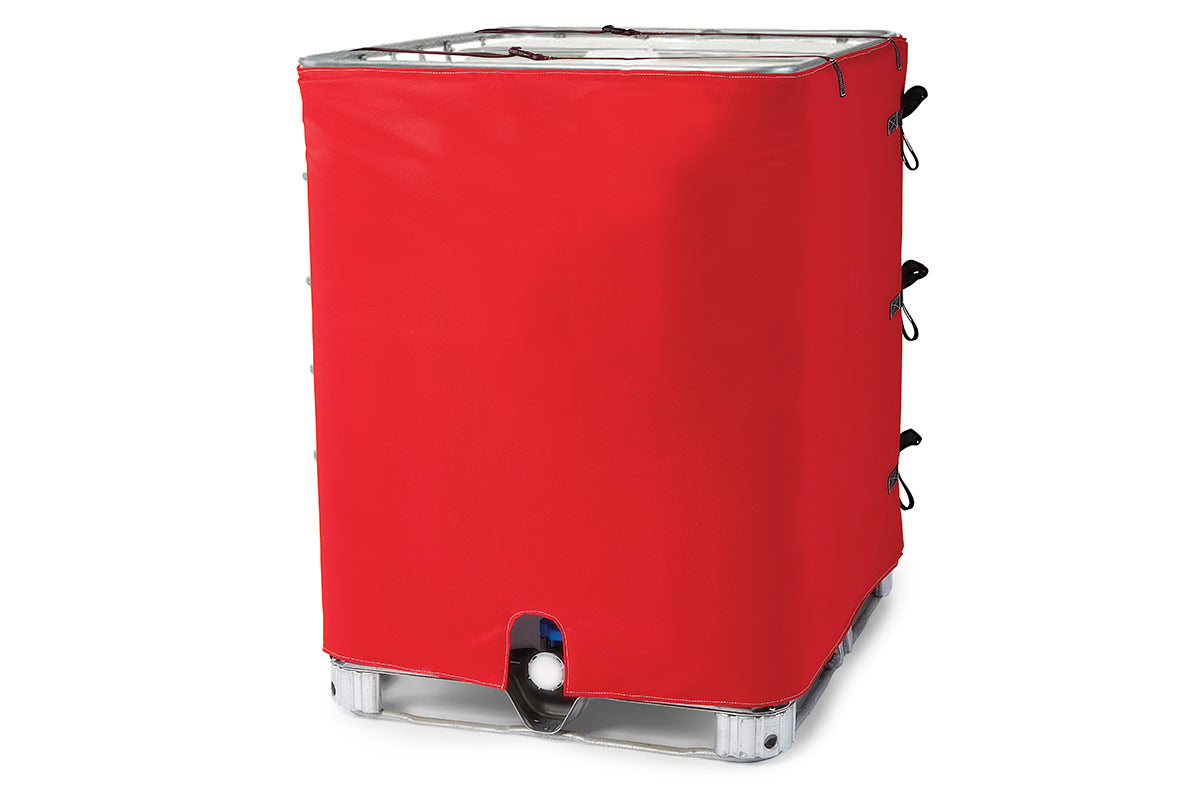

Wet-Area IBC/TOTE Tank Insulator
BriskHeat wet-area IBC/Tote and Tank insulators are water resistant and designed for indoor and outdoor use and in wash-down environments. The full-coverage design provides even heat distribution and maximum energy efficiency. Made lightweight and with adjustable buckles, these easy-to-use insulators are suitable for a wide range of applications such as, viscosity control, freeze protection, and temperature maintece.
- Height: 36 in (914 mm)
- Capacity: 175-250 gal (640-950 l)
Since 1949
Additional Features:
- Insulated, full-coverage design
- Suitable for both metal and plastic IBC/tote tanks
- Extra-durable, water resistant design for outdoor/indoor use and in wash-down environments
Outer Material: Extra-durable polyester cloth
Insulation: 0.5 in (13 mm) thick closed-cell melamine
Closure Method: Adjustable straps with buckles
Maximum Exposure Temperature: 180°F (82°C)
Height: 36 in (914 mm), 42 in (1067 mm), or 48 in (1220 mm)
Circumference: Fits any vessel from 160 in (4064 mm) to 192 in (4877 mm)
IP Rating: IP54
IBC/Tote Tank Immersion Heaters Applications:
A more effective way to warm contents of IBC/tote tanks
Application:
Intermediate Bulk Container (IBC) users often need to raise the product temperatures to reduce viscosity or protect the contents from the cold. When they need to do this quickly the large volume of liquid, which could be in excess of 300 gallons (1136 liters), makes it challenging. Additionally, if the tank is in an extremely cold environment, the additional frigidity causes more difficulties. Raising or maintaining the temperature to the desired level ensures materials are ready for production and easy to dispense. Failure could result in the contents being ruined, production delays, or inability to dispense at all. This may increase production costs or damage to equipment. Replacing ruined materials, waiting for usable products, and damaged equipment could be very expensive and cause serious downtime.
Solution:
The combination of BriskHeat’s TTI immersion heater and TOTEWI wrap-around insulator is an effective IBC/tote tank heating system. Performance tests show that the immersion heater, when coupled with a BriskHeat wrap-around insulator, heats four times as fast than standard wrap-around heaters. The universal-fit TTI immersion heater has 1,500 watts for maximum heat, includes a built-in controller, and a plug-and-play design. Additionally, the superalloy Incoloy 840 will not corrode and contaminate the product. The TOTEWI insulators fit any IBC with a circumference between 160 in (406 cm) and 192 in (482 cm), are easily installed using the built-in straps and buckles and are extremely durable. Both are suitable for use in wet environments.
Additional Uses:
BriskHeat offers a full line of immersion heaters and cloth insulators suitable for many applications in almost any environment.
