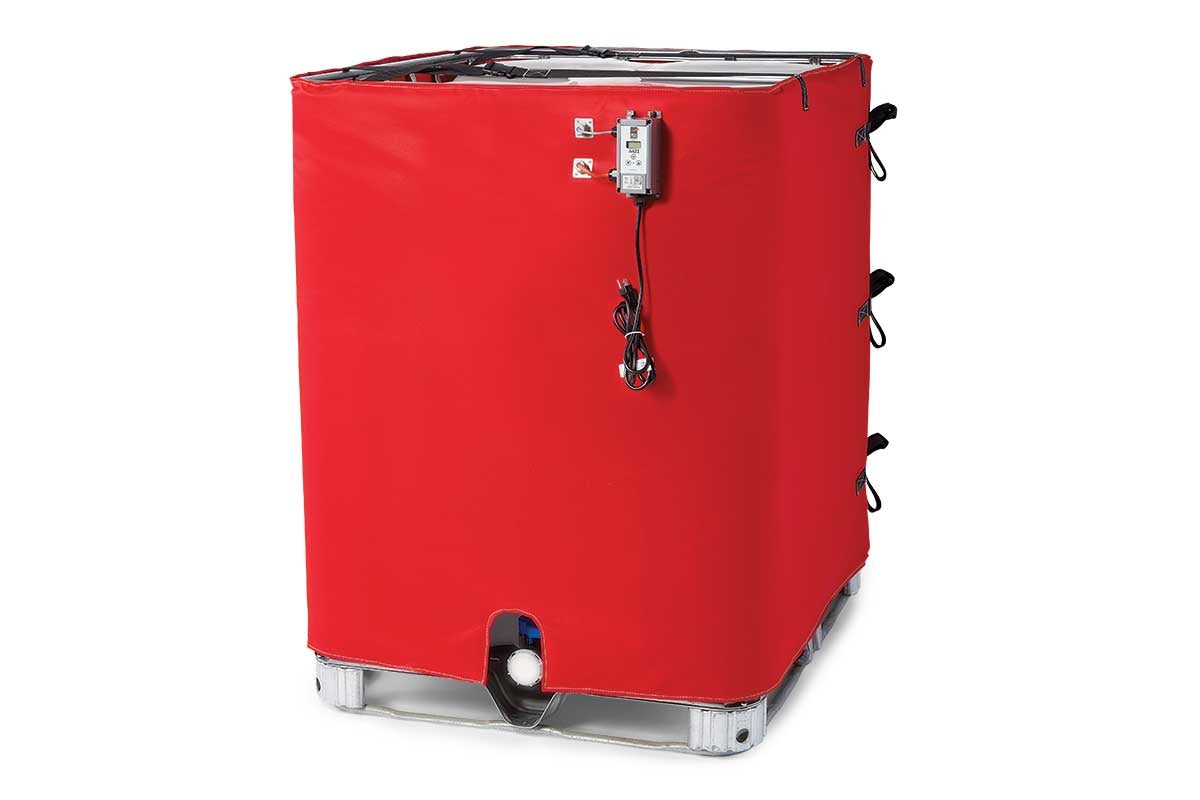

Wet-Area IBC/TOTE Tank Heaters
BriskHeat wet-area IBC tote and tank heaters are full-coverage tank heaters that are water resistant and designed for indoor/outdoor and wash-down environments. The wet-area heaters are made with an extra-durable polyester cloth and insulated for energy efficiency and reduce heat up time. With a built-in high-limit safety thermostat, these heaters are 360 grounded for added safety.
- Height 48" (1220 mm)
- 120 volt
Since 1949
Additional Features:
- Extra durable, reusable and rugged - long service life
- Easy-to-use - simple plug-and-play design
- Does not contaminate or scorch your product
- Suitable for both metal and plastic IBC/tote tanks
- Lightweight adn easy-to-install with adjustable buckles
Note:
Ideal for use with The BriskHeatiInsulating top cover, minimizes heat loss. Fits all sizes. TOTEW-TOPV
Outer Material: Extra-durable polyester cloth
Insulation: 0.5 in (13 mm) thick closed-cell melamine

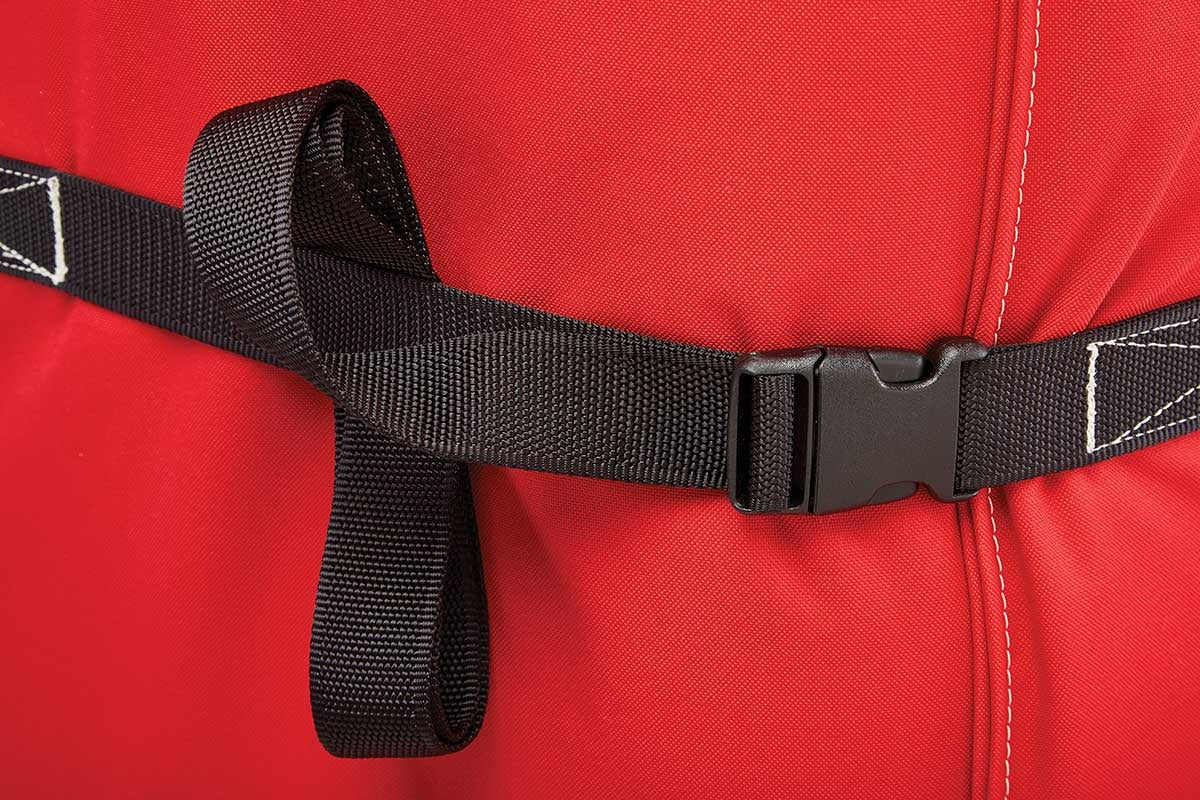

Closure Method: Adjustable straps with buckles
Maximum Exposure Temperature: 180°F (82°C)
Height: 36 in (914 mm), 42 in (1067 mm), or 48 in (1220 mm)
Circumference: Fits any vessel from 160 in (4064 mm) to 192 in (4877 mm)
IP Rating: IP54
Operating Temperature: Up to 140°F (60°C)

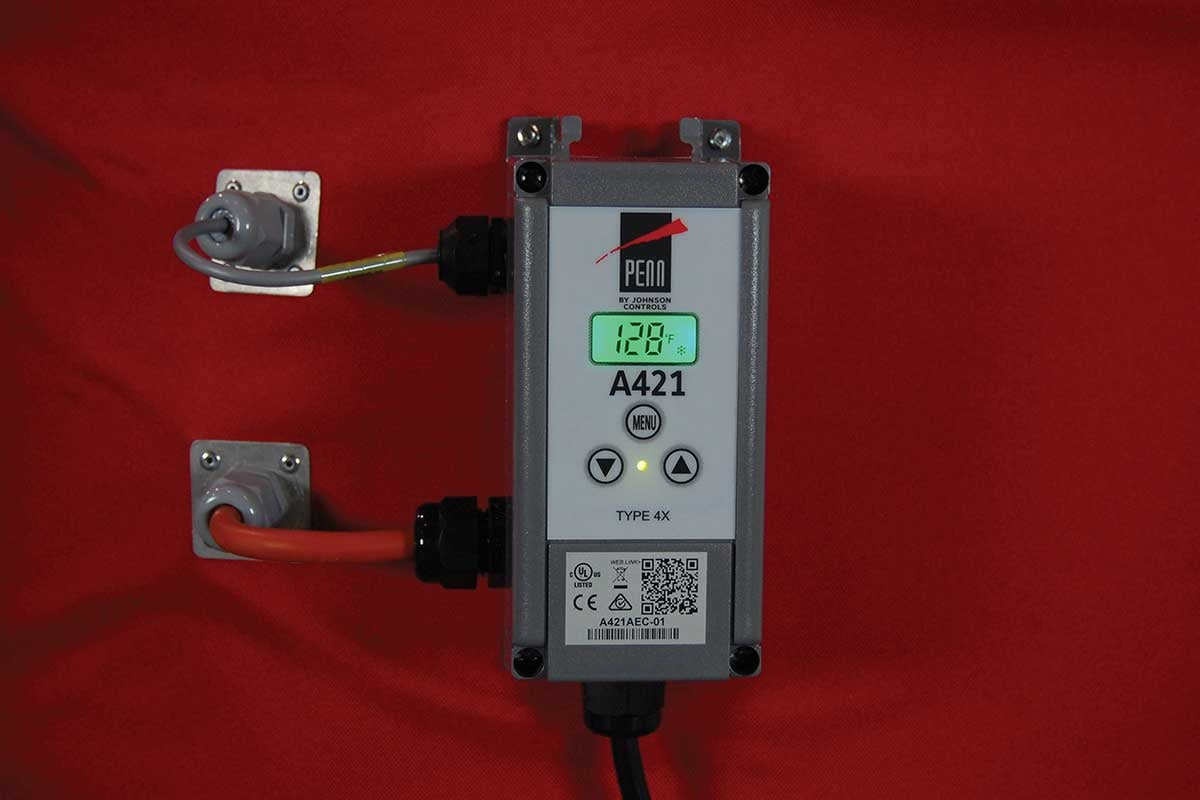

Digital Control: Programmable in °F and °C
Built-in High-Limit Safety Thermostat: 185°F (85°C)
Heating Element: 360° grounded heating element for your safety
Dielectric Strength: Over 2000 volts
Power Cord: 6 ft (1.8 m) long
- 120 VAC: 3-prong grounded plug (NEMA 5-15P)
- 240 VAC: 3-prong grounded plug (NEMA 6-15P)
Weight:
- TOTEW36: 19.0 lbs (8.5 kg)
- TOTEW42: 22.5 lbs (10.1 kg)
- TOTEW48: 26.0 lbs (11.8 kg)
Certified to UL safety standards
Ordering Information:
| Part No. 120VAC |
Part No. 240VAC |
Size gallon (liter) |
Heater Height in (mm) |
Total Watts |
| TOTEW361-ADJV | TOTEW362-ADJV | 170-250 (640-950) | 36 (914) | 1440 |
| TOTEW421-ADJV | TOTEW422-ADJV | 275 (1000) | 42 (1067) | 1440 |
| TOTEW481-ADJV | TOTEW482-ADJV | 330 (1250) | 48 (1219) | 1440 |
European option (240 V only): Replace V with EV at the end of the part number for crimped wire ferrule terminated leads.
