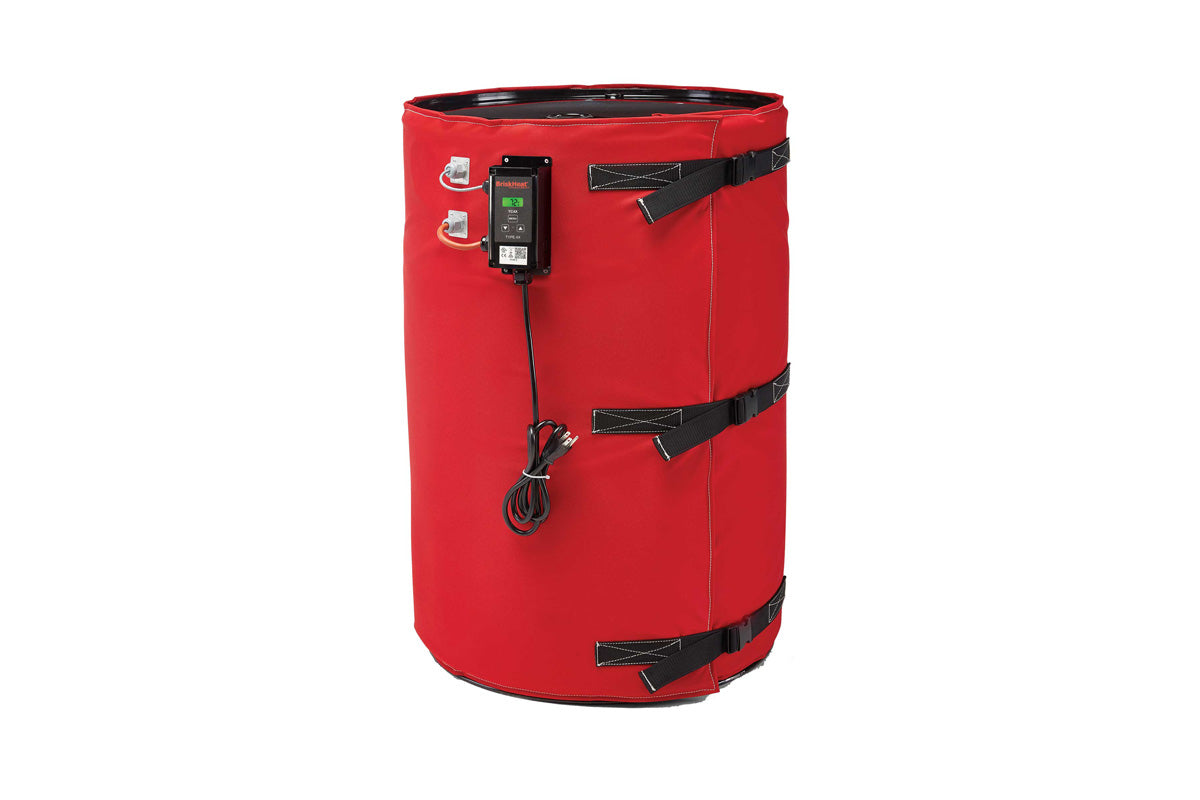

Wet-Area Full-Coverage Drum Heaters
BriskHeat Wet-Area Full-Coverage Drum and Pail Heaters are designed to provide even heat distribution and maximum energy efficiency in a wide range of environments including outdoor and wash-down locations. Our Wet-Area Full Coverage heaters are lightweight and easy to install with adjustable buckles and a programmable digital controller.
- Easy-to-program digital controller, adjustable up to 140°F (60°C)
- 360 grounded heating element and cool-touch surface for safety
- Ideal for use indoor/outdoor and wash-down environments - IP54
Since 1949
Additional Features:
- Extra durable, water resistant design
- Insulated, full-coverage design
- Lightweight and easy to install with adjustable buckles
- Simple plug-and-play
- Reusable and rugged - long service life
Note:
Pair with BriskHeat insulating cover to minimize heat loss. Fits 55 gallon (208 l) drum.
Outer Material: Extra-durable polyester cloth
Insulation: 0.5 in (13 mm) thick closed-cell neoprene

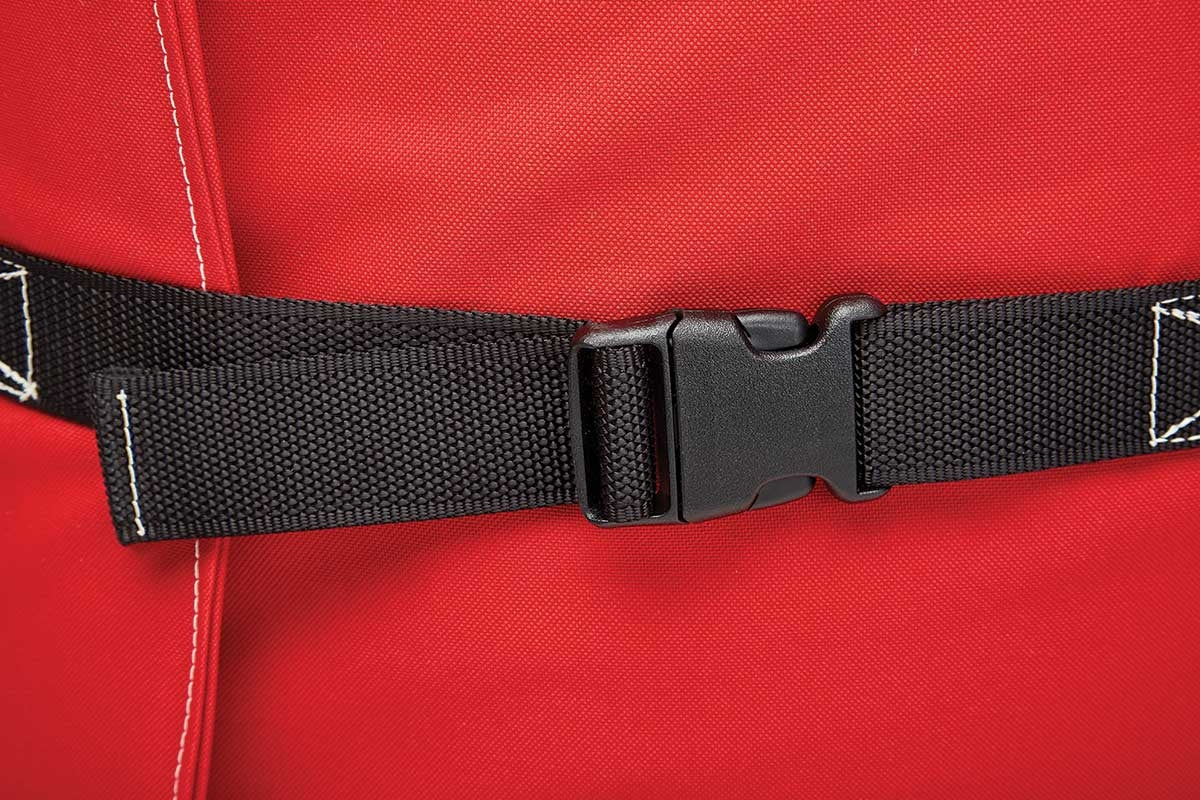

Closure Method: Adjustable straps with buckles
Maximum Exposure Temperature: 180°F (82°C)
IP Rating: IP54
Operating Temperature: Up to 140°F (60°C)

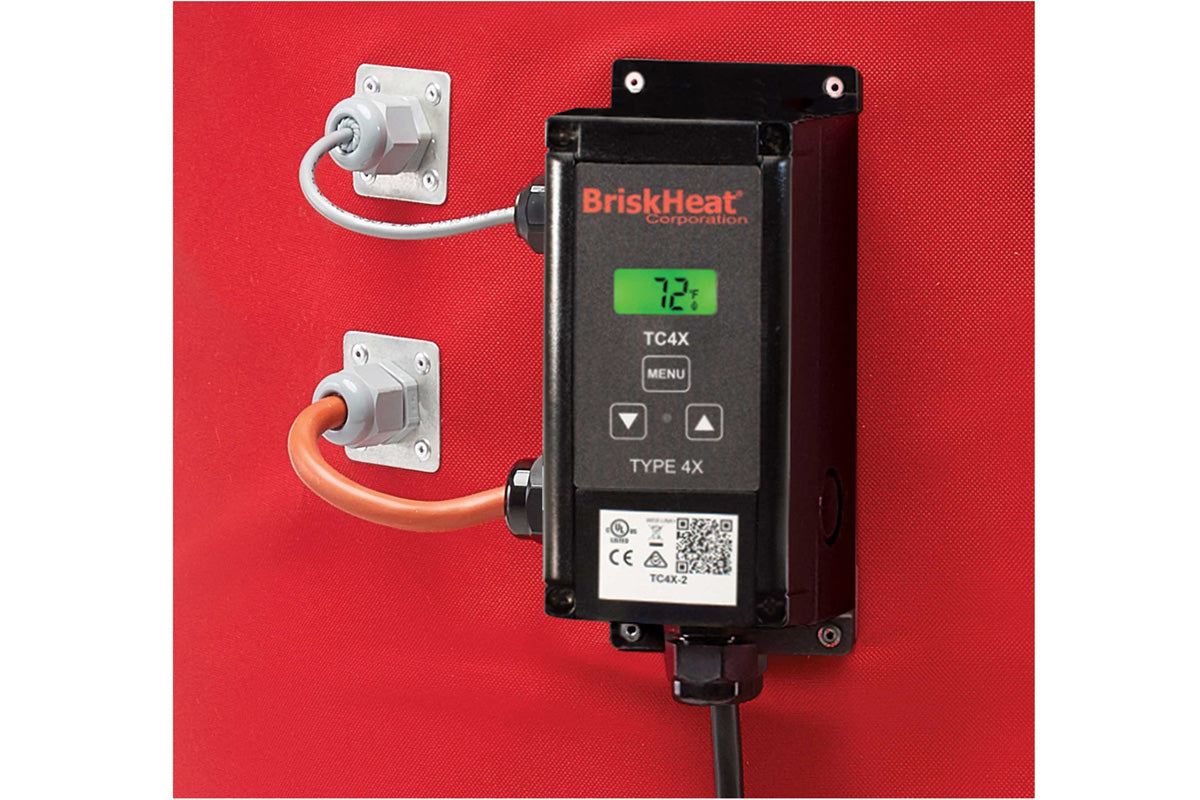

Digital Control: Programmable in °F and °C
Built-in High-Limit Safety Thermostat: 185°F (85°C)
Heating Element: 360° grounded heating element for your safety
Dielectric Strength: Over 2000 volts
Power Cord: 6 ft (1.8 m) long
- 120 VAC: 3-prong grounded plug (NEMA 5-15P)
- 240 VAC: 3-prong grounded plug (NEMA 6-15P)
Certified to UL safety standards
| Part No. 120 VAC | Part No. 240 VAC | Size gal (l) | Minimum Diameter in (mm) | Maximum Diameter in (mm) | Height in (mm) | Total Watts | Weight lbs (kg) |
| FGPDHWC5120DV | FGPDHWC5240DV | 5 (19) | 10.8 (274) | 12.4 (315) | 13.5 (343) | 165 | 6 (2.4) |
| FGPDHWC15120DV | FGPDHWC15240DV | 15 to 16 (57 to 61) | 14.3 (363) | 15.9 (404) | 26.7 (678) | 210 | 8 (3.3) |
| FGPDHWC30120DV | FGPDHWC30240DV | 30 (114) | 18.8 (478) | 20.3 (516) | 29.5 (749) | 300 | 10 (4.2) |
| FGPDHWC55120DV | FGPDHWC55240DV | 55 (208) | 22.2 (564) | 24.2 (615) | 36.4 (924) | 600 | 13 (5.6) |
European option (240 V only): Replace V with EV at the end of the part number for crimped ferrule terminated leads.
