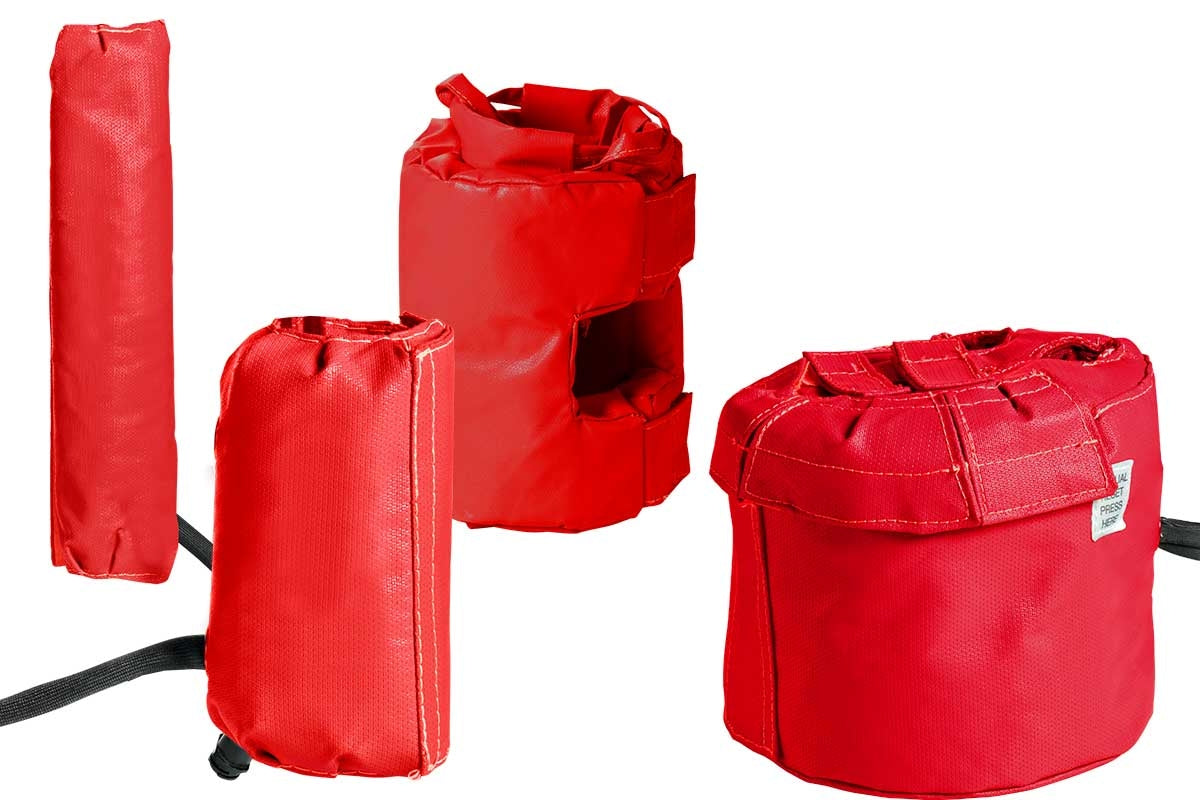

Wet-Area Custom Cloth Heating Jackets

Specifications:

Maximum Temperature and Watt Densities:

• For vented¹ metal vessels: 212°F (100°C) | 0.80 W/in2(0.12 W/cm2)
• For sealed² metal vessels: 130°F (54°C) | 0.45 W/in2(0.07 W/cm2)
• For vented¹ poly vessels: 160°F (71°C) | 0.45 W/in2(0.07 W/cm2)
• For sealed² poly vessels: 100°F (37°C) | 0.25 W/in2(0.04 W/cm2)

¹Vessel has access/opening to atmosphere. Examples include open drums, IBCs,hoppers, and containers

²Vessel is sealed but has a pressure release device. Examples include valves, pipes,pumps, and sealed containers

Voltage: 120 to 240 VAC
Amperage: 12A maximum for ETL approval
Outside Material: Extra-durable polyester cloth
Insulation Material: Mold/mildew resistant melamine
Insulation Thickness: Standard 0.5 in (130 mm) or 1.0 in (260 mm) thick.
Other insulation thicknesses available upon request
Ingress Protection Rating: IP54

Common closure options:
