Custom Vacuum Curing/Debulking Tables
$0.00
SKU:VT Series-RFQ
Vacuum Curing/Debulking Tables
Quality Guaranteed
Since 1949
Since 1949
Temperature Control
- Dual display shows set-point and actual process temperature
- Multiple ramp/soak steps
- PID with autotuning
- Programmable to either °C or °F
- Audible alarm
- Program security lock levels
Heater
- Highly durable and uniform multi-stranded heating element
- Heater break protection
Vacuum System
- 2-stage electric oil-less rocker piston vacuum pump
Lid
- High tear strength, reversion resistant silicone rubber reusable vacuum bag with 800% elongation
- Safety interlocked push buttons ensure both hands are on the operating console while the lid is in motion
- Dual ball screw actuators for positive lid movement
Power
- Choice of 3-phase 208, 240, 380 or 480VAC
- All systems are fuse protected
Standard Vacuum Curing/Debulking Tables Options
Standard Table Sizes

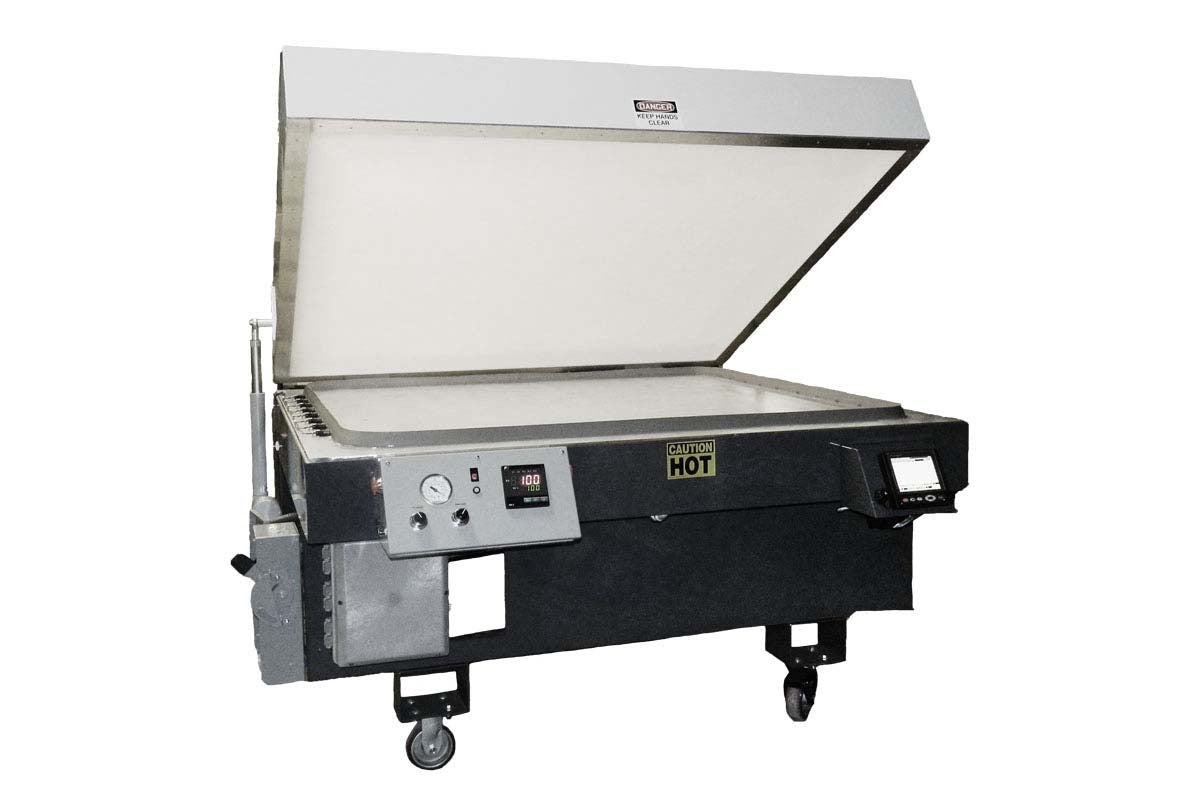

- VT4000: 60" x 66" total, 52" x 56" useable area: Single heat zone

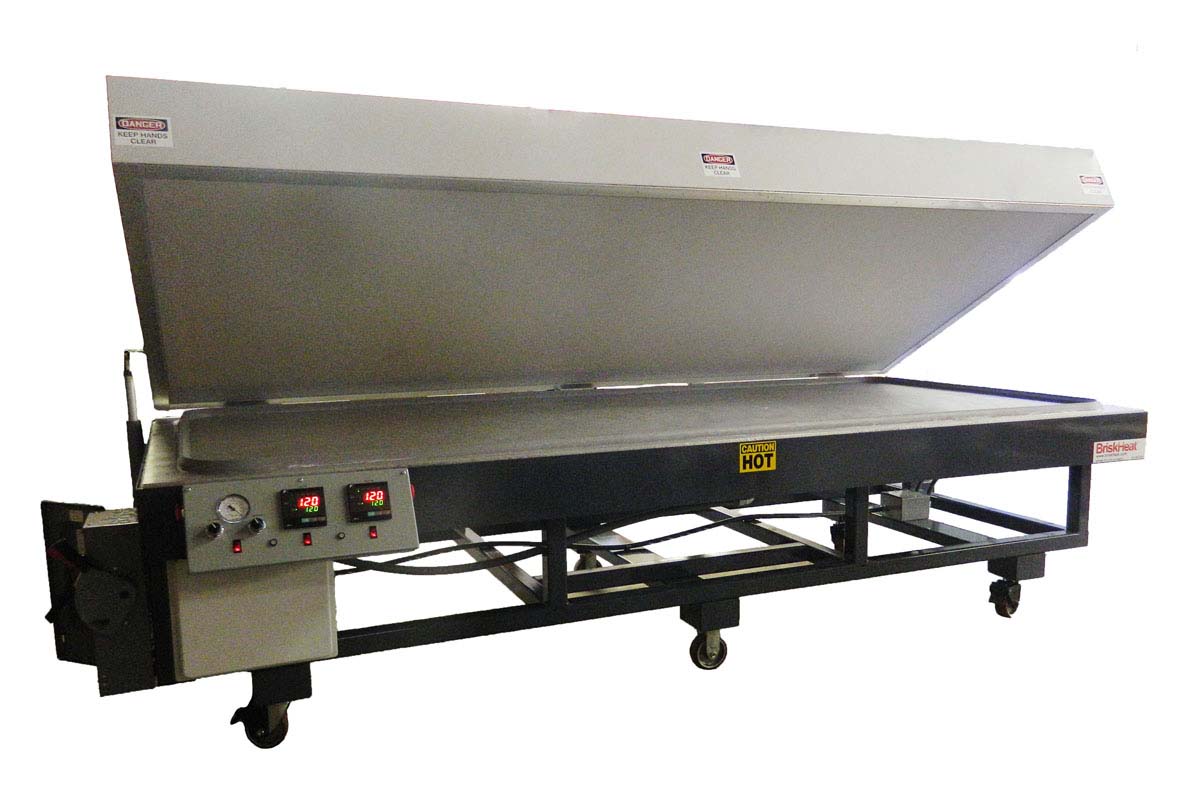

- VT8000: 60" x 132" total, 52" x 124" useable area: Two heat zones

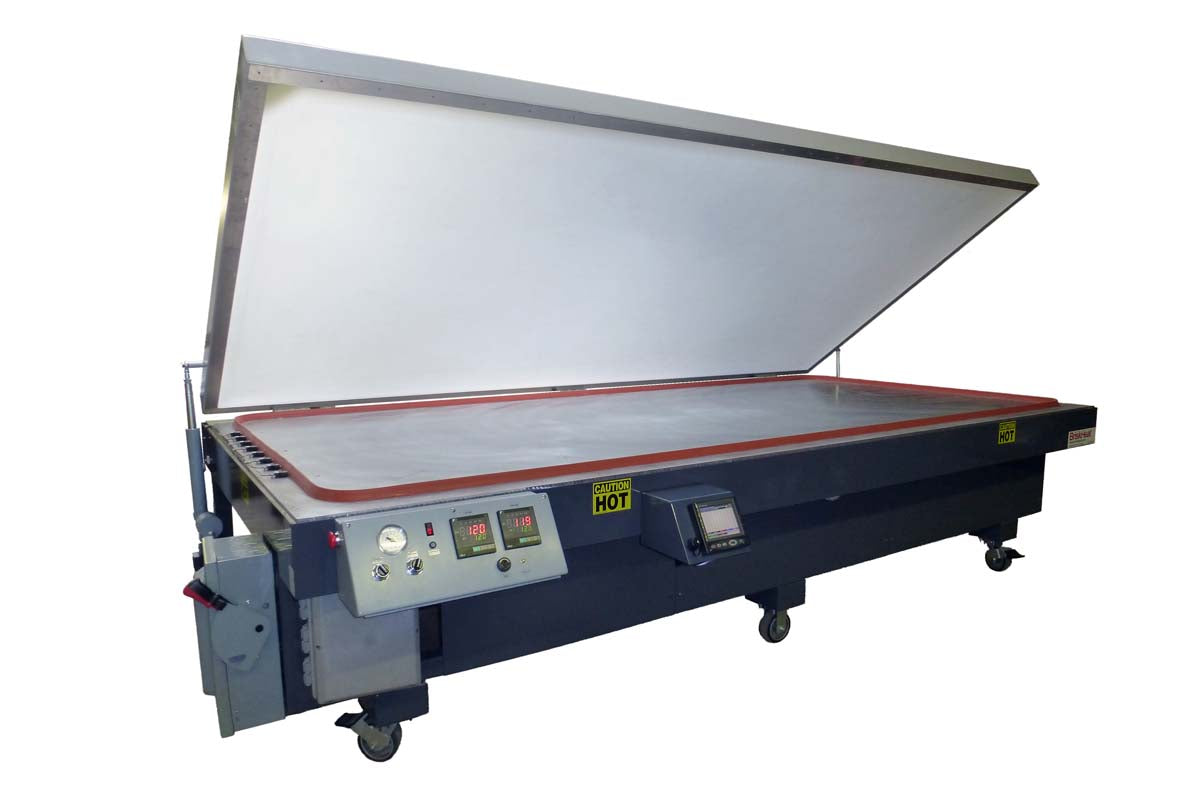

- VT10000: 72" x 144" total, 66" x 138" useable area: Two heat zones
Table Configuration Options
All table configurations include electric vacuum pump
- A: Heated table without a retractable lid. Includes basic temperature control. (Manual bagging lay-up required)
- B: Heated table with a retractable lid. Includes basic temperature control.
- E: Heated table with a retractable lid. Includes ramp / soak temperature control, 16-channel monitor system, and digital data logger.
Standard Voltage Choices
- 1: 200VAC, 3-phase
- 2: 240VAC, 3-phase
- 3: 208VAC, 3-phase
- 4: 480VAC, 3-phase
- 5: 277VAC, 3-phase
