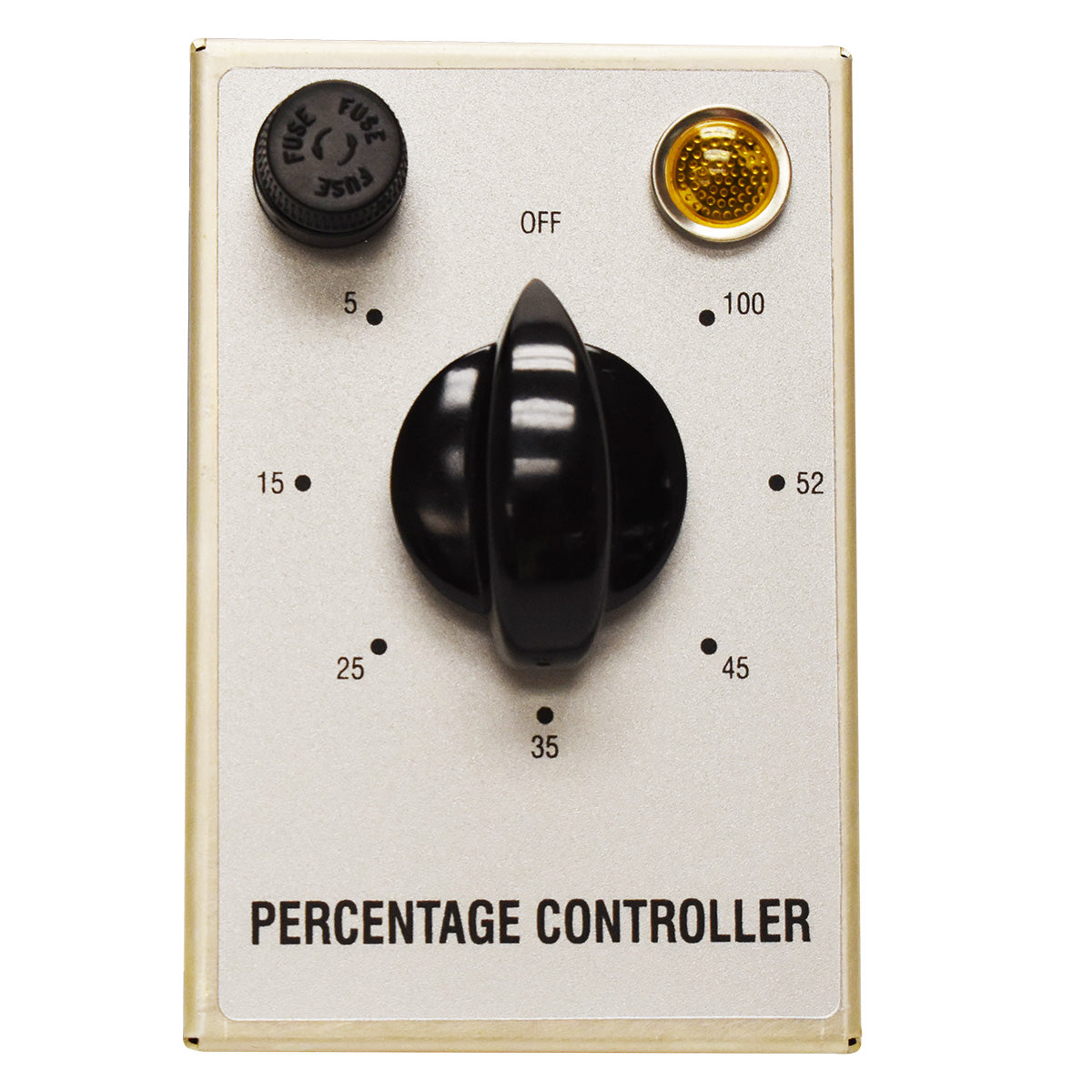

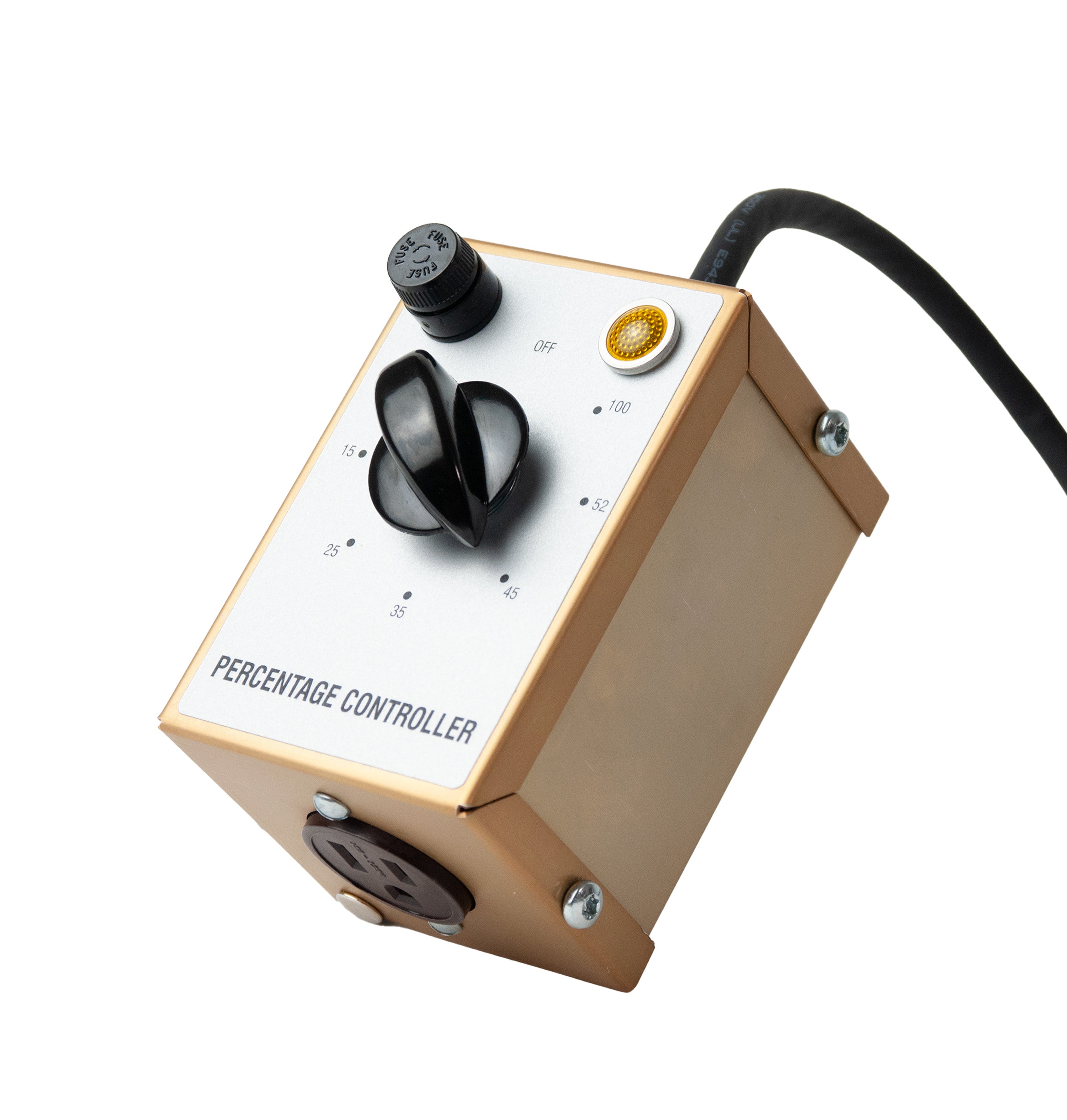

Portable Time-Percentage Dial Controller (TP0)
This BriskHeat time-percentage Controller is a portable, plug and play option for general use, indoor applications. The time percentage dial controller varies the proportion (length) of time the heater is in the "on" or "off" heating mode. The heating application will determine the actual percentage set-point required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
- 15-amp maximum capacity
- Input power cord, 6 ft (1.8m) long with these available plugs: 120VAC: NEMA 5-15R, 240VAC: NEMA 6-15R
Since 1949
Voltage: 120 or 240VAC
Maximum Amp Load: 15 amps
Time Percentage Control: 5% to 100%

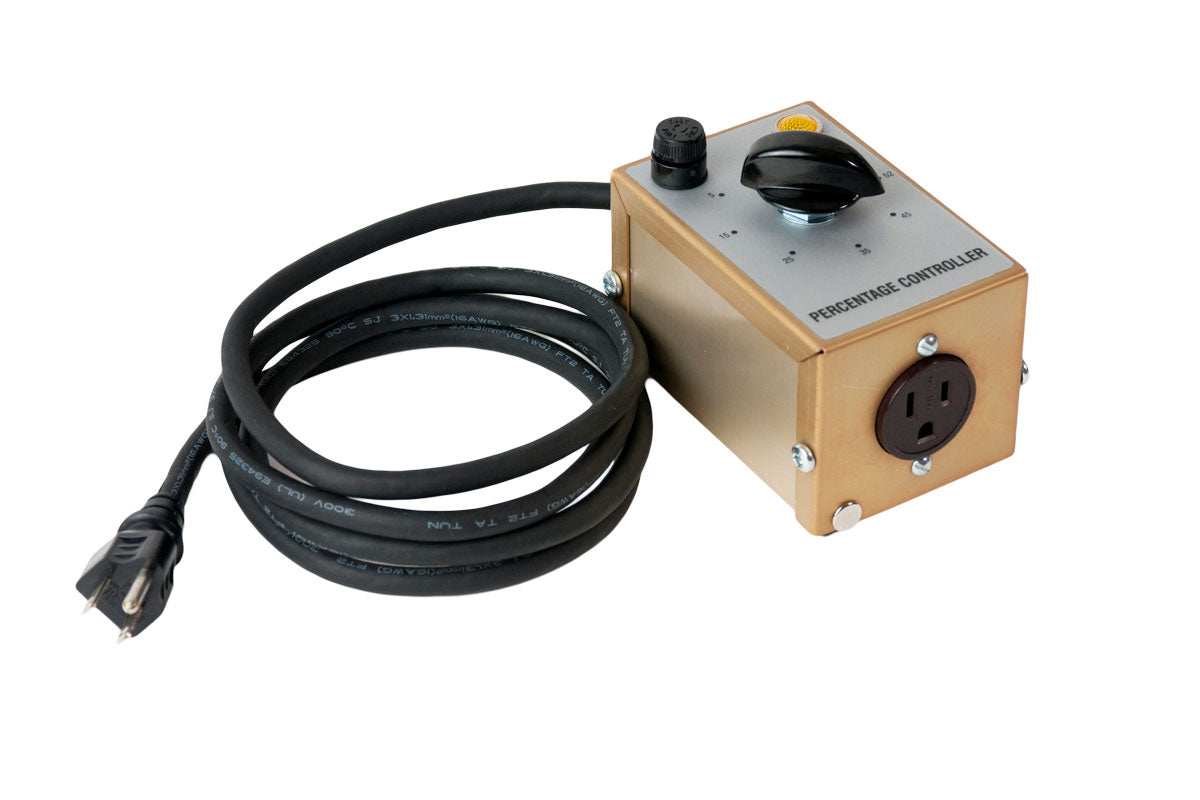

Input Power Cords/Connections: 6 ft (1.8 m) long with plug
- 120VAC: NEMA 5-15
- 240VAC: NEMA 6-15
Output receptacle:
- 120VAC: NEMA 5-15R
- 240VAC: NEMA 6-15R
Environmental Exposure: Operating range: -40°F to 160°F (-40°C to 71°C)

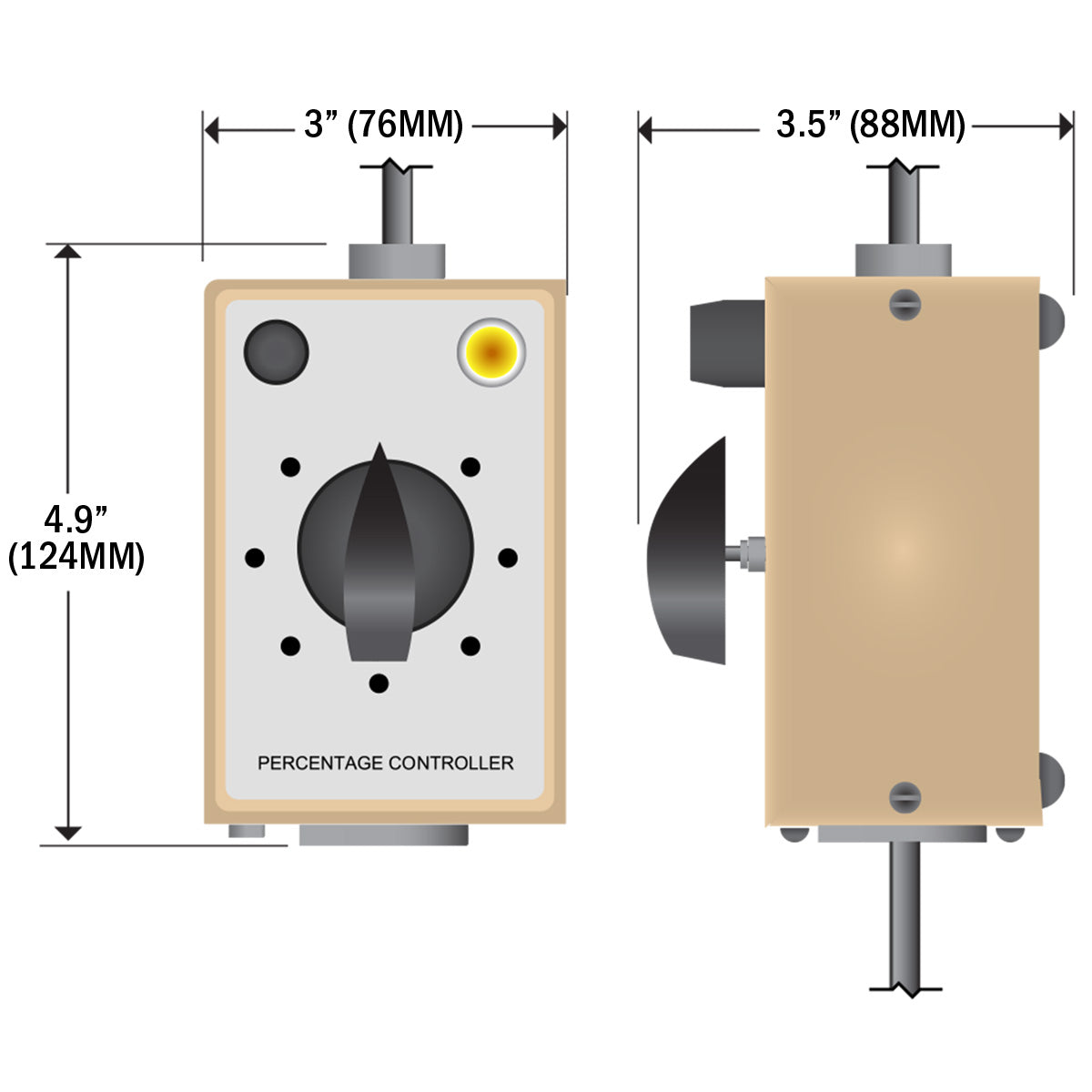

Enclosure Dimensions: 4.9 in x 3 in x 3.5 in (124 mm x 76 mm x 88 mm)
| TP0 Portable | |||
| Part No. | Volts | Amps | Range |
| TP0941-000 | 120 | 15 | 5 to 100% |
| TP0942-000 | 240 | 15 | 5 to 100% |
What is Time Percentage Control?
Time Percentage Control varies the proportion (length) of time the heater is in the "on or off" heating mode. The heating application will determine the actual percentage setpoint required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
