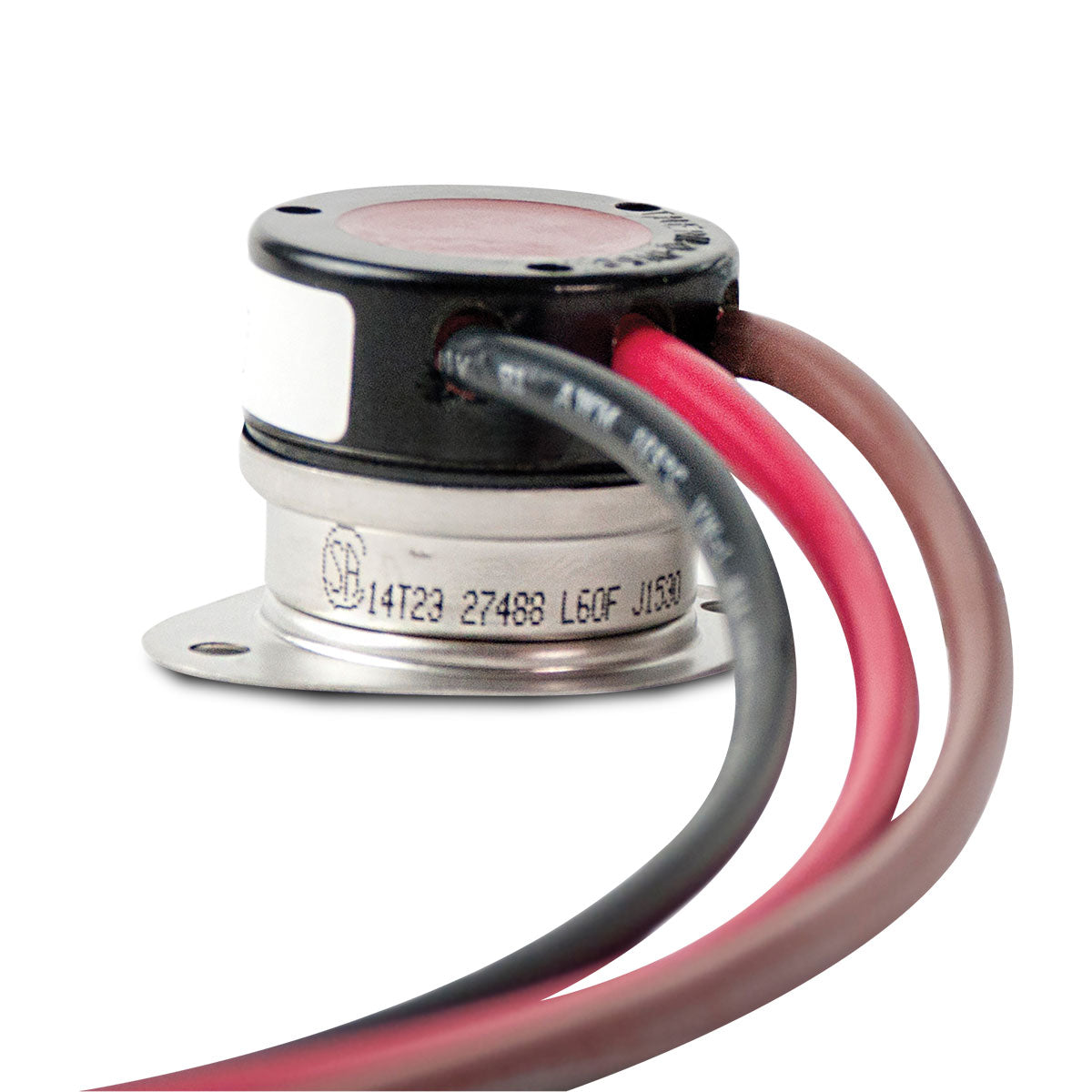

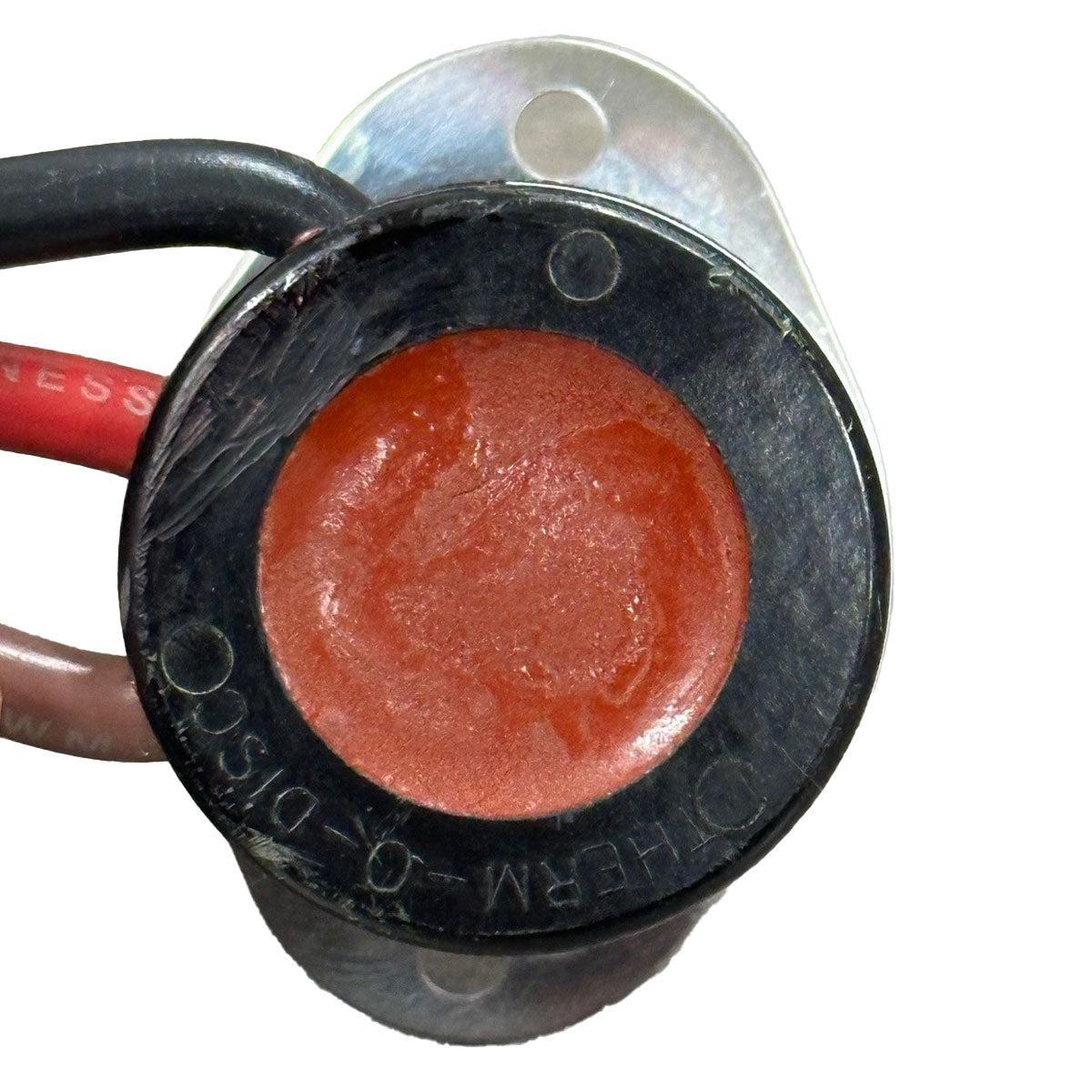

TD101 Automatic On/Off Thermostat Controller
The BriskHeat TD101 Automatic On/Off Thermostat Controller is the ideal thermostat for individual circuits requiring a weatherproof device with temperature sensitive bimetal disc. Typical uses include temperature control for heat tracing and process fluid system applications. Available models with and without conduit fittings.

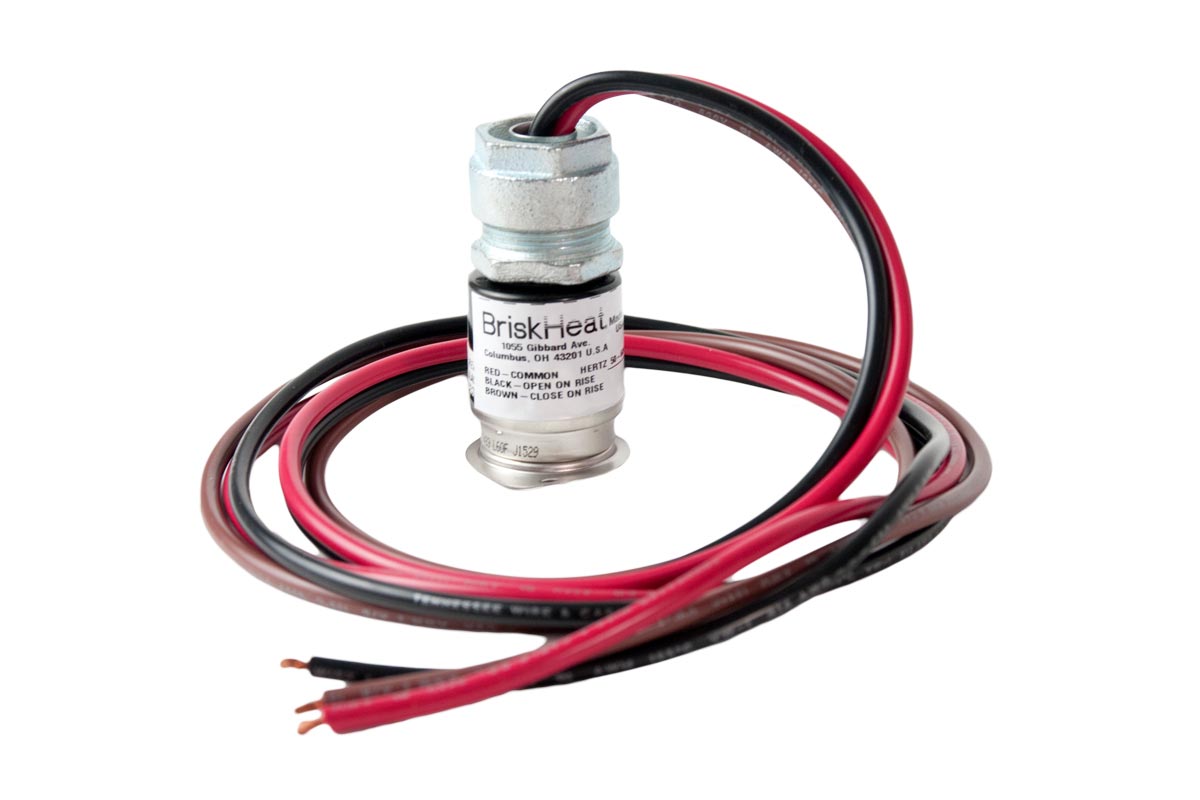

- Without Conduit Connection
- Thermostat Open/Close: 47F/37F (9C/3C)
Since 1949
Additional Features:
- Weatherproof on/off thermostat control with temperature sensitive bimetal disc
- Single pole double throw (SPDT) switch
Voltage: 120–240 VAC UL (120–240 VAC CSA)
Maximum Amp Load: 25 amps
Temperature Control Range: See ordering table
Accuracy: ±6°F @ 50°F–80°F range; ±5°F @ 81°F–200°F range (± 3.3°C @ 10°C–27°C range; ±2.7°C @ 27°C–93°C range)
Connection Wiring: 4 ft (1.2 m) long bare wires
Housing Construction: Hermetically sealed black phenolic plastic housing

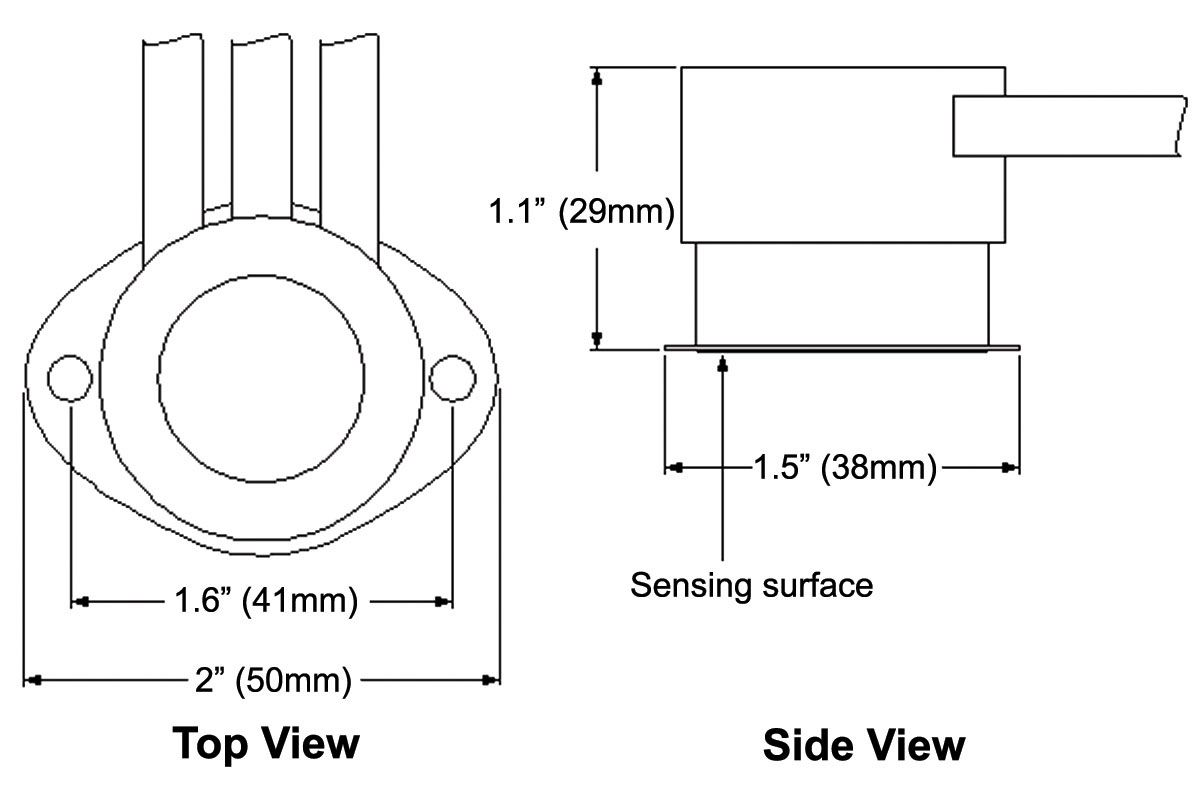

Mounting Bracket: 304 stainless steel bracket with (2) 0.17 in (4.3 mm) diameter holes
Environmental Operating Range: -40°F to 221°F (-40°C to 105°C)
TD101N Series
TD101 is the ideal thermostat for idnividual circuits requiring a weatherproof device and works for applications such as:
- Heat tracing for fluid systems
- Freeze protection
- Outdoor/wet area heating applications
- Over temperature limit switch or alarm
| Part No. | Settings | ||||
| Without Conduit Connector | With Conduit Connector | Volts (VAC) | Amps | Close °F (°C) | Open °F (°C) |
| TD101N-050 | TD101C-050 | Up to 240 | 25 | 37 (3) | 47 (9) |
| TD101N-060 | TD101C-060 | Up to 240 | 25 | 45 (7) | 60 (16) |
| TD101N-075 | TD101C-075 | Up to 240 | 25 | 60 (16) | 75 (24) |
| TD101N-105 | TD101C-105 | Up to 240 | 25 | 90 (32) | 105 (41) |
| TD101N-200 | TD101C-200 | Up to 240 | 25 | 185 (85) | 200 (93) |
