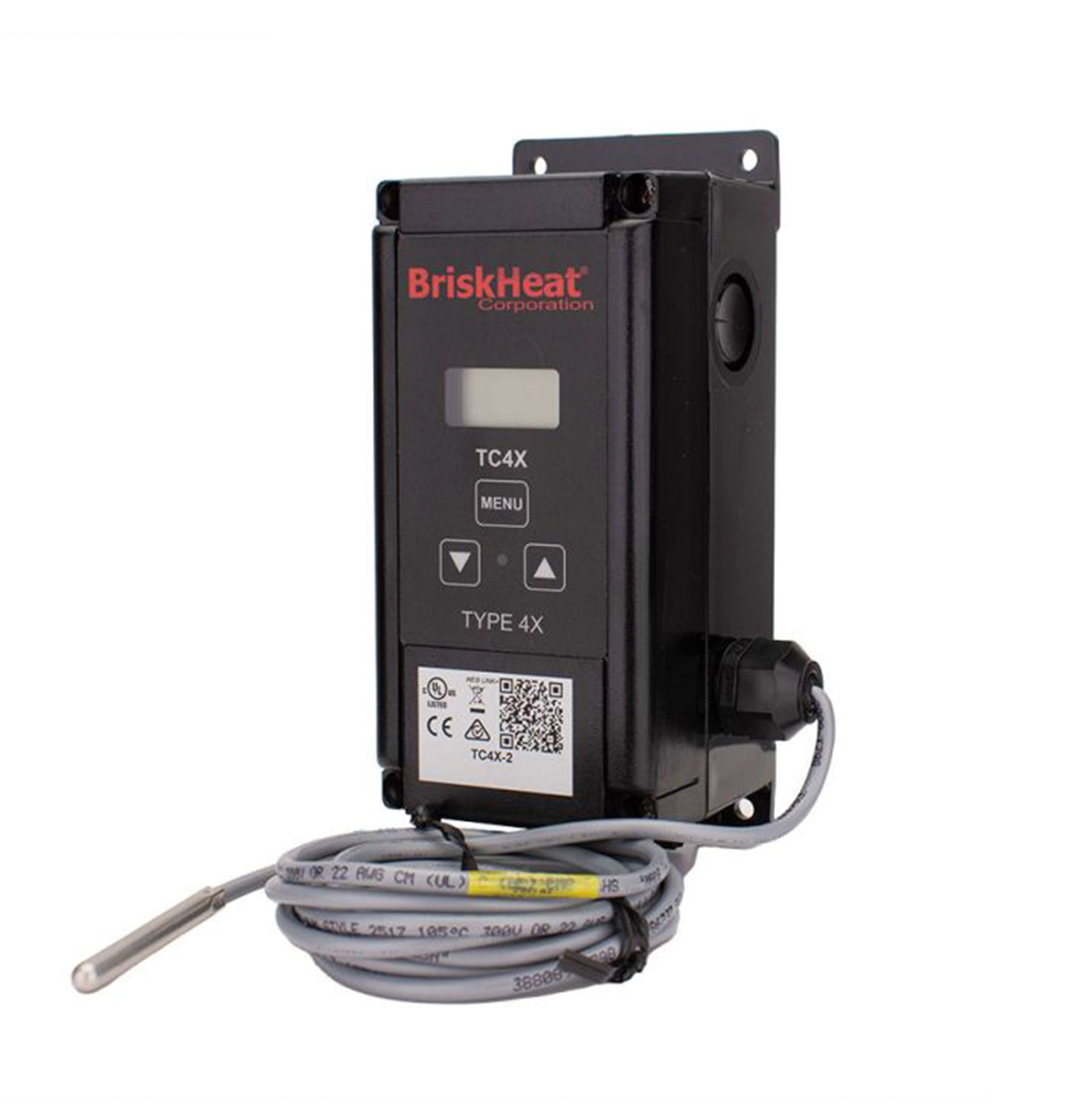

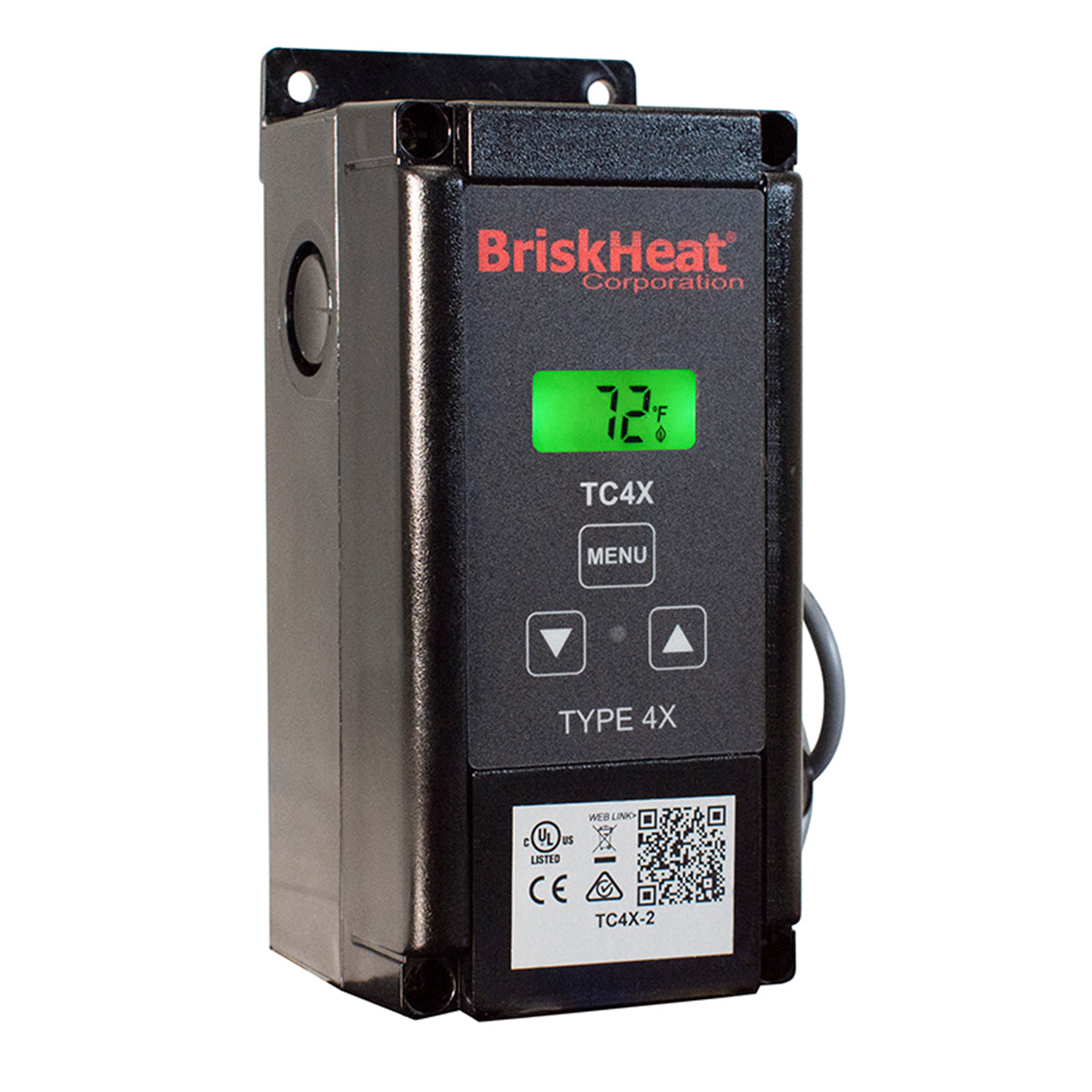

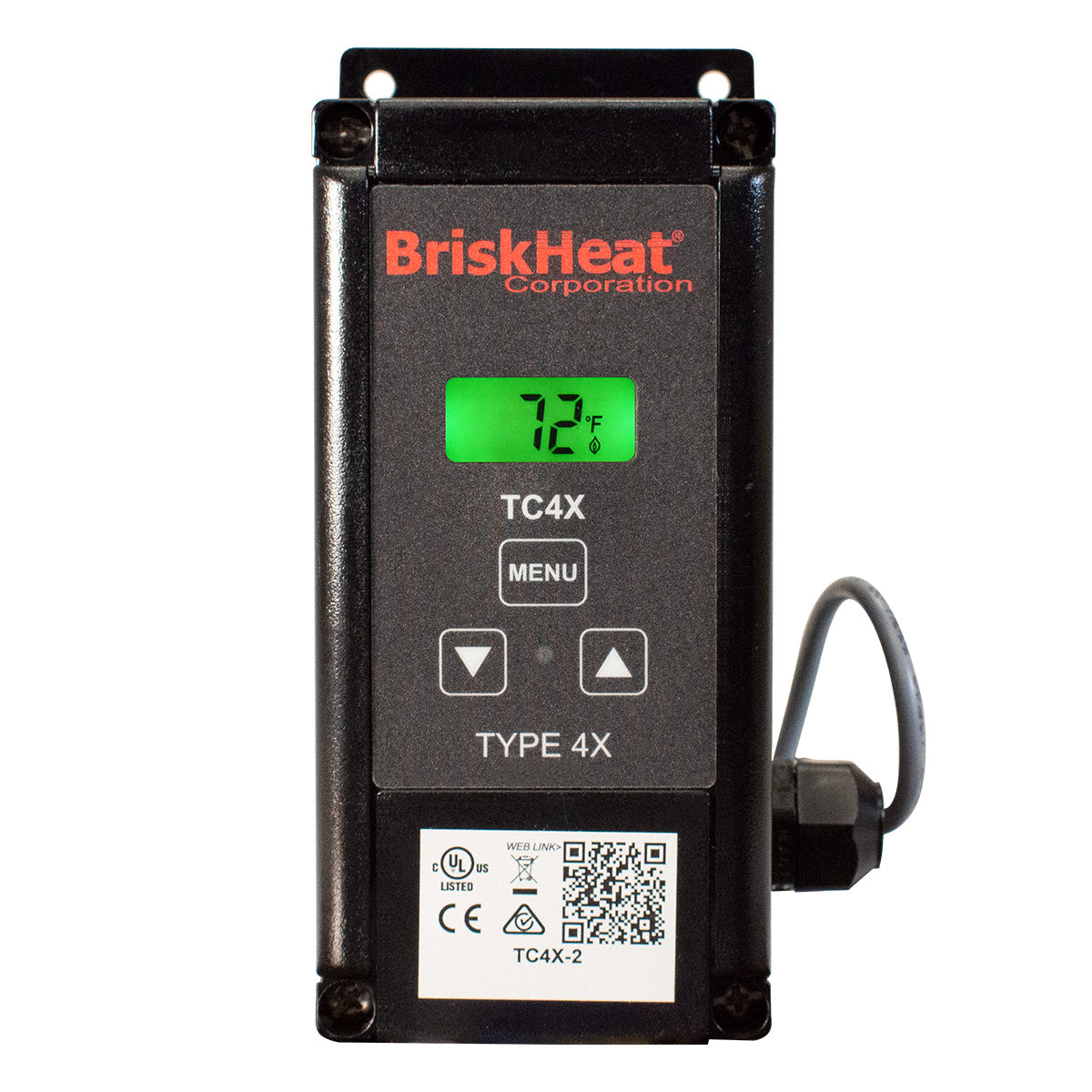

TC4X Digital Temperature Controller in NEMA 4X Enclosure
$168.00
SKU:TC4X-2
The BriskHeat TC4X is a smart controller that automatically sets heating and cooling modes. Equipped with a 3-key touch pad interface, A99 temperature sensor, and on/off control, this controller is compatible with a wide range of heating devices. Its NEMA 4X/IP66 watertight plastic enclosure also makes it an excellent choice for outdoor and wet-area use.
- 78 in (1981 mm) sensor lead length
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
- Single-stage, electronic temperature control with a single pole, double throw (SPDT) output relay
- NEMA 4X* watertight, corrosion-resistant enclosure
- Multi-voltage capability: 110–120 VAC and 208–240 VAC
- Maximum Amp Load: 15 amps at 110–120 VAC; 10 amp at 208–240 VAC
- Temperature Control Range: -30°F to 212°F (-34°C to 100°C)
- Temperature Display Units: °F and °C
- Accuracy: ± 2°F (1°C) between 5°F and 167°F (-15°C and 75°C);
diverging to ± 3°F (2°C) at -40°F (-40°C) and 212°F (100°C) - Sensor Offset Range: ±5°F (3°C)
- Output Relay: Single-pole, double throw (SPDT)
- Input Power Cord/Connections: Hardwire; NEMA 4X/IP66 requires
watertight fitting - Output Power Cord/Connection: Hardwire; NEMA 4X/IP66 requires
watertight fitting - Environmental Exposures:
– Operating range: -40°F to 140°F (-40°C to 60°C)
– Storage range: -40°F to 185°F (-40°C to 85°C)
– Relative humidity: < 95% non-condensing temperatures - Enclosure Dimensions: 2.81 in W x 6.63 in H x 2.81 in D
(71 mm W x 168 mm H x 71 mm D) - Wide temperature differential adjustment range: 1oF to 30oF or oC
- Adjustable anti-short cycle delay: 0 to 12 minutes in 1-minute increments
- Switch-activated temperature offset function
- Easy-to-read liquid crystal display (LCD) for viewing temperature and status
- LED indicates the controller's output relay On/Off status
- Lockable front panel touchpad
- A99BB type PTC sensor, extendable length, 1/4" sensor diameter
- Remote sensing capability
- Field replaceable sensors
- * requires NEMA4X rated fitting for electrical wiring (not included)
| PART NUMBER | SENSOR LEAD LENGTH |
|---|---|
| TC4X-1 | 9" (229 mm) |
| TC4X-2 | 78" (1981 mm) |
