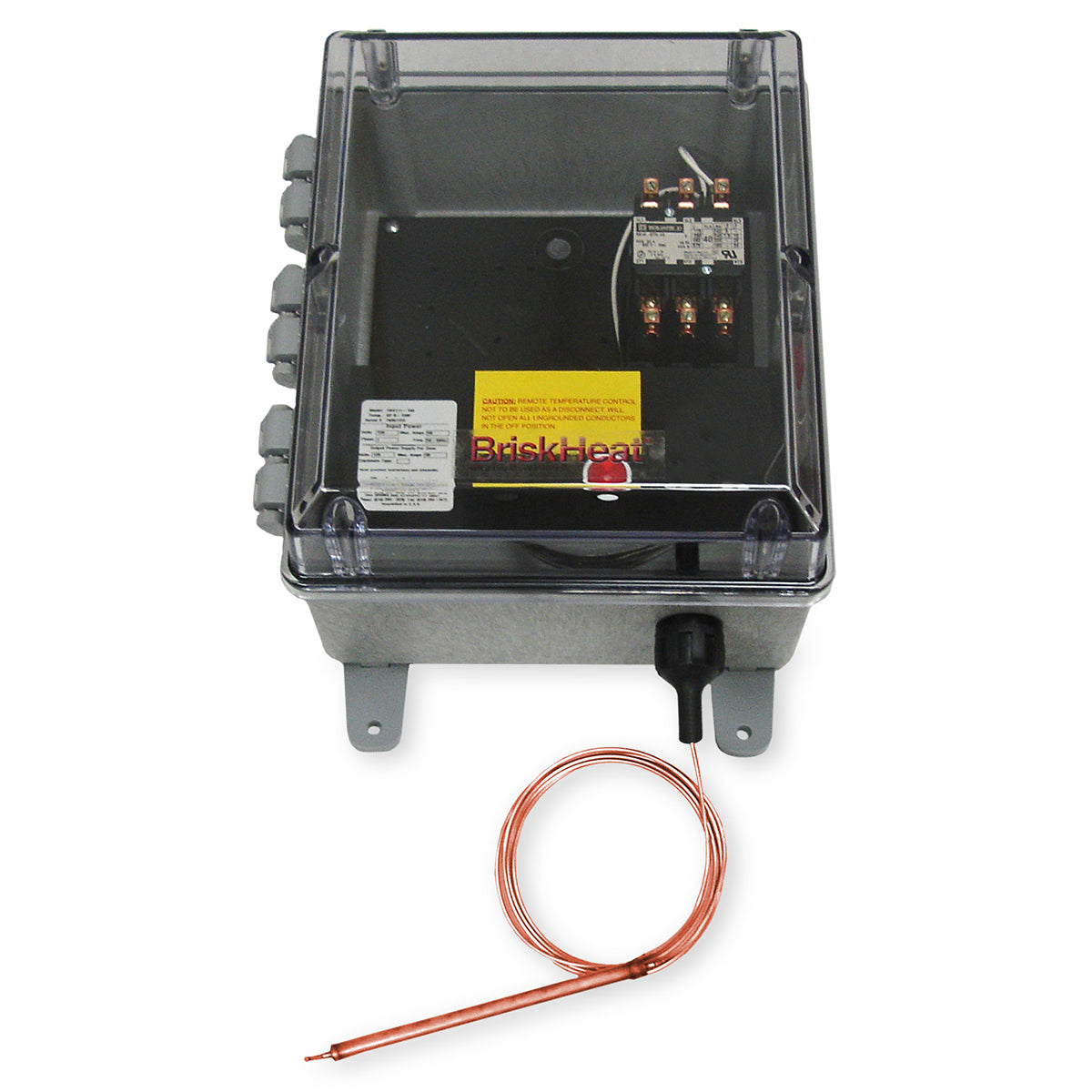

TB4000 High-Capacity Bulb-and-Capillary Temperature Controller
BriskHeat TB4000 bulb-and-capillary temperature controllers are designed for general purpose use in outdoor or indoor industrial environments. These high-capacity controllers are ideal for high wattage tank and hopper applications.
- 120 VAC
- 150F to 650F (66C - 343C)
- One Contactor
Since 1949
Additional Features:
- High amperage load up to 50 amps per zone
- Available with temperature cut off
- Simple dial setpoint
- Multiple configurations
- NEMA 4X enclosure
- Easy-view clear plastic door
Voltage: 120, 240, 277, or 480 VAC with 3-phase option
Maximum Amp Load: Up to 50 amps per zone
Temperature Control Range: 0°F - 150°F, 50°F - 300°F, or 150°F - 650°F
Temperature Display Unit: Dial setpoint °F
Accuracy: ± 5°F (± 3°C)
Hysteresis: 2% of full scale
Sensor: Copper bulb and capillary, 10 ft (3 m) long
Environmental Exposure: Operating range: -40°F to 160°F (-40°C to 71°C)
Enclosure Material: Plastic or stainless steel

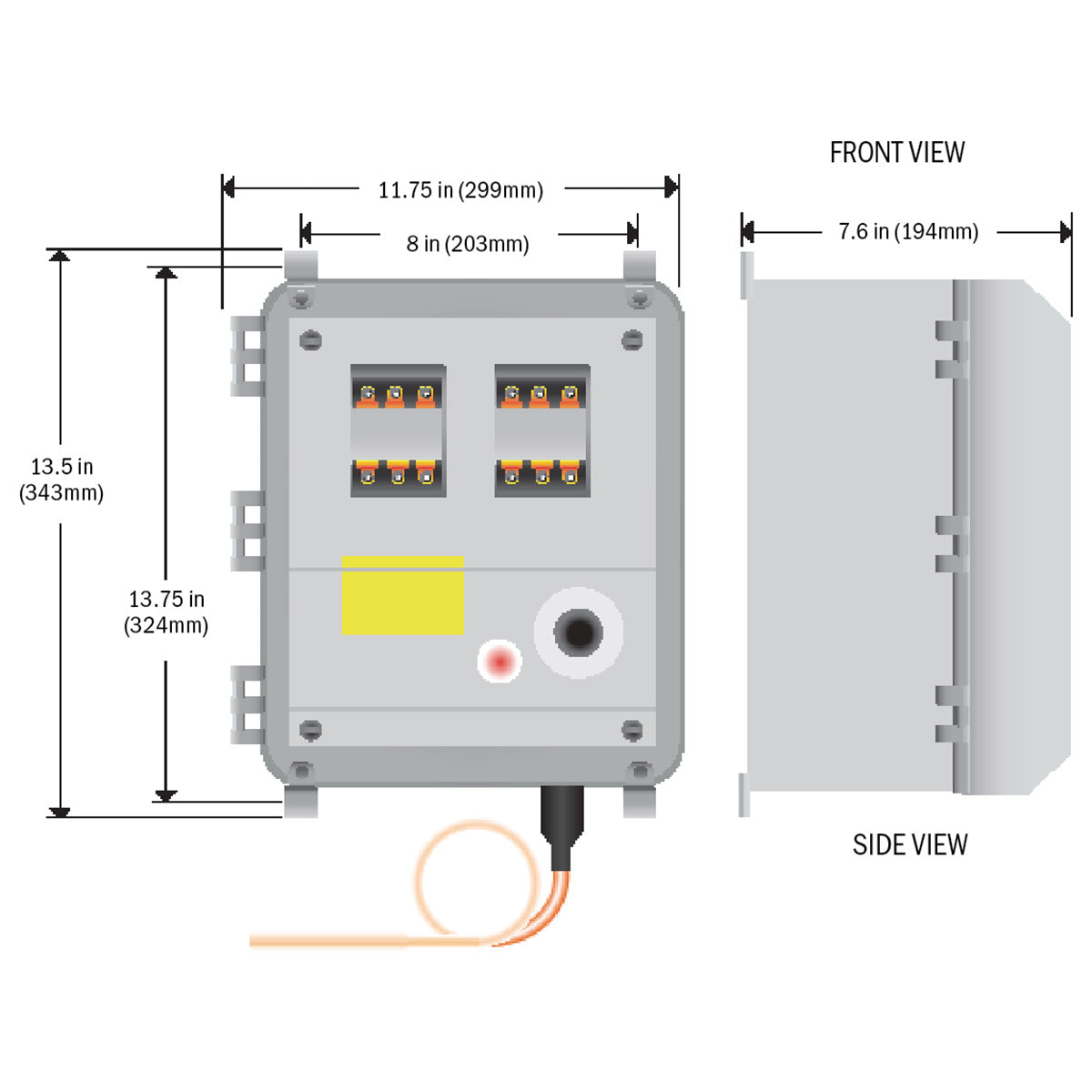

TB4000 Product Measurements:
Bulb Dimensions:
|
Temperature Range |
Diameter |
Length |
||
|
Inches |
mm |
Inches |
mm |
|
|
0° to 150°F |
3/8 |
10 |
6 7/8 |
175 |
|
50° to 300°F |
3/8 |
10 |
4 3/8 |
111 |
|
150° to 650°F |
3/8 |
10 |
3 5/8 |
92 |
