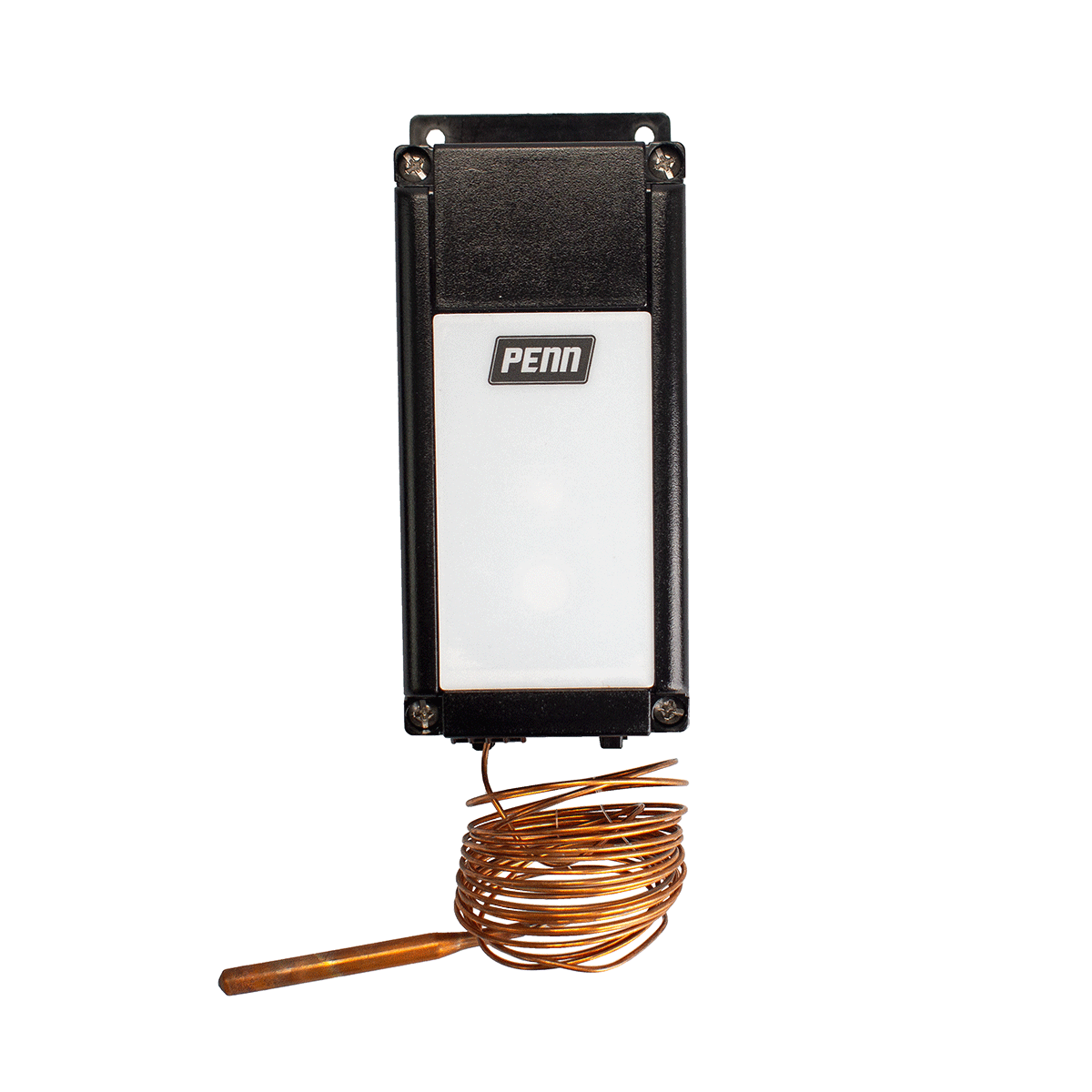

All-Purpose Bulb & Capillary Temperature Controller, NEMA 4X Enclosure (TB250P-150)
$222.00
SKU:TB250P-150
BriskHeat TB250P-150 is a Bulb and Capillary Temperature Controller with a copper bulb and capillary sensor output. Ideal for heat tracing, freeze protection, and process maintenance applications.
- Temperature range 0°F to 150°F
- Voltage up to 277 VAC
- Suitable for outdoor use
- SPDT Switch
- NEMA 4X Enclosure
Quality Guaranteed
Since 1949
Since 1949
Voltage: Up to 277 VAC
Maximum Amp Load: 22 amps (SPST)
Temperature Control Range: 0°F to 150°F
Temperature Display Unit: Dial setpoint °F
Hysteresis: 5°F (4°C)
Sensor Input: Tinned copper bulb and capillary, 10 ft (3 m) long
Environmental Exposures: Operating range: -36°F to 140°F (-3°C to 60°C)
Enclosure Dimensions: 2.81 in x 7.38 in x 3.38 in (71 mm x 188 mm x 86 mm)
Mounting Hole Centers: 2.18 in x 6.10 in (55 mm x 154 mm)
Bulb Dimensions: Diameter: 0.3 in (8 mm) Length: 2.5 in (64 mm)
Ideal application uses:
- Heat tracing
- Freeze protection
- Process heating
