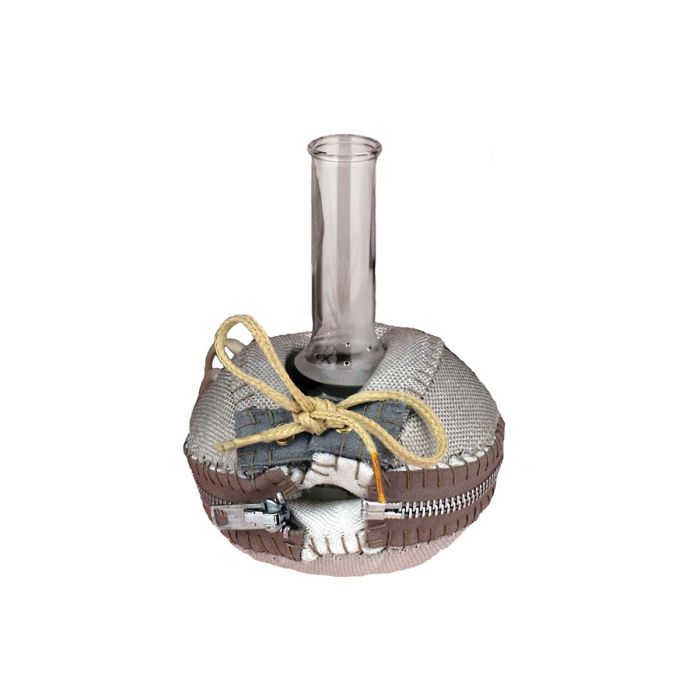

Spherical Heating Mantles (HM)
$754.00
SKU:HM2000-SS1

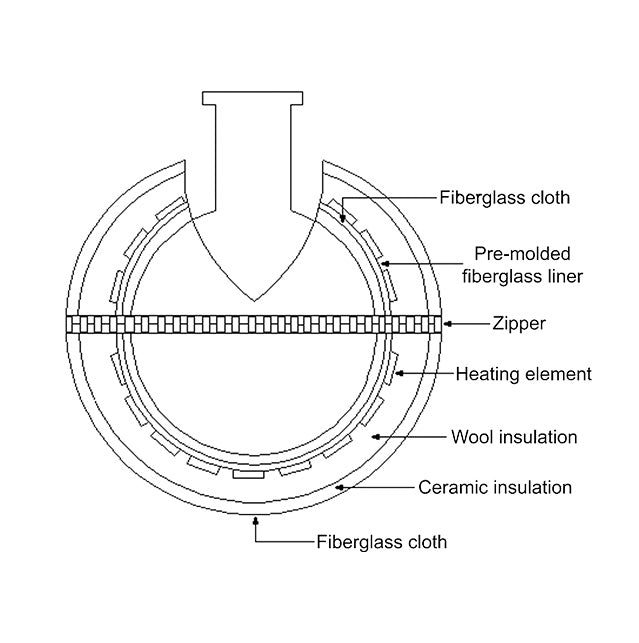

BriskHeat's spherical heating mantles offer uniform, low-watt heat distribution for round-bottom flasks. Made with a fiberglass cloth outer shell and multi-stranded resistance wire, these heating mantles have increased durability and flexibility and are an excellent alternative to a Bunsen Burner.
This product requires a temperature controller for safe operation.
- Full-coverage zippered mantle
- 2000 ml
- 120 VAC
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Opening holds 1, 2, or 3 neck flasks
- Easily installs on basket ring stands
- Suitable for high temperatures
Note:
Temperature Controller is required for this product
Maximum Exposure Temperature: 842°F (450°C)
Outer Construction: Fiberglass outer shell
Heating Element: Multi-stranded resistance wire for increased durability. Knit and braided for uniform heat coverage
Voltage: 120 or 240 VAC
Power Leads: 3 in (76 mm) long with
- 120 VAC: Twist lock connector (NEMA L1-15R) and 4 ft (1.2 m) long extension cord with 2-prong plug (NEMA 1-15P)
- 240 VAC: Crimped ferrule leads
IP Rating: IP20
| Part No. 120 VAC | Part No. 240 VAC | Size (ml) | Upper Total Watts | Lower Total Watts |
| HM0500-SS1 | HM0500-SS2 | 500 | 0 | 270 |
| HM1000-SS1 | HM1000-SS2 | 1000 | 140 | 380 |
| HM2000-SS1 | HM2000-SS2 | 2000 | 200 | 500 |
