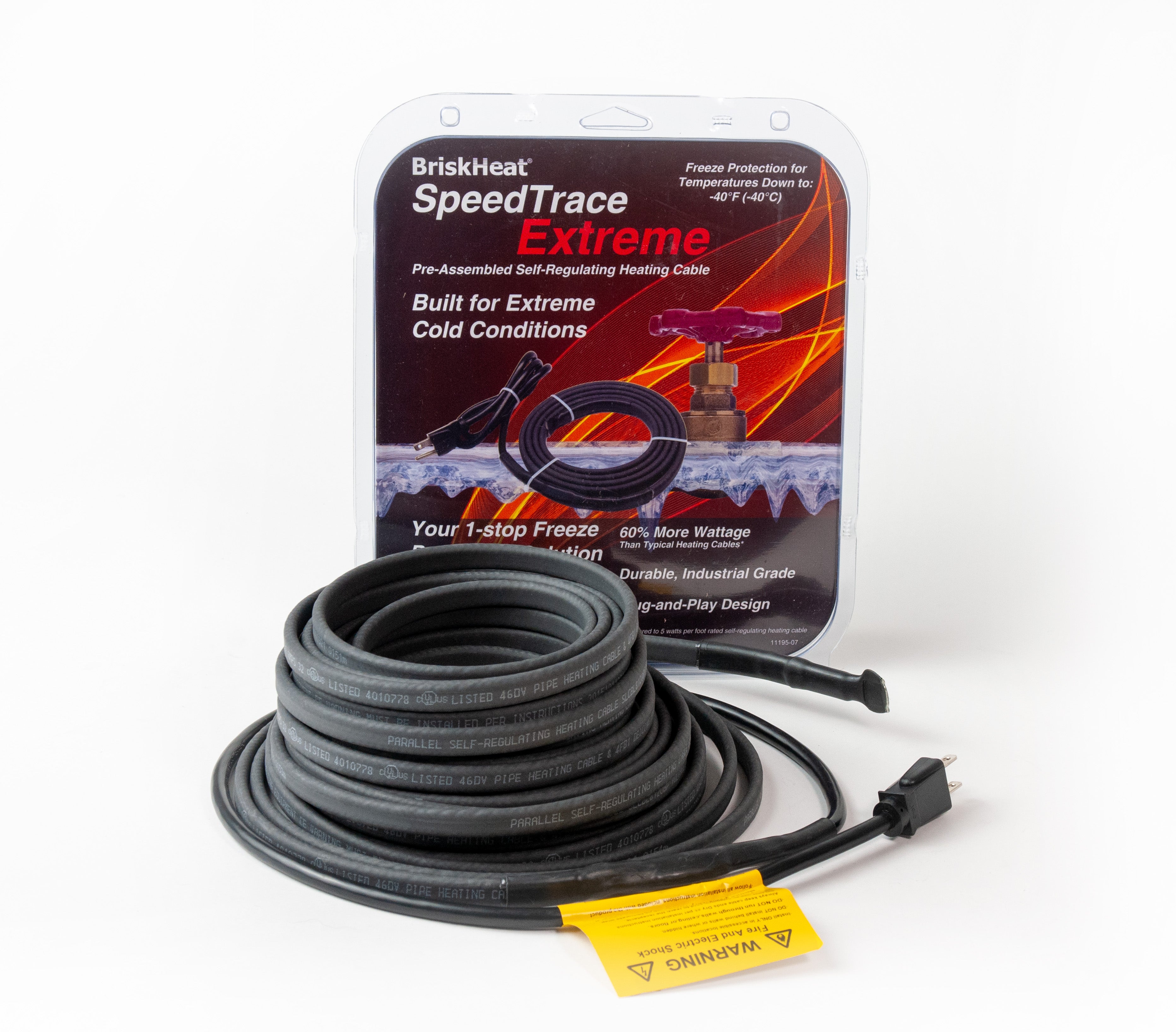

SpeedTrace Extreme Self-Regulating Heating Cable

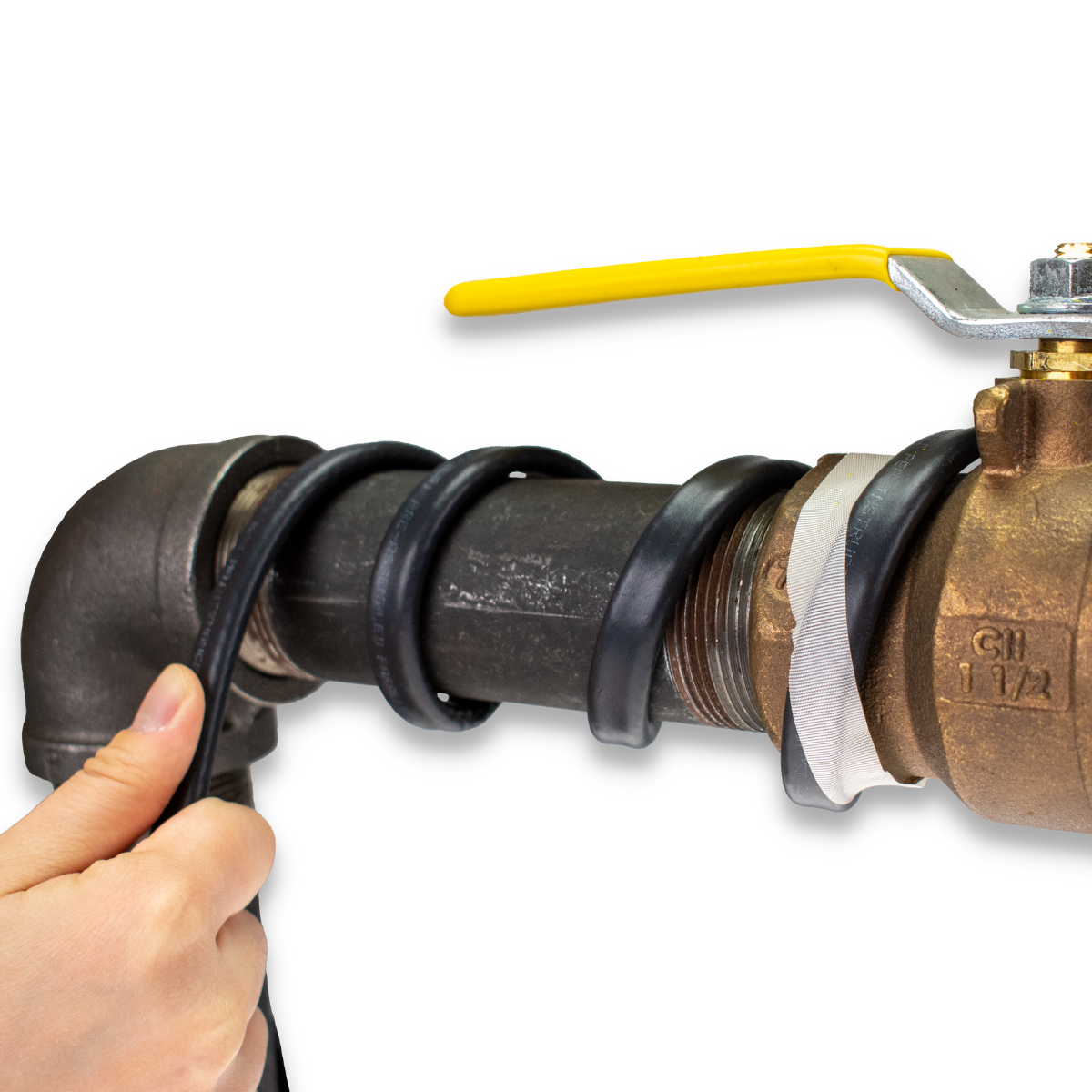

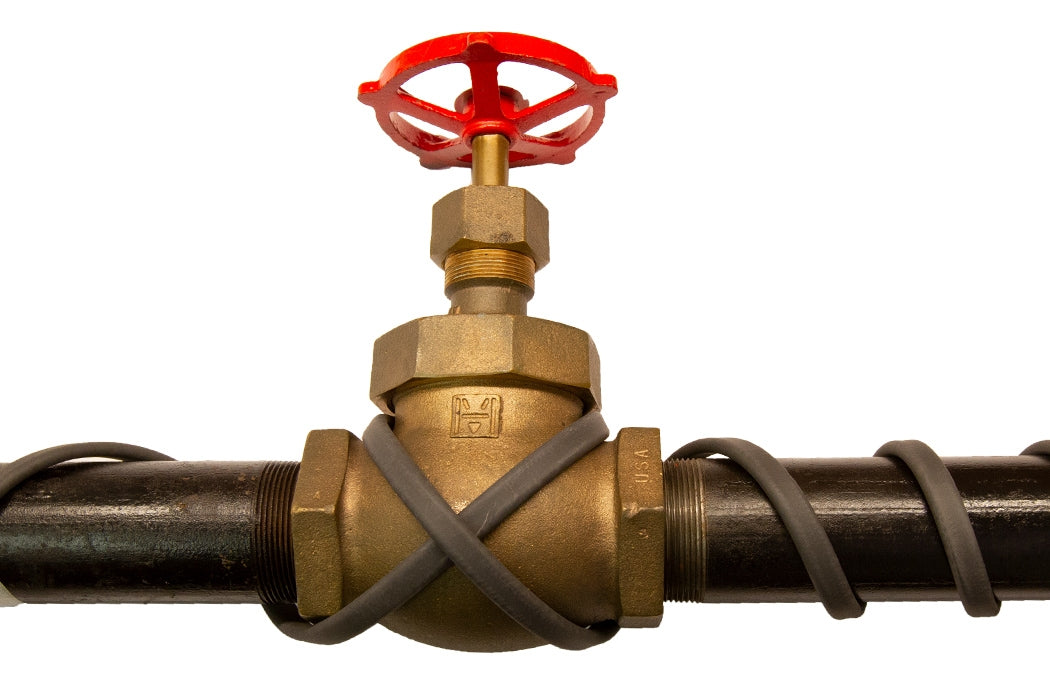

BriskHeat SpeedTrace Extreme heating cables are an ideal solution for easy-to-install pipe freeze protection and safe thawing of metal and plastic pipe & valve assemblies. May be used on metal and plastic water pipes, for pipe heating, but not on flexible vinyl tubing (such as garden hoses). SpeedTrace Extreme heating cable self-regulates the pipe heating cables temperature by automatically adjusting electric cable heat output based on surface and ambient temperatures. No temperature control is required.
- 18 ft long
- 120 V
- Pre-assembled with standard 3-prong (NEMA 5-15) plug
Since 1949
New and Improved: Power-indicating light lets you know heater is working
Wide Range of Applications:

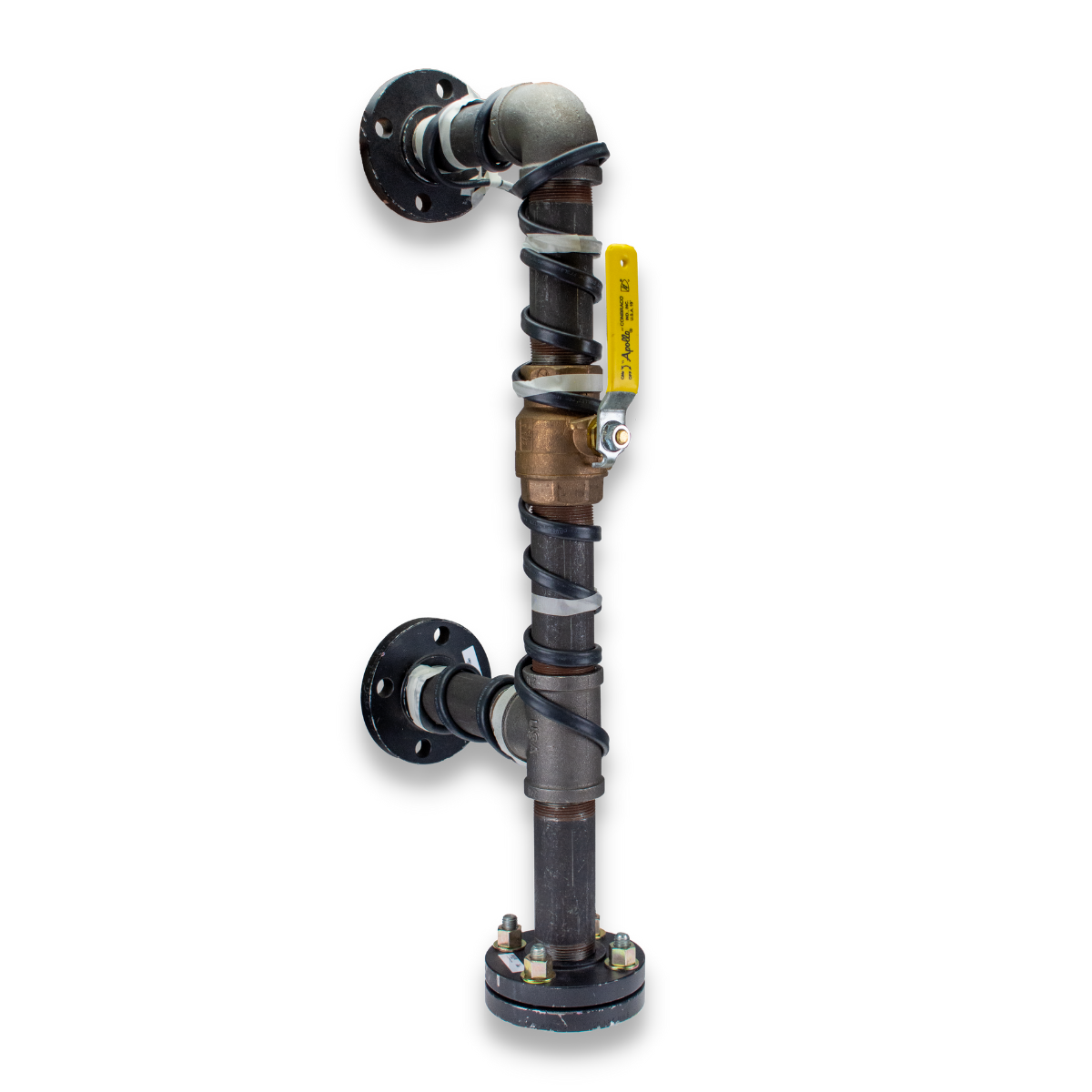

Pipe Tracing
Vessel Tracing
Freeze Protection
Viscosity Control
Low Temperature process Maintenance
Roof & Gutter
Supply Voltage: 110-120 VAC; 208-277 VAC
Wattage at 50°F (10°C): 8 watts/ft (26 watts/m)
Maximum Exposure Temperature: 150°F (65°C)
Outer Jacket Material: Moisture and flame resistant thermoplastic elastomer
Bus Wire Gauge: 16 AWG
Power Cord:
- 110-120 VAC: 6 ft (1.8 m) long with 3-prong grounded NEMA 5-15P plug
- 208-277 VAC: 2.5 ft (0.76 m) long with bare wire leads
| Part No. 110-120 V | Part No. 208-277 V | Length ft (m) |
| FFSL81-6 | FFSL82-6 | 6 (1.8) |
| FFSL81-12 | FFSL82-12 | 12 (3.7) |
| FFSL81-18 | FSSL2-18 | 18 (5.5) |
| FFSL81-24 | FFSL82-24 | 24 (7.3) |
| FFSL81-50 | FFSL82-50 | 50 (15.2) |
| FFSL81-75 | FFSL82-75 | 75 (22.8) |
| FFSL81-100 | FFSL82-100 | 100 (30.5) |
