FM SLMCAB Power Connection Kit (SLMCABUC)
$154.50
SKU:SLMCABUC

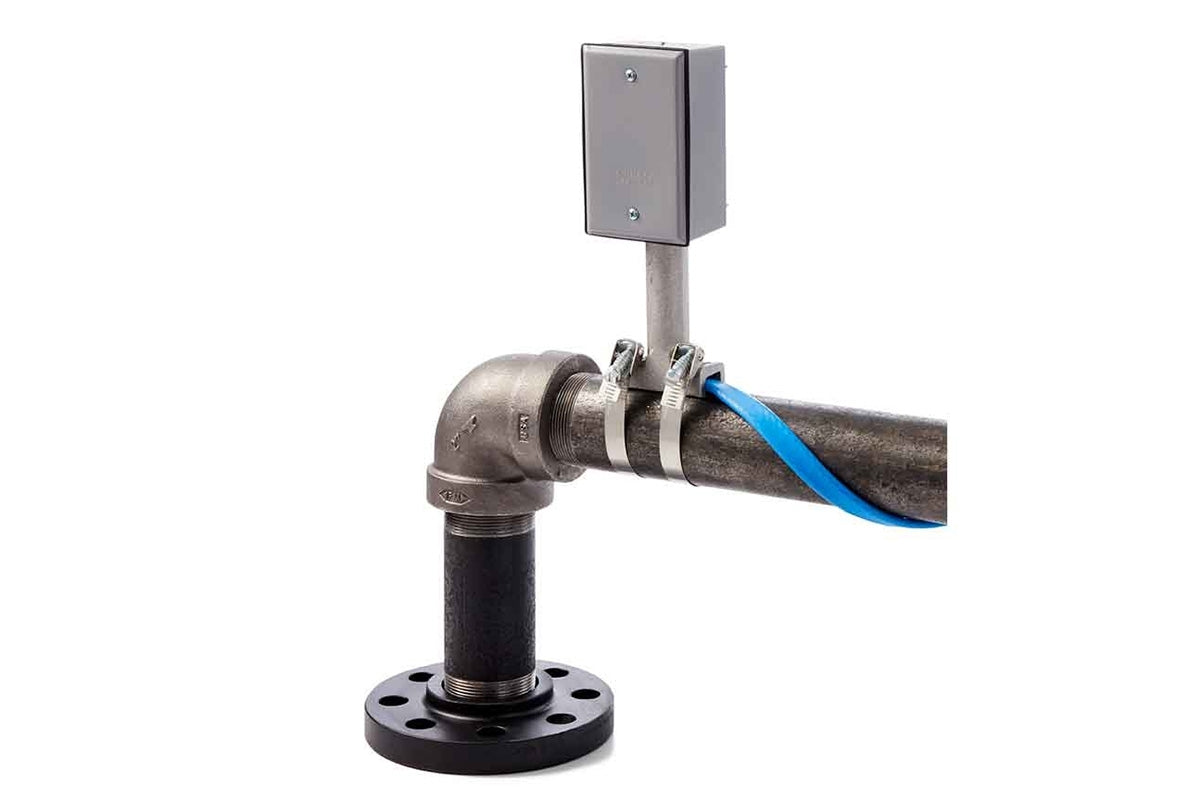

The BriskHeat SLMCABUC series is a FM approved universal power connection kit engineered exclusively for use with SLMCAB mid-temperature self-regulating heating cable systems. This highly adaptable field kit provides all the specialized electrical components and mounting hardware necessary to complete either one power input connection and two end-of-line terminations, one input power splice, or one tee splice.
Important Installation Note: For code compliance and safe operation in industrial environments, this kit requires one 0.75 in NPT junction box featuring appropriate safety and environmental approvals (sold separately).
- Universal Field Flexibility: A multi-functional design that allows field technicians to execute standard power feeds, linear cable splicing, or multi-directional T-branching from a single, comprehensive package.
- Mid-temperature System Optimization: Precision-matched to handle the specific operational thermal profiles, mechanical dimensions, and structural jacket materials of BriskHeat SLMCAB heat trace lines.
-
Complete Environmental Seal: Combines industrial end boots, high-temperature fiberglass tape, and premium RTV sealant to protect critical connection junctions against moisture entry, dust ingress, and electrical shorting.
Quality Guaranteed
Since 1949
Since 1949
Kit Type:Universal Connection Kit - FM Approved
Approvals:
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 1† and 2, Groups B, C, D
Class II, Division 2, Groups F, G
Class III, Division 2
Ordinary LocationsHazardous (Classified) Locations
Class I, Division 1† and 2, Groups B, C, D
Class II, Division 2, Groups F, G
Class III, Division 2
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
†Contact a BriskHeat representative for information on Division I hazardous location systems.
| Part No. | Kit | Compatible With | Enough to Complete | Kit Contents | Required Accessories |
|---|---|---|---|---|---|
| SLMCABUC | Universal Connection Kit - FM Approved | SLMCAB Heating Cable | Enough to complete 1 input connection and 2 end terminations; or 1 input power splice or 1 tee splice. | 0.75 in (19 mm) NPT junction box - with appropriate approvals. |
|
Catalog/Specifications Sheet
Instruction Manuals
Q: What is self-regulating cable?
A: Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing and much more.
Q: What is the difference between self-regulating and constant wattage heating cable?
A: Self-regulating heating cable automatically adjusts its heat output based on the surrounding temperature. It produces more heat in colder areas and less heat in warmer areas. Constant wattage heating cable delivers the same heat output along its entire length regardless of ambient conditions.
Q: When should I use self-regulating heating cable?
A: Self-regulating heating cable is ideal for freeze protection and temperature maintenance applications where temperatures may vary along the pipe or equipment. It is commonly used for:
- Water pipes
- Process piping
- Roof and gutter de-icing
- Tanks and vessels
- Industrial freeze protection
Q: When should I use constant wattage heating cable?
A: Constant wattage heating cable is often used when a consistent heat output is required across the entire circuit. Common applications include:
Process temperature maintenance
- Long pipe runs
- Industrial equipment
- Viscosity control
- Applications with predictable heating requirements
Q: Can heating cable be used outdoors?
A: Yes. Many heating cables are designed for outdoor environments and can be used on exposed piping, tanks, valves, roofs, gutters, and process equipment. Our low temperature self-regulating heating cable, mid temperature self-regulating heating cable, high temperature constant wattage cable, and speedtrace self-regulating heating cable are suitable for outdoor use. Several constant wattage cable models are moisture and chemical resistant. Always confirm environmental ratings before installation.
Q: What voltages are available for heating cable?
A: Heating cable is available in multiple voltage options, including:
- 120V
- 208V
- 240V
- 277V
- 480V
Q: Is a temperature control needed for your Self-Regulating Heating Cable?
A: BriskHeat Self-Regulating Heating Cable should be used with an appropriate temperature controller to save energy and ensure the cable is only energized during cold periods, but it is not required. Temperature control is also necessary to maintain a specific process temperature.
