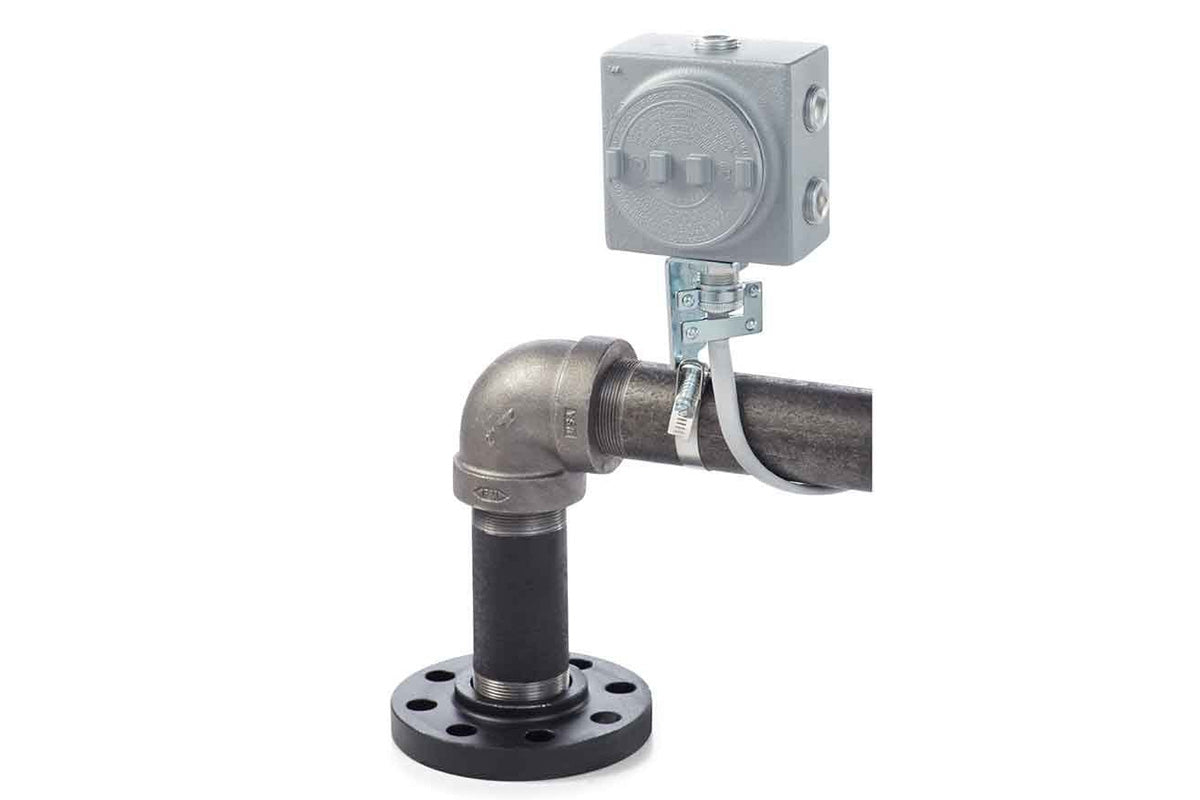

CSA SLCAB and SLMCAB Power Connection Kit with End Seal (SLCABUC-CSA-M)
BriskHeat SLCABUC-CSA-M is CSA approved universal connection kit compatible with SLCAB and SLMCAB series heating cables. This kit provides enough to complete one input connection and one end termination. Splices and power input splices can be made using two kits.
Note: A 0.75 in NPT junction box is required with appropriate approvals. A SLCAB-CSA-D1 accessory kit is also required if installed in Class 1, Division 1 environments.
Kit Contents:
1 - Connector body
1 - Connector cap
1 - Connector gland washers
1 - Grommet
1 - Termination boot
1 - Strain relief grip
1 - Standoff bracket
1 - Locknut
1 - Termination block
1 - Roll of fiberglass adhesive tape
1 - Pipe strap for 2 in to 6 in (51 mm to 152 mm) O.D. pipes
1 - Ring tongue terminal
1 - End seal kit (end cap, clamp, sealant, crimp sleeve)
Since 1949
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
Ordinary Locations 2E*, 3 (A, B, C), 5 (A, B)
- 2E* approved for 3 watts/ft and 5 watts/ft only
Hazardous (Classified) Locations
- Class I, Division 1 and 2, Groups B, C, D
- Class II, Division 1 and 2, Groups E, F, G
- Class III, Division 1 and 2
Required Accessories for CSA Approval
- 0.75 in NPT junction box - with appropriate approvals
- SLCAB-CSA-D1 - if installed in Class I, Division 1 Environment
