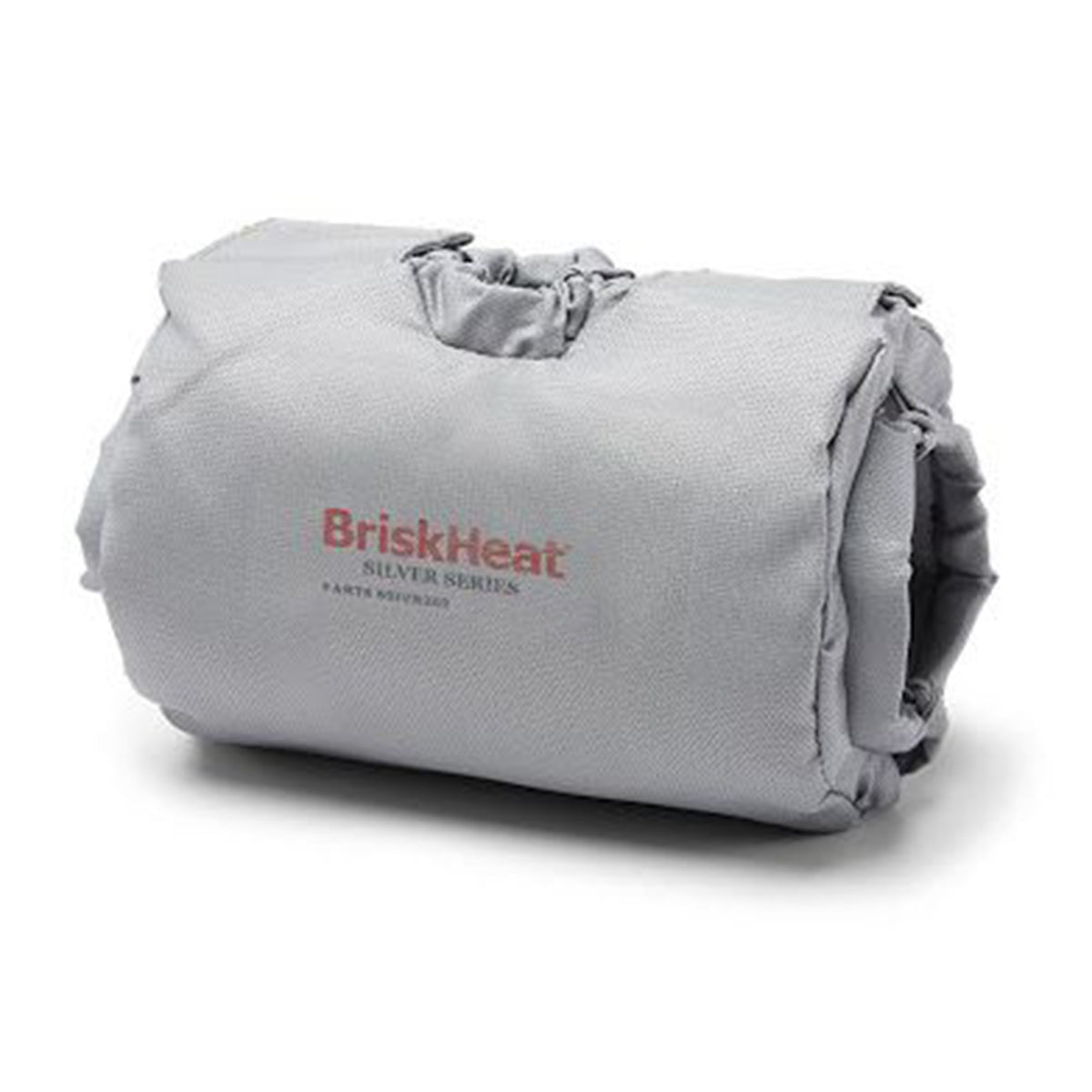

Silver-Series Insulators 2-Way Control Valve
Silver-Series Removable Cloth Insulators are a configurable system of removable insulator blankets and covers that feature durable high-temperature cloth, energy-efficient fiberglass insulation, and hook & loop closures for easy installation and removal. This cost-effective solution improves thermal efficiency for hot and cold pipes, tanks, and vessels in industrial and commercial environments. Custom designs can be manufactured for unique requirements.
- Outside Pipe Diameter: 1 inches
Since 1949
Additional Features:
- Easy-to-install configurable system with cut-to-length straights
- Durable product design delivers long serive life
- Moisture & chemical resistant
- High-temperature resistance
- Fire-retardant, asbestos-free material
- Custom designs can be manufactured for unique requirements
Maximum Exposure Temperature: Up to 500°F (260°C)
Facing & Liner Material: PTFE Cloth
Insulation: 1 in (25 mm) thick fiberglass
Thermal Performance: R3.3, KO.21@75°F (24°C)
IP Rating: IP54
Q: What is FRC1650 cloth and why is it used?
A: Answer: FRC1650 is a fire-resistant and chemical-resistant coated fiberglass cloth. It is durable and safe for use in many industries.
Q: How are pipe insulators cut-to-length in the field?
A: Answer: Straight insulators are made up of alternating 6” and 12” (15cm and 30cm) modules that can be cut at each seam to an approximate length needed.
Q: Can the insulators be used outdoors?
A: Answer: Yes.
Q: Are custom shapes and sizes available?
A: Answer: Yes.
Q: Are high-temperature insulators available?
A: Answer: Yes, custom options are available up to 1800°F (982°C).
Q: Are color options available for color-coded systems?
A: Answer: Yes
Q: Are custom-closure options available for securing the insulators?
A: Answer: Yes, stainless steel D-rings and FRC1650 tie-downs are available. Industrial strength magnets can be built into the insulators to help secure large insulators to metal vessels/tanks.
Q: How do I get a quote for a custom insulator?
A: Answer: Contact BriskHeat with dimensions and specification requirements and BriskHeat will assist with designing a custom insulator to meet those requirements.
Q: Can standard Silver-Series insulators be used in hazardous area locations?
A: Answer: Yes.
Q: Do Silver-Series insulators contain asbestos?
A: Answer: No, Silver-Series insulators do not contain asbestos or any other harmful or toxic components.
