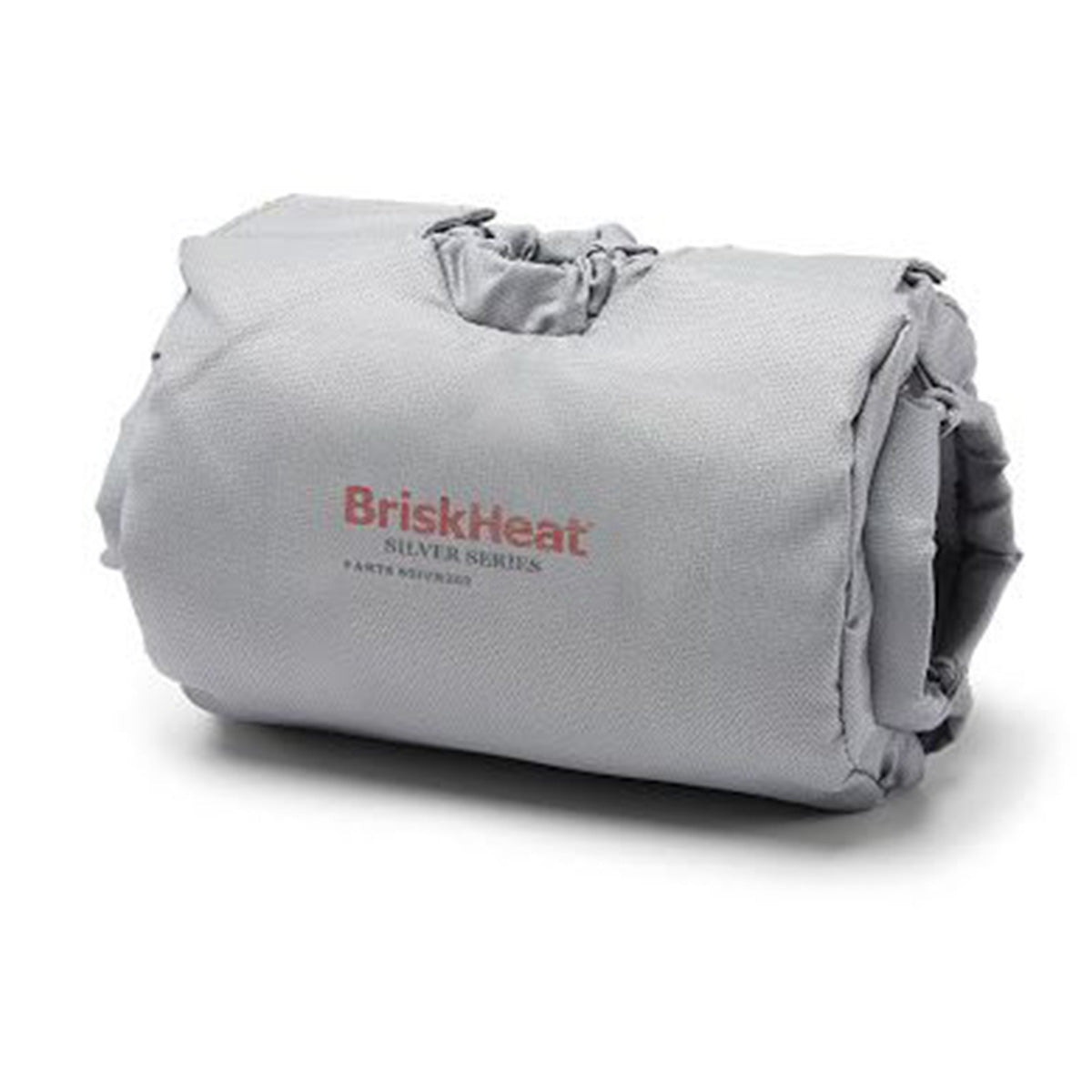

Silver-Series Insulators 2-Way Ball Valve
$74.50
SKU:SSIVB102
Silver-Series Removable Cloth Insulators are a configurable system of removable insulator blankets and covers that feature durable high-temperature cloth, energy-efficient fiberglass insulation, and hook & loop closures for easy installation and removal. This cost-effective solution improves thermal efficiency for hot and cold pipes, tanks, and vessels in industrial and commercial environments. Custom designs can be manufactured for unique requirements.

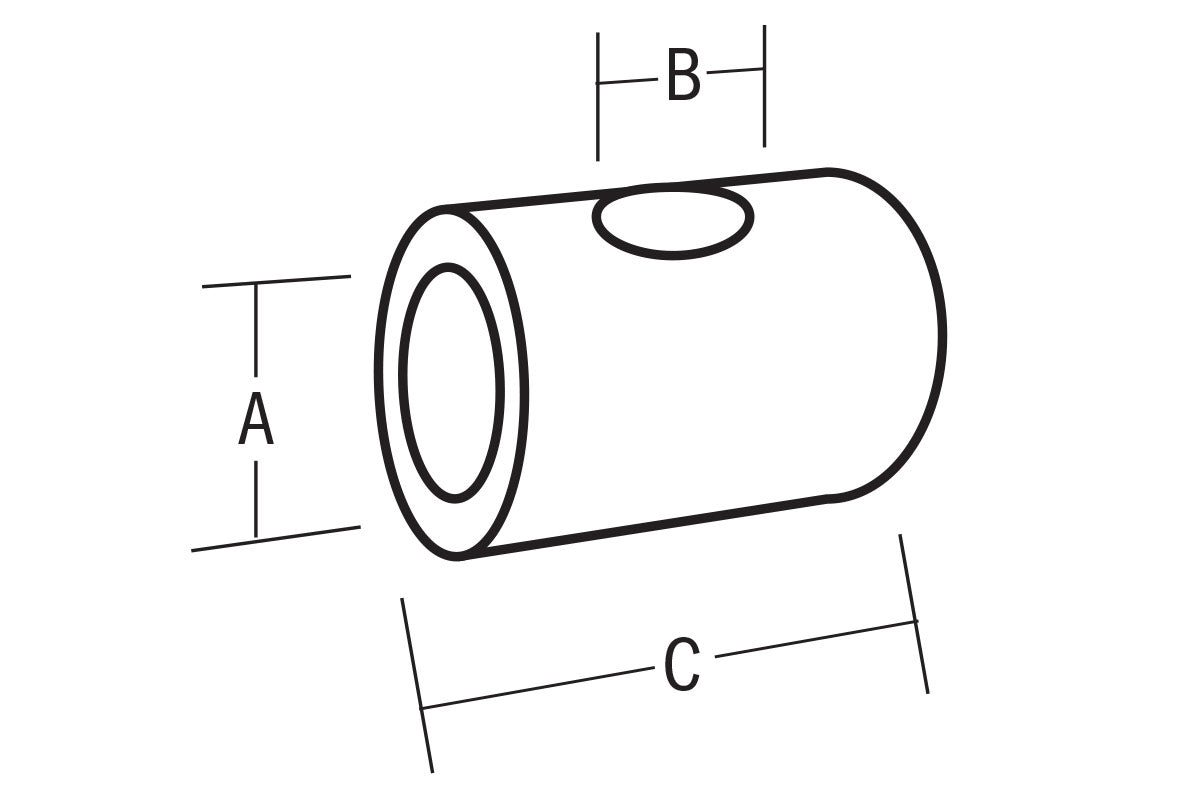

- (A) Inside Diameter of Insulator: 4.5 inches
- (B) Opening Inside Diameter: 3 inches
- (C) Length: 8 inches
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Easy-to-install configurable system with cut-to-length straights
- Durable product design delivers long serive life
- Moisture & chemical resistant
- High-temperature resistance
- Fire-retardant, asbestos-free material
- Custom designs can be manufactured for unique requirements
Maximum Exposure Temperature: Up to 500°F (260°C)
Facing & Liner Material: PTFE Cloth
Insulation: 1 in (25 mm) thick fiberglass
Thermal Performance: R3.3, KO.21@75°F (24°C)
IP Rating: IP54
OEM applications
Analytical instrumentation
Medical equipment
Food processing
Semiconductor
Electronics (Indoor and Outdoor)
Aerospace
Energy
Fluid delivery
Viscosity control
Freeze protection
Process heating
