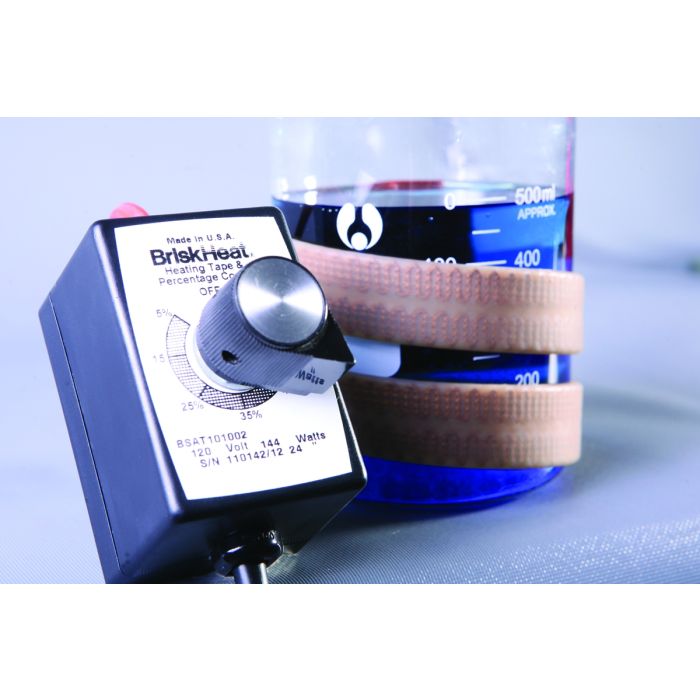

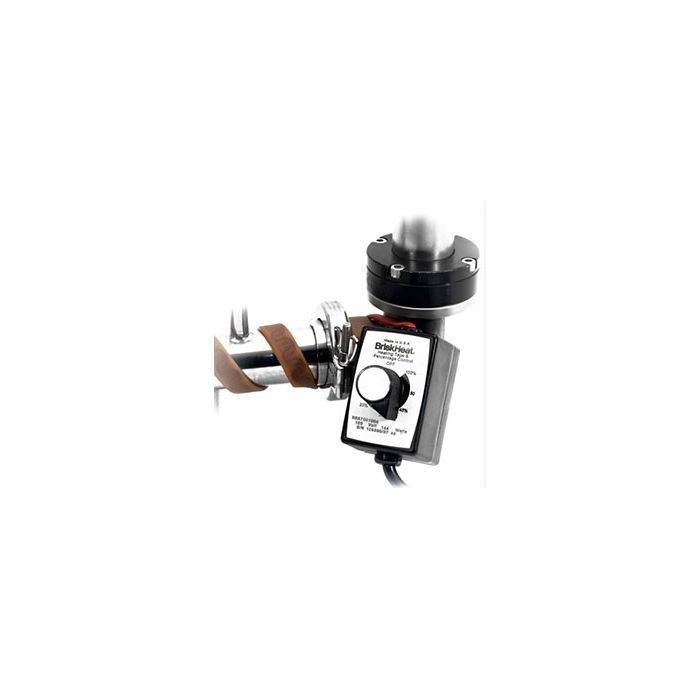

Silicone Rubber Heating Tape with Time Percentage Dial Control (BSAT)
BriskHeat XtremeFLEX BSAT Silicone Rubber Heating Tapes are ideal for a wide range of heating applications including, temperature maintece, freeze protection, temporary heat, and more! This heat tape comes with a built-in adjustable percentage dial controller that provides on/off heating from 5% to 110%. With its rapid thermal response, exceptional flexibility, and plug-and-play design, these tapes will provide accurate heat when you need it.
- Length and Width: 1 in x 8 ft (25 mm x 2.4 m)
- 576 Watts
- 120 V
Since 1949
Additional Features:
- Extremely flexible - heats a wide range of objects quickly
- Time percentage control - easily adjusts time heater is on and off: 5 to 100%
Ideal for:
- Temporary heating applications and surfaces
- Laboratories

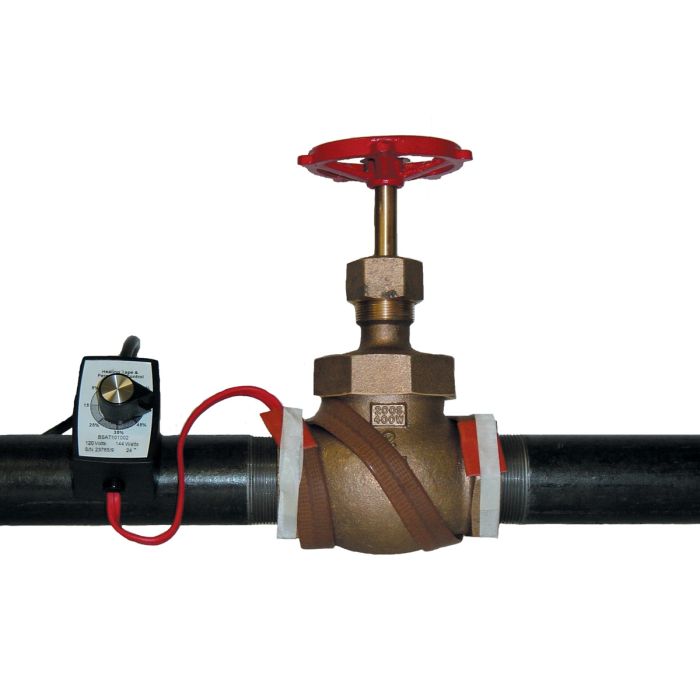

- Valves
- Facilities maintenance & more
Maximum Exposure Temperature: 450°F (232°C)
Minimum Bend Rdius: 0.25 in (6mm)
Nominal Thickness: 0.125 in (3 mm)
Power Density: 6.0 watts/in2 (0.9 watts/cm2)
Power Cord: 6 ft (1.8 m) long with
- 120 V: 2-prong plug (NEMA 1-15 P)
- 240 V: Bare wire Leads
IP Rating: IP54
*CE approved for models with bare wire leads
| Part No. 120 VAC | Part No. 240 VAC | Width in (mm) | Length ft (m) | Total Watts |
| BSAT051002 | BSAT052002 | 0.5 (13) | 2 (0.6) | 72 |
| BSAT051004 | BSAT052004 | 0.5 (13) | 4 (1.2) | 144 |
| BSAT051006 | BSAT052006 | 0.5 (13) | 6 (1.8) | 216 |
| BSAT051008 | BSAT052008 | 0.5 (13) | 8 (2.4) | 288 |
| BSAT051010 | BSAT052010 | 0.5 (13) | 10 (3.1) | 360 |
| BSAT101002 | BSAT102002 | 1.0 (25) | 2 (0.6) | 144 |
| BSAT101004 | BSAT102004 | 1.0 (25) | 4 (1.2) | 288 |
| BSAT101006 | BSAT102006 | 1.0 (25) | 6 (1.8) | 432 |
| BSAT101008 | BSAT102008 | 1.0 (25) | 8 (2.4) | 576 |
| BSAT101010 | BSAT102010 | 1.0 (25) | 10 (3.1) | 720 |
| BSAT201002 | BSAT202002 | 2.0 (51) | 2 (0.6) | 288 |
| BSAT201004 | BSAT202004 | 2.0 (51) | 4 (1.2) | 576 |
| BSAT201006 | BSAT202006 | 2.0 (51) | 6 (1.8) | 864 |
| BSAT201008 | BSAT202008 | 2.0 (51) | 8 (2.4) | 1152 |
| BSAT201010 | BSAT202010 | 2.0 (51) | 10 (3.1) | 1440 |
| BSAT301002 | BSAT302002 | 3.0 (76) | 2 (0.6) | 432 |
| BSAT301004 | BSAT302004 | 3.0 (76) | 4 (1.2) | 864 |
| BSAT301006 | BSAT302006 | 3.0 (76) | 6 (1.8) | 1296 |
| BSAT301008 | BSAT302008 | 3.0 (76) | 8 (2.4) | 1440 |
| BSAT301010 | BSAT302010 | 3.0 (76) | 10 (3.1) | 1800 |
What is a Time Percentage Control?
The time percentage controller varies the proportion (length) of time the heater is in the "on" or "off" heating mode. The heating application will determine the actual percentage set-point required. The controller does not use a temperature sensor and therefore satisfactory operation requires occasional supervision under changing load conditions.
