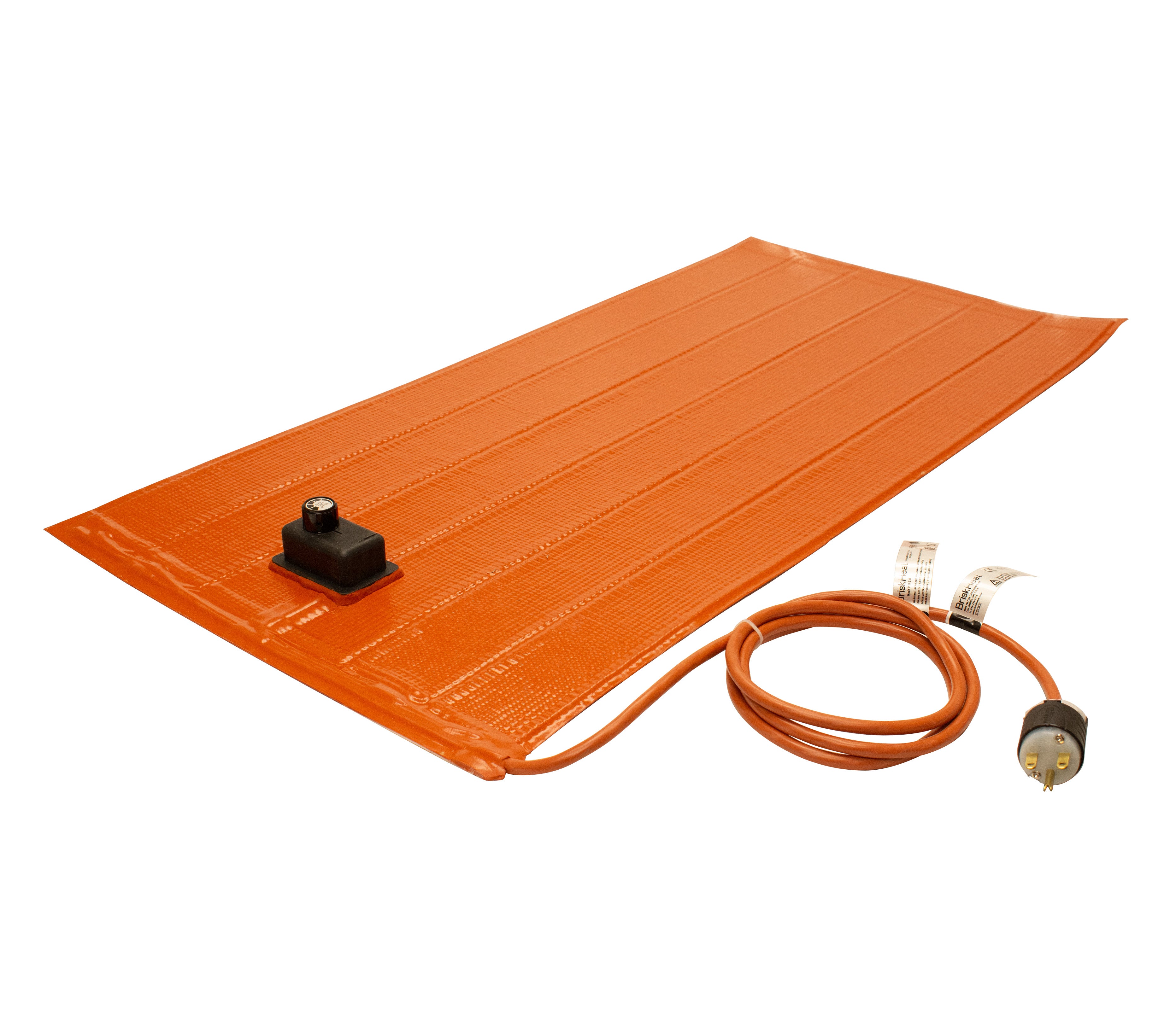

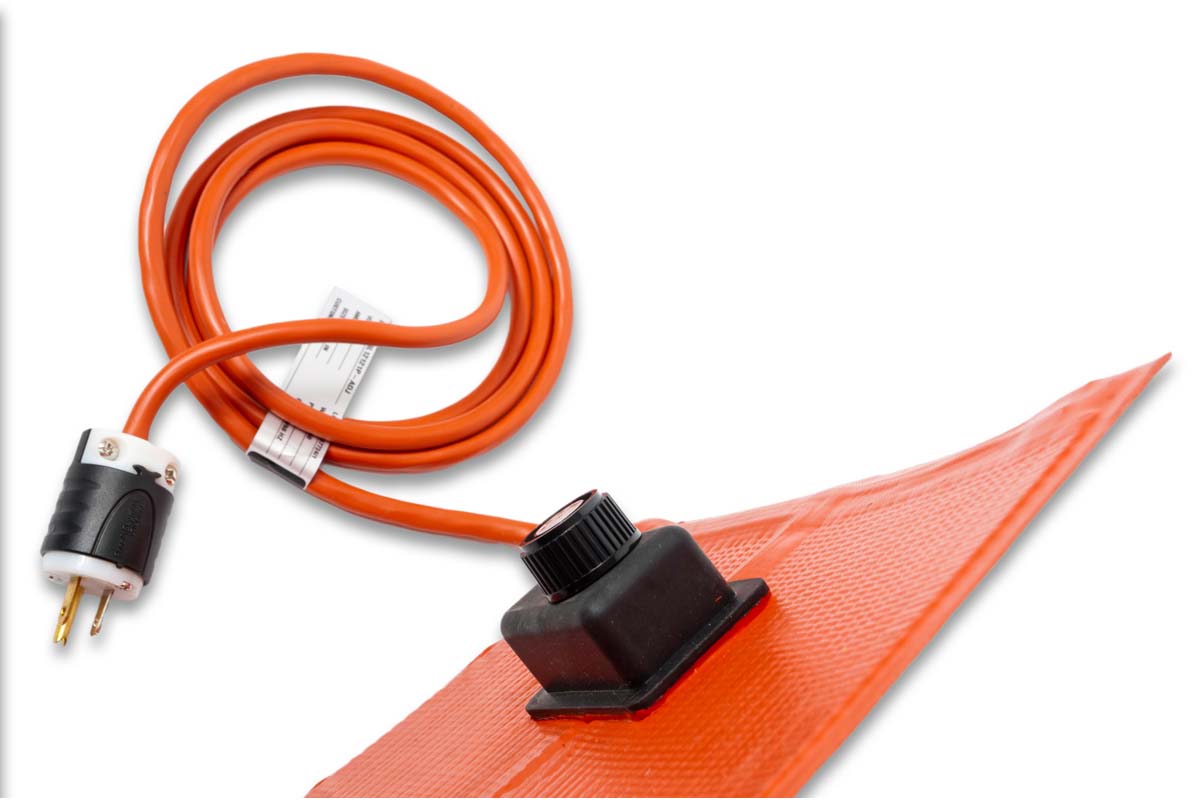

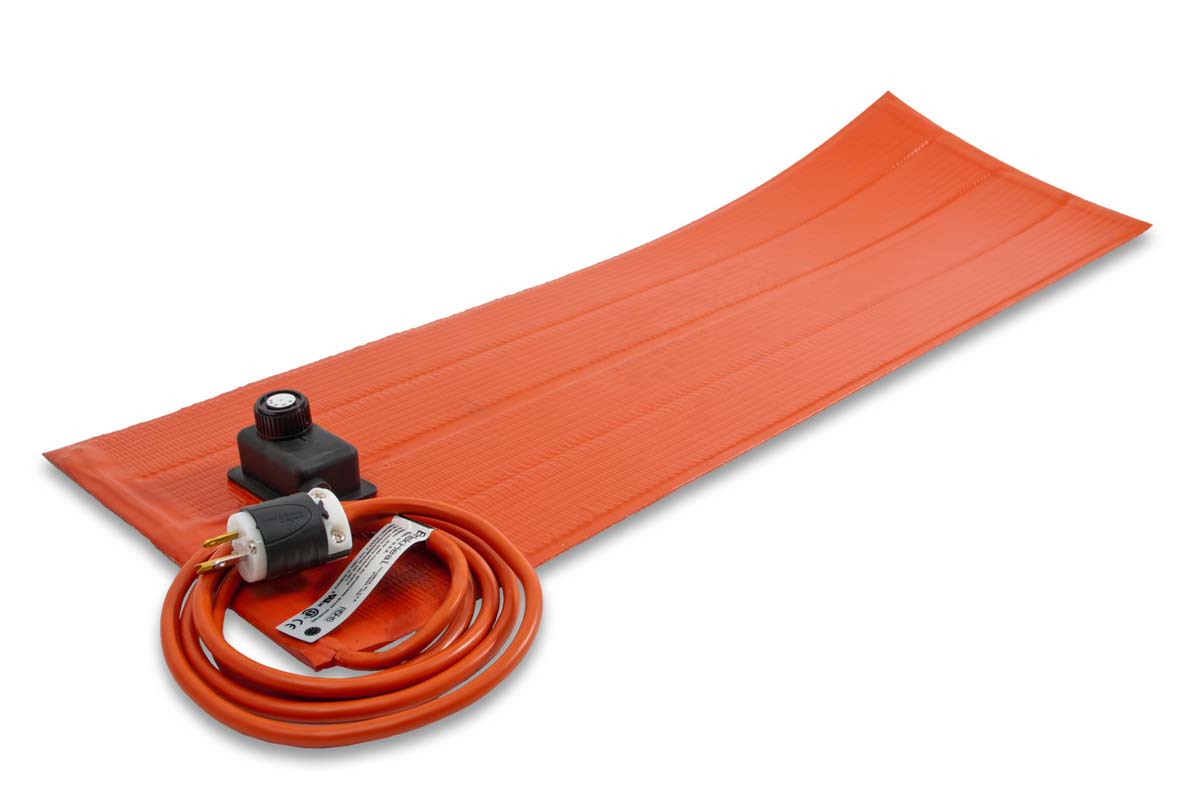

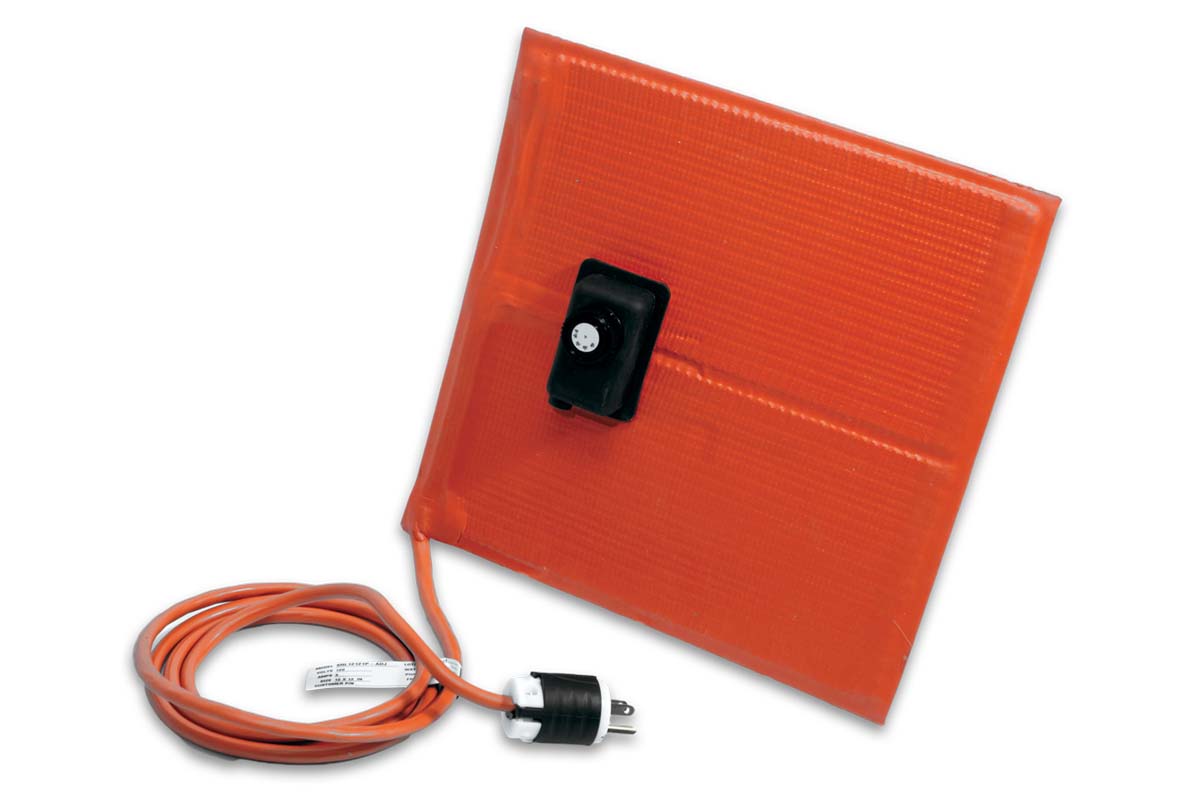

Silicone Rubber Heating Blankets with Control (SRL/SRP/SRM/ADJ)
BriskHeat's Silicone Rubber Heating Blankets with control are an extremely versatile and thin electric surface heater with built-in temperature control for a variety of applications across many industries. Many of these applications require a heater with the ability to resist moisture, chemicals, and abusive environments. The SRL/SRM/SRP Series heaters meet the needs of these applications while also offering rapid heat-up, steady temperature maintece, and uniform heat distribution for metal or plastic surfaces.
- Width and Length (inches): 18 x 36
- 120 V
- Ferrule Crimped Wire Terminations
- Pressure Sensitive Adhesive
- For Poly Surfaces
Please complete all selections above to add this item to cart.
Since 1949
Additional Features:
Heating element is laminated between two layers of 20 mil fiberglass-reinforced silicone rubber
Ideal for:
- Tanks
- Vessels
- Hoppers
- Silos
- Conveyors
- Vats
- Other large surfaces
Power Density:
- SRL Series: 2.50 W/in² (0.39 W/cm2)* for metal surfaces
- SRP Series: 1.25 W/in² (0.19 W/cm2) for plastic surfaces
- SRM Series: 2.50 W/in² (0.39 W/cm2) for metal surfaces
Adjustable Thermostat:
- SRL Series: Up to 425°F (218°C)†
- SRP Series: Up to 160°F (71°C)†
- SRM Series: Up to 160°F (71°C)†
Voltage: 120 or 240 VAC single phase
Exposure Temperature:
- SRL Series: -60°F to 450°F (-51°C to 232°C)
- SRP Series: -60°F to 450°F (-51°C to 232°C)
- SRM Series: -60°F to 450°F (-51°C to 232 °C)
Nominal Thickness: 3/16 in (4.8 mm)
Dielectric Strength: Over 2000 volts
Silicone Rubber Density: 46.0 oz/yd² (1560 g/m²)
Bend Radius: 2-3 in (51-76 mm)
Power Cord: 6 ft (1.8 m) long
- 120 VAC with standard 3-prong plug (NEMA 5-15)
- 240 VAC with standard 3-prong plug (NEMA 6-15)
*Consult factory if SRL series will be used on a plastic surface
† If precise temperature control is requires for yor application, please contact BriskHeat for application assistance and product solutions
| Size | Total Watts | |||
| Width in (mm) | Length in (mm) | SRL Series: 2.5 watts/in2 (0.39 watts/cm2) | SRP Series: 1.25 watts/in2 (0.19 watts/cm2) | SRM Series: 2.5 watts/in2 (0.39 watts/mm2) |
| 6 (152) | 12 (305) | 180 | 90 | 180 |
| 6 (152) | 24 (610) | 360 | 180 | 360 |
| 6 (152) | 36 (914) | 540 | 270 | 540 |
| 12 (305) | 12 (305) | 360 | 180 | 360 |
| 12 (305) | 24 (610) | 720 | 360 | 720 |
| 12 (305) | 36 (914) | 1080 | 540 | 1080 |
| 18 (457) | 18 (457) | 810 | 405 | 810 |
| 18 (457) | 36 (914) | 1472* | 810 | 1472* |
| 24 (610) | 24 (610) | 1440 | 720 | 1440 |
| 24 (610) | 36 (914) | N/A | 1080 | 1440 |
