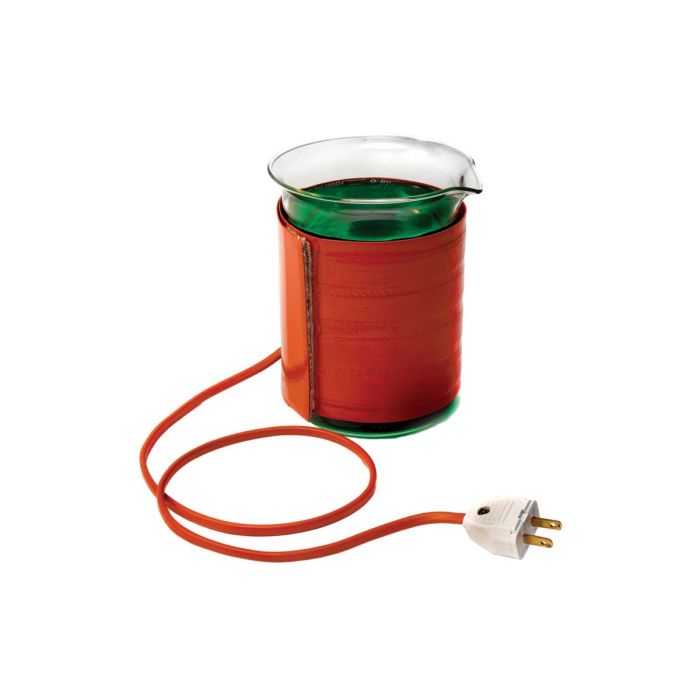

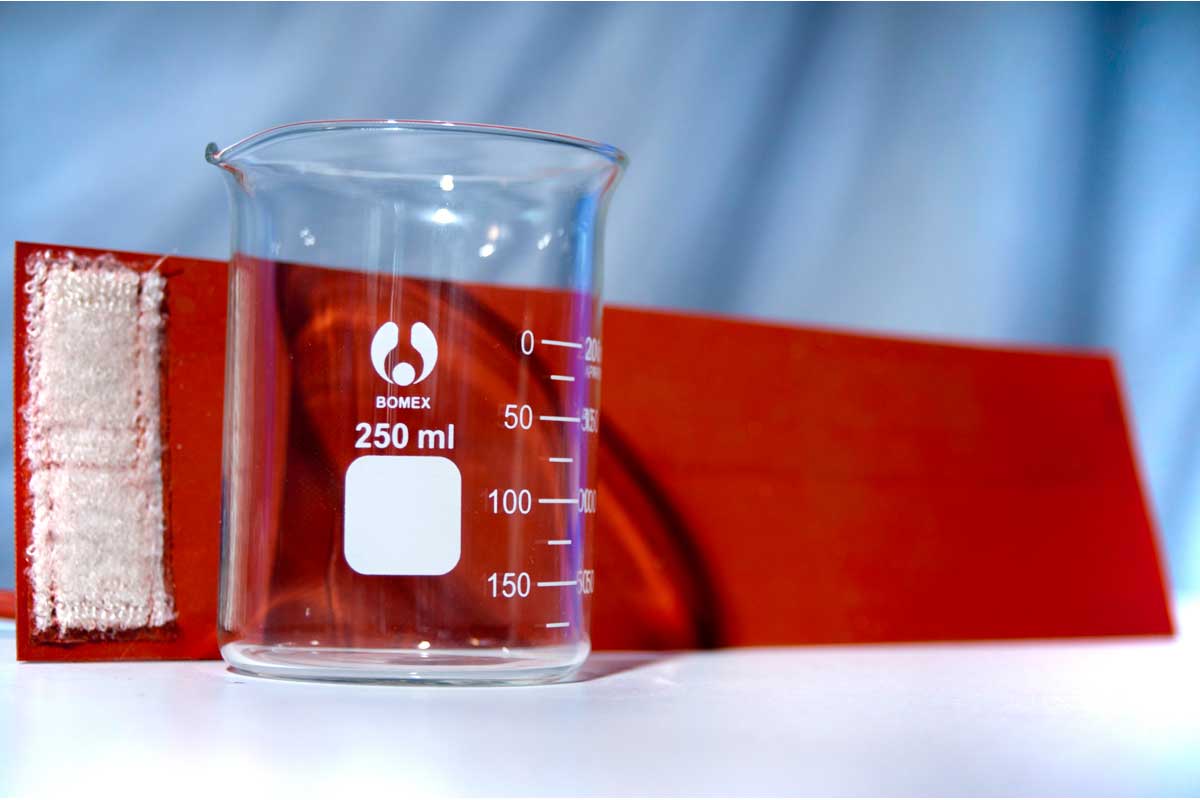

Silicone Rubber Griffin Beaker Heaters (GBH)
$245.00
SKU:GBH5000-1
Beaker Heaters; 1000ml; 350 watts; 120V
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Ideal for Laboratory and Oil Bath Applications
- Fits Griffin and standard size beakers
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills.
Note:
Temperature Controller is required for this product.
Maximum Exposure Temperature: 450°F (232°C)
Voltage Options: 120 or 240 VAC
Closure Method: Hook and loop fastener
Outer Material: 15 mil fiberglass reinforced silicone rubber
Power Density: 5.0 W/in2 (0.8 W/cm2)
Dielectric Strength: Over 2000 volts
Power Cord: 24 in (0.6 m) long
- 120 VAC: Standard 2-prong NEMA 1-15 Plug
- 240 VAC: Crimped ferrule leads
IP Rating: IP54
| Part No. 120 VAC | Part No. 240 VAC | Size (ml) | Diameter in (mm) | Heater Height in (mm) | Heater Length in (mm) | Total Watts |
| GBH0250-1 | GBH0250-2 | 250 | 2.7 (69) | 3.0 (76) | 12.25 (311) | 150 |
| GBH0400-1 | GBH0400-2 | 400 | 3.0 (76) | 3.5 (89) | 13.75 (349) | 200 |
| GBH0600-1 | GBH0600-2 | 600 | 3.6 (91) | 4.0 (102) | 15.00 (381) | 250 |
| GBH1000-1 | GBH1000-2 | 1000 | 4.3 (109) | 4.6 (117) | 17.25 (438) | 350 |
