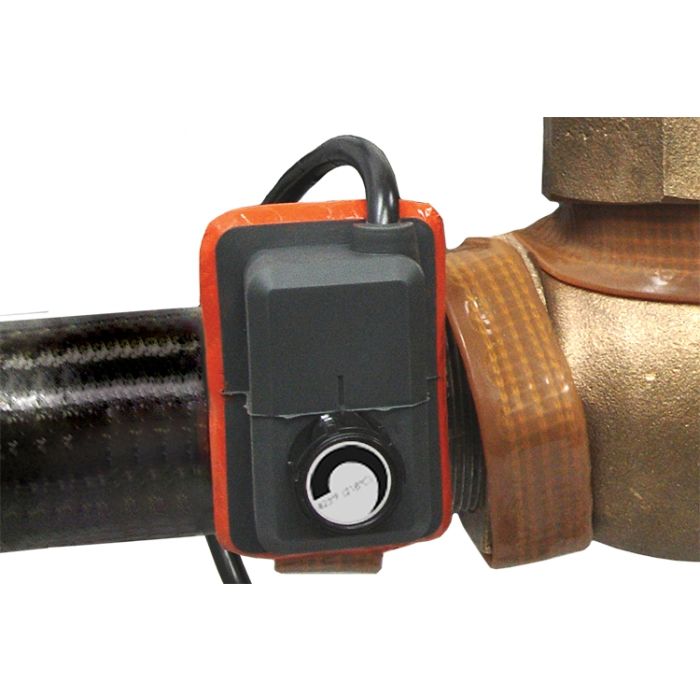

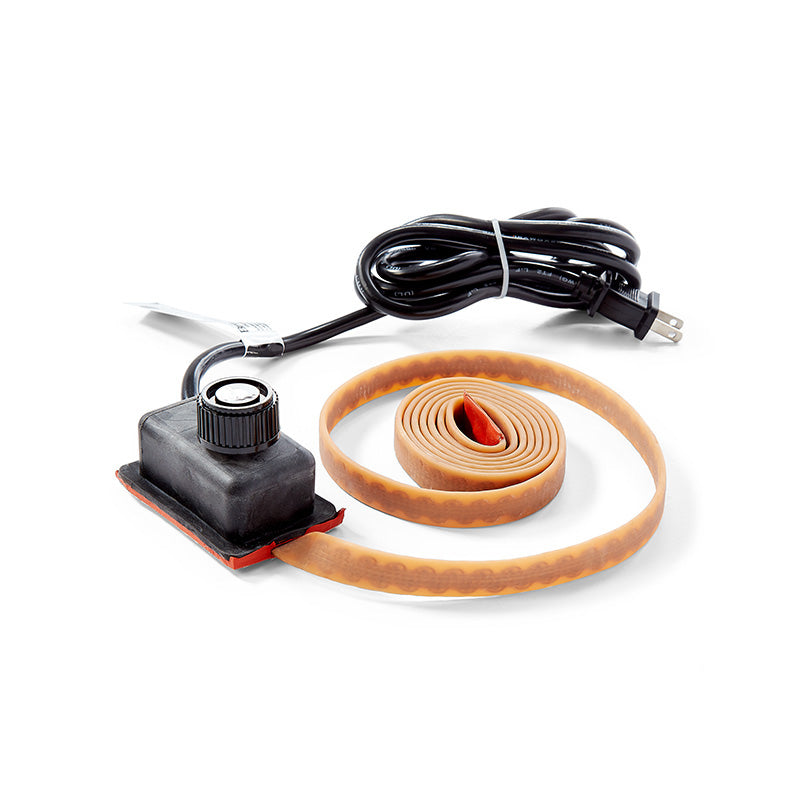

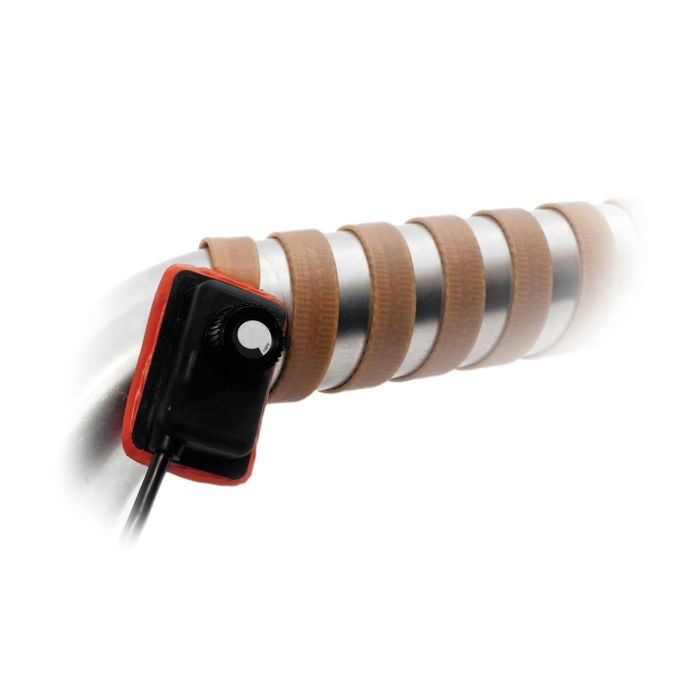

Silicone Rubber Heating Tape with High-Temperature Adjustable Control (HSTAT)
$214.00
SKU:HSTAT101008

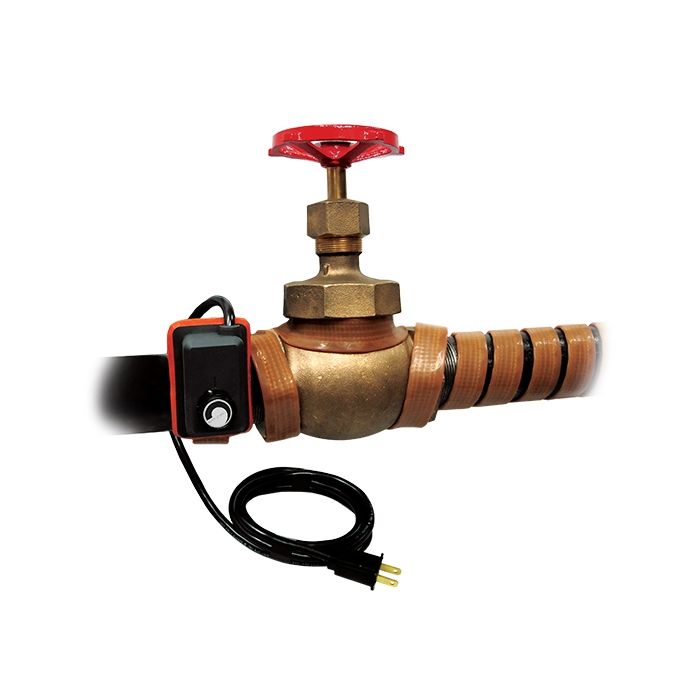

XtremeFLEX HSTAT Silicone Rubber Heating Tapes are ideal for a wide range of heating applications including, process temperature maintenance, freeze protection, pipe freeze prevention, de-icing pipes and valves, laboratory heating, and more! A portable, plug-and-play, re-usable, all in one pipe heating solution.
- 1 in x 8 ft (25 mm x 2.4 m)
- 576 Watts
- 120V
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
- Maximum exposure temperature: 450°F (232°C)
- Ingress Protection Rating: IP54
- Construction:
- Fiberglass knit and braided heating element
- Silicone rubber extruded outer sheath
- Power density:
- 6.0 W/in2 (0.009 W/mm2 )
- 6ft (1.8m) power cord with:
- 120VAC: Standard 2-prong plug (NEMA 1-15P)
- Built-in temperature controller
- Maximum exposure temperature: 450°F (232°C)
- Ingress Protection Rating: IP54
- Construction:
- Fiberglass knit and braided heating element
- Silicone rubber extruded outer sheath
- Power density:
- 6.0 W/in2 (0.009 W/mm2 )
- 6ft (1.8m) power cord with:
- 120VAC: Standard 2-prong plug (NEMA 1-15P)
- 240VAC: Crimped ferrule leads
- Built-in temperature controller
| Part No. 120 VAC | Part No. 240 VAC | Width in (mm) | Length ft (m) | Total Watts |
| HSTAT051002 | HSTAT052002 | 0.5 (13) | 2 (0.6) | 72 |
| HSTAT051004 | HSTAT052004 | 0.5 (13) | 4 (1.2) | 144 |
| HSTAT051006 | HSTAT052006 | 0.5 (13) | 6 (1.8) | 216 |
| HSTAT051008 | HSTAT052008 | 0.5 (13) | 8 (2.4) | 288 |
| HSTAT051010 | HSTAT052010 | 0.5 (13) | 10 (3.1) | 360 |
| HSTAT101002 | HSTAT102002 | 1.0 (25) | 2 (0.6) | 144 |
| HSTAT101004 | HSTAT102004 | 1.0 (25) | 4 (1.2) | 288 |
| HSTAT101006 | HSTAT102006 | 1.0 (25) | 6 (1.8) | 432 |
| HSTAT101008 | HSTAT102008 | 1.0 (25) | 8 (2.4) | 576 |
| HSTAT101010 | HSTAT102010 | 1.0 (25) | 10 (3.1) | 720 |
| HSTAT201002 | HSTAT202002 | 2.0 (51) | 2 (0.6) | 288 |
| HSTAT201004 | HSTAT202004 | 2.0 (51) | 4 (1.2) | 576 |
| HSTAT201006 | HSTAT202006 | 2.0 (51) | 6 (1.8) | 864 |
| HSTAT201008 | HSTAT202008 | 2.0 (51) | 8 (2.4) | 1152 |
| HSTAT201010 | HSTAT202010 | 2.0 (51) | 10 (3.1) | 1440 |
| HSTAT301002 | HSTAT302002 | 3.0 (76) | 2 (0.6) | 432 |
| HSTAT301004 | HSTAT302004 | 3.0 (76) | 4 (1.2) | 864 |
| HSTAT301006 | HSTAT302006 | 3.0 (76) | 6 (1.8) | 1296 |
| HSTAT301008 | HSTAT302008 | 3.0 (76) | 8 (2.4) | 1440 |
| HSTAT301010 | HSTAT302010 | 3.0 (76) | 10 (3.1) | 1800 |
