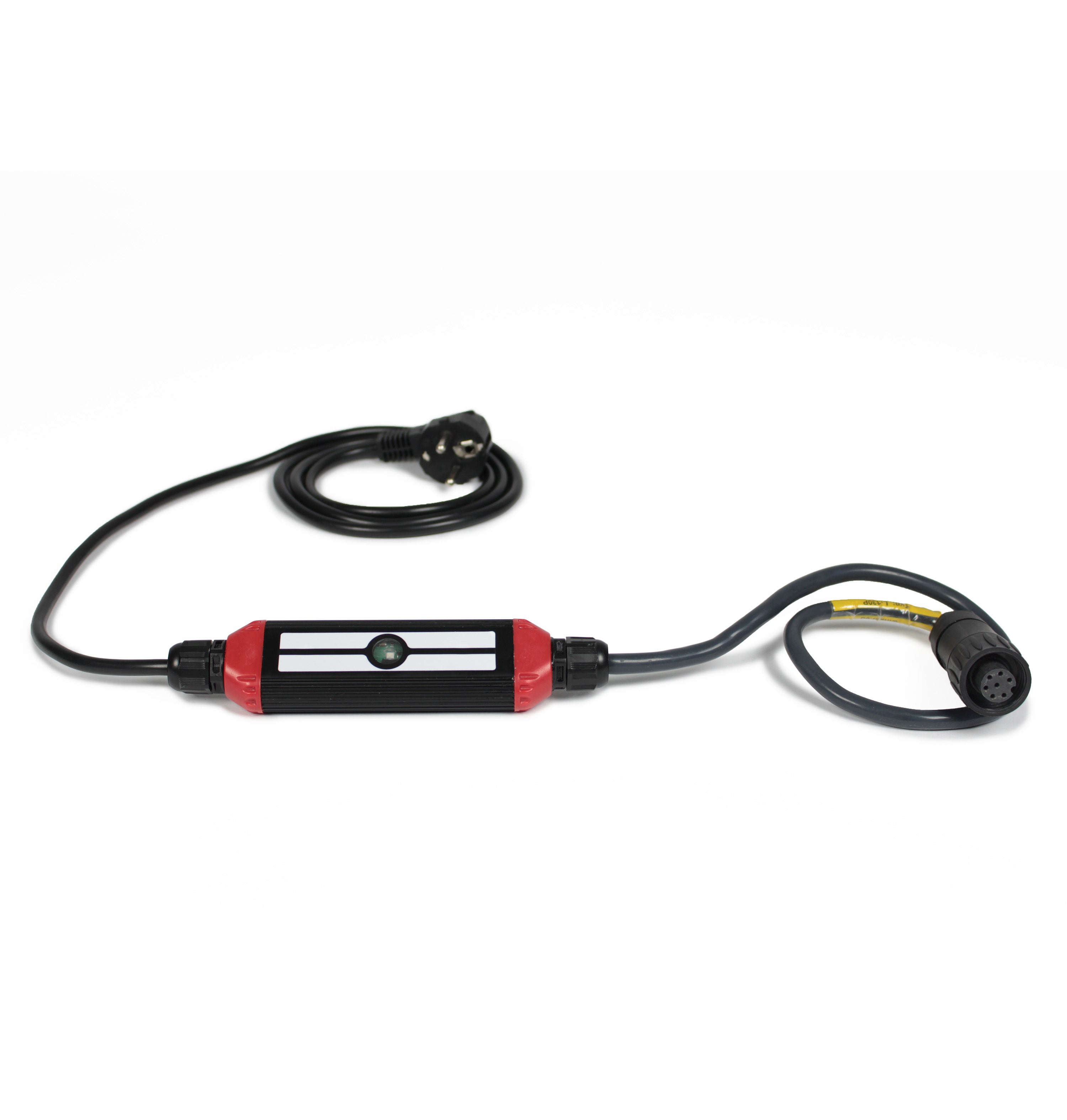

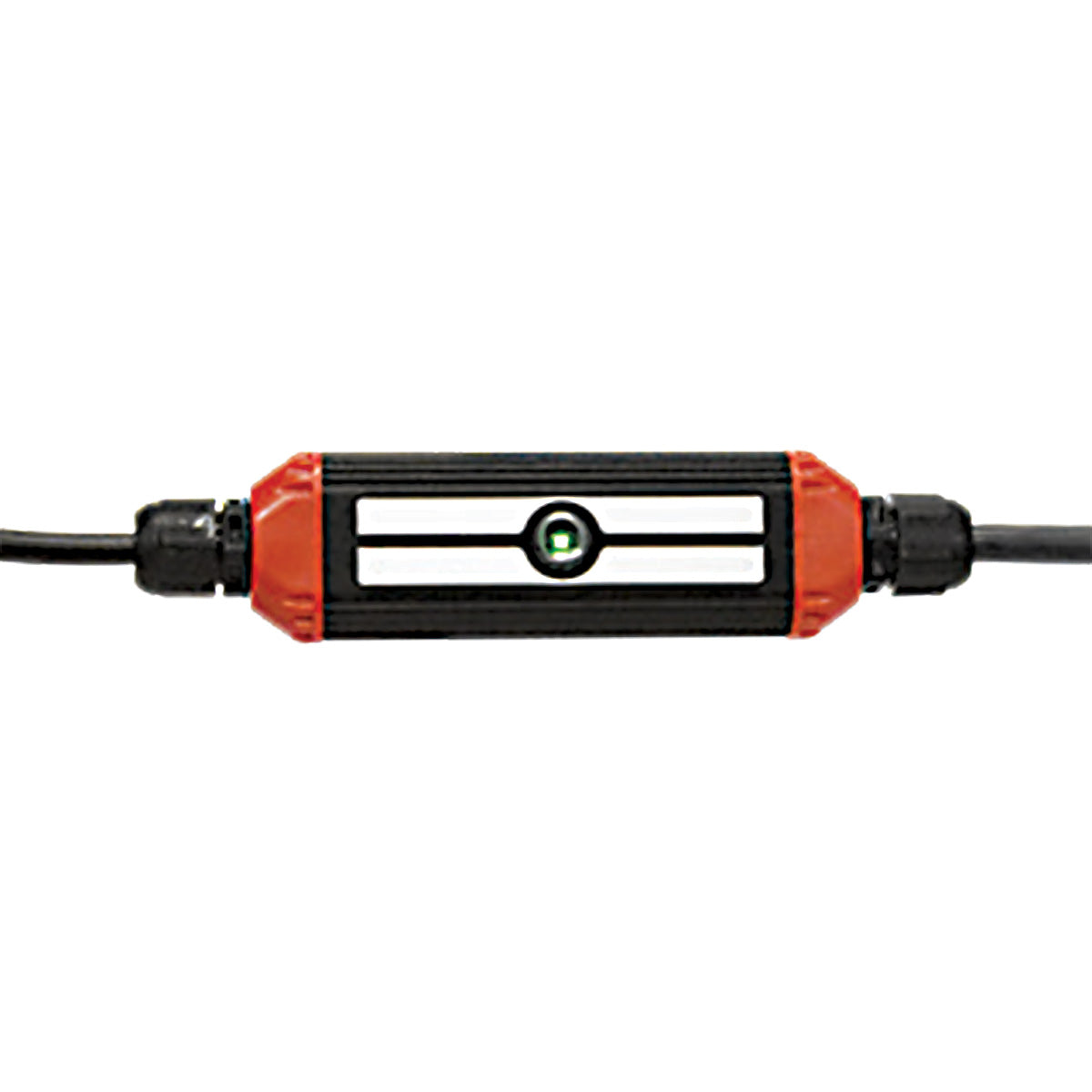

Series 330 Inline Temperature Controller
The BriskHeat BH-330 Temperature Controller uses fast-adaptive tuning (FAT) technology and provides an "all-in-one" solution for process heaitng and control. Temperature monitoring and power to the heater are integrated into a single cable for a cleaner installation. Ideal for freeze protection and viscosity control.
- PT100 RTD Sensor Input
- Outdoor and Wet-Area Use: IP67
Requires BH-310 Remote
Since 1949
Additional Features:
- Sleek in-line design
- Wireless remote control programming
- Adjustable min/max temperatures
- Heater and sensor wires in one connection
Ideal for:
- Freeze protection
- Viscosity control
- Tank and drum heating
- Extrusion
- Gas handling
- Industrial heating
Input Voltage: 90—260 VAC, 50—60 HZ
Max Amp Load: 10 amps
Temperature Control Range:
- Type-K Thermocouple: -328°F to 2462°F (-200°C to 1350°C)
- PT100-RTD: -13°F to 1112°F (-25°C to 600°C)
Temperature Display Units: None (requires WRZF310N-BH01 Remote)
Display: 3-color LED for signaling of operating conditions
Sensor Input Options: Option for Type-K thermocouple or PT100-RTD
Operation: FAT, Fast-Adaptive-Tuning
Input Power Cord/Connections: 3.2 ft (1 m) long with 2-pin Schuko CEE 7/7 grounded plug
Output Power Cord/Connection: 1.9 ft (0.6 m) long with 6+PE connector
Safety Features: Safety-shutdown-relay (breaks heating power circuit on sensor failure)
Environmental Exposure:
- Operating range: -4°F to 113°F (-20°C to 45°C)
- Storage range: -4° F to 185°F (-20°C to 85°C)
- Relative humidity: < 100% non-condensing temperatures
Enclosure dimensions (including cables): 8.27 in L x 1.75 in W x 0.82 in H (210 mm L x 45 mm W x 21 mm H)
IP Rating: IP67
The BH-330 provides an “all in one” solution for process heating and control in an easy to install unit. Temperature monitoring and power to the heater are integrated into a single cable for a cleaner installation.
- Freeze protection
- Viscosity control
- Tank and drum heating
- Extrusion • Gas handling
- Industrial heating
| Part No. | Description |
| WRL330PR-BH01 | BH-330 in-line controller with PT100-RTD input |
| WRL330KR-BH02 | BH-330 in-line controller with Type-K thermocouple input |
| WRZF310N-BH01 | IR remote control programming unit (required) |
