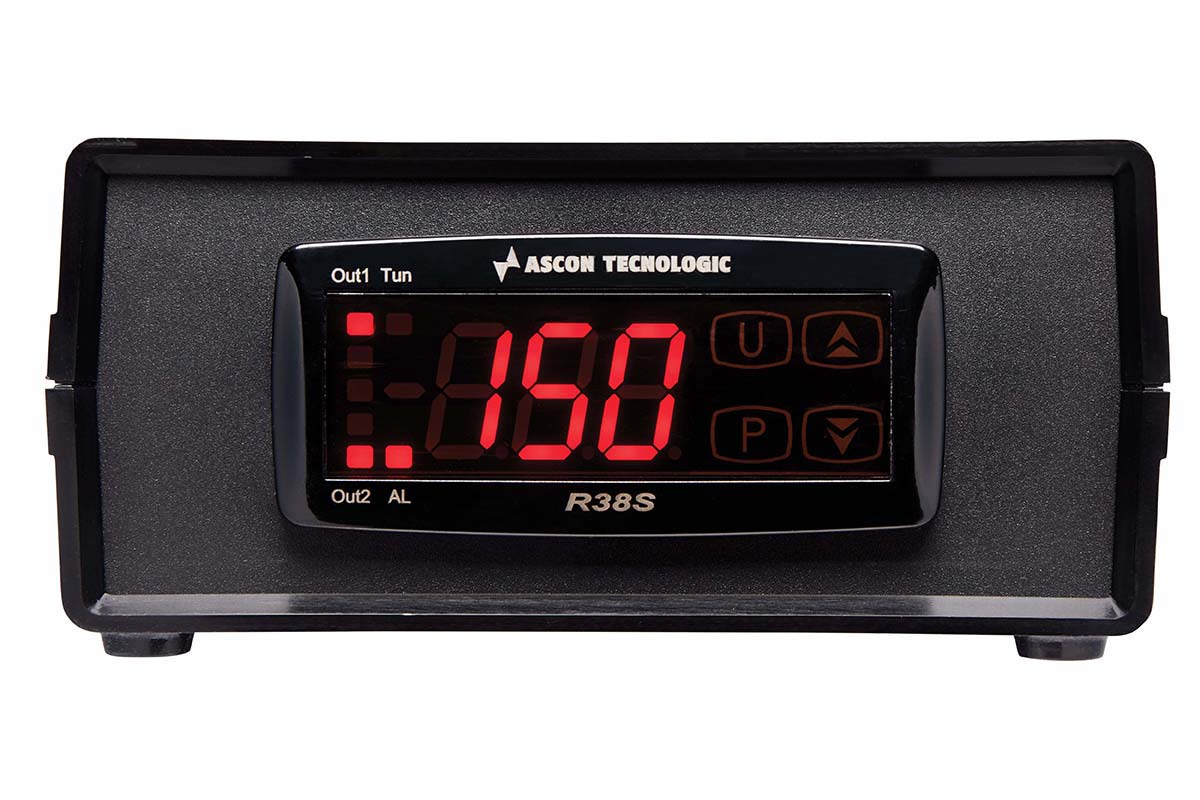

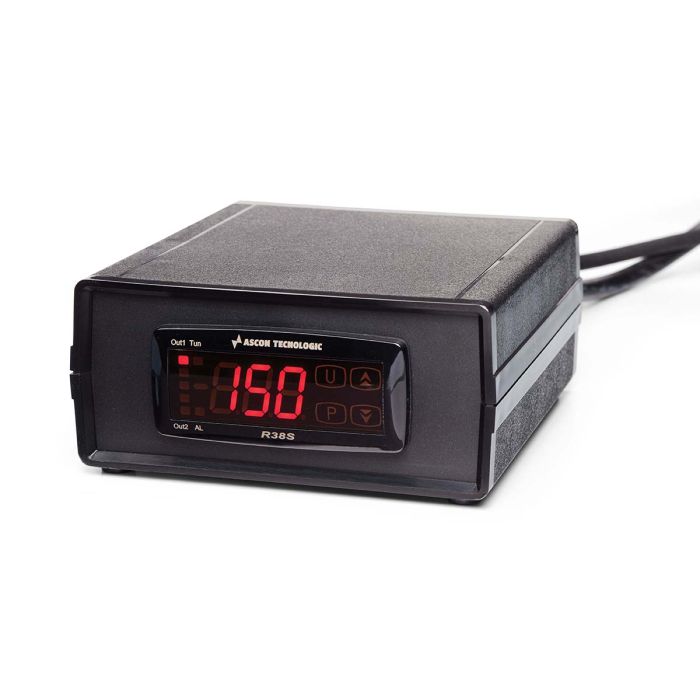

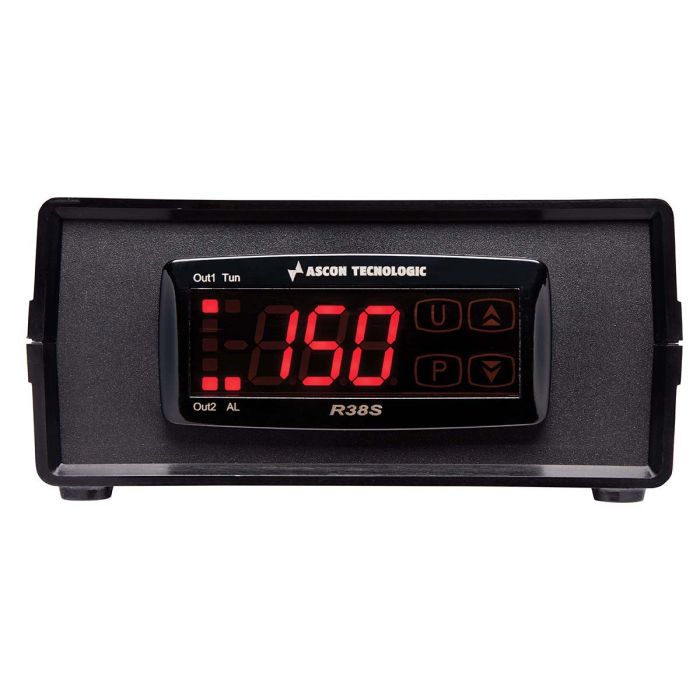

SDCE Digital On/Off Benchtop Temperature Controller
The SDCE Digital On/Off Benchtop Temperature Controller is compatible with a wide range of heaters and surface heating applications. This digital controller is designed for general-purpose use in indoor environments to control temperatures on applications requiring automatic temperature control.
- 120 VAC
- Type K Thermocouple
- 6.6 ft (2 m) cord with NEMA 5-15P
Since 1949
Voltage:
- 120 VAC model: 100 to 125 VAC
- 230 VAC model: 100 to 240 VAC
Maximum Amp Load: 8 amps @ 120/240 VAC
Temperature Control Range:
- Type-J model: -40°F to 698°F (-40°C to 370°C )
- Type-K model: -40°F to 899°F (-40°C to 482°C)
- PT100-RTD model: -58°F to 842°F (-50°C to 450°C)
Temperature Display Units: °F and °C
Sensor Input: 5 ft (1.5 m) Type-J or Type-K thermocouple or PT100-RTD factory installed
Hysteresis: Adjustable setting from 1°–99° (°F or °C)
Alarms: Audible; programmable for high or low range
Input Power Cord/Connections: Designated by model
Output Power Cord/Connection:
- 120 VAC model: NEMA 5-15R receptacle

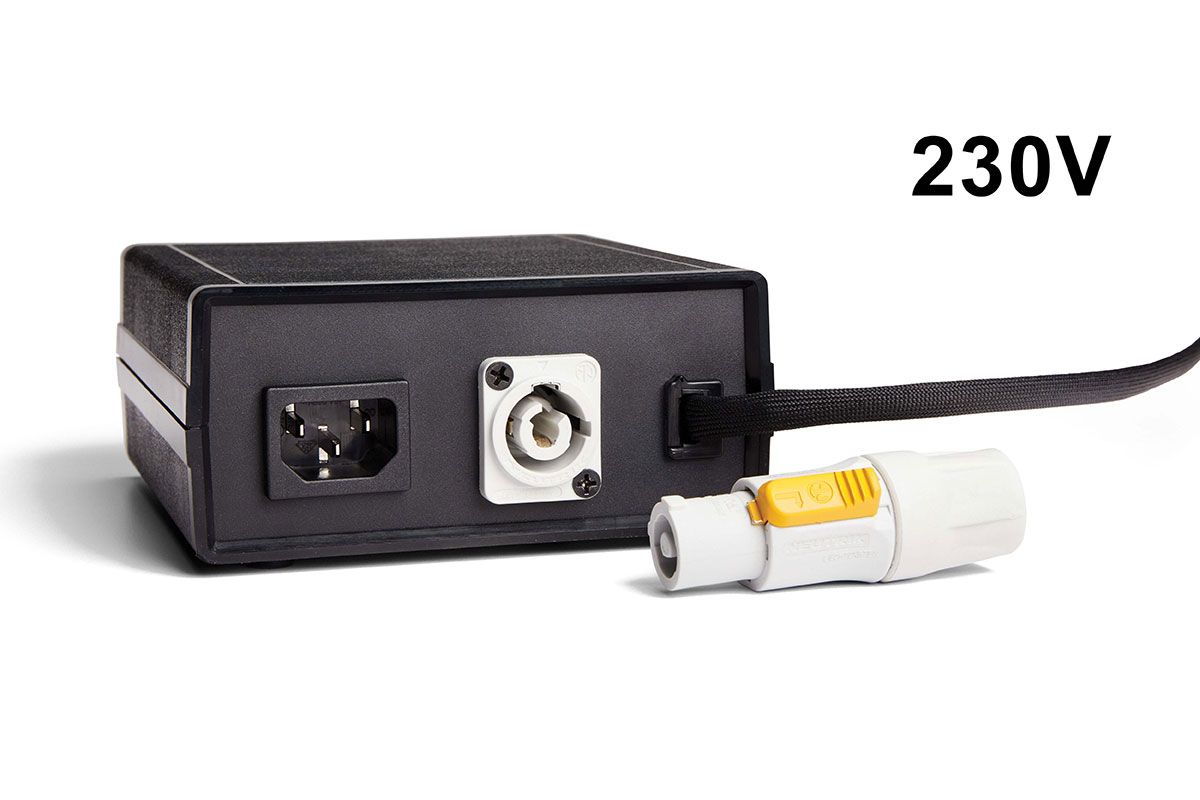

- 230 VAC model: Neutrik receptacle with mating plug (PN: 41329-03)
Environmental Exposures:
- Operating range: 32°F to 100°F (0°C to 38°C)
- Storage range: -4°F to 158°F (-20°C to 70°C)
- Relative humidity: < 95% non-condensing temperatures
Enclosure Dimensions: 5.25 in W x 2.25 in H x 5 in D (133 mm W x 57 mm H x 127 mm D)
CE approved for Ferrule Ends, Schuko and UK Type G plug type
| Part No. | Voltage | Sensor Type | Input Power Cord |
| SDCERA | 120V | PT100/RTD | 6.6 ft (2 m) cord NEMA 5-15 plug |
| SDCEJA | 120V | J-Type | 6.6 ft (2 m) cord NEMA 5-15 plug |
| SDCEKA | 120V | K-Type | 6.6 ft (2 m) cord NEMA 5-15 plug |
| SDCERB | 230V | PT100/RTD | 6.6 ft (2 m) cord ferrule-terminated leads |
| SDCEJB | 230V | J-Type | 6.6 ft (2 m) cord ferrule-terminated leads |
| SDCEKB | 230V | K-Type | 6.6 ft (2 m) cord ferrule-terminated leads |
| SDCERC | 230V | PT100/RTD | 6.6 ft (2 m) cord NEMA 6-15 |
| SDCEJC | 230V | J-Type | 6.6 ft (2 m) cord NEMA 6-15 |
| SDCEKC | 230V | K-Type | 6.6 ft (2 m) cord NEMA 6-15 |
| SDCERD | 230V | PT100/RTD | 6.6 ft (2 m) cord Schuko CEE 7/7 Plug |
| SDCEJD | 230V | J-Type | 6.6 ft (2 m) cord Schuko CEE 7/7 Plug |
| SDCEKD | 230V | K-Type | 6.6 ft (2 m) cord Schuko CEE 7/7 Plug |
| SDCERE | 230V | PT100/RTD | 8.2 ft (2.5 m) cord UK Type G plug |
| SDCEJE | 230V | J-Type | 8.2 ft (2.5 m) cord UK Type G plug |
| SDCEKE | 230V | K-Type | 8.2 ft (2.5 m) cord UK Type G plug |
| SDC vs SDCE Comparison | ||
| Back | ||
| Size | 5.5" x 4.25" x 1.75" | 5.25" x 5.0" x 2.25" Slightly larger |
| Relay Output Capacity | 10A | 8A |
| Temperature Sensor Options | J-type K-type |
J-type K-type RTD/PT100 |
| Accuracy | +/- 1% FS | +/- 0.5% span +/- 1 digit @77°F |
| Factory Installed Temperature Sensor | Yes | Yes |
| Input Power Cord Options | (120V) 3-prong NEMA 5-15 (240V) 3-prong NEMA 6-15 (240V) No-plug Ferule Crimped Leads |
(120V) 3-prong NEMA 5-15 (230V) 3-prong NEMA 6-15 (230V) No-plug Ferule Crimped Leads (230V) European Schuko CEE 7/7 (230V) UK Type G |
| Input Power Cord Connection | Built-in Power Cord (not interchangeable) |
Modular Power Receptacle with Power Cord (interchangeable) |
| Voltage | (120V) 98-132VAC (240V) 184-253VAC |
(120V) 100-120VAC (230V) 100-240VAC |
| Temperature Display °C/°F | Fixed °C or °F | Programable in either °C or °F |
| Controller Interface | Push Button | Touch Screen |
| Output (Heater) Power Connection | Power Cord With Output Power Receptacle. (120V) NEMA 5-15R (240V) NEMA 6-15R (mating plug sold separately) | Built-in Output Power Receptacle. (120V) NEMA 5-15R (230V) Neutrik Receptacle (mating plug provided) |
