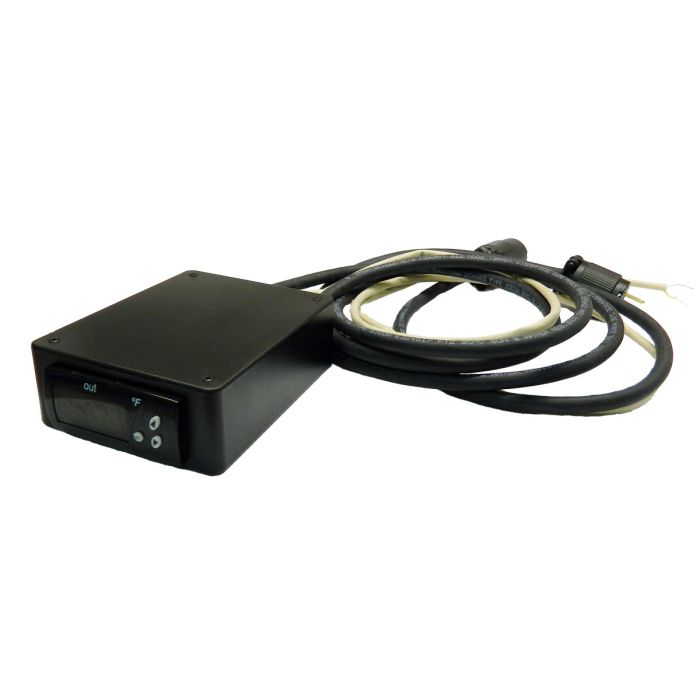

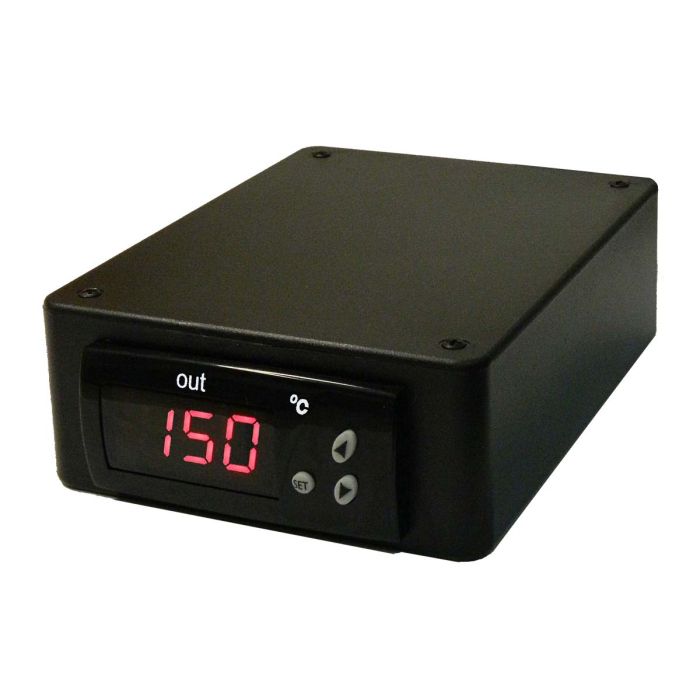

SDC Digital On/Off Benchtop Temperature Controller

Voltage: 120 or 240 VAC
Maximum Amp Load: 10 amps
Temperature Control Range*:

• Type-J models: -40°F to 700°F (-40 to 371°C)
• Type-K models: -40°F to 900°F (-40 to 482°C)

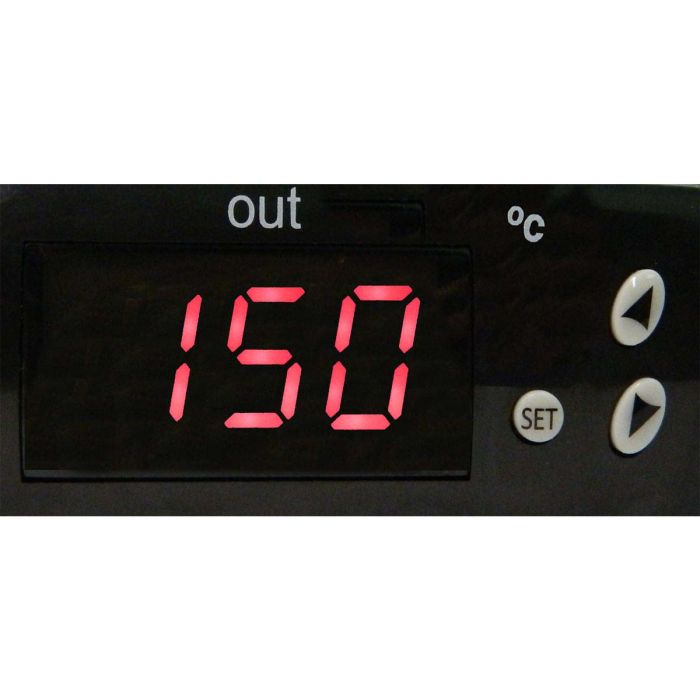

Temperature Display Units: °F or °C based on model
Sensor Input: 5 ft (1.5 m) Type-J or Type-K Thermocouple  factory installed
Accuracy: ± 1% full span
Hysteresis: Adjustable setting from 1° to 99° (°F or °C) Alarms: Audible; Programmable for high or low range

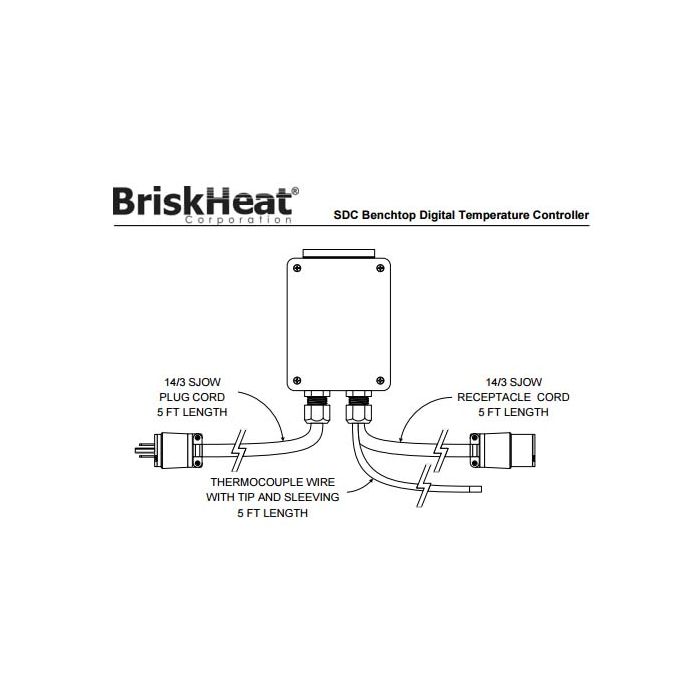

Input Power Cord/Connections: 5 ft (1.5 m) long with:

• 120 VAC model: NEMA 5-15 plug
• 240 VAC model: NEMA 6-15 plug (other options available)

Output Power Cord/Connection: 5 ft (1.5 m) long with:

• 120 VAC model: NEMA 5-15R receptacle
• 240 VAC model: NEMA 6-15R receptacle (other options available)

Special Features: Password protection for all parameters except set-point; Sensor break operation option
Environmental Exposures:

• Operating range: 32°F to 158°F (0°C to 70°C)
• Storage range: -4°F to 176°F (-20°C to 80°C)

Relative humidity: < 80% non-condensing temperatures
Enclosure Dimensions: 5.5 in W x 1.75 in H x 4.25 in D (140 mm W x 45 mm H x 108 mm D)

*Maximum temperature based on thermocouple, not temperature controller range
Note: Other plug and receptacle options available. Contact BriskHeat for more information
