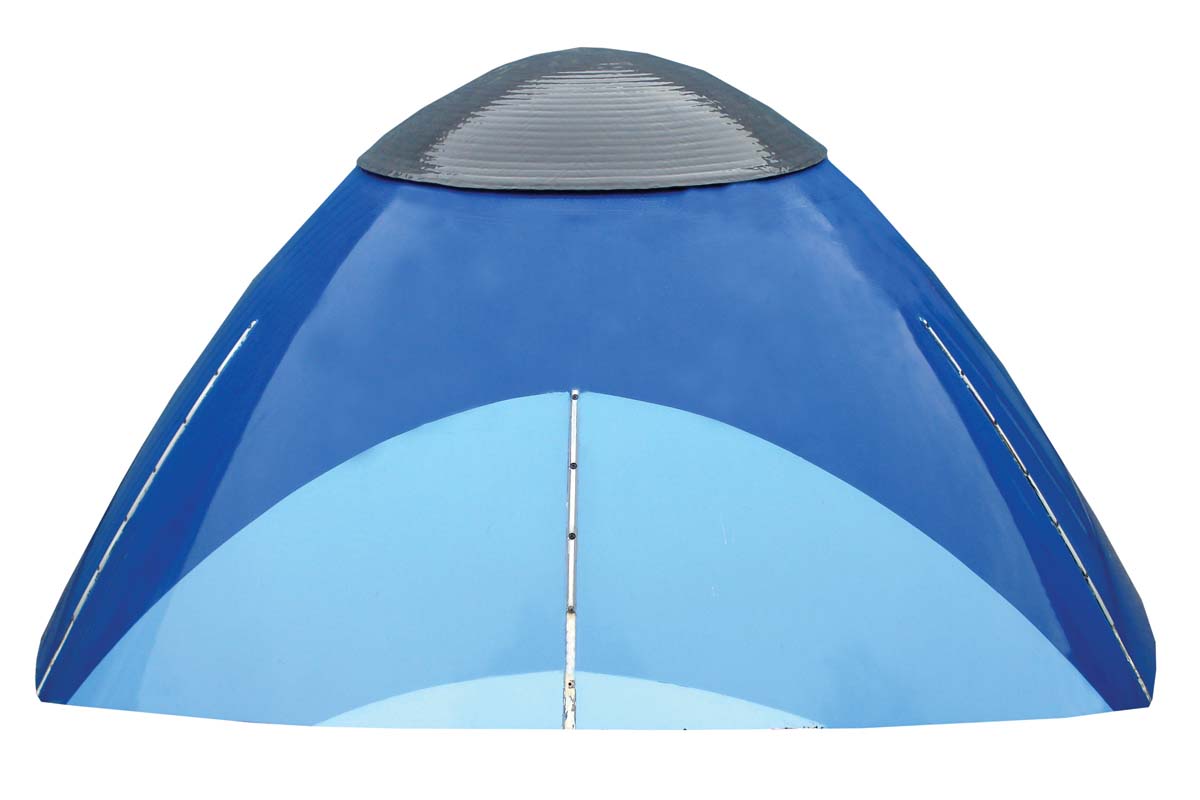

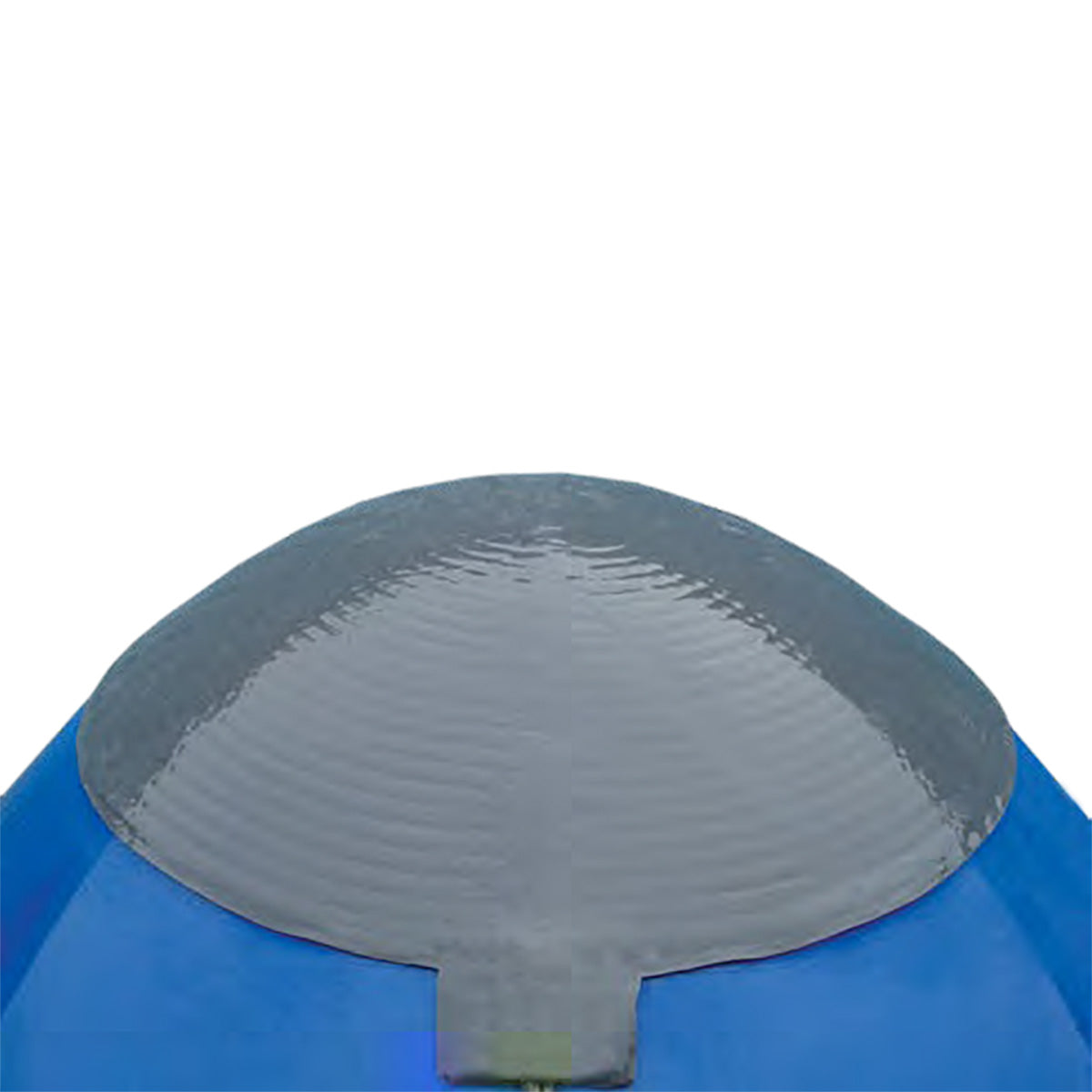

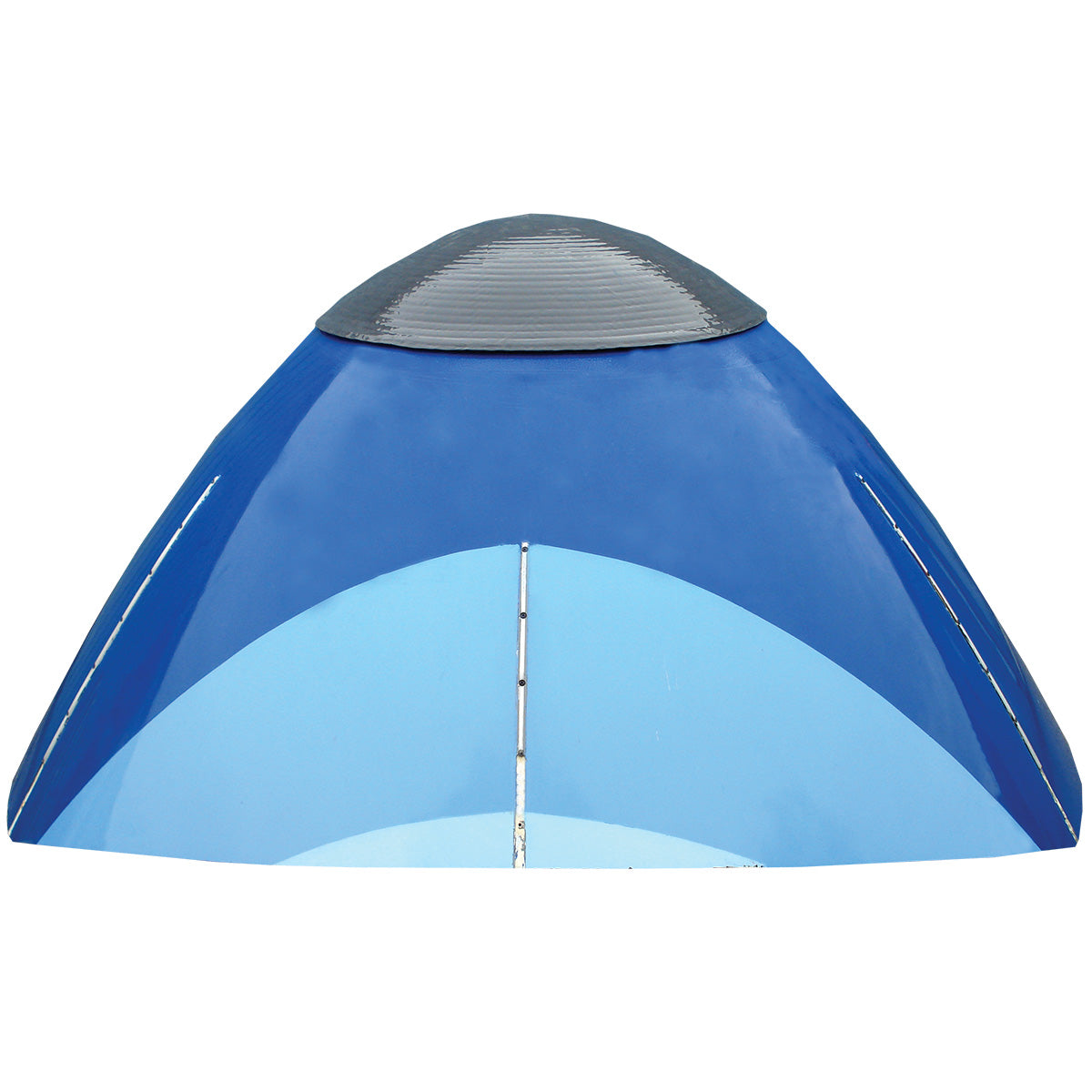

Radome Composite Curing Heating Blankets
BriskHeat Randome Composite Curing Heating Blankets are ideal for wet layup and prepreg composite repairs of randomes. With its three-dimensional fit around your randome, this heating blanket provides uniform heat, while also being moisture, chemical, and radiation resistant.
- Boeing 767 Radome Heater
- 2 Zones: 1630 watts Zone 1 / 1744 watts Zone 2
- 240 V
- Bare Wires
Since 1949
Voltage: 240 VAC
Maximum Exposure Temperature: 450°F (232°C)
Power Density: 5 watts/in2 (0.78 watts/cm2). Other power densities available upon request.
Heater Construction: Multi-stranded heating element is uniformly placed to maximum heat distribution.
Dielectric Strength: Over 2000 volts
Power Cord: 6 ft (1.8 m) long with a standard ACR®3 or MiniPRO™ Hot Bonder compatible plug (NEMA L15-30). Other plugs and bare wire available upon request.
Note: We can design a heater specifically for your application and aircraft: other sizes, shapes, watt-densities, power plugs, built-in thermocouples, and more options are available.
* Part numbers ending in "C" include a NEMA L15-30 plug
| PART NUMBER | TYPE | WATTAGE |
|---|---|---|
| BHC162012C | Boeing 707, 727, 737 | 3700 |
| BHC162011C | Boeing 777 | Call |
| BHC162013C | Boeing 747 | 3380 |
| BHC162014C | Airbus A300, A310, A330 | 3151 |
| BHC162007C | Boeing 757 | 3030 |
| BHC162010C | Airbus A318, A319, A320, A321 | 3374 |
| BHC162009C | Boeing 767 | 3374 |
