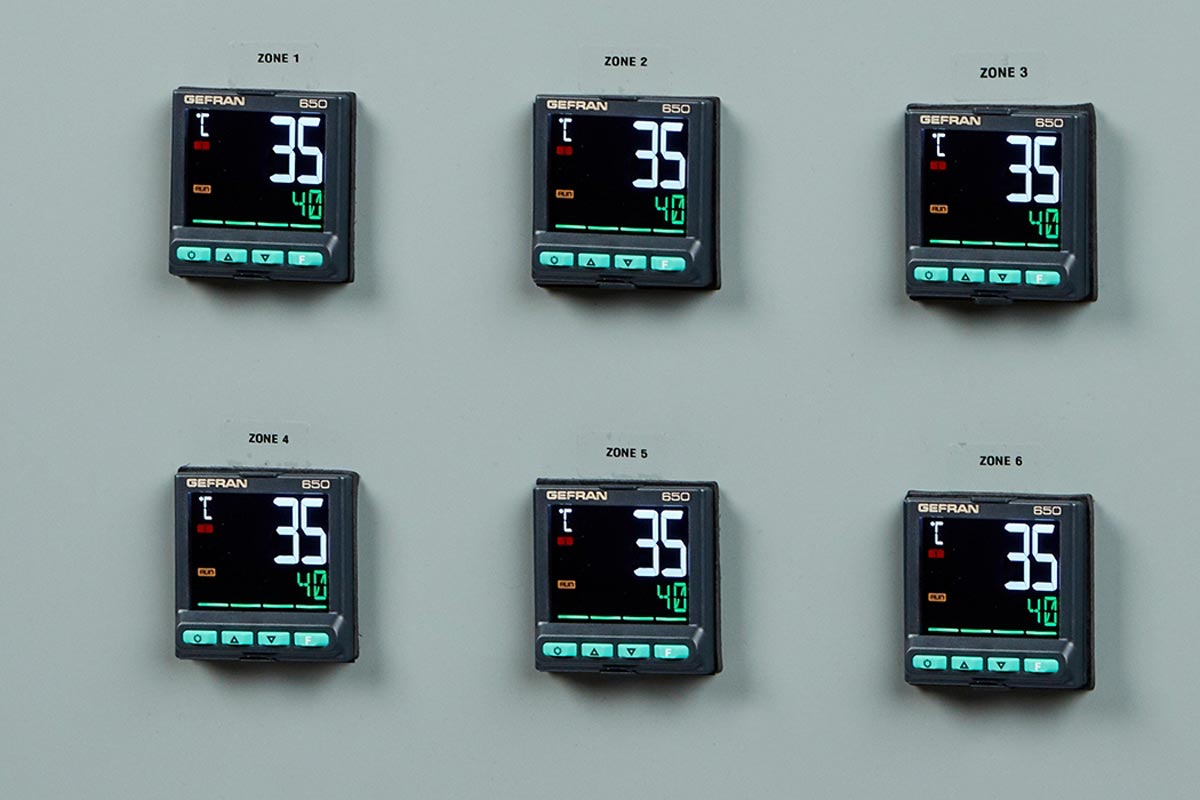

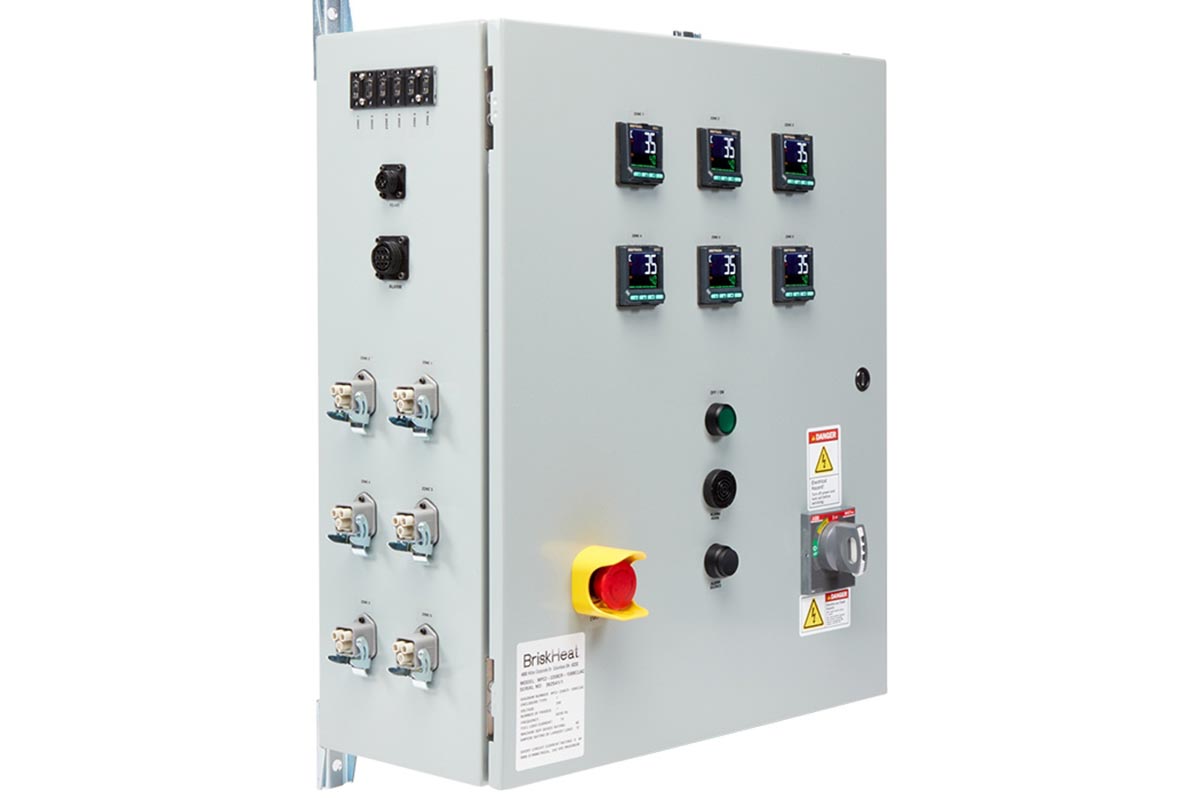

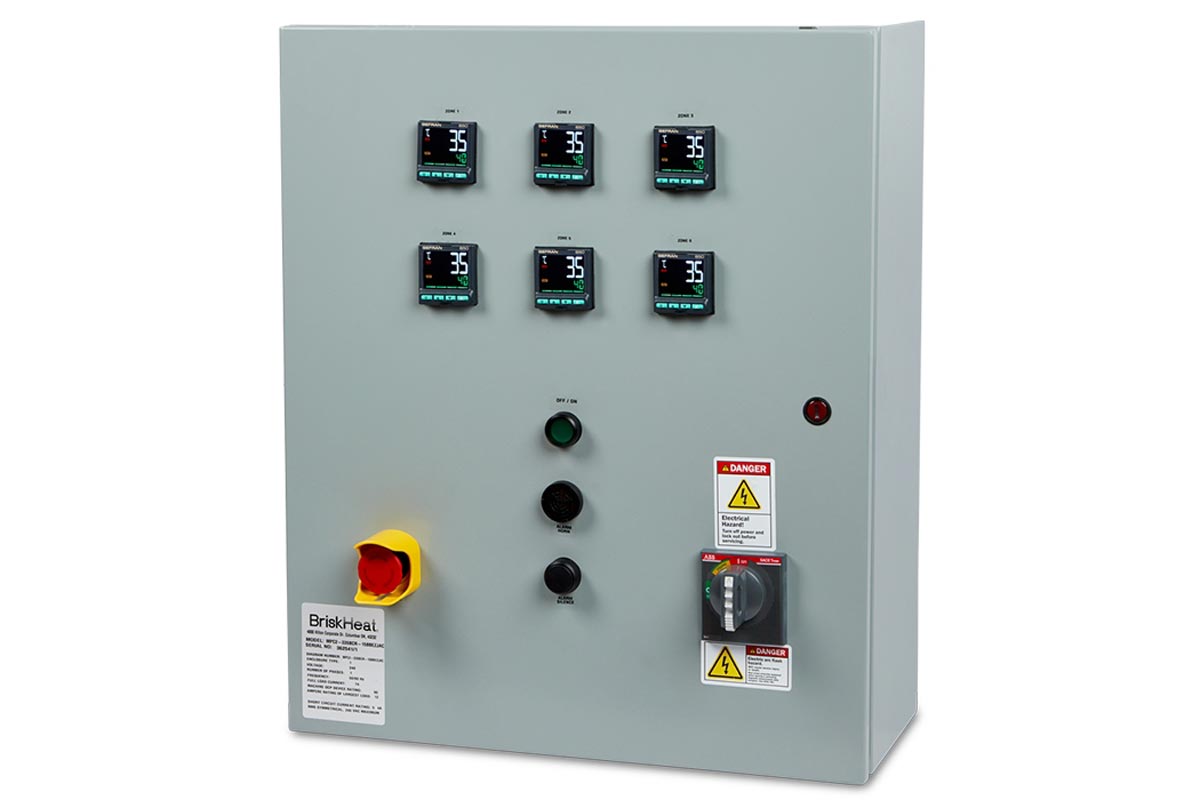

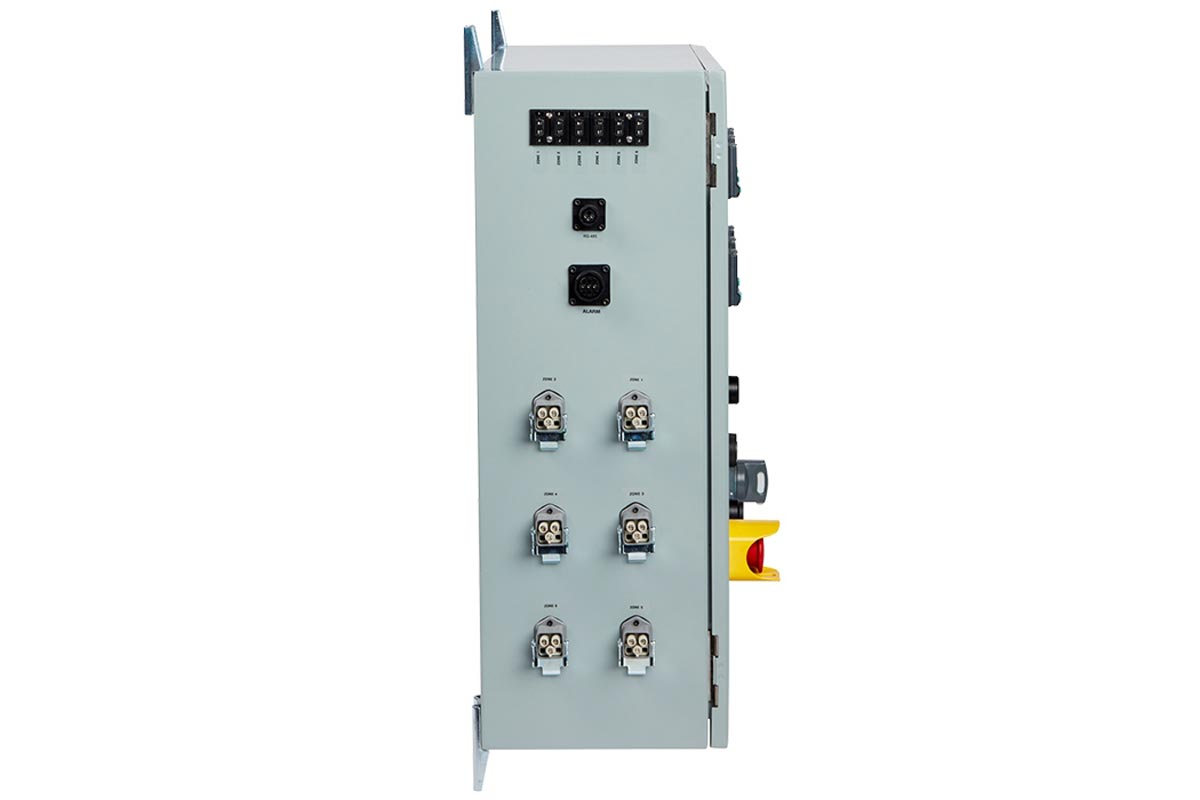

Multi-Point Digital PID Temperature Controller (MPC2)
$0.00
SKU:MPC2-RFQ
Simultaneously control, monitor and display temperatures of several independent heating zones requiring up to 60 Amps.
This new PID Temperature Controller has:
- Voltage - 15 options from 120 VAC to 600; Single & Three Phase
- Sensor Inputs - Type-K & RTD, in addition to Type-J
- Standard Safety - Ground fault, emergency stop, door switch
- Communication Protocol/Connections - RS-485, RS-232 and Ethernet
- A wider range of amperage capacity
- More accurate temperature control
- Easily adjustable setpoint temperatures for faster start-up at power
- An outdoor/wet-area-rated (at IP65) version
Need more details? Contact us today at 888.412.0122 for assistance, a quote, or more information.
Quality Guaranteed
Since 1949
Since 1949
Voltages: Input/output configurations of 120, 208, 220-240, 277, 380, 400-415, 480, and 575-600 (and 3-phase options)
Overcurrent Protection Device2: Up to 60 amps per zone with fuse or circuit breaker protection
Temperature Control Range3: 0°F to 1922°F (0°C to 1050°C)
Temperature Units: Programming and display in °F or °C
Sensor Input: Mini Type-J or Mini Type-K thermocouples, PT100-RTD or hardwire
Accuracy: 0.2% of temperature with sampling time of 60 milliseconds
Alarms: Audible and dry contact available
Power Cords/Connections: Input Power - hardwire; Output Power - Harting 2.0 receptacle, Twist Lock or hardwire
Safety Options: Ground fault interruption, door-mounted disconnect, and emergency stop available
Communications: RS-485, RS-232 or ethernet available
Environmental Exposures:
- Operating range: 14°F to 104°F (-10°C to 40°C)
- Storage range: -4°F to 158°F (-20°C to 70°C)
Relative Humidity: 20–85% at non-condensing temperatures
Enclosure Dimensions: Determined by number of zones. Materials – mild steel, fiberglass reinforced plastic or 304 stainless steel available
Special Note:
- 1Outdoor use requires special options
- 2Self-regulating cable requires use of circuit breakers for zone protection
- 3Do not exceed the maximum operating temperature of the heater
- 4Twist Lock connectors are NOT CE Approved
Approvals:
Provides PID temperature control to cloth and silicone heating blankets, heating cable and tape, drum heaters, and heating jackets for applications such as:
- Research laboratory experiments
- Industrial heating and drying
- Freeze protection
- Condensation prevention
- Viscosity control
- Food production
Catalog/Specifications Sheet
Instruction Manuals
Design Checklists
Q: Why should I use a temperature controller?
A: A temperature controller helps:
- Maintain precise temperatures
- Improve product quality and process consistency
- Reduce energy consumption
- Prevent overheating
- Extend heater life
- Increase safety
Q: What types of temperature controllers are available?
A: Common types of temperature controllers include:
- Digital temperature controllers
- PID controllers
- On/Off controllers
- Programmable controllers
- Multi-zone controllers
- Benchtop controllers
Q: What is the difference between a PID controller and an On/Off controller?
A: An On/Off controller switches the heater fully on or off when the temperature crosses a set point. A PID (Proportional-Integral-Derivative) controller continuously adjusts heater output to maintain a more stable temperature with minimal fluctuation, making it ideal for applications requiring greater precision.
Q: How do I choose the right temperature controller?
A: When selecting a temperature controller, consider:
- Required temperature range
- Sensor compatibility
- Voltage and current requirements
- Heater wattage
- Number of heating zones
- Accuracy requirements
- Programming features
- Environmental conditions
Q: Can one controller operate multiple heaters?
A: Yes. Some temperature controllers can control multiple heating zones or multiple heaters, depending on their output capacity and configuration. Make sure to check to check the controller’s specifications to ensure it’s compatible.
Q: Can temperature controllers be used with any heater?
A: Most temperature controllers are compatible with a wide variety of electric heaters, including:
- Silicone rubber heaters
- Heating blankets
- Heating tapes
- Heating cables
- Drum heaters
- Pail heaters
- Heating mantles
- Flexible heaters
Compatibility depends on voltage, current, power requirements, and sensor type.
Q: What industries use temperature controllers?
A: Temperature controllers are used in:
- Manufacturing
- Chemical processing
- Food and beverage
- Laboratories and research
- Aerospace and composites
- Semiconductor manufacturing
- Medical device production
- Pharmaceutical processing
- Plastics and packaging
Q: Are temperature controller’s accurate?
A: Accuracy varies by controller model and sensor type. Many digital and PID controllers provide precise temperature regulation that helps maintain stable process conditions and improve repeatability.
Q: Can I program different temperature settings?
A: Many programmable temperature controllers allow users to create temperature profiles, ramps, soak periods, timers, and multiple operating programs for complex heating processes.
Q: Can temperature controllers help prevent overheating?
A: Yes. Temperature controllers continuously monitor temperature and adjust heater output to maintain the desired set point. Many models also include high-temperature alarms and safety limits to help protect equipment and materials.
Q: Are digital temperature controllers easy to use?
A: Yes. Many digital controllers feature intuitive displays, simple programming, and user-friendly interfaces that make setting temperatures and monitoring performance straightforward.
Q: Do I need a temperature controller for my heating application?
A: While some heaters include built-in thermostats, many industrial and laboratory heating applications benefit from an external temperature controller for improved accuracy, safety, energy efficiency, and process control. A controller is especially valuable when precise temperature regulation is critical.
Q: What is the difference between a single-zone and multi-zone temperature controller?
A: A single-zone controller regulates one heater or heating circuit. A multi-zone controller independently manages multiple heaters or heating areas, allowing each zone to maintain its own temperature set point.
