Silicone Rubber Heating Tape with Mid-Temperature Adjustable Control (MSTAT)
$363.00
SKU:MSTAT101040

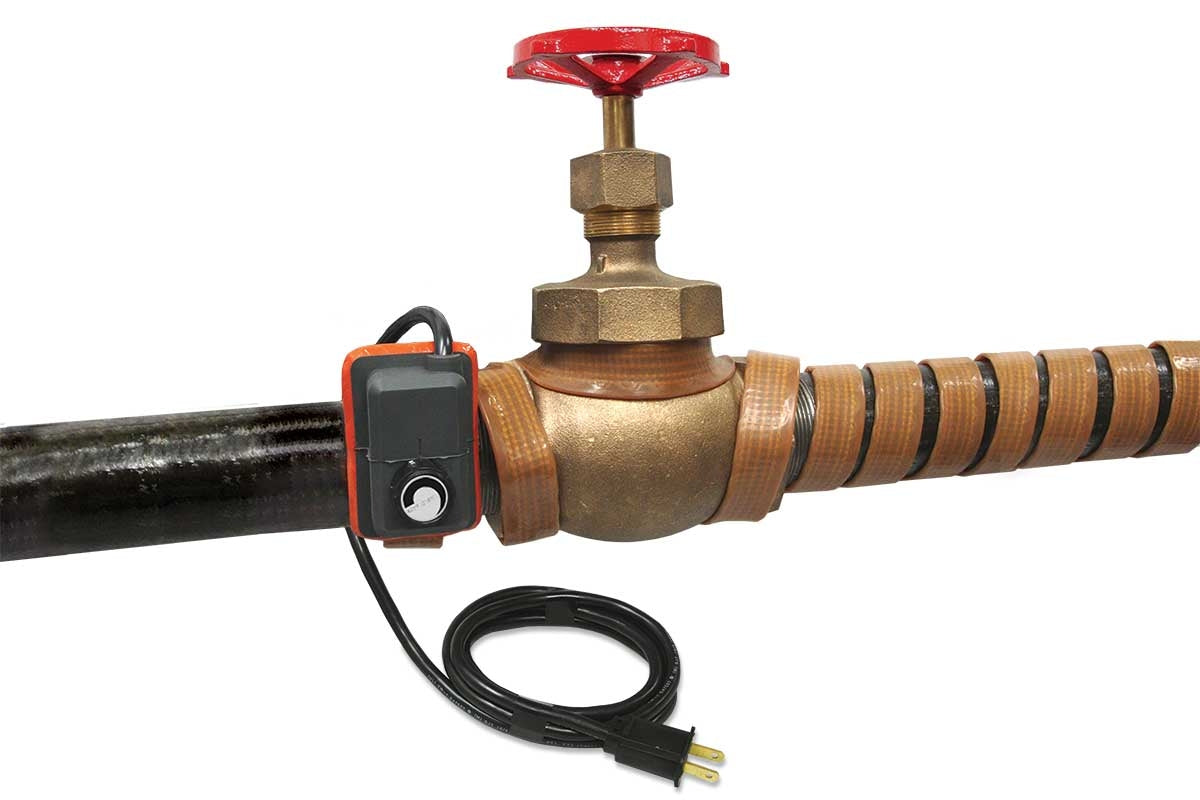

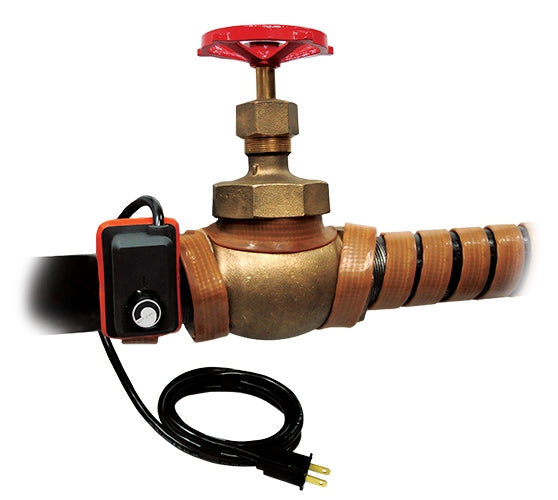

XtremeFLEX MSTAT Silicone Rubber Heating Tapes with Mid-Temperature Adjustable Thermostat Control are designed for process temperature control, freeze protection, and supplemental heat. These heating tapes are great portable, plug-and-play, re-usable, all-in-one pipe heating solution.
- 120 V
- Width: 1 in (25cm)
- Length: 40ft
- 1440
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Can wrap around and heat a wide range of objects - valves, pipes, bearings, pumps, gas tubing, filter housings, actuators, and more
- Simple plug-and-play design
Ideal Applications:
- Viscosity control
- Freeze protection
- Emergency de-icing
- Temperature maintenance
- Supplemental heat
- Melting of solids
Tape Width: 1in (25 mm)
Adjustable Thermostat Range: up to 160°F (71°C)
Maximum Exposure Temperature: 450°F (232°C)
Nominal Thickness: 0.125 in (3 mm)
Power Density: 6.0 watts/in2 (0.9 watts/cm2 )
Power Cord: 6 ft (1.8 m) long with
- 120 VAC Non-Grounded: 2-prong plug (NEMA 1-15 P)
- 240 VAC: Crimped ferrule leads
*CE approved for models with crimped ferrule leads
| Part No. 120 VAC | Part No. 240 VAC | Width in (mm) | Length ft (m) | Total Watts |
| MSTAT101002 | MSTAT102002 | 1.0 (25) | 2 (0.6) | 144 |
| MSTAT101004 | MSTAT102004 | 1.0 (25) | 4 (1.2) | 288 |
| MSTAT101006 | MSTAT102006 | 1.0 (25) | 6 (1.8) | 432 |
| MSTAT101008 | MSTAT102008 | 1.0 (25) | 8 (2.4) | 576 |
| MSTAT101010 | MSTAT102010 | 1.0 (25) | 10 (3.0) | 720 |
| MSTAT101015 | MSTAT102015 | 1.0 (25) | 15 (4.5) | 1080 |
| MSTAT101020 | MSTAT102020 | 1.0 (25) | 20 (6.1) | 1200 |
| MSTAT101030* | MSTAT102030* | 1.0 (25) | 30 (9.1) | 1440 |
| MSTAT101040* | MSTAT102040* | 1.0 (25) | 40 (12.2) | 1440 |
| MSTAT101050* | MSTAT102050* | 1.0 (25) | 50 (15.2) | 1440 |
