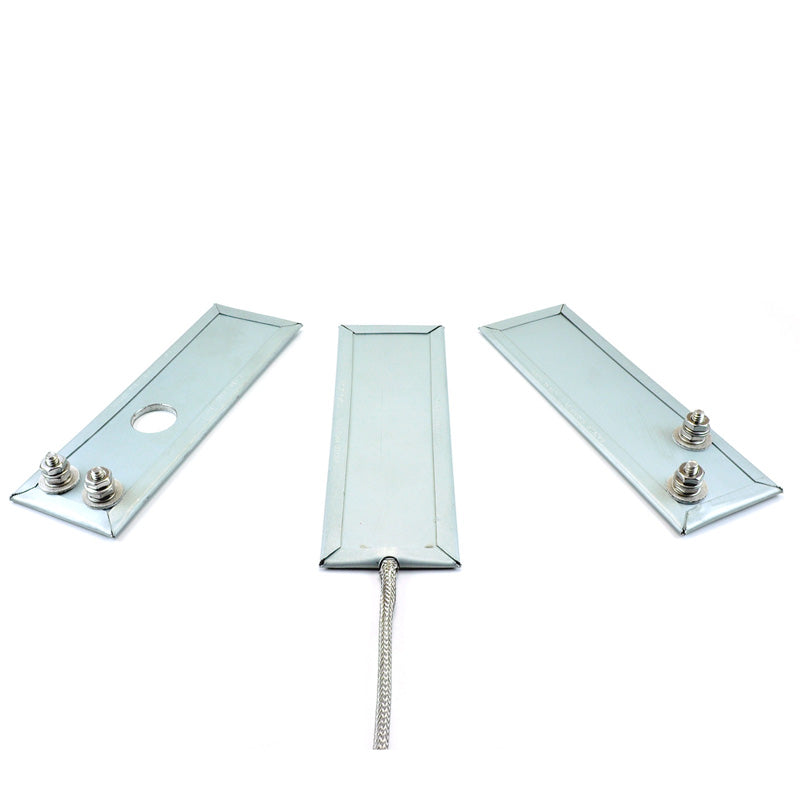

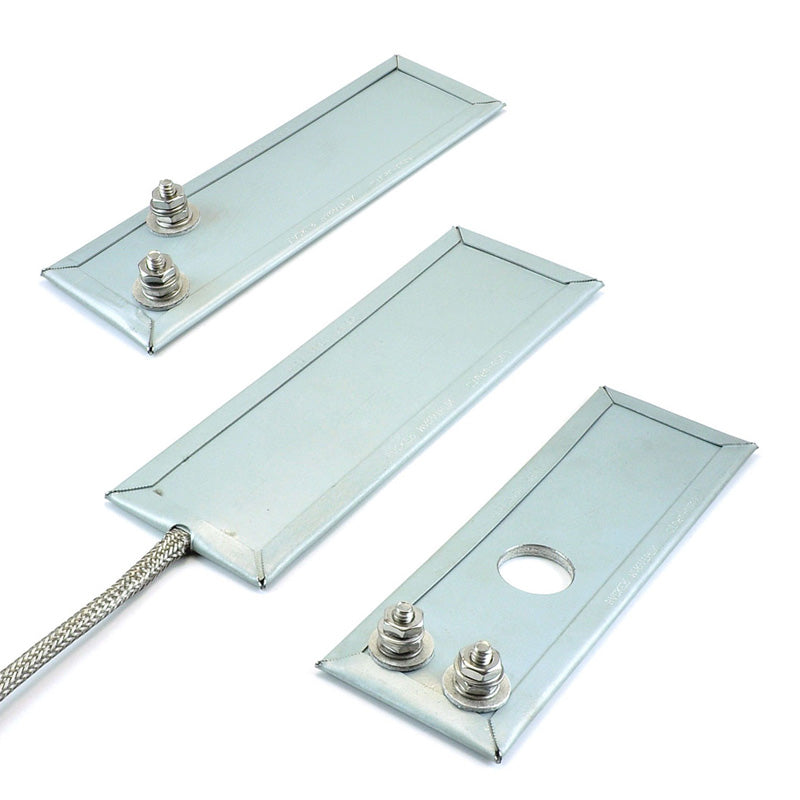

Custom Mica Strip Heaters
Rugged, low-profile heating for high-temperature industrial applications. BriskHeat's Custom Mica Strip Heaters provide reliable, uniform surface heating in space-constrained environments. With a thin, 1/8 inch (3 mm) profile, these heaters provide high-watt density and rapid heat up times, making them ideal for platens, dies, molds, and process machinery.
Engineered for durability, our mica heaters utilize a high-temperature galvanized sheath to resist oxidation, while premium-grade mica insulation ensures superior electrical isolation and corrosion resistance. For extreme environments, an optional stainless steel sheath extends the operating temperature range from 900F (482C) to 1200F (649C).
- Dimensional Flexibility: Available in lengths from 2.5 in (63.5 mm) to 48 in (1219 mm) with widths starting at 0.75 in (19 mm)
- Versatile Moutning: Choose from weld-on barrel nuts, spring-loaded nuts, full straps, wedges, or flanges to match your mounting surface
- Electrical & Lead Options: Configurable for up to 480 VAC (single or 3-phase) with lead protection options
- High Performance Capabilities: High-watt power densities up to 40W/in (6 W/cm)
Since 1949
Strip Heater Specifications
Length: 2.5” (63.5 mm) to 48” (1219 mm)
Width: 0.75” (19 mm) minimum
Voltage: Up to 480 VAC, Dual 120/240 or 240/480, Single or 3-phase
Customize Your Mica Heater
Power Density: Up to 52 W/in2 (8.0 W/cm2)
Sheath Material: Galvanized steel or stainless steel
Clamping Options: Weld-on barrel nut, heavy duty barrel nut, spring-loaded barrel nut, full strap, wedge, flange
Lead Wire Options: Duraflex, teflon, silicone
Lead Wire Protection: Stainless steel braid or conduit, spring guard, right-angle cap, strain relief
Terminal Options: Ground post, ceramic terminal cover, button terminals, terminal box
Other Options: Temperature sensor, Europlug, two-piece design, custom holes and slots
