LYNX® PID Temperature Control Set (LYNX-SET)

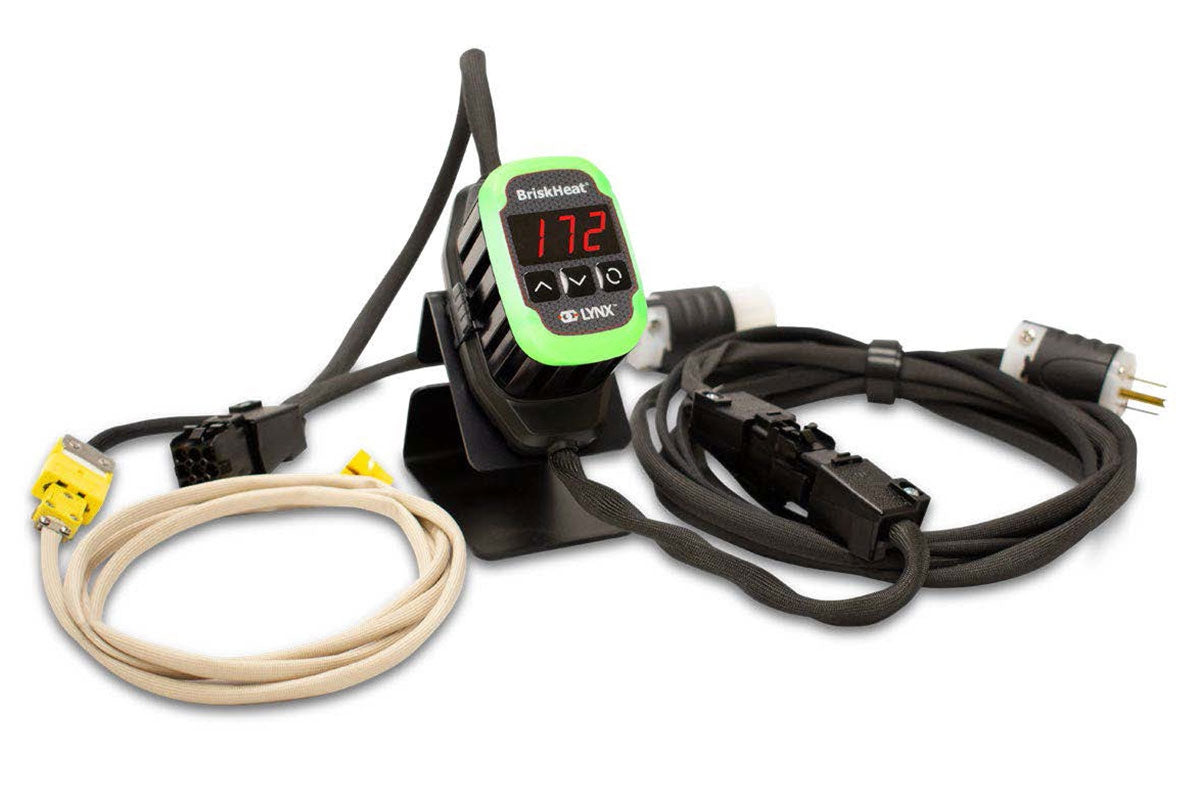

The LYNX Temperature Control Set includes everything you need in your temperature control system to plug in and get to work. Choose from your choice of heater and sensor ports as well as power harness and plug to be used as a single zone controller or connected to a system.
- Input Power: NEMA 5-15P
- Sensor: PT100-RTD
- Heater Connection: NEMA 5-15 Receptacle
Since 1949
Additional Features:
- Compact PID control system with autotuning that controls almost any heater
- Everything needed to plug-and-play
- 3-button touchpad programming and large 3-digit display
- Latching alarms for high and low temperature
- Versatile - can be used as a single zone controller or be connected for a system of temperature control.
- Able to be used with a wide variety of electrical heaters
- Uses a minimal amount of benchtop space
- Easy to program and provides precise control
- Easily visible LED for alarm conditions: High temperature limits, low temperature limits, and more
Temperature Control Range: 32°F to 1100°F (0°C to 593°C)
Sensor Input: 5 ft (1.5 m) long included; Choice of PT100 RTD; Type-J and Type-K thermocouples
Alarms: Multi-color LED display with highly visible viewing
Power Cord: 6 ft (1.8 m) power harness with plug. See ordering information for choices
Heater Connection: Receptacle is on docking station assembly as indicated in ordering information Voltage: 100 to 277 VAC
Maximum Continuous Amp Load per Zone: 7 amps at 77°F (25°C) ambient; 4 amps at 104°F (40°C)
Communication Method: Modbus RTU over RS-485. Optional power harnesses with communication cable and operator interfaces are available upon request.
IP Rating: IP20
| LYNX Set Part No. | Input Power | Heater Connection | Temperature Sensor |
| LYNX-SET-JA | NEMA 5-15 Plug | NEMA 5-15 Receptacle | Type-J thermocouple |
| LYNX-SET-KA | NEMA 5-15 Plug | NEMA 5-15 Receptacle | Type-K thermocouple |
| LYNX-SET-RA | NEMA 5-15 Plug | NEMA 5-15 Receptacle | PT100-RTD sensor |
| LYNX-SET-RC | Schuko CEE 7/7 Plug | Harting Q 2/0 receptacle with mate | PT100-RTD sensor |
| LYNX-SET-KC | Schuko CEE 7/7 Plug | Harting Q 2/0 receptacle with mate | Type-K thermocouple |
| LYNX-SET-JC | Schuko CEE 7/7 Plug | Harting Q 2/0 receptacle with mate | PT100-RTD sensor |
| LYNX-SET-JD | NEMA 6-15 Plug | NEMA 6-15 Receptacle | Type-J thermocouple |
| LYNX-SET-KD | NEMA 6-15 Plug | NEMA 6-15 Receptacle | Type-K thermocouple |
| LYNX-SET-RD | NEMA 6-15 Plug | NEMA 6-15 Receptacle | PT100-RTD sensor |
| LYNX-SET-JI | IEC Type I | IEC13 receptacle with mate | Type-J thermocouple |
| LYNX-SET-KI | IEC Type I | IEC13 receptacle with mate | Type-K thermocouple |
| LYNX-SET-RI | IEC Type I | IEC13 receptacle with mate | PT100-RTD sensor |
| LYNX-SET-JB | Ferrules | Harting Q 2/0 receptacle with mate | Type-J thermocouple |
| LYNX-SET-KB | Ferrules | Harting Q 2/0 receptacle with mate | Type-K thermocouple |
| LYNX-SET-RB | Ferrules | Harting Q 2/0 receptacle with mate | PT100-RTD sensor |
