LYNX® Operator Interface (LYNX-OI)
Operation of a complete LYNX Temperature Control System requires an operator interface. LYNX OI is a state-of-the-art PID (proportional integral derivative) temperature control system comprised of up to 1,024 zones (8 strings of heaters). Each zone (heater) can be individually controlled and monitored. LYNX OI provides users the ability to track each unit's performance. Monitor each zone from the full-color touchscreen, highly visible indicator lights, and remote system, or via email alerts.

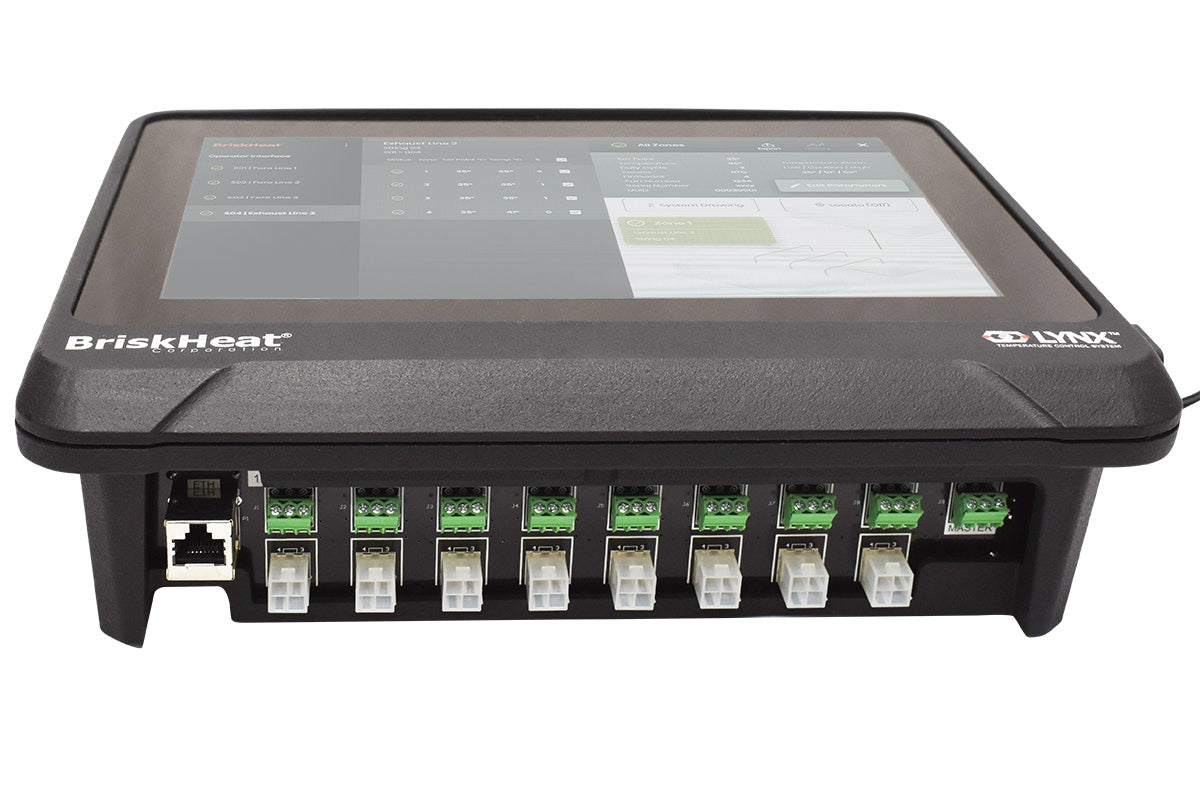

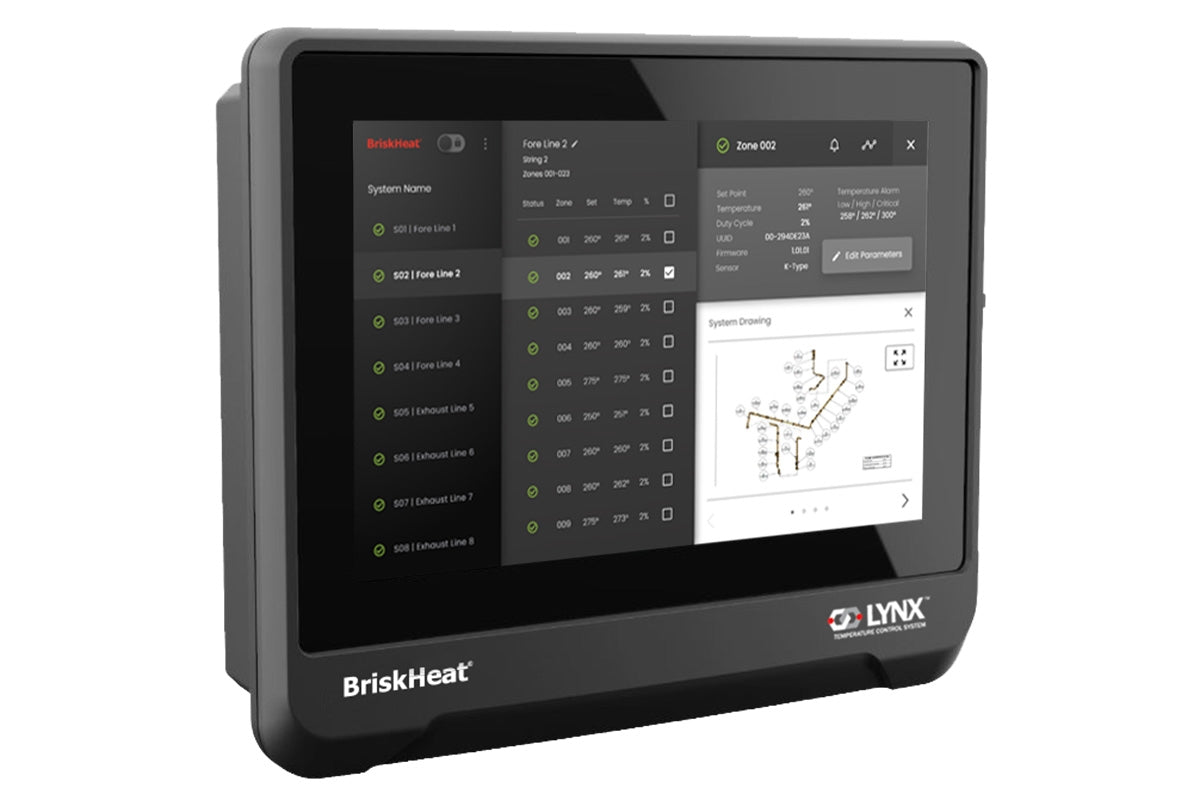

- LYNX Operator Interface with NEMA 5-15 Plug
Since 1949
Additional Features:
- Provides complete control and system optimization for maximum precision
- User-configurable graphical mapping and naming to match application provides ease of use
- Historical graphing of temperature, duty cycle and current displays performance over time
- Alarm history for diagnostics
- Large 10.1 in (25.7 cm) touchscreen enables easy monitoring and programming
- Wire or wireless (WiFi) communications sends email alerts
- Modbus communications allows remote access and control via HMI
- Zone-locator feature enables user to easily identify specific modules
- USB port simplifies ability to upload firmware and download data

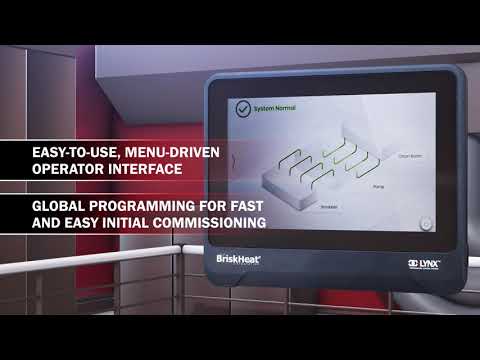

- Global programming saves time
Conforms to UL STD 61010-1
Certified to CSA STD C22.2 # 61010-1
Q: What are some of the advantages of using LYNX® Operator Interface (OI)?
A: The OI simplifies programming by simultaneously setting parameters for groups of modules. Caution alarms become visible if a heater starts to operate outside of normal parameters. Individual module locations can be easily identified by “pinging” the module from the large 10.1 in (25.7 cm) screen. In the event of an alert
condition, emails can be sent to specified individuals.
Q: Does the LYNX® OI allow for expansion if heaters are added?
A: Yes. When new jackets are added, they will be sensed by the OI and either added to the existing string or displayed as a new string depending on where they are added. The OI handles up to 8 strings with up to 128 modules per string.
Q: Why do I need a docking station?
A: The docking station distributes power to the Temperature Control Module and heater. It also supplies the connection for the temperature sensor required for control.
Q: Can the OI really send email alerts
A: Yes. The system must be connected to the internet and messaging enabled. Many phone carriers can send text messages from emails via an SMS Gateways. Contact your carrier for capabilities.
Q: What is a latching alarm?
A: A latching alarm automatically limits power to a heater in the event it goes into an alarm state. If a high temperature alarm is non-latching, power to the heater is limited until such time as the temperature decreases a certain number of degrees below the set point temperature. At that point, the power to the heater is restored. A latching alarm is a safety feature that requires not only the decrease in temperature but also for the operator to acknowledge the alarm before normal operation will resume.
Q: What is the “Idle Mode” feature?
A: This allows the system or group of modules to be operated at a reduced temperature (defined by customer) and for most alarms to be disabled. This saves time and energy by allowing the user to push one button to lower temperature for system maintenance.
Q: What is duty cycle monitoring?
A: Duty cycle is a ratio or percent that the power is on. When power is first applied to a heater, the duty cycle is typically higher and decreases as the setpoint temperature is approached. Duty cycles can alert users of potential future performance issues.
Q: Does LYNX® have any 3rd-party agency approvals?
A: Yes. LYNX® is ETL approved to UL and CSA standards in addition to being CE marked.
