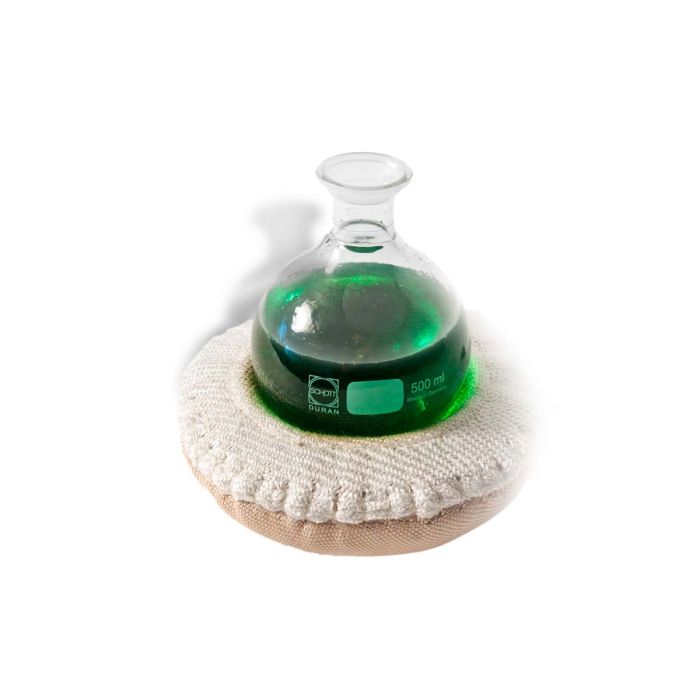

Lower Hemispherical Heating Mantles (HM)
$322.00
SKU:HM3000-HS1
HM Lower Hemispherical Heating Mantles
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Easily installs on basket ring stands
- Suitable for high temperatures
Note:
Temperature Controller is required for this product
Maximum Exposure Temperature: 842°F (450°C)
Outer Construction: Fiberglass outer shell

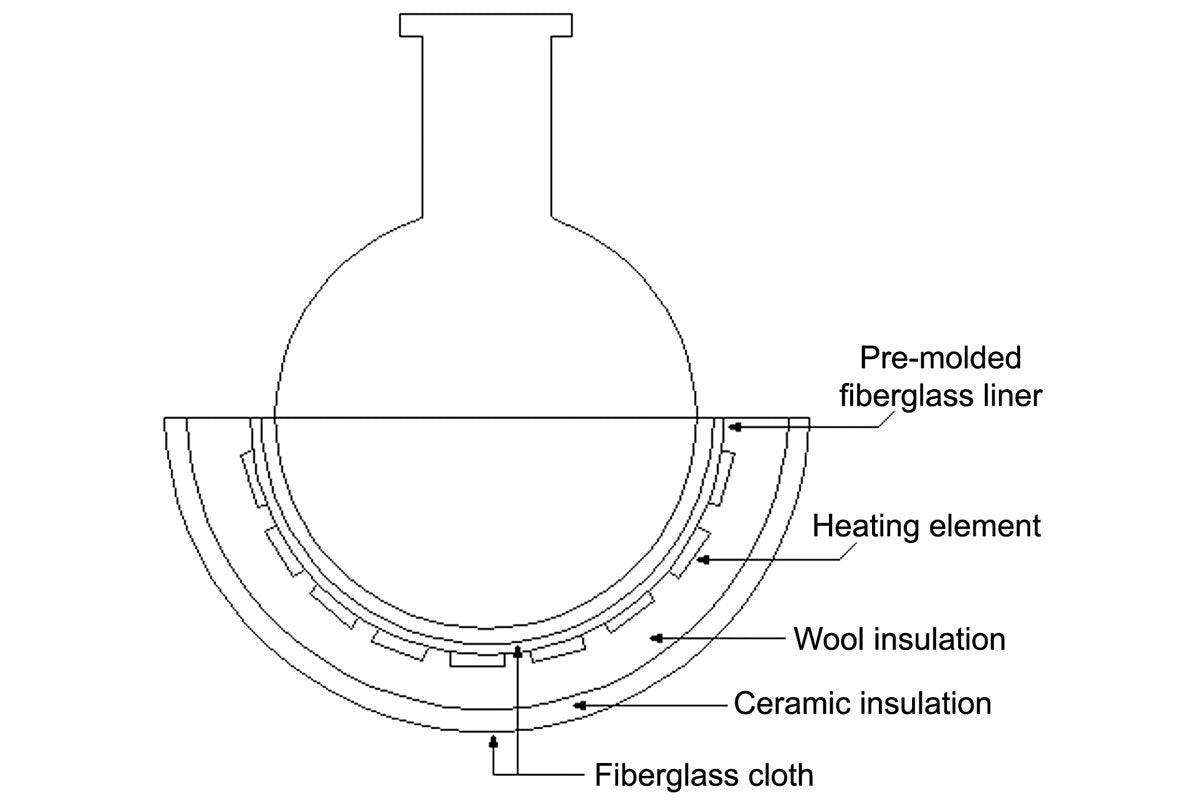

Heating Element: Multi-stranded resistance wire for increased durability. Knit and braided for uniform heat coverage
Voltage: 120 or 240 VAC
Power Leads: 3 in (76 mm) long with
- 120 VAC: Twist lock connector (NEMA L1-15R) and 4 ft (1.2 m) long extension cord with 2-prong plug (NEMA 1-15P)
- 240 VAC: Crimped ferrule leads
IP Rating: IP20
| Part No. 120 VAC | Part No. 240 VAC | Size (ml) | Total Watts |
| HM0050-HS1 | HM0050-HS2 | 50 | 60 |
| HM0100-HS1 | HM0100-HS2 | 100 | 80 |
| HM0125-HS1 | HM0125-HS2 | 125 | 80 |
| HM0200-HS1 | HM0200-HS2 | 200 | 100 |
| HM0250-HS1 | HM0250-HS2 | 250 | 180 |
| HM0500-HS1 | HM0500-HS2 | 500 | 270 |
| HM1000-HS1 | HM1000-HS2 | 1000 | 380 |
| HM2000-HS1 | HM2000-HS2 | 2000 | 500 |
| HM3000-HS1 | HM3000-HS2 | 3000 | 500 |
| HM5000-HS1 | HM5000-HS2 | 5000 | 600 |
| HM12000-HS1 | HM12000-HS2 | 12000 | 1300 |
