Junction Boxes For Hazardous Locations
$204.00
SKU:JBH075

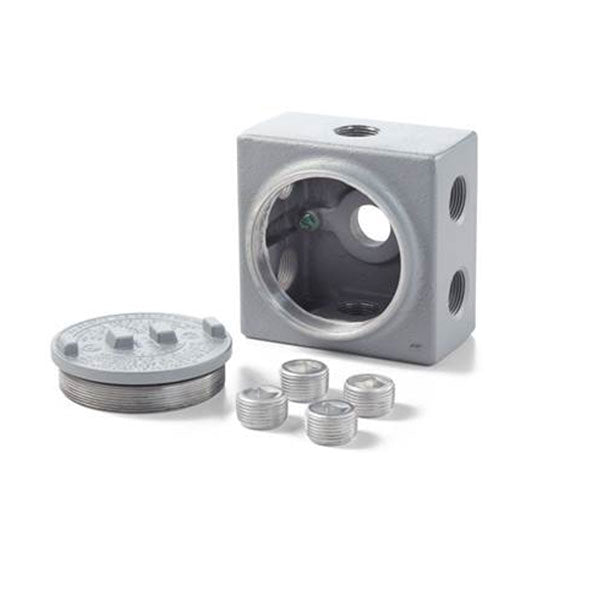

BriskHeat junction boxes for hazardous areas are furnished with seven internal hubs. Two hubs on the top and bottom, one hub on each side and one hub on the back. Furnish with internal ground screw and cast-in brackets on cover for use with breaker-bar tools. UL/CSA for hazardous areas.
- 7-Hub cast aluminum junction box
- 6 plugs and watertight cover
- Thread Size: 0.75 in (19 mm) NPT
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Metallic enclosure with watertight explosion proof cover. Suitable for hazardous locations. C1 D1 NEMA 4x rated for indoor/outdoor use.
JBH075:
- Metallic box 7 hub 3/4 in NPT
- Dimensions: 4.6 in x 4.6 in 3.5 in (118 mm x 118 mm x 89 mm)
JBH100:
- Metallic box 7 hub 1 in NPT
- Dimensions: 4.6 in x 4.6 in 3.5 in (118 mm x 118 mm x 89 mm)
