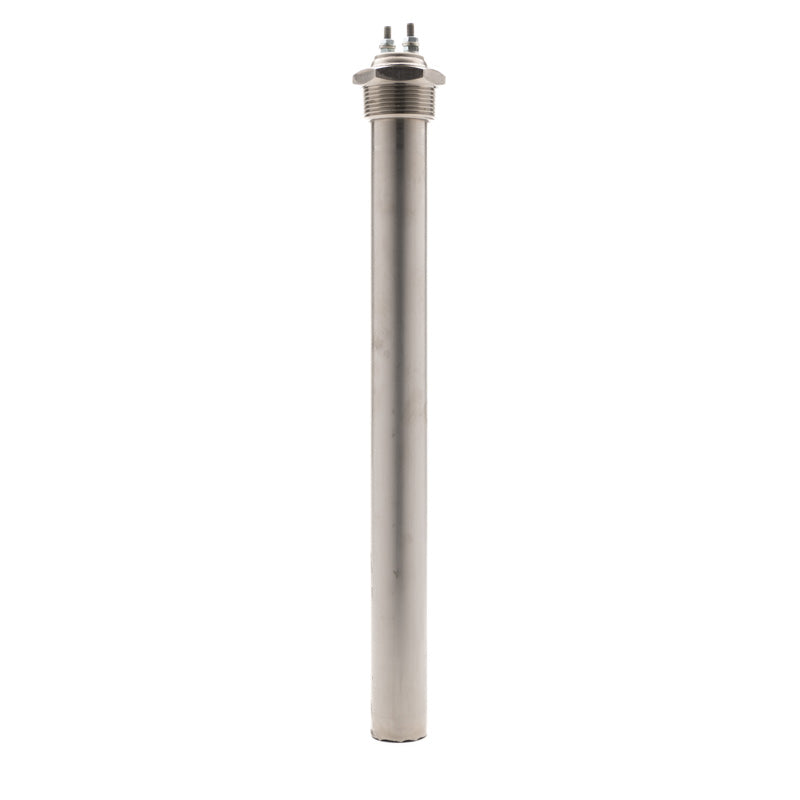

Custom Immersion Cartridge Heaters
$0.00
SKU:em-series-RFQ
BriskHeat custom immersion cartridge heaters are engineered to meet your exact specifications. Designed for high performance and durability, these heaters provide an efficient solution for liquid heating in a variety of industrial applications.
- Corrosion Resistance: 316 stainless steel sheath ensures longevity and compatibility with diverse liquids.
- Efficient Heat Transfer: Features a fine-wire internal heat source positioned close to the sheath to maximize thermal transfer.
- Minimized Heat Loss: Magnesium oxide packing reduces internal temperature losses for greater energy efficiency.
- Secure Installation: Equipped with an NPT threaded bushing for effective sealing against process liquids.
-
Custom Performance: Wattage can be customized to suit the specific requirements of your application.
Quality Guaranteed
Since 1949
Since 1949
Voltage: 120 or 240 VAC, single or 3-phase
Power Density: Up to 70 watts/in2 (11 watts/cm²) (determined by heater diameter and maximum amps)
Sheath Material: 316 stainless steel or incoloy
Mounting Bushings: Brass, stainless steel, single NPT or double coupling head
Thermocouple: Type-J, Type-K, grounded, ungrounded
Potting Leads: Epoxy, silicone rubber, or ceramic-metal; hermetically sealed
Lead Configuration: Right angle, spring protection, ground wire, fiberglass, or silicone sleeves; strain-relief
Lead Protection: Flexible stainless steel conduit, stainless steel flexible braid
Terminal Enclosure: Nema 1 general purpose, Nema 1 rust resistant, moisture resistant, explosion resistant
Important Note:The heated portion is designed to be fully immersed in liquid. A temperature controller is required for these products.
Approvals:
E56973
016-0-000
E56973
016-0-000
| Catalog No. | EM25 | EM37 | EM50 | EM62 | EM75 | EM1.0 | EM1.2 | EM1.9 | EM2.3 |
| Bushing NPT | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 2 | 2 1/2 |
| Element Dia (in) | 0.25 | 0.37 | 0.5 | 0.62 | 0.75 | 1 | 1.25 | 1.9 | 2.3 |
| Maximum Amps | 3.5 | 6 | 10 | 10 | 15 | 25 | 30 | 40 | 50 |
