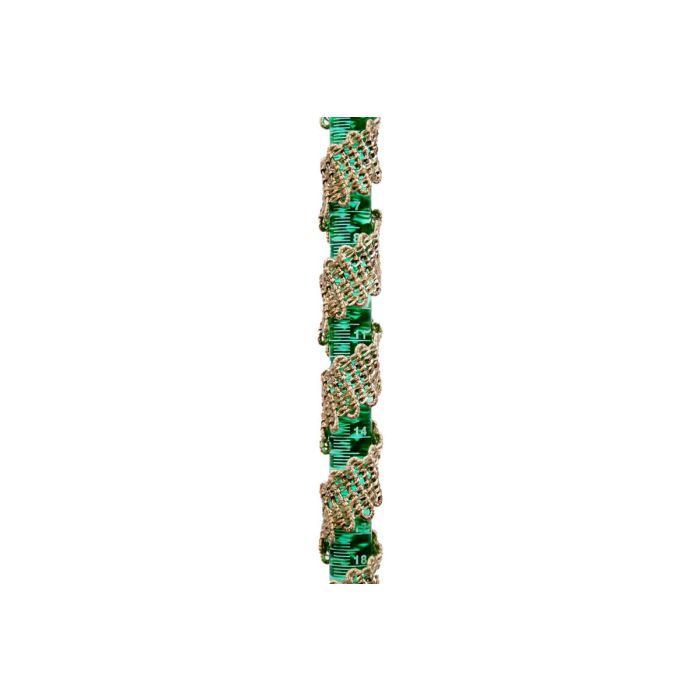

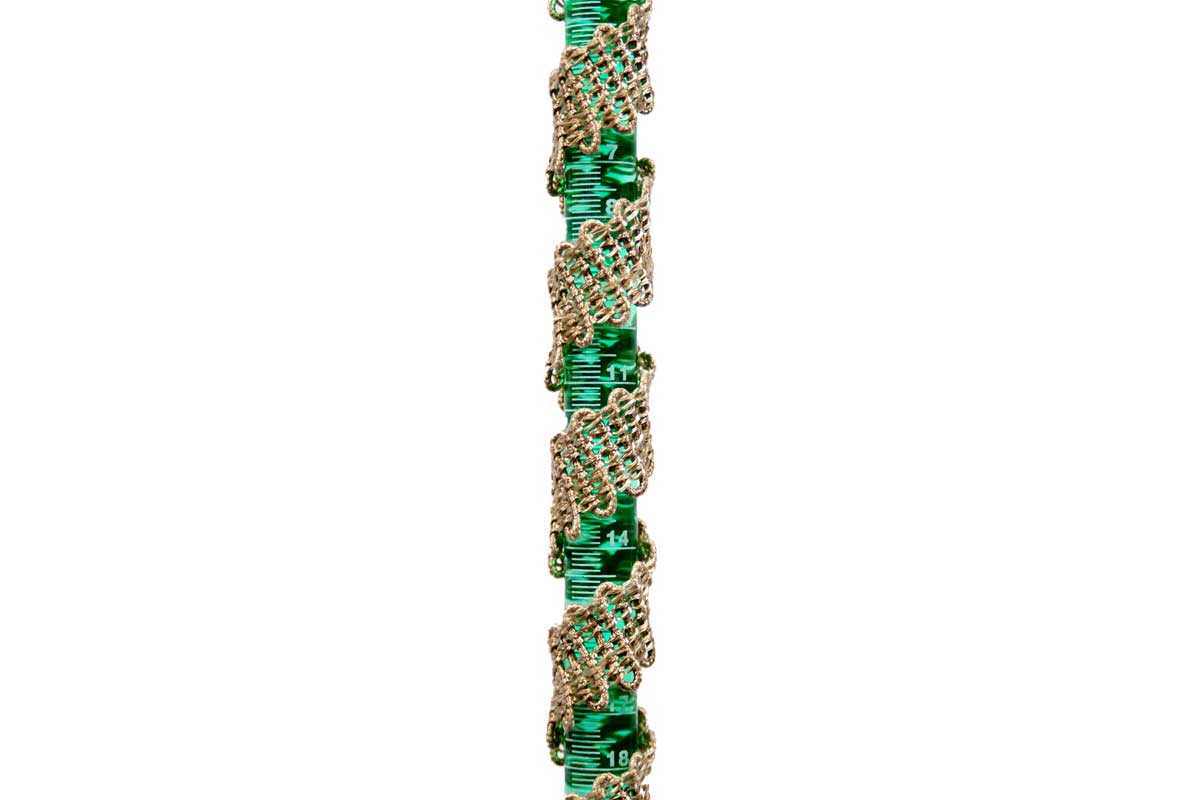

High Temperature Standard Insulated Heating Tapes (BW0)
BriskHeat high temperature insulated heating tapes are ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, and more. This Samox heating tape is a multi-stranded resistance wire heating element that provides exceptional flexibility and durability. With rapid thermal response and variety of sizes, these insulated heating tapes will provide accurate heat when you need it.
- Width and Length: 0.5in x 72 in (13 mm x 1830 mm)
- 470w
- 120 V
Since 1949
Additional Features:
- Excellent Flexibility
- Rapid Thermal Response
- Choice of power leads on same end or opposite ends
Note:
Temperature Controller is required for this product
Maximum Exposure Temperature:
- Removable & Reusable Use: Up to 572°F (300°C)
- Single Install Use: Up to 932°F (500°C)
Construction: Samox® knitted and braided
Power Density: 13.1 W/in2 (2.0 W/cm2 )
Voltage: 120 or 240 VAC
Minimum Bend Radius: 0.13 in (3 mm)
Power Leads: 2 ft (0.6 m) long with
- 120 VAC: Separable 2-prong plug
- 240 VAC: Bare Wire Leads
IP Rating: IP5X
BW0 Series — 13.1 watts/in2 (2.0 watts/cm²) watt density
Power Leads on Same End
| Part No. 120 VAC |
Part No. 240 VAC |
Width in (mm) |
Length ft (m) |
Total Watts |
| BW0051020L | BW0052020L | 0.5 (13) | 2 (0.6) | 160 |
| BW0051040L | BW0052040L | 0.5 (13) | 4 (1.2) | 310 |
| BW0051060L | BW0052060L | 0.5 (13) | 6 (1.8) | 470 |
| BW0051080L | BW0052080L | 0.5 (13) | 8 (2.4) | 620 |
| N/A | BW0052100L | 0.5 (13) | 10 (3.1) | 780 |
| N/A | BW0052120L | 0.5 (13) | 12 (3.7) | 940 |
| BW0101020L | BW0102020L | 1.0 (25) | 2 (0.6) | 310 |
| BW0101040L | BW0102040L | 1.0 (25) | 4 (1.2) | 620 |
| N/A | BW0102060L | 1.0 (25) | 6 (1.8) | 940 |
| N/A | BW0102080L | 1.0 (25) | 8 (2.4) | 1250 |
Ordering option: For a single power lead on opposite ends, remove “L” from end of part number
