Heavy Insulated Heating Tapes (BIH)
$64.75
SKU:BIH051020L

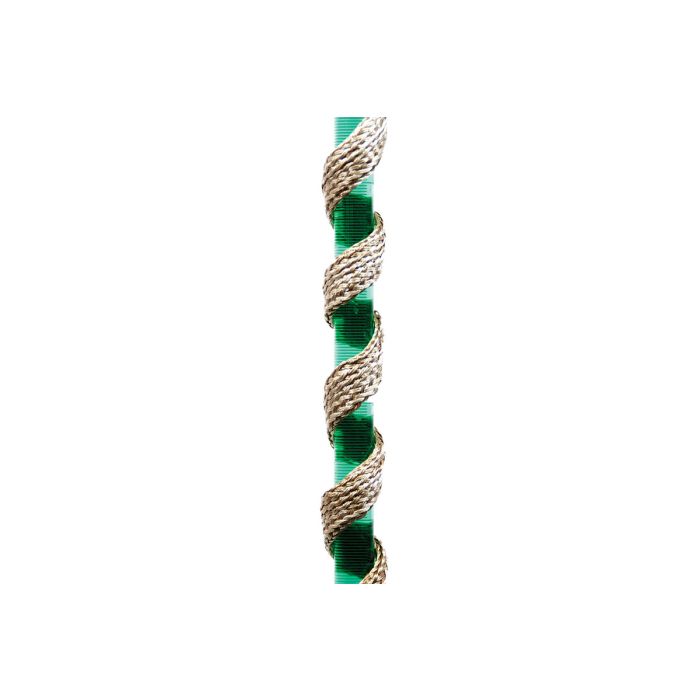

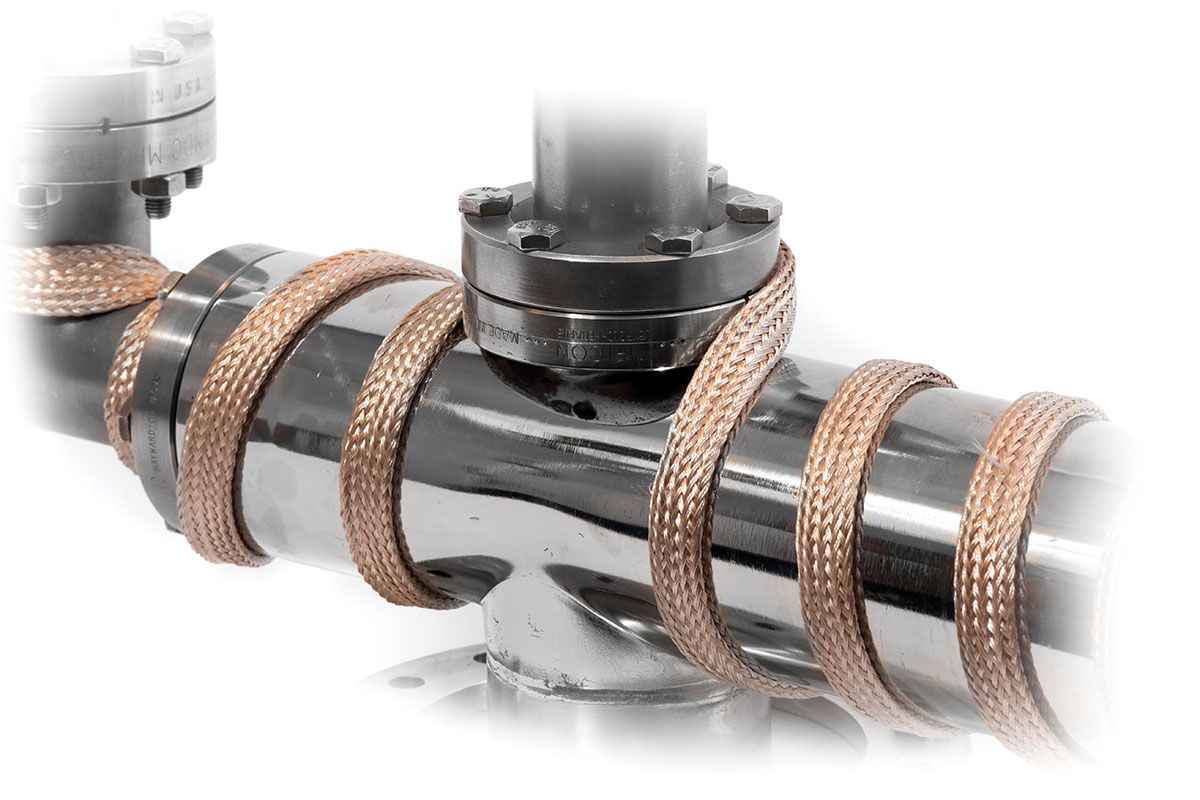

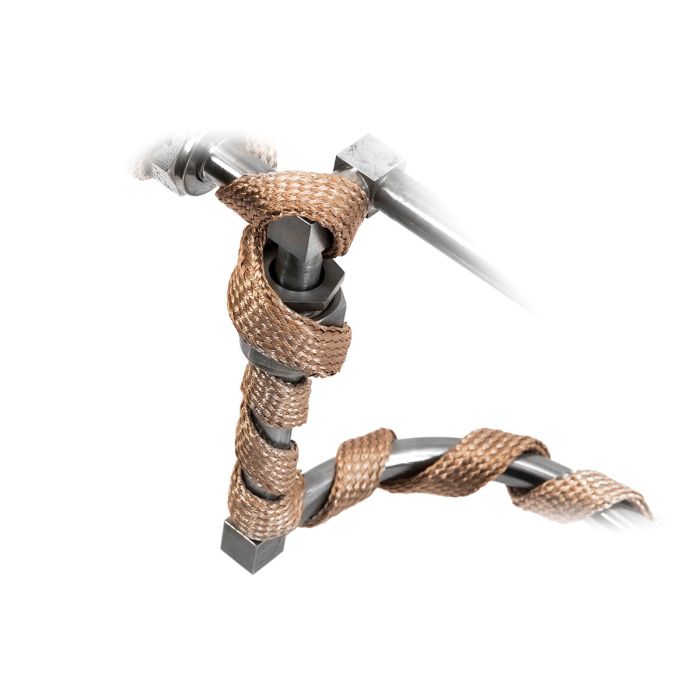

BriskHeat Heavy Insulated Heating Tapes are made of a multi-stranded resistance wire heating element and covered with a fiberglass outer sheath that provides electrical insulation. Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more! With its rapid thermal response and variety of length and width configurations, these tapes will provide accurate heat when you need it.
Temperature controller is required for safe operation of this product.
- Safe for use with glass and electrically conductive metal surfaces
- Includes 9 in (230 mm) long high temperature tie downs for easy installation
- Built-in split-plug design
- Maximum Exposure Temperatures:
- Removable and re-usable use: up to 572°F (300°C)
- Single Use: up to 932°F (500°C)
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Exceptional flexibility
- Rapid thermal response
- Choice of power leads on same end or opposite ends
-
Maximum Exposure Temperature:
- Single Installation Use: Up to 932°F (500°C)
- Removable and Reusable: Up to 572°F ( 300°C )
Power Plugs:
- Tape Widths over 1 in: Bare Wire, plug not included
- 0.5 in and 1 in Tape Widths: Ferrule crimp wire termination
Power Density: 8.6 W/in2 (1.3 W/cm2), Non-Grounded
| Part No. 120 VAC | Part No. 240 VAC | Width in (mm) | Length ft (m) | Total Watts |
| BIH051020L | BIH052020L** | 0.50 (13) | 2 (0.6) | 105 |
| BIH051040L | BIH052040L** | 0.50 (13) | 4 (1.2) | 210 |
| BIH051060L | BIH052060L** | 0.50 (13) | 6 (1.8) | 310 |
| BIH051080L | BIH052080L** | 0.50 (13) | 8 (2.4) | 420 |
| BIH051100L | BIH052100L** | 0.50 (13) | 10 (3.1) | 520 |
| BIH051120L | BIH052120L** | 0.50 (13) | 12 (3.7) | 620 |
| BIH101010L | N/A | 1.00 (25) | 1 (0.3) | 105 |
| BIH101020L | BIH102020L** | 1.00 (25) | 2 (0.6) | 210 |
| BIH101040L | BIH102040L** | 1.00 (25) | 4 (1.2) | 420 |
| BIH101060L | BIH102060L** | 1.00 (25) | 6 (1.8) | 620 |
| BIH101080L | BIH102080L** | 1.00 (25) | 8 (2.4) | 830 |
| BIH101100L | BIH102100L** | 1.00 (25) | 10 (3.1) | 1040 |
| BIH171020L | BIH172020L* | 1.75 (44) | 2 (0.6) | 209 |
| BIH171040L | BIH172040L* | 1.75 (44) | 4 (1.2) | 418 |
| BIH171060L | BIH172060L* | 1.75 (44) | 6 (1.8) | 627 |
| BIH171080L | BIH172080L* | 1.75 (44) | 8 (2.4) | 836 |
| BIH171100L | BIH172100L* | 1.75 (44) | 10 (3.1) | 1045 |
| BIH251020L | BIH252020L* | 2.50 (64) | 2 (0.6) | 313 |
| BIH251040L | BIH252040L* | 2.50 (64) | 4 (1.2) | 627 |
| BIH251060L | BIH252060L* | 2.50 (64) | 6 (1.8) | 940 |
| BIH251080L | BIH252080L* | 2.50 (64) | 8 (2.4) | 1254 |
| BIH251100L | BIH252100L* | 2.50 (64) | 10 (3.1) | 1567 |
| BIH321020L | BIH322020L* | 3.25 (83) | 2 (0.6) | 418 |
| BIH321040L | BIH322040L* | 3.25 (83) | 4 (1.2) | 836 |
| BIH321060L | BIH322060L* | 3.25 (83) | 6 (1.8) | 1254 |
| BIH321080L* | BIH322080L* | 3.25 (83) | 8 (2.4) | 1672 |
| BIH321100L* | BIH322100L* | 3.25 (83) | 10 (3.1) | 2090 |
Ordering Option: For single power lead on opposite ends, remove "L" form end of part number
