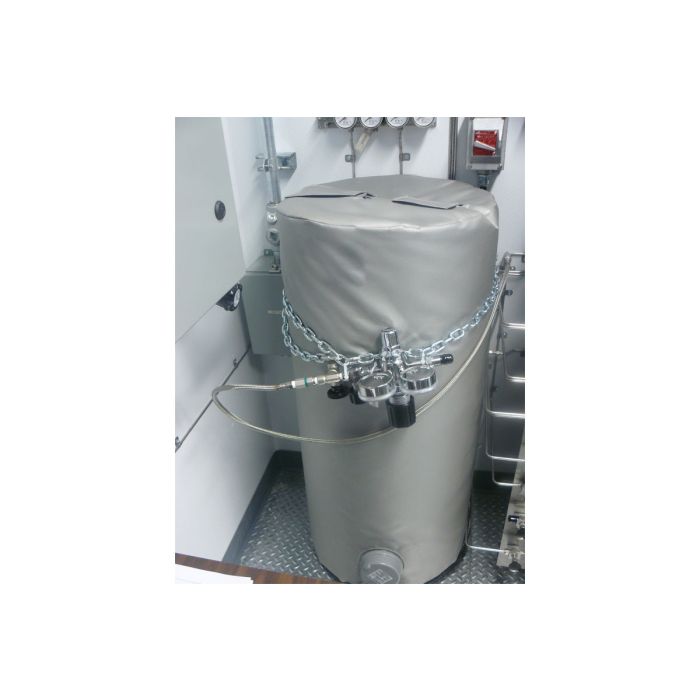

Hazardous-Area Rated Gas Cylinder Warmer - CSA Class I, Division 1 (HCW)
$2,470.00
SKU:HCW15431501
Gas Cylinder Warmers are designed to warm metal gas cylinders for condensation control, pressure increase, and temperature control in Hazardous-Areas: CSA Class 1.
- 15in x 43in(381mm x 1092mm)
- 150 watts
- 120V
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- SF6, Propane, Nitrogen, Oxygen, BCI3, WF6, and HF gases benefit from this process
- Even heat distribution and maximum energy efficiency
- Reusable and rugged with long service life
- Intrinsically safe - design can be used in hazardous environments
Outer Material: Silicone impregnated cloth
Insulation:
- Sides: 2 in (51 mm) thick fiberglass
- Top: 0.50 in (13 mm) thick fiberglass
Total Wattage: Up to 150 watts
Voltage Options: 120 or 240 VAC
Frequency Range: 50-60 Hz
Closure Method: Hook and loop fastener
Ambient Temperature Range: 30° to 95°F (-1 to 35°C)
Power Lead Type: Hazardous Location model (HCW): Teck 90 cable
HCW Power Cord: 10 ft (3 m) long with bare wire leads
Hazardous-Area Rated Models (HCW Series) Min/Max Cylinder Sizes:
- Diameter:
- Minimum: 8 in (203 mm)
- Maximum: 15 in (381 mm)
- Length:
- Minimum: 15 in (381 mm)
- Maximum: 51 in (1295 mm)
*We can custom design HCW heaters for a wide range of gas cylinder sizes. Contact us for more information.
Class I Division 1 Groups B, C, and D
| Part No. 120 VAC | Part No. 240 VAC | Environment | Cylinder Size in | Cylinder Size mm | Watts |
| GCW8481501 | GCW8481502 | Ordinary Location | 8 x 48 | 203 x 1219 | 150 |
| GCW9511501 | GCW9511502 | Ordinary Location | 9 x 51 | 229 x 1295 | 150 |
| GCW15431501 | GCW15431502 | Ordinary Location | 15 x 43 | 381 x 1092 | 150 |
| HCW8481501 | HCW8481502 | Hazardous-Area | 8 x 48 | 203 x 1219 | 150 |
| HCW9511501 | HCW9511502 | Hazardous-Area | 9 x 51 | 229 x 1295 | 150 |
| HCW15431501 | HCW15431502 | Hazardous-Area | 15 x 43 | 381 x 1092 | 150 |
