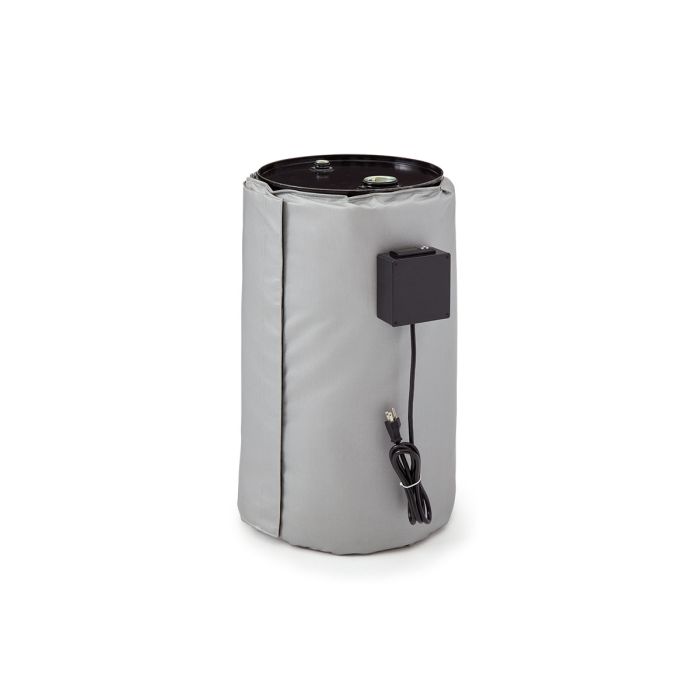

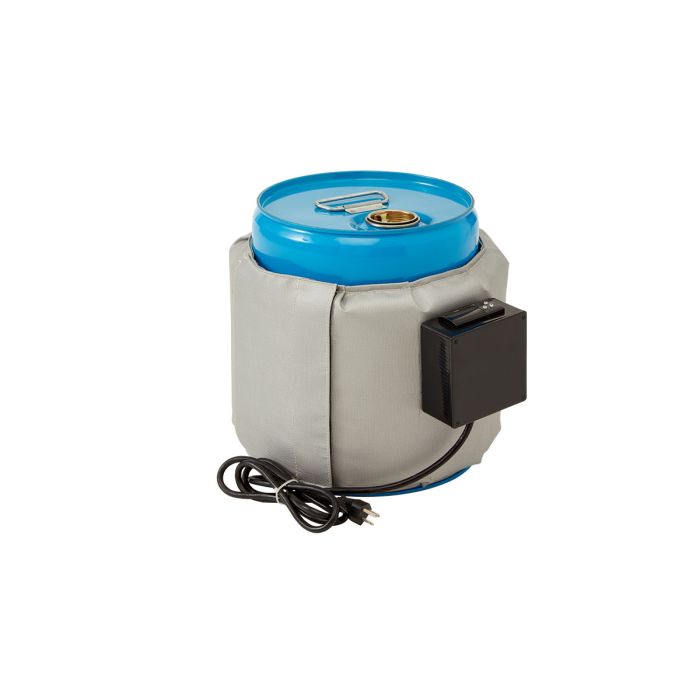

Full Coverage Drum Heaters (FGDH/FGPDH/FGDDC)
BriskHeat full-coverage drum heaters are designed to wrap around a drum and heat the contents while insulating. This is the all-in-one solution with built-in insulation and a digital temperature controller to maximize heat efficiency and heat-up time. Suitable for a wide range of applications including, viscosity control, freeze protection, temperature maintenance, melting of solids, thermal mixing, and more!
- Easy-to-program digital controller, adjustable up to 160F or 450F (71C or 232C)
- Grounded for safety and meets NEC 427.23
- Ideal for use indoor / dry environments - IP4X
- 6 ft (1.8 m) long power cord with choice of plugs or leads
Please complete all selections above to add this item to cart.
Since 1949
Additional Features:
- Insulated to maximize energy efficiency and reduce heat-up time
- Even heat distribution and maximum energy efficiency
- Easy to use - simple plug and play design

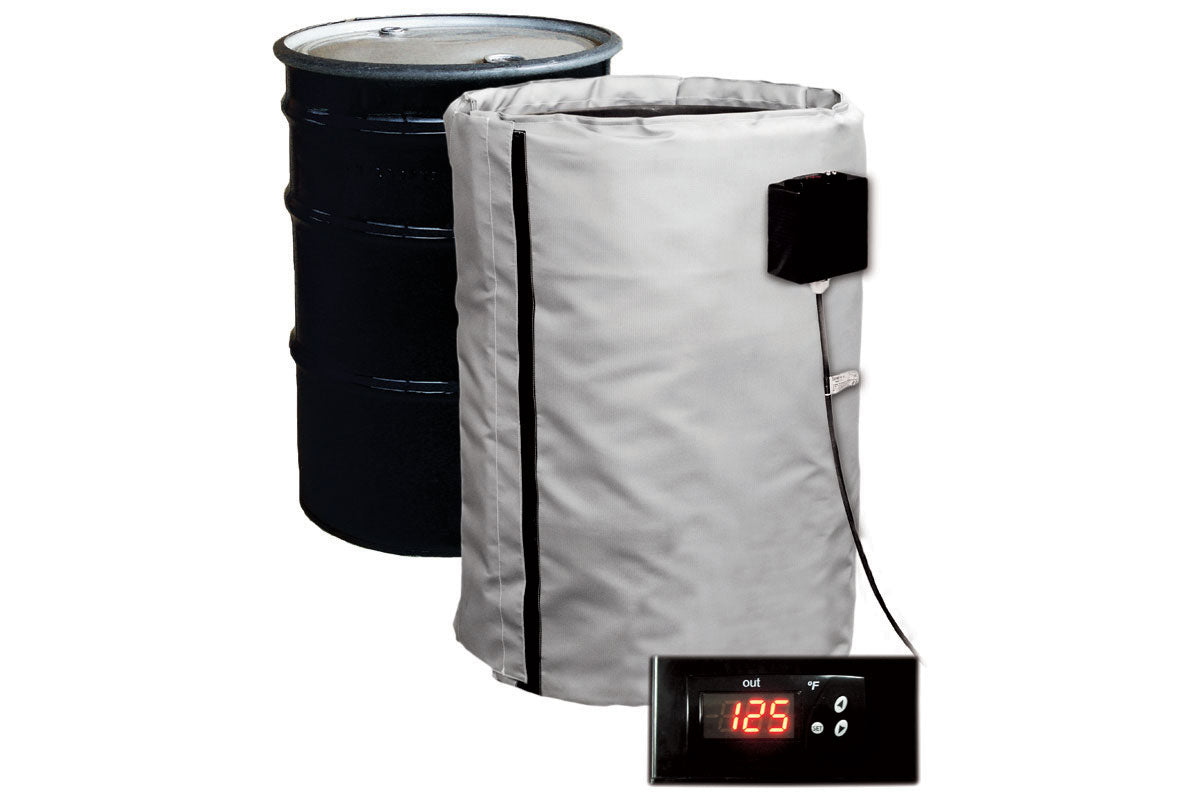

- Display is mounted on top of controller box for increased visibility and user convenience
- Reusable and rugged - long service life
- Safe - heater has a unique 360° grounded heating element and cool-touch surface for your safety
Ideal for a Wide Range of Poly and Metal Drum/Pail Applications:
- Viscosity Control
- Freeze Protection
- Temperature Maintenance
- Melting of Solids
- Thermal Mixing
Outer Material: Silicone impregnated cloth
Insulation: 1.0 in (25 mm) thick fiberglass
Closure Method: Hook and loop fasteners
Maximum Exposure Temperature: 500°F (260°C)
IP Rating: IP4X
Operating Temperature:
- 50° to 450°F (10° to 232°C) for Metal Drums
- 50° to 160°F (10° to 71°C) for Poly Drums
Digital Control: On/off controller. Display is either °F or °C depending on model
Heated Area:
- 55 and 30 gallon size (208 and 114 Liter): Lower two thirds
- 15 and 5 gallon size (61 and 19 Liter): Lower third
Heating Element: 360° grounded heating element for your safety
Dielectric Strength: Over 2000 volts
Power Cord: 6 ft (1.8 m) long
- 120 VAC: 3-prong grounded plug (NEMA 5-15P)
- 240 VAC: 3-prong grounded plug (NEMA 6-15P) or crimped ferrule leads
NOTE: For increased thermal efficiency, add a BriskHeat drum cover reduce heat loss through the top surface of the drum.
Certifications:
CE Approved Models: crimped ferrule leads
Single Zone for Metal Drums - FGDH Series
| 120 VAC with °F display and NEMA 5-15P Plug | 240 VAC with °F display and NEMA 6-15P Plug | 240 VAC with °C display and Crimped Ferrule Leads | Insulator Only | Size gal (l) | Diameter in (mm) | Height in (mm) | Number of Zones | Total Wattage |
| FGDHC55120D | FGDHC55240DV | FGDHC55240DCV | FGDI55V | 55 (208) | 22.3 (566) | 36.4 (924) | 1 | 1600 |
| FGDHC30120D | FGDHC30240D | FGDHC30240DC | FGDI30 | 30 (114) | 18.6 (473) | 29.5 (749) | 1 | 1160 |
| FGDHC15120D | FGDHC15240D | FGDHC15240DC | FGDI15 | 16 (61) | 14.0 (355) | 26.7 (678) | 1 | 870 |
| FGDHC5120D | FGDHC5240D | - | - | 5 (19) | 11.1 (282) | 13.5 (343) | 1 | 550 |

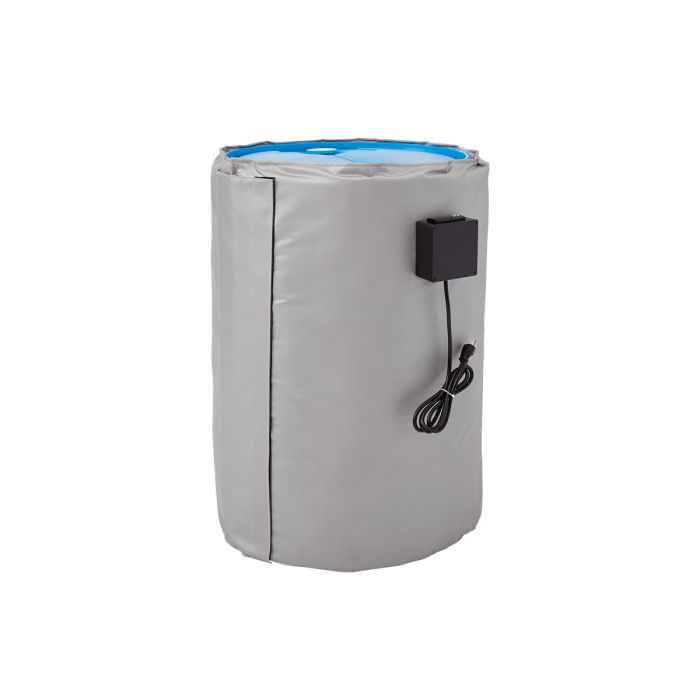

Single Zone for Poly Drums - FGDH Series
| 120 VAC with °F display and NEMA 5-15P Plug | 240 VAC with °F display and NEMA 6-15P Plug | 240 VAC with °C display and Crimped Ferrule Leads | Insulator Only | Size gal (l) | Diameter in (mm) | Height in (mm) | Number of Zones | Total Wattage |
| FGPDHC55120D | FGPDHC55240D | FGPDHC55240DCV | FGDI55V | 55 (208) | 22.3 (566) | 36.4 (924) | 1 | 770 |
| FGPDHC30120D | - | - | FGDI30 | 30 (114) | 18.6 (473) | 29.5 (749) | 1 | 553 |
Dual Zone for Poly Drums - FGDDC Series
| 240 VAC with °F display and NEMA 6-15P Plug | 240 VAC with °C display and Crimped Ferrule Leads | Size gal (l) | Diameter in (mm) | Height in (mm) | Number of Zones | Total Wattage |
| FGDDC55240DV | FGDDC55240DCV | 55 (208) | 22.3 (566) | 36.4 (924) | 2 | 3200 (1600 per zone) |
