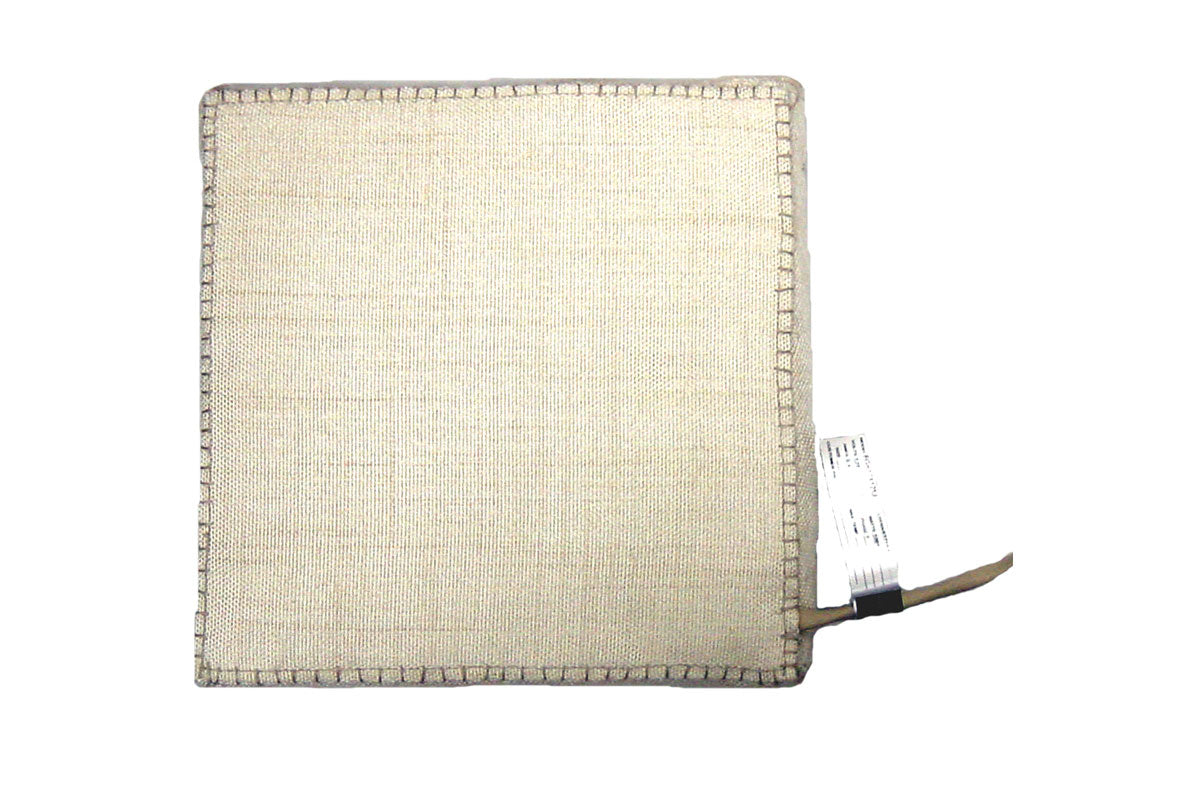

High Temperature Composite Curing Heating Blankets (FGH & SXH)
$0.00
SKU:FGH/SXH Series-RFQ
High Temperature Composite Curing Heating Blankets (FGH & SXH)
Quality Guaranteed
Since 1949
Since 1949
Exposure Temperature:
- FGH series: 800°F (427°C)
- SXH series: 1100°F (593°C)
Power Density:
- FGH series: 7 W/in² (1.1 W/cm²)
- SXH series: 13 W/in² (2.0 W/cm²)
Voltage: 120 or 240 VAC
Dielectric Strength: Over 2000 volts
Nominal Thickness: 1 in (25.4 mm)
Power Cord: 6 ft (1.8 m) long fiberglass power cord with choice of power plug.
Approvals:
With CE approved plug
With CE approved plug
| FGH Series | SXH Series | ||||
| Width in (mm) | Length in (mm) | Total Watts | Width in (mm) | Length in (mm) | Total Watts |
| 6 (152) | 6 (152) | 255 | 6 (152) | 6 (152) | 468 |
| 6 (152) | 12 (305) | 504 | 6 (152) | 12 (305) | 936 |
| 6 (152) | 24 (610) | 1008 | 6 (152) | 24 (610) | 1872 |
| 8 (203) | 8 (203) | 448 | 8 (203) | 8 (203) | 832 |
| 10 (254) | 10 (254) | 700 | 10 (254) | 10 (254) | 1300 |
| 12 (305) | 12 (305) | 1008 | 12 (305) | 12 (305) | 1872 |
| 12 (305) | 24 (610) | 2016 | 12 (305) | 24 (610) | 3744* |
| 16 (406) | 16 (406) | 1792 | 16 (406) | 16 (406) | 3328 |
| 18 (457) | 18 (457) | 2268 | 18 (457) | 18 (457) | 4212* |
| 24 (610) | 24 (610) | 4032* | |||
Catalog/Specifications Sheet
Instruction Manuals
Design Checklists
Q: What are silicone rubber heating blankets used for?
A: Silicone rubber heating blankets are commonly used to:
- Prevent freezing of equipment and materials
- Maintain process temperatures
- Reduce the viscosity of oils, resins, adhesives, and other fluids
- Heat tanks, vessels, drums, pipes, and composite materials
- Support laboratory testing and research applications
Q: How do I select the right silicone rubber heating blanket?
A: Key factors include:
- Surface dimensions
- Material being heated
- Desired temperature
- Ambient conditions
- Available voltage
- Required wattage
- Control requirements
Q: Can silicone rubber heating blankets be customized?
A: Yes. Custom silicone rubber heating blankets can be manufactured in various sizes, shapes, voltages, wattages, and temperature ranges.
Q: Can silicone rubber heating blankets be used outdoors?
A: Silicone rubber heating blankets are moisture and chemical resistant, but you should always check the rating in the specifications of the product before using outdoors.
Q: Are silicone rubber heating blankets flexible?
A: Yes. Silicone rubber heating blankets are highly flexible and can conform to flat, curved, and irregular surfaces. This flexibility helps provide efficient heat transfer and even temperature distribution.
Q: How are silicone rubber heating blankets installed?
A: Installation methods vary by model and may include:
- Pressure-sensitive adhesive backing
- Spring systems
- Hook-and-loop fasteners
Q: Are silicone rubber heating blankets energy efficient?
A: Yes. Because they transfer heat directly to the target surface, silicone rubber heating blankets can be an energy-efficient heating solution compared to heating an entire room or enclosure.
Q: Can silicone rubber heating blankets be used for composite curing?
A: Yes. Silicone rubber heating blankets are widely used in composite repair and curing applications, providing controlled and uniform heat for aerospace, marine, automotive, and industrial composite processes.
Q: Is a control needed for this product?
A: Yes, you will need the use of a temperature control for this product unless the product states that it comes with a control.
Q: What’s the largest size blanket you can manufacture?
A: We currently manufacture blankets of any length with a maximum width of 4 feet (1.2 m).
Q: Can you change the setpoint on a high limit thermostat on SRX heaters?
A: No, the setpoints are designed to keep the blanket rated for hazardous area approvals. Any changes will void the approvals.
Q: How do I hold the heater in place until I can get the PSA cured?
A: We suggest using a high-heat adhesive tape to secure the heater to its vessel until the PSA has had time to properly cure. A good general guideline for curing is 200°F (93°C) for 20 minutes.
Q: Can I leave the tape on after the PSA is cured?
A: You may if it is rated for the temperatures you are wanting to achieve in your process.
