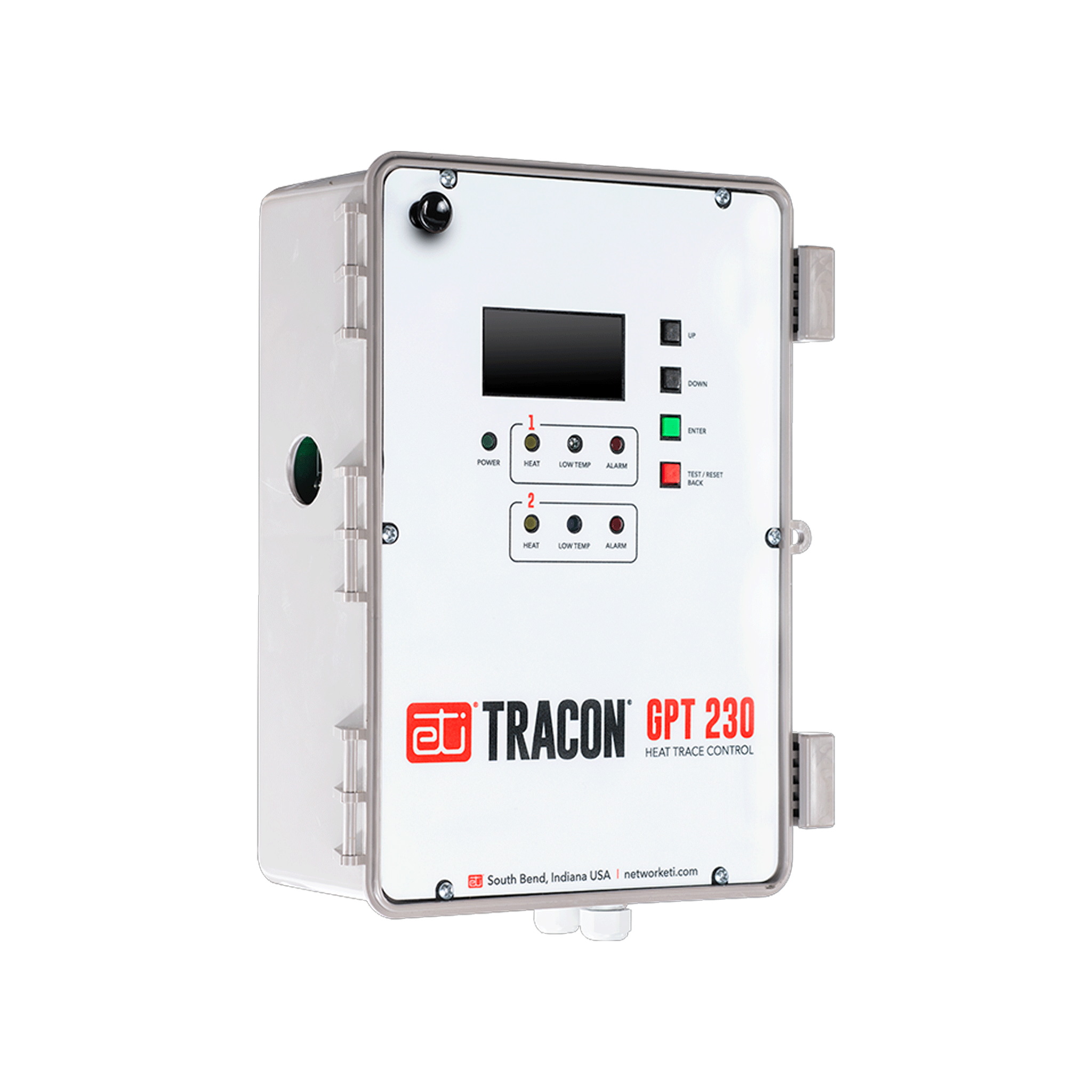

ETI® Tracon Model GPT 230 (25171)
$1,476.00
SKU:25171
The Tracon GPT 230 is a dual-channel heat trace temperature controller designed to provide independent control and monitoring for two separate heating zones from a single, centralized unit. Each channel features its own dedicated relay and 30mA Ground-Fault Equipment Protection (GFEP) for reliable, autonomous zone management.
The GPT 230 is highly versatile, supporting both 3-wire RTD and 100k ohm thermistor sensors to accommodate a wide range of process requirements. It includes two 20 ft. thermistor cables and supports NEC Class 2 sensor runs up to 2,000 ft. for flexible installation. Comprehensive monitoring is provided via an intuitive panel display for temperature, load current, and ground fault status.
- Dual-Channel Efficiency: Manages two independent heater zones within a single, space-saving enclosure.
- Precision Monitoring: Individual displays for real-time tracking of temperature, load current, and ground fault current for both channels.
- Advanced Safety: Built-in GFEP with automatic self-testing and adjustable alarm thresholds for ground fault, load, and temperature conditions.
- Flexible Connectivity: Supports 3-wire RTD or thermistor sensors; compatible with long-distance (up to 2,000 ft.) NEC Class 2 cabling.
- Enhanced Reliability: Features a selectable Fault Mode for sensor failures and a Fire Protection Mode to maintain heater operation in critical systems.
-
Durable Design: Housed in a weather-resistant NEMA 4X / IP66 enclosure suitable for both indoor and outdoor environments.
NOTE: For International availability please contact BriskHeat.
Quality Guaranteed
Since 1949
Since 1949
Operating Temperature Range:−40 °F to 122 °F (−40 °C to 50 °C)
Area of Use:Nonhazardous locations
Dimensions:9.0" (W) 12 4/5" x (H) x 5 9/10" (D) (229 mm (W) x 325 mm (H) x 150 mm (D))
Supply Voltage:100 – 277 Vac 50/60 Hz
Controller Power Consumption:7 W maximum, 2.2 W idle
Load Rating, Each Channel:30 A, 100 – 277 Vac resistive
Temperature Accuracy:±2 °F (1 °C)
Temperature Inputs:
- (Included) Two Thermistors: 100k ohms at 25 °C, range −40 °F to 230 °F (−40 °C to 110 °C), 20ft Lead
- RTD Sensor (sold separately)
Temperature Unit:°F or °C
Alarm Relay:Isolated SPDT 1 AMP Class 2 contact per channel
Display:2.7" OLED graphic 128x64
Ingress Protection:NEMA 4X, IP66
Approvals:
60730-1
1053
E60730–1:13
109R
60730-11053
E60730–1:13
109R
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
Freeze Protection
| Part No. | Description |
|---|---|
| 25171 | Tracon MODEL GPT 230 Dual-Point General Purpose Heat–Trace Control |
