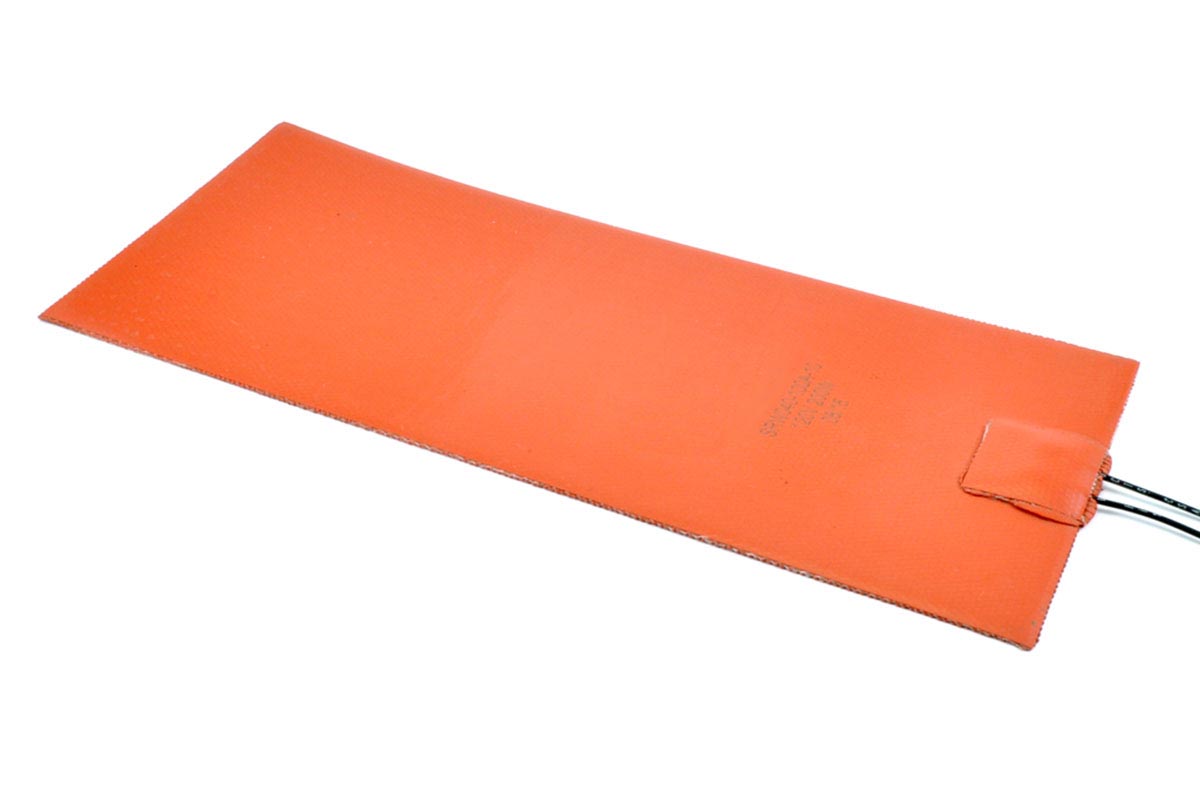

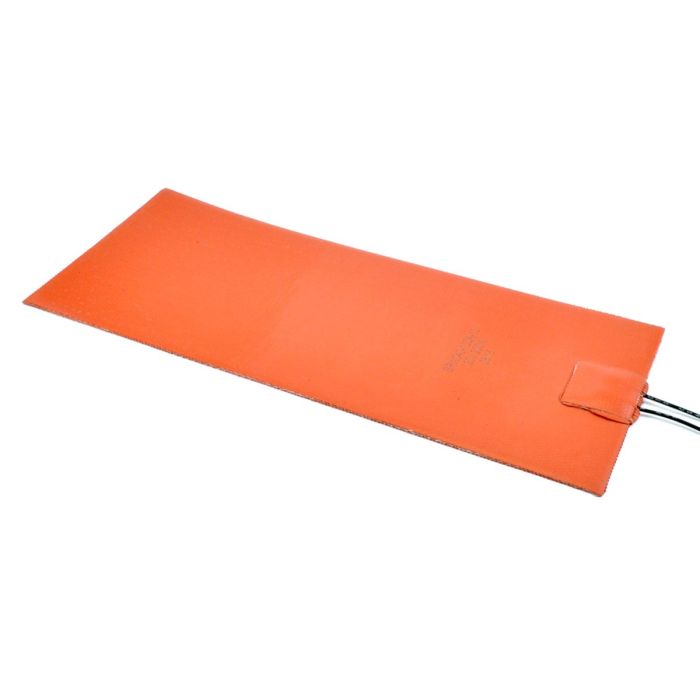

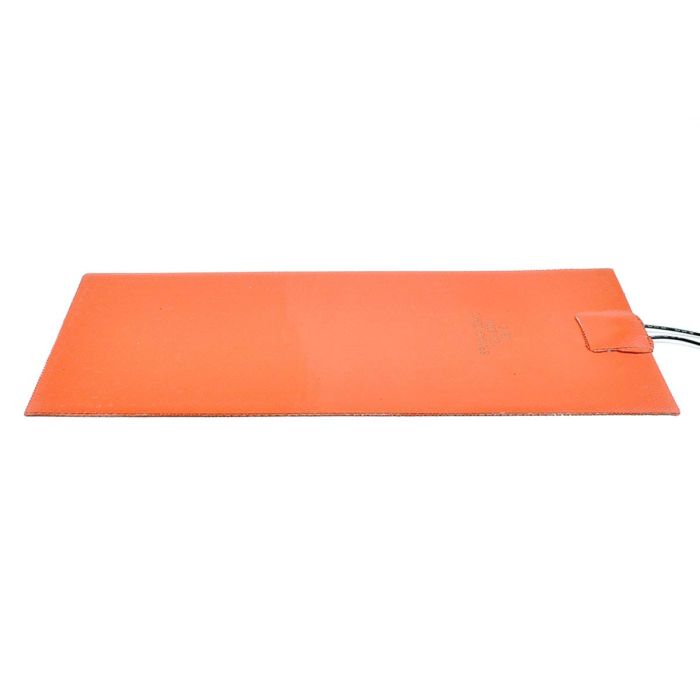

Economy-Series - Silicone Rubber Heating Blankets (SRW)
BriskHeat SRW economy series rubber heating blankets offer a thin, low-profile solution for a large range of surfaces like tanks, hoppers, conveyors, silos, vessels, and more. These rubber heating blankets are made with a single to three-strand resistance wire heating element laminated between two layers of fiberglass reinforced silicone rubber.
- 120 VAC
- 3in (76mm)
- 30in (76mm)
Since 1949
Additional Features:
- Heating element laminated between two layers of fiberglass-reinforced silicone rubber
- Suitable for a large range of surfaces like tanks, hoppers, conveyors, silos, vessels, etc.
- Custom options available, for more details see specifications:
- Holes and cutouts

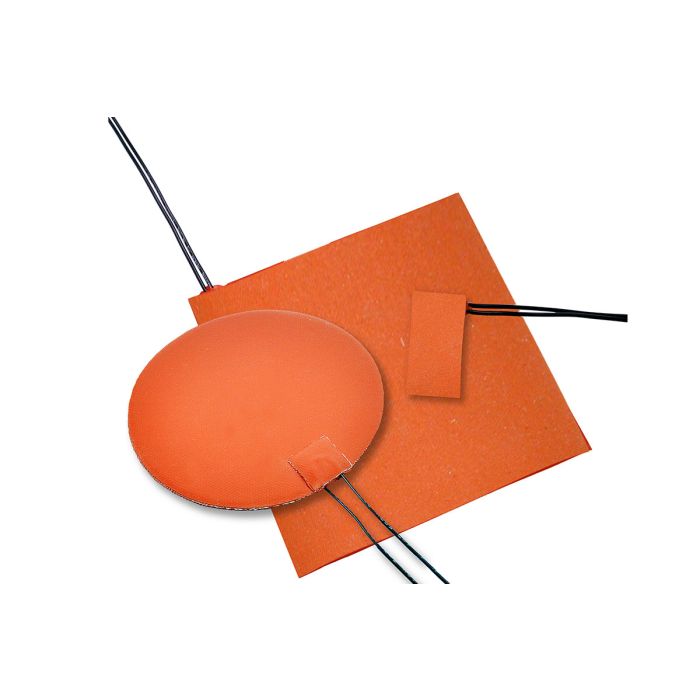

- Unique shapes and sizes
- Lead exit locations
- Built-in thermocouples
- Ground braid mesh
- Dual voltage
- Three-phase
- Lead Caps
Power Density: 5 W/in2 (0.78 w/cm2)
Voltage: 120 or 240 VAC
Wattage: +5%/-10%
Exposure Temperature: -60°F to 450°F (-51°C to 232°C)
Nominal Thickness: 0.06 in (1.5 mm)
Minimum Bend Radius: 3.5 in (89 mm)
Power Leads: 10 in (25 cm) PFA extruded 22 AWG leads with bare wire (no plug); Other lengths offered.
Built-in Preset: (on/off) Thermostat Options:*:
- 28°F/55°F (-2°C/13°C)
- 82°F/109°F (28°C/43°C)
- 147°F/174°F (64°C/79°C)
- 172°F/194°F (78°C/90°C)
- 275°F/302°F (135°C/150°C)
Built-in Adjustable Thermostat Options*: Adjustable from 25°F to 330°F (-4°C to 166°C)
Custom Options:
Power Density: 0.5 W/in2 to 25 W/in2 (0.08 W/cm2 to 3.9 W/cm2)
Voltage: 120 or 240 VAC (12 VDC to 480 custom)
Lead Terminations: Insulated terminals, standard plugs, mini connectors, twist lock plugs, bare wire
Lead Protection: Heat shrink, silicone sleeve, SS braid, SS conduit
Mounting: Easy to apply industrial strength pressure sensitive adhesive backing, boot hooks and lace, D-rings, springs and grommets, snap fasterners, high-temp rubber rings, hook adn loop (Velcro)
Insulation: closed cell silicone rubber sponge bonded to the heater for added efficiency: 1/16, 1/8, 1/4, or 1/2 in (1.6, 3.2, 6.4, 9.5, 12.7 mm) Rated to 450°F (232°C)
*SRW blankets with thermostats or ground mesh are not UL recognized
| 120 VAC | 240 VAC | Width in (mm) | Length in (mm) | Watts |
| SRW010-030A010A00-UR | N/A | 1 (25) | 3 (76) | 15 |
| SRW010-040A010A00-UR | N/A | 1 (25) | 4 (102) | 20 |
| SRW010-050A010A00-UR | N/A | 1 (25) | 5 (127) | 25 |
| SRW010-100A010A00-UR | SRW010-100B010A00-UR | 1 (25) | 10 (254) | 50 |
| SRW010-150A010A00-UR | SRW010-150B010A00-UR | 1 (25) | 15 (381) | 75 |
| SRW010-200A010A00-UR | SRW010-200B010A00-UR | 1 (25) | 20 (508) | 100 |
| SRW010-250A010A00-UR | SRW010-250B010A00-UR | 1 (25) | 25 (635) | 125 |
| SRW010-300A010A00-UR | SRW010-300B010A00-UR | 1 (25) | 30 (762) | 150 |
| SRW010-350A010A00-UR | SRW010-350B010A00-UR | 1 (25) | 35 (889) | 175 |
| SRW010-400A010A00-UR | SRW010-400B010A00-UR | 1 (25) | 40 (1016) | 200 |
| SRW010-800A010A00-UR | N/A | 1 (25) | 80 (2032) | 400 |
| SRW020-020A010A00-UR | N/A | 2 (51) | 2 (51) | 20 |
| SRW020-050A010A00-UR | SRW020-050B010A00-UR | 2 (51) | 5 (127) | 50 |
| SRW020-100A010A00-UR | SRW020-100B010A00-UR | 2 (51) | 10 (254) | 100 |
| SRW020-150A010A00-UR | SRW020-150B010A00-UR | 2 (51) | 15 (381) | 150 |
| SRW020-200A010A00-UR | SRW020-200B010A00-UR | 2 (51) | 20 (508) | 200 |
| SRW020-250A010A00-UR | SRW020-250C010A00-UR | 2 (51) | 20 (508) | 250 |
| SRW020-300A010A00-UR | SRW020-300F010A00-UR | 2 (51) | 30 (762) | 300 |
| SRW020-350A010A00-UR | N/A | 2 (51) | 35 (889) | 350 |
| SRW020-400A010A00-UR | N/A | 2 (51) | 40 (1016) | 400 |
| SRW030-030A010A00-UR | N/A | 3 (76) | 3 (76) | 45 |
| SRW030-050A010A00-UR | SRW030-050B010A00-UR | 3 (76) | 5 (127) | 75 |
| SRW030-100A010A00-UR | SRW030-100B010A00-UR | 3 (76) | 10 (254) | 150 |
| SRW030-150A010A00-UR | SRW030-150B010A00-UR | 3 (76) | 15 (381) | 225 |
| SRW030-200A010A00-UR | SRW030-200B010A00-UR | 3 (76) | 20 (508) | 300 |
| SRW030-250A010A00-UR | N/A | 3 (76) | 25 (635) | 375 |
| SRW030-300A010A00-UR | SRW030-300C010A00-UR | 3 (76) | 30 (762) | 450 |
| SRW030-350A010A00-UR | N/A | 3 (76) | 35 (889) | 525 |
| SRW030-400A010A00-UR | SRW030-400D010A00-UR | 3 (76) | 40 (1016) | 600 |
| SRW040-040A010A00-UR | N/A | 4 (102) | 4 (102) | 80 |
| SRW040-050A010A00-UR | SRW040-050B010A00-UR | 4 (102) | 5 (127) | 100 |
| SRW040-100A010A00-UR | SRW040-100B010A00-UR | 4 (102) | 10 (254) | 200 |
| SRW040-150A010A00-UR | SRW040-150B010A00-UR | 4 (102) | 15 (381) | 300 |
| SRW040-200A010A00-UR | SRW040-200B010A00-UR | 4 (102) | 20 (508) | 400 |
| SRW040-250A010A00-UR | SRW040-250E010A00-UR | 4 (102) | 25 (635) | 500 |
| SRW040-300A010A00-UR | SRW040-300C010A00-UR | 4 (102) | 30 (762) | 600 |
| SRW040-350A010A00-UR | SRW040-350C010A00-UR | 4 (102) | 35 (889) | 700 |
| SRW040-400A010A00-UR | N/A | 4 (102) | 40 (1016) | 800 |
| SRW050-050A010A00-UR | SRW050-050B010A00-UR | 5 (127) | 5 (127) | 125 |
| SRW050-100A010A00-UR | SRW050-100B010A00-UR | 5 (127) | 10 (254) | 250 |
| SRW050-150A010A00-UR | SRW050-150B010A00-UR | 5 (127) | 15 (381) | 375 |
| SRW050-200A010A00-UR | SRW050-200B010A00-UR | 5 (127) | 20 (508) | 500 |
| SRW050-250A010A00-UR | SRW050-250C010A00-UR | 5 (127) | 25 (635) | 625 |
| SRW050-300A010A00-UR | SRW050-300E010A00-UR | 5 (127) | 30 (762) | 750 |
| SRW050-350A010A00-UR | SRW050-350C010A00-UR | 5 (127) | 35 (889) | 875 |
| SRW050-400A010A00-UR | SRW050-400C010A00-UR | 5 (127) | 40 (1016) | 1000 |
| SRW060-050A010A00-UR | SRW060-050B010A00-UR | 6 (152) | 5 (127) | 150 |
| SRW060-100A010A00-UR | SRW060-100B010A00-UR | 6 (152) | 10 (254) | 300 |
| SRW060-150A010A00-UR | SRW060-150B010A00-UR | 6 (152) | 15 (381) | 450 |
| SRW060-200A010A00-UR | SRW060-200B010A00-UR | 6 (152) | 20 (508) | 600 |
| SRW060-250A010A00-UR | N/A | 6 (152) | 25 (635) | 750 |
| SRW060-300A010A00-UR | N/A | 6 (152) | 30 (762) | 900 |
| SRW060-350A010A00-UR | SRW060-350D010A00-UR | 6 (152) | 35 (889) | 1050 |
| SRW060-400A010A00-UR | SRW060-400D010A00-UR | 6 (152) | 40 (1016) | 1200 |
