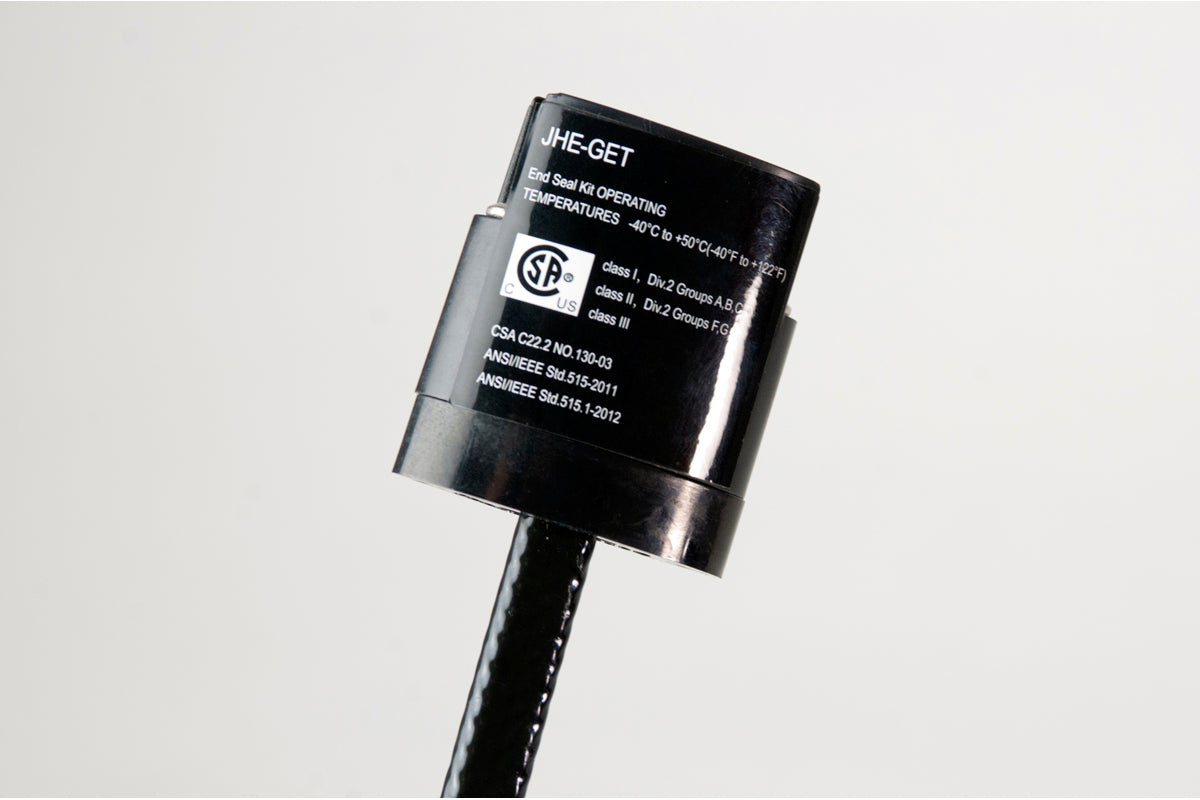

CSA End Seal Kit (JHE-GET)
$18.75
SKU:JHE-GET
The JHE-GET kit provides a reliable, low-profile end seal termination for BriskHeat SLCBL, SLMCBL, and SLHCBL self-regulating heating cables. Each kit contains all necessary components to complete one secure end seal connection. It is CSA approved for use in hazardous area locations specifically with the SLCBL-BP and -BF series, and is suitable for non-hazardous area locations across standard SLCBL, SLMCBL, and SLHCBL cable configurations.
Kit Contents:
- 1x end seal housing
- 1x watertight sealing grommets
- 1x pressure seal end with screws
Quality Guaranteed
Since 1949
Since 1949
Maximum Current:32A
Voltage:110-120V, 208-277V
Maximum Continuous Exposure Temperature:(T5): 212°F (100°C)
Approvals:
Ordinary Locations
Hazardous (Classified) Locations
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups E, F, G
Class III
SLCBL -BP, -BF series only
Ordinary LocationsHazardous (Classified) Locations
Class I, Division 2, Groups A, B, C, D
Class II, Division 2, Groups E, F, G
Class III
SLCBL -BP, -BF series only
Approvals valid only when used with appropriate heating cable and installation accessories, and installed in accordance with all applicable instructions, codes, and regulations.
| Part No. | Kit | Compatible With | Enough to Complete | Kit Contents |
|---|---|---|---|---|
| JHE-GET | Low-Profile End Seal Kit | SLCBL/SLMCBL/SLHCBL Heating Cable | One low-profile end seal terminiation |
|
Catalog/Specifications Sheet
Instruction Manuals
Q: What is self-regulating cable?
A: Self-regulating cable, also known as heat tape or heat trace, is a semi-flexible heating cable that automatically regulates its heat output based upon surface temperature and ambient conditions. It is often used for freeze protection applications to wrap or trace pipes, tanks, vessels, roofing and much more.
Q: What is the difference between self-regulating and constant wattage heating cable?
A: Self-regulating heating cable automatically adjusts its heat output based on the surrounding temperature. It produces more heat in colder areas and less heat in warmer areas. Constant wattage heating cable delivers the same heat output along its entire length regardless of ambient conditions.
Q: When should I use self-regulating heating cable?
A: Self-regulating heating cable is ideal for freeze protection and temperature maintenance applications where temperatures may vary along the pipe or equipment. It is commonly used for:
- Water pipes
- Process piping
- Roof and gutter de-icing
- Tanks and vessels
- Industrial freeze protection
Q: When should I use constant wattage heating cable?
A: Constant wattage heating cable is often used when a consistent heat output is required across the entire circuit. Common applications include:
Process temperature maintenance
- Long pipe runs
- Industrial equipment
- Viscosity control
- Applications with predictable heating requirements
Q: Can heating cable be used outdoors?
A: Yes. Many heating cables are designed for outdoor environments and can be used on exposed piping, tanks, valves, roofs, gutters, and process equipment. Our low temperature self-regulating heating cable, mid temperature self-regulating heating cable, high temperature constant wattage cable, and speedtrace self-regulating heating cable are suitable for outdoor use. Several constant wattage cable models are moisture and chemical resistant. Always confirm environmental ratings before installation.
Q: What voltages are available for heating cable?
A: Heating cable is available in multiple voltage options, including:
- 120V
- 208V
- 240V
- 277V
- 480V
Q: Is a temperature control needed for your Self-Regulating Heating Cable?
A: BriskHeat Self-Regulating Heating Cable should be used with an appropriate temperature controller to save energy and ensure the cable is only energized during cold periods, but it is not required. Temperature control is also necessary to maintain a specific process temperature.
