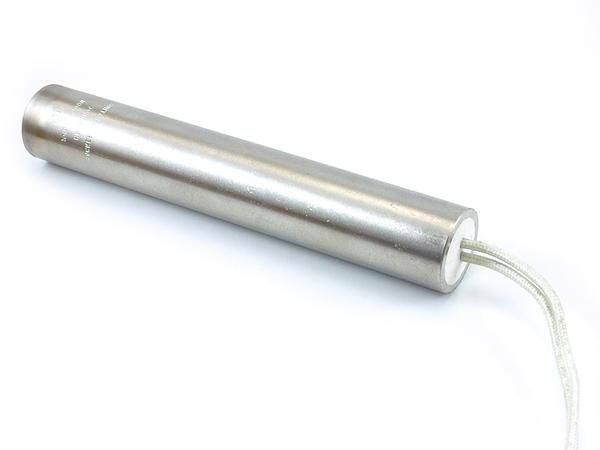

1/4 in (6mm) Swaged Cartridge Heaters
$27.75
SKU:HR25010H
BriskHeat Swaged Cartridge Heaters are made of high-quality stainless steel, supplied with 10-in (254 mm) fiberglass leads, and designed for applications where high operating temperatures or heavy vibrations may be present. These durable cartridge heaters are swaged for greater thermal conductivity, making them very efficient.
- 0.25 in (6 mm) x 1.25 in (32 mm).
- 150 watts.
- 120 volts.
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Choice of sheath materials for high temperature or corrosive applications
- Distributed wattage puts more power where needed
- Available with integrated thermocouple
- Diameters with custom lengths
- Metric sizes (mm): 6, 6.5, 8, 10, 12, 12.5, 13, 14, 16, 17, 19, 20, 25
Construction
- TIG-Welded End Disc – To prevent contamination and moisture absorption.
- 304 Stainless-Steel Sheath – For oxidation resistance in a wide variety of environments.
- High-Purity Magnesium Oxide Fill – For maximum dielectric strength and thermal conductivity. Highly compacted for maximum heat transfer.
- Nickel-Chromium Resistance Wire – For maximum heater life, and evenly wound for even heat distribution.
- High-Impact Ceramic Cap – Retards contamination and is suitable for high vibration applications. Deep holes in cap prevent fraying of leads when bent.
- High-Temperature DuraFlex 550 Lead Wires – Max exposure up to 1,022° F (550° C).
Available upon request
For Ordering Charts, See Resources Tab
Custom Options:
Voltage: Up to 480 VAC, Dual 120/240 or 240/480; Single or 3-phase
Power Density: Up to 300 W/in2 (46.5 W/cm2)
Sheath Material: 304 SS, 316 SS, Incoloy
End-Piece Seals: Ceramic, Iava, mica
Lead Termination: Swaged-in, crimped-on, straight pin (posts)
Lead Wire Options: Duraflex, Teflon, Silicone, SJO cord
Potting: Cement, Epoxy, RTV, Epoxy over RTV
Lead Protection: Braid, flexible conduit, convoluted hose, sleeving, right angles, strain relief
Fittings: Brass or SS single NPT, brass or SS double NPT, flange, mechanical stop
Special Construction: Grounded, spring guards, distributive wattage, internal thermocouple, bent
