6" Wide Standard Size Aluminum Foil Heaters
$52.00
SKU:FHB0601200002

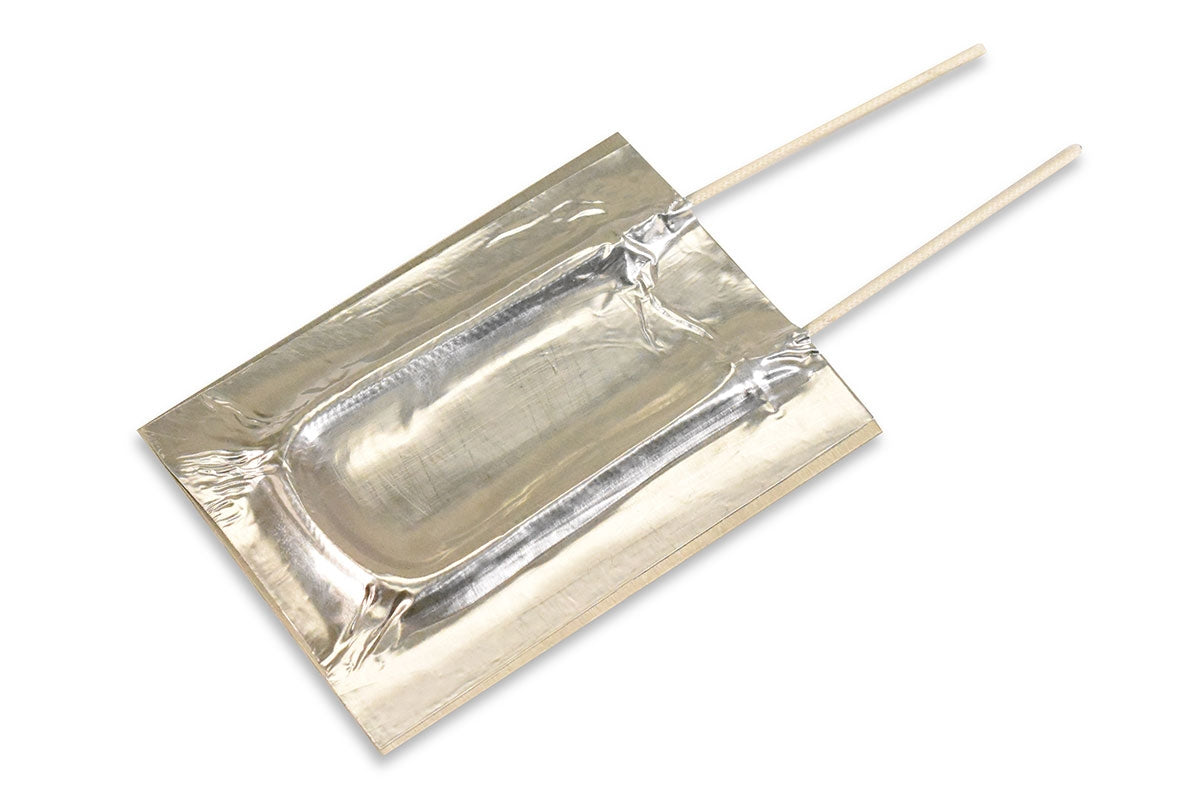

BriskHeat standard size aluminum foil heaters are a self-contained one-piece assembly. With a resistant element that is laminated between two layers of aluminum foil, these heaters are ideal for area and surface heating applications.
Ordering Options:
Quality Guaranteed
Since 1949
Since 1949
Additional Features:
- Low-cost solution
- Custom shapes adn sizes
- Built to exact requirements and specifications
- Large volume OEM capability
Power Density: Up to 3 W/in² (0.47 W/cm²)
Voltage: 120 or 240 VAC
Exposure Temperature: -40°F (-40°C) to 300°F (149°C)
Width:
- Minimum: 1.25 in (32 mm)
- Maximum: 36 in (914 mm)
Length:
- Minimum: 4 in (102 mm)
- Maximum: 60 in (1524 mm)
Nominal Thickness: 0.19 in (4.7 mm)
Power Cord: 18 in (457 mm) 16-22 gauge with fiberglass sleeving and bare wire terminations (PVC or Teflon™-sleeved leads available)
Wattage Tolerance: +5%/-10%
IP Rating: IP50 (IP65 available)
Approvals:
Aluminum foil heaters are a popular choice for many applications:
Food Service Equipment: Keeping food at optimum temperatures on service equipment such as buffet tables, warming boxes and cabinets, salad bars, chafers, and others
Laboratory Equipment: To provide heat for apparatus such as chambers, vessels, piping, beakers, test tube heaters, magnetic stirrers, cylinders, and more
Medical Products: To provide heat for items like incubators, blood warmers, in vitro fertilization heaters, surgery beds, biofluid warmers, anesthesia heaters, and more
Automotive Components: To prevent condensation on mirrors and battery warming
Electrical boxes: To protect electronics from cold and prevent condensation
Ceilings and Walls: To provide radiant heat
Heated Tabletops: To provide heat for processes where a heated surface is required
Small Appliances: To provide heat to coffee makers, crock pots, pressure cookers, etc.
| Part No. | Width in (mm) | Length in (mm) | Voltage | Watts |
| FHB0601000007 | 6.0 (152) | 10.0 (254) | 120 | 170 |
| FHB0601200002 | 6.0 (152) | 12.0 (305) | 120 | 205 |
| FHB0602400001 | 6.0 (152) | 24.0 (640) | 120 | 420 |
Custom Options:
- Semi-rigid aluminum sheet backing, 0.025 in (0.6 mm) thick
- Unique shapes, holes, and cut-outs
- Lead terminations including ring, quick-connect, and space terminals
- Built-in single set-point controlling thermostats
- Dual wattage and dual voltage
Catalog/Specifications Sheet
Q: What are silicone rubber heating blankets used for?
A: Silicone rubber heating blankets are commonly used to:
- Prevent freezing of equipment and materials
- Maintain process temperatures
- Reduce the viscosity of oils, resins, adhesives, and other fluids
- Heat tanks, vessels, drums, pipes, and composite materials
- Support laboratory testing and research applications
Q: How do I select the right silicone rubber heating blanket?
A: Key factors include:
- Surface dimensions
- Material being heated
- Desired temperature
- Ambient conditions
- Available voltage
- Required wattage
- Control requirements
Q: Can silicone rubber heating blankets be customized?
A: Yes. Custom silicone rubber heating blankets can be manufactured in various sizes, shapes, voltages, wattages, and temperature ranges.
Q: Can silicone rubber heating blankets be used outdoors?
A: Silicone rubber heating blankets are moisture and chemical resistant, but you should always check the rating in the specifications of the product before using outdoors.
Q: Are silicone rubber heating blankets flexible?
A: Yes. Silicone rubber heating blankets are highly flexible and can conform to flat, curved, and irregular surfaces. This flexibility helps provide efficient heat transfer and even temperature distribution.
Q: How are silicone rubber heating blankets installed?
A: Installation methods vary by model and may include:
- Pressure-sensitive adhesive backing
- Spring systems
- Hook-and-loop fasteners
Q: Are silicone rubber heating blankets energy efficient?
A: Yes. Because they transfer heat directly to the target surface, silicone rubber heating blankets can be an energy-efficient heating solution compared to heating an entire room or enclosure.
Q: Can silicone rubber heating blankets be used for composite curing?
A: Yes. Silicone rubber heating blankets are widely used in composite repair and curing applications, providing controlled and uniform heat for aerospace, marine, automotive, and industrial composite processes.
Q: Is a control needed for this product?
A: Yes, you will need the use of a temperature control for this product unless the product states that it comes with a control.
Q: What’s the largest size blanket you can manufacture?
A: We currently manufacture blankets of any length with a maximum width of 4 feet (1.2 m).
Q: Can you change the setpoint on a high limit thermostat on SRX heaters?
A: No, the setpoints are designed to keep the blanket rated for hazardous area approvals. Any changes will void the approvals.
Q: How do I hold the heater in place until I can get the PSA cured?
A: We suggest using a high-heat adhesive tape to secure the heater to its vessel until the PSA has had time to properly cure. A good general guideline for curing is 200°F (93°C) for 20 minutes.
Q: Can I leave the tape on after the PSA is cured?
A: You may if it is rated for the temperatures you are wanting to achieve in your process.
