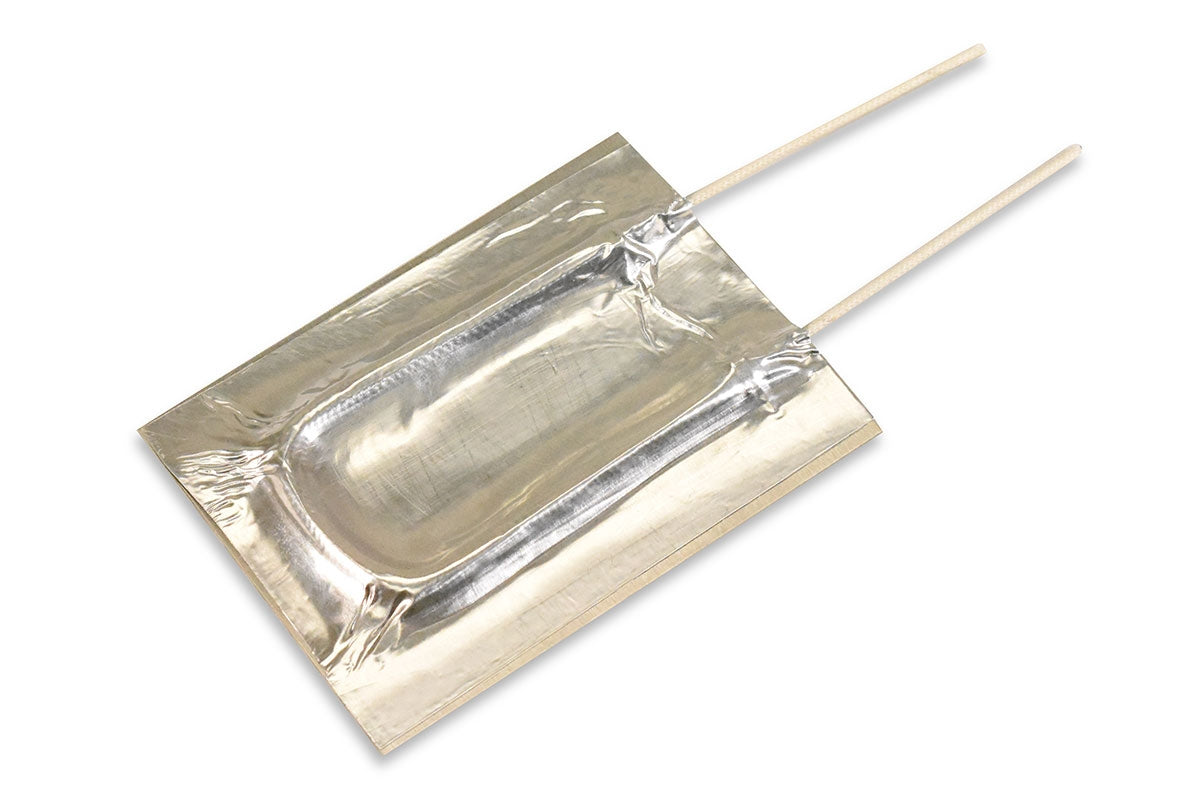

2" Wide Standard Size Aluminum Foil Heaters
BriskHeat standard size aluminum foil heaters are a self-contained one-piece assembly. With a resistant element that is laminated between two layers of aluminum foil, these heaters are ideal for area and surface heating applications.
- Aluminum foil heater 2" x 6"
- 120 VAC
- 25 Watts
- 18" Leads bare wire
Since 1949
Additional Features:
- Low-cost solution
- Custom shapes adn sizes
- Built to exact requirements and specifications
- Large volume OEM capability
Power Density: Up to 3 W/in² (0.47 W/cm²)
Voltage: 120 or 240 VAC
Exposure Temperature: -40°F (-40°C) to 300°F (149°C)
Width:
- Minimum: 1.25 in (32 mm)
- Maximum: 36 in (914 mm)
Length:
- Minimum: 4 in (102 mm)
- Maximum: 60 in (1524 mm)
Nominal Thickness: 0.19 in (4.7 mm)
Power Cord: 18 in (457 mm) 16—22 gauge with fiberglass sleeving and bare wire terminations (PVC or TeflonTM-sleeved leads available) Wattage Tolerance: +5%/-10%
IP Rating: IP50 (IP65 available)
Construction Types:
- A- Flexible with PSA (pressure-sensitive adhesive)
- B- Flexible without PSA (pressure-sensitive adhesive)
- C- Semi-rigid aluminum sheet backing 0.025 in (0.6 mm) thick
Aluminum foil heaters are a popular choice for many applications:
Food Service Equipment: Keeping food at optimum temperatures on service equipment such as buffet tables, warming boxes and cabinets, salad bars, chafers, and others
Laboratory Equipment: To provide heat for apparatus such as chambers, vessels, piping, beakers, test tube heaters, magnetic stirrers, cylinders, and more
Medical Products: To provide heat for items like incubators, blood warmers, in vitro fertilization heaters, surgery beds, biofluid warmers, anesthesia heaters, and more
Automotive Components: To prevent condensation on mirrors and battery warming
Electrical boxes: To protect electronics from cold and prevent condensation
Ceilings and Walls: To provide radiant heat
Heated Tabletops: To provide heat for processes where a heated surface is required
Small Appliances: To provide heat to coffee makers, crock pots, pressure cookers, etc.
| Part No. | Width in (mm) | Length in(mm) | Voltage | Watts |
| FHB0200600001 | 2.0 (51) | 6.0 (152) | 120 | 25 |
| FHB0201000005 | 2.0 (51) | 10.0 (254) | 120 | 50 |
| FHB0201200003 | 2.0 (51) | 12.0 (305) | 120 | 60 |
Custom Options:
- Semi-rigid aluminum sheet backing, 0.025 in (0.6 mm) thick
- Unique shapes, holes, and cut-outs
- Lead terminations including ring, quick-connect, and space terminals
- Built-in single set-point controlling thermostats
- Dual wattage and dual voltage
Q: Why choose aluminum foil heaters?
A: They are extremely affordable compared to other surface heaters, are easy to install, have a low-profile design, and do not require significant development costs.
Q: How do aluminum foil heaters attach to the object they are heating?
A: You can attach heaters using a built-in adhesive or can mechanically fasten. There is also an option to add a semi-rigid aluminum sheet backing to add durability and assist with the mechanical fastening.
Q: What is the return/repair policy?
A: Warranty is one year and defective products are replaced or credited.
